Delmia Corp.    Auburn Hills, MI 48321 4687
Sep 14, 2004 End-To-End (E2E) Machining Solution is comprised of suite of DELMIA applications that encapsulate activities found throughout machining process, from process planning to NC programming, verification, and inspection. Product collaborates engineering and planning teams and enables users to execute process-planning activities simultaneously during design phase. In virtual environment, best practice information can be captured, shared, and reused.

Bridgeport Machine, Inc.    Bridgeport, CT 06606
Sep 14, 2004 With 73 x 81 in. footprint and X, Y, Z travel of 18 x 14 x 15, cast iron Interact 450 features customized Siemens 810D control and proprietary FastOp package with one-button macro operations. Machine provides 1,180 ipm rapid rates on all axes and 3 m/sec² accel/decel rates. BT or CT 40 taper spindle with 13.4 hp motor provides speeds to 8,000 rpm. VMC also includes coolant system and rear-exit chip auger with full wash down.

Bridgeport Machine, Inc.    Bridgeport, CT 06606
Sep 14, 2004 Series XP3, Models 610, 760, 1000, and 1500 range in XYZ work envelope size from 24 x 20 x 24 in. to 60 x 26 x 24 in. They feature cast iron construction, dual-ball linear guides, and 45 mm ballscrews. SKF spindle offers radial stiffness of 60 lbf/0.00004 in. and axial stiffness of 70 lbf/0.00004 in. All models include chip conveyors, through-spindle coolant at 300 psi, and thermal compensation. User can choose Fanuc 18i MB or Heidenhain iTNC530 control system.

DE-STA-CO Industries, Robohand    Monroe, CT 06468
Sep 14, 2004 DPL DirectConnect™ grippers, designed for use in confined spaces, come in 6 styles with grip force of 161–403 lb at 100 psi. Grip force is enabled by 2 simultaneously double-acting pistons, and jaws are supported throughout length of gripper body. Featuring DirectConnect™ technology, grippers eliminate need for adapter plates by connecting directly to other DirectConnect components. Shielded design protects internal drive mechanism from chips and other particulates.

Beaumont Machine    Milford, OH 45150
Sep 14, 2004 Series FH Six-Axis Fast Hole EDM Machines separate tilting A axis from table-mounted B rotary axis, creating unobstructed work area. They include remote diagnostics, 3,000 rpm spindle, communications portal, 15 in. LCD screen, and remote pendant. All machines utilize Siemens 840 Di CNC controls as well as Siemens drives and motors, which feature absolute encoders to insure position is never lost.

De-Sta-Co. Industries, Advanced Development Center    Carrollton, TX 75006
Sep 14, 2004 Stronghold(TM) Select products work together as part of complete workholding system. Available in 18 styles, hydraulic swing/pull clamps come in 475, 1,100, and 2,400 lb sizes. Hydraulic work supports include 1,650, 2,500, 5,000, 7,500, and 10,000 lb models, all in spring advance style. Treated metal surfaces offer corrosion resistance, while seal and wiper technology resists contamination and leaks. Line also includes pneumatic swing clamps, threaded body cylinders, and block cylinders.

DE-STA-CO Industries    Birmingham, MI 48009
Sep 14, 2004 Toggle-Lock Plus Clamps help to maintain over-center toggle position in applications where there is likely to be movement or vibrations, such as transfer lines. Eliminating pinch points, units feature bushings at major pivot points and stop point locations at base. Spindle contacts workpiece in vertical position to help stop marring or movement, while clamping arm completely clears workpiece to facilitate load and unload.

Bahco North America, Inc. A Sub. Of Snap-On, Inc.    Scranton, PA 18501 2036
Sep 14, 2004 Designed for general-purpose machine shops, Easy-Cut blades employ tooth design that permits blade to operate over large selection of materials. They are suited for use with non-ferrous materials from plastics, aluminum, and copper to AISI range stainless steel and tool steel. Prehoned 3868 TSS (Triple Set Stainless) blades, usable with AISI range stainless steel, eliminate need to run blade in and require no previous experience with carbide blades.

Gardner Abrasives, An operation of Landis Grinding Systems    South Beloit, IL 61080
Sep 14, 2004 CBN Grinding Wheel features multiple layers of bonded CBN with fine grain. Spacing between matrix is filled with proprietary composition designed to wear at similar rates as CBN-bearing matrix, producing same finish throughout life of wheel. Interrupted spring end cut allows heat of grind to be dissipated faster than continuous cut. Wheel is suited for grinding stainless steel, chrome vanadium, chrome silicon, music wire, and titanium.

UNOVA, Landis Grinding Systems    Waynesboro, PA 17268
Sep 14, 2004 Twin Wheelhead Model LT2, with CNC-controlled wheel feed, permits pins to be precision ground with crankshaft rotating about centerline of main bearing journals. Orbital grinder includes hydrostatic ways on X axis, permanent-magnet linear motor wheelfeed drive system; hydrostatic wheel spindle; motorized headstock drive; motorized spindle dresser; and PC-based CNC control.

Turmatic Systems Inc.    St. Louis, MO 63043
Sep 14, 2004 TWIN FLEX MD uses 2 machining stations, acting independently of each other, to allow for multiple machining configurations. Four-spindle, CNC machining center has work envelope capable of machining 300 mm cube. It features automated loading and unloading; in-process adjustment of active correction of X, Y, and Z axis; and swivel arm. Free falling chips provide easy chip discharge.

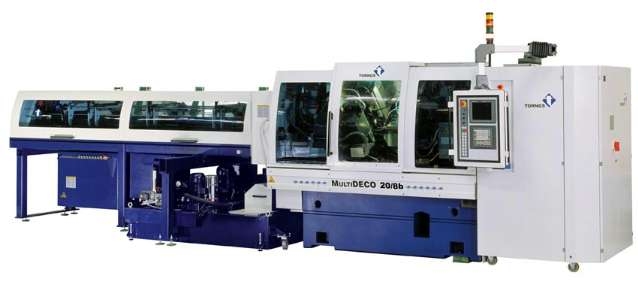

Tornos    Lombard, IL 60148
Sep 14, 2004 MultiDECO 20/8b can be configured as 8-spindle, two 4-spindle, or chucker machine. As 8-spindle machine, it can produce complex parts featuring cross milling/drilling with 23 simultaneous axes, 6 cross slides and spindle, and counter-spindle stops. In 2 x 4 configuration, machine can produce 2 separate parts simultaneously. Offering 30 hp main spindle power and 5 hp axis motor power, machine features epoxy resin base, presettable tools, and hydrodynamic bar feeder.

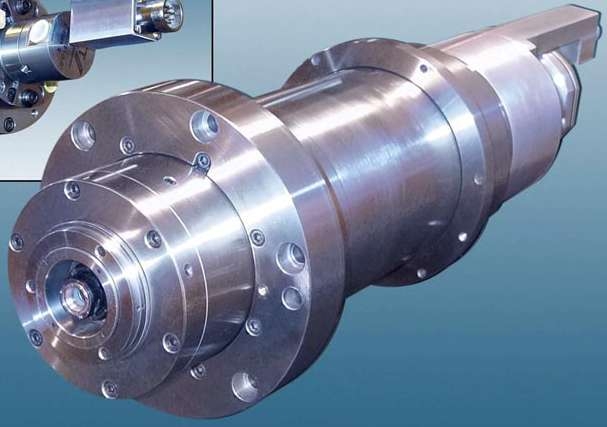

Setco    Cincinnati, OH 45233
Sep 14, 2004 Closed loop, motorized SETCO(TM) 170 is equipped with ABEC Class 7 high nitrogen steel bearings, AirShield(TM) spindle seal system, and hybrid ceramic balls. Spindles up to 20,000 rpm are grease-lubricated, eliminating need for air-oil lubrication sub-systems. Liquid-cooled spindle operates from 0-18,000, 20,000, or 24,000 rpm. It delivers up to 40 hp at 12,000 rpm and 211 lb-in. torque under continuous duty. Product exhibits accuracy to 0.000080 in. TIR.

Renishaw, Inc.    Hoffman Estates, IL 60192
Sep 14, 2004 Ballbar v5.05 provides users with historic review function that allows variations in performance of each machine to be displayed graphically. Feature also predicts maintenance requirements in advance. It includes text notes at key points for future reference and allows users to rescale graphs and print or paste them into other Windows® applications. Programmable warning and failure limits enable automatic interpretation of ballbar test results.

Siemens AG    Munich D-80333  Germany
Sep 14, 2004 Operating in portrait or landscape orientation, Simatic TP 177 A and TP 177micro are equipped with 5.7 in. touch display, with 320 x 240 pixel resolution. Model TP 177 A features onboard Profibus interface for connection to Simatic-S7 controller. Model TP177micro is point-to-point connected to Simatic S7-200 mini PLC and interfaces with PPI networks per multi-master communications. Both feature vector graphics and reporting system for event history.

Rittal Corporation    Springfield, OH 45504
Sep 14, 2004 Available in amperage ranges of 200–1,600 A, tin-plated Flexibar® provides alternative to cable or rigid busbar conductors, allowing increased flexibility in panel designs. It is designed with PVC insulation that permits conductor’s copper laminates to slide within protective jacket and also allows product to be twisted and bent to fit variety of panel layouts. Design eliminates need for termination lugs.

Quality Lighting    Franklin Park, IL 60131 0309
Sep 13, 2004 Available in 13 and 18 in. lengths, low-glare Series DS-13/18 emits sharply directional, forward-throw, downward illumination at building entryways, pathways, and parking garages. Fixtures feature smooth-edged, semi-cylindrical housing that mounts flush to interior or exterior wall surfaces. One-piece, asymmetric, anodized metal reflector provides precise beam control from metal halide, high-pressure, or low-pressure sodium lamps in different wattages.

Guyson Corporation of U.S.A.    Saratoga Springs, NY 12866
Sep 13, 2004 Measuring 65 x 35 x 23 in., Model 4 suits shops with limited area for manual cleaning, surface preparation, or finishing operations. Process enclosure has full width front swing door, offering 16 in. high opening for access, while 27 x 9 in. tempered safety glass view window promotes visibility. Cabinet includes single treadle activated suction-blast gun and utilizes abrasive or non-abrasive blasting media intended for recirculating-type cabinets.

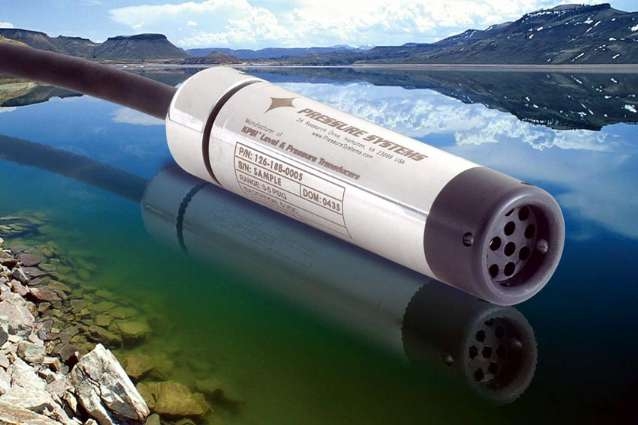

Pressure Systems, Inc.    Hampton, VA 23666
Sep 13, 2004 Submersible, hydrostatic Models 116 and 126 provide ratiometric mV analog output to achieve Total Error Band accuracy of ±0.3%, making them suited for surface and groundwater level measurement. Static accuracy, independent of temperature effects, is ±0.10% FSO for Model 126 and ±0.25% FSO for Model 116. Compatible with Campbell Scientific® dataloggers, units are 316 SS or titanium with full-scale level ranges from 10-230 ft H₂O.

Emerson Electric Co.    St. Louis, MO 63136 8506
Sep 13, 2004 With input voltage range of 10-14 Vdc, APC18 point-of-load converters provide up to 18 A of regulated power with efficiencies to 92%. Non-isolated converters measure 1.3 x 0.53 x 0.35 in. and suit environments with restrictive space requirements. With adjustable external resistor programming, single-output devices can provide selected output voltage from 0.75-5.5 Vdc with regulation to within 3%. Each unit has overcurrent and overtemperature protection.
