Mitutoyo America Corp.    Aurora, IL 60504 9176
Sep 17, 2004 With measurement range of 350 x 350 x 150 mm, non-contact, Ultra Quick Vision Series features fixed bridge structure with independent X-axis and Y-axis drives. Crystallized glass scale offers resolution of 0.01 µm and linear expansion coefficient of 0.08x10^-6/K. Four-quadrant programmable ring light features independently controlled light intensity. QVPAK® software provides 3D data processing and support of touch-probe measurement with video/TP calibration.

Mitutoyo America Corp.    Aurora, IL 60504 9176
Sep 17, 2004 Roundtest® RA-2100 Series measures rotational parameters associated with roundness/cylindricity and can also be equipped to perform surface roughness testing. Available with fully automatic or manual navigation-type workpiece centering, system also performs rectilinear measurements. Testers come with controller, RoundPak v5.0 software, PC with flat panel display, and color printer. Vertical travels of 300 or 500 mm are offered, depending on model.

Mitutoyo America Corp.    Aurora, IL 60504 9176

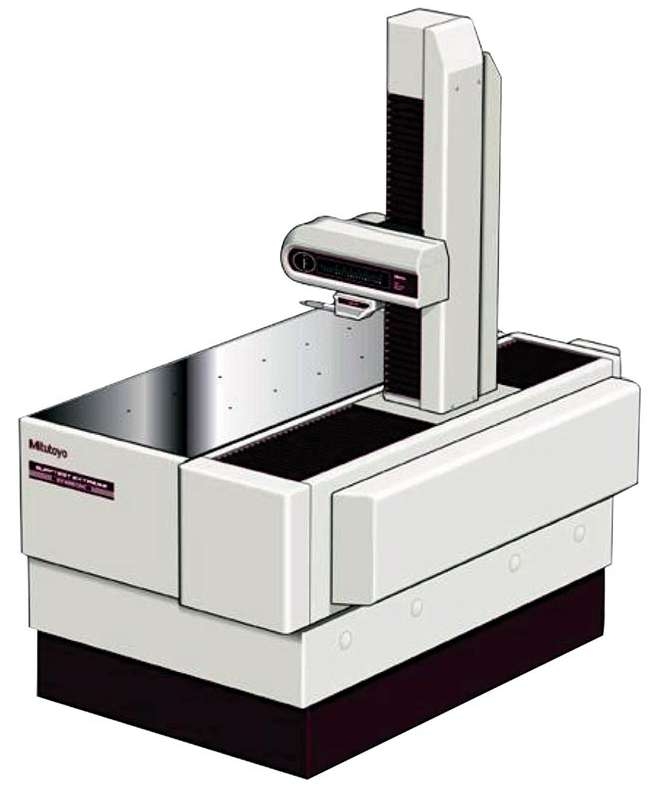

Sep 17, 2004 Engineered around column-moving mechanism, CNC Surftest® SV-800 is constructed to attenuate vibration and minimize measurement deviations. Measuring envelope of 800 x 500 x 200 mm and probe arm accommodate workpieces such as crankshafts and camshafts as well as other powertrain, engine, and similar components. Probe arm also enables unit to measure multiple cross sections and waviness. With max traverse speeds to 200 mm/sec, machine also includes SURFPAK® software.

SKF USA, Inc.    Lansdale, PA 19446
Sep 17, 2004 CARB® bearings perform as non-locating bearings in self-aligning bearing systems for industrial fans. Compact, radial roller bearings compensate internally for angular misalignment and accommodate axial shaft expansion. Raceway profiles result in minimized frictional running and reduced operating temperatures. Used with same standard housings and accessories as other self-aligning bearings, products are available with seals and with optional cages.

Mitutoyo America Corp.    Aurora, IL 60504 9176

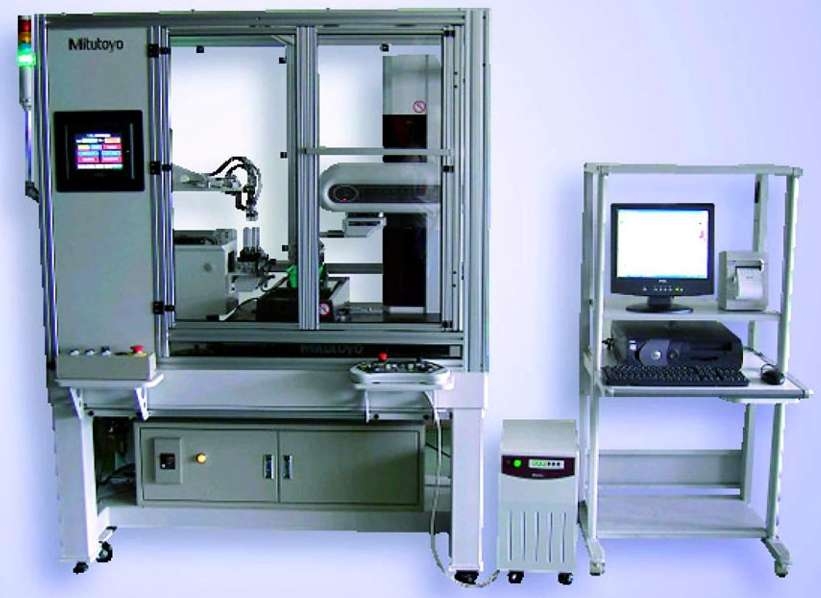

Sep 17, 2004 Surftest® SV-3000 lets users integrate CNC surface roughness measurement into automated material handling and downstream machining and assembly processes. System software supports RS-232C for bi-directional communications between its PC and PLCs of material handling systems. Product offers cabinet enclosures with required safety interlocks and indicators, while FORMTRACEPAK® software supports measurement as well as various analysis and SPC routines.

Cincinnati Incorporated    Cincinnati, OH 45211 0111
Sep 17, 2004 Available in 14 sizes from 16–2,000 tons with standard bed lengths from 4–24 ft, PROFORM Press Brakes offer ±0.001 in. repeatability. They include Variable Volume Load Sensing hydrualic system, hardened piston rods, and interlock construction. Utilizing Windows® OS, 15.1 in. LCD control combines 3D graphics interface with touch-screen operation. Absolute linear transducers provide automatic leveling control by maintaining parallelism between bed and ram.

Mitutoyo America Corp.    Aurora, IL 60504 9176
Sep 17, 2004 Available in 2 sizes, UMAP (Ultrasonic Micro and Accurate Probe) system combines vision-measuring instrument with 20 mm dia, ultrasonically activated probe. Vision system positions probe for insertion into holes or other miniature features and takes measurement data according to wave-form changes when contact is made. Probe tip, made of carbide/glass, is 2 mm long, and system has 12 x 8 x 8 in. measuring range with 1.4 micron accuracy.

Honeywell Sensotec Test & Measure    Columbus, OH 43228
Sep 17, 2004 Featuring 313 stainless steel wetted parts, Model CK uses high-impedance sealed pressure transducer compatible with liquids and gases. It includes auto shut-off, independent zero and span adjustment pots, and on/off membrane switch. Maximum pressure is 1,000 psi and compensated temperature range is 0–70°C. User can select gage, absolute, or vacuum reference. Backlit display and NEMA 4X rating are optional.

SICK, Inc.    Minneapolis, MN 55438
Sep 17, 2004 Series MLG and ELG have more than 20 detection heights and 10 different output configurations. Standard models perform like through-beam sensors and provide output if any beams are interrupted, while programmable models feature ability to detect, interpret, and give outputs based on which beams are interrupted and which are not. Applications include product profiling, part counting, and loop control, as well as entry/exit control and hole and tear detection.

Weber Marking Systems, Inc.    Arlington Heights, IL 60005 4457
Sep 17, 2004 Model 5200rfid prints, encodes, verifies, and applies RFID smart labels to cartons and pallet loads in one operation. It utilizes thermal/thermal-transfer technology to produce labels with text, bar codes, and graphics at 203 dpi. As labels are printed, digital information is encoded on UHF tags embedded in smart label material. If tag cannot be verified, it is rejected before it can be applied. Labels up to 5 x 6 in. can be dispensed at up to 12 ips.

Belden    Richmond, IN 47375
Sep 17, 2004 Suited for use with pan/tilt/zoom security cameras, Unshielded Twisted Pair (UTP) cables provide video, control, and power functionality. Depending on product No., cables are available with 2 or 4 video/control UTP pairs and 23 or 24 AWG solid bare copper conductors. Power pair has 16 AWG stranded conductors. Cables include Riser and Plenum Siamese Composite, Riser and Plenum Round Composite, and Non-Plenum types.

TSI Inc., Flowmeter Div.    Shoreview, MN 55126
Sep 17, 2004 Model 4146, with range of 0.01–20 lpm, and Model 4046, with range from 2.5–300 lpm, are suited for low- and high-flow sampling pumps, respectively. Portable instruments provide continuous display of volumetric flow, allowing users to make calibration adjustments in real-time. Temperature compensated and pressure corrected, products offer volumetric flow accuracy within 2% of reading and can be used for any instrument that draws active sample.

Eagletron Inc.    New York, NY 10011-8436
Sep 17, 2004 Controlled by hand-held, TV-style remote, IR-Pod features motorized base that pans and tilts camera. Set-up requires users to plug camera and power cord into unit and does not require computer. Able to work with any camcorder, camera, or webcam within weight restriction, product is available in 2 versions: TrackerPod-IR for cameras under 0.75 lb, and PowerPod-IR for cameras from 0.75–3 lb. Applications include video conferencing, security, and surveillance.

Dresser Instrument, Ashcroft Transducer Operation    Shelton, CT 06484
Sep 17, 2004 Ashcroft® G2 utilizes planer, micro-machined sensor combined with custom ASIC for digital compensation. Product delivers 1% FS Total Error Band performance, including linearity, hysterisis, non-repeatability, and thermal error. With IP67 water ingress rating, transducer is available in pressure ranges from 30–20,000 psi. Additional features include all-welded wetted materials and various pressure connections and electrical terminations.

Beta Calibrators    Farmersville, TX 75234
Sep 17, 2004 As precision calibrator, hand-held MasterCALâ„¢ 990 reads thermocouple, RTD, ohms, dc and ac voltage, dc current, pressure, and frequency and sources most of above. Measurements are displayed on 200 x 240 pixel, backlit LCD display. As HART configurator/communicator, product supports universal, command practice, and device-specific commands for various devices. It also supports point-to-point as well as multi-drop and burst-mode operation.

Dresser Instruments, Ashcroft & Heise Instruments    Stratford, CT 06614 5145
Sep 17, 2004 Equipped with 4½ in. solid front safety case, Ashcroft® Type 1259 process gauge has 316 SS or Monel wetted parts and can be filled with liquid in field without fill kit. It offers ranges from vacuum through 20,000 psi, including compound, and features 300 SS movement and thermoplastic case. Duratube® with as-welded Bourdon tube controls location of weld in lowest stress area for additional safety.

Bosch Power Tools & Accessories    Mt. Prospect, IL 60056
Sep 17, 2004 TracRac® T3B portable saw stand features integrated rubber wheels and adjustable leveling leg for uneven surfaces. It offers 20 ft of total outfeed coverage with 12 in. wide extensions for extra support. Leg's cam-lever can be adjusted for up to 6 in. of ground variance. Weighing 39 lb, aluminum stand handles up to 500 lb of weight and folds for transport. It is suited for trim carpenters, cabinet installers, deck builders, framers, and woodworkers.

Master Bond, Inc.    Hackensack, NJ 07601
Sep 17, 2004 EP30FL Epoxy Potting and Encapsulation compound has low viscosity and can be used in both thick and thin cross sections. Generating low exotherm during cure, it cures at room temperature with low shrinkage. Electrically insulated compound adheres to both similar and dissimilar substrates, is 100% reactive, does not contain any volatiles, and withstands mechanical shock and vibration.

Cleveland Eastern Mixers Div. Of EMI Inc. Technology Group    Clinton, CT 06413
Sep 17, 2004 Triclover™ mount BRX mixer is available for low shear, high flow applications, with batch sizes between 20–250 L. Modular design accommodates 1/8–1 hp motors. Mechanical or lip seals are available, and variable speed drive is optional. All-stainless motor is offered for users requiring paint-free equipment. Applications include solids suspension, blending, chemical reactions, and promoting batch uniformity.

Schmidt, W. A., Inc.    Souderton, PA 18964
Sep 17, 2004 Intended for applications where sound and vibration are detrimental to process operation, noise and vibration dampening system employs mezzanine deck comprised of alternating isolated layers of solid, soft, and acoustical materials. Fastening system eliminates transfer of vibration and sound between layers, while isolation barrier is utilized between beams and columns and between columns and floor. System suits both industrial and commercial applications.
