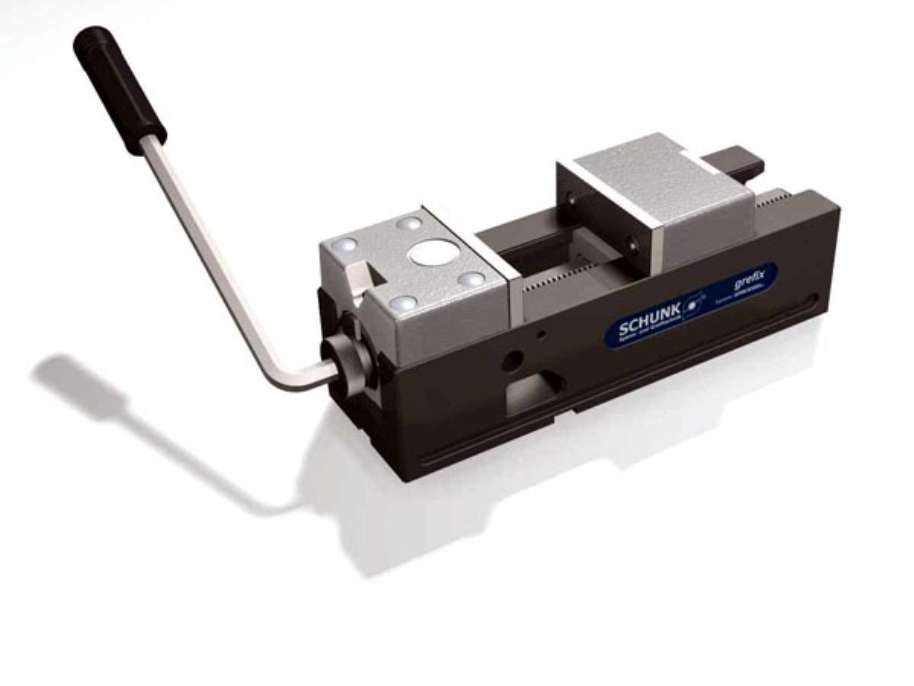

Sep 17, 2004 KONTEC KSL stationary clamping vise allows cubic workpieces to be clamped onto universal vertical machining centers or any 4th or 5th axes table. Available in 3 sizes with base jaw widths of 100, 125, or 160 mm, mounting holes located in jaw allow mounting of workpiece stops from both sides. Actuation is done from side of the fixed jaw via allen key equipped with ratchet, and vise securely clamps workpieces with forces up to 50 kN.

Schunk    Morrisville, NC 27560
Sep 17, 2004 Available in 3 lengths, KONETEC KSM system consists of corrosion-resistant 65 or 90 mm wide clamping rail with vertical serration on inner side that allows jaws to be positioned with one hand. Based on wedge-hook principle, vise jaws are reversible and have smooth or serrated surface. Since no chips can jam rails, system is protected against damage and wear. Vise has mounting bores for assembly onto grid table and vertical grooves for mounting on machine tables.

Schunk    Morrisville, NC 27560
Sep 17, 2004 Available in sizes from 165–500 mm, ROTA NCO offers clamping force from 95–330 kN with jaw strokes from 9–15 mm per jaw. Chuck is intended for vertical turning centers where contaminants are a hindrance. It offers options for automated part recognition in unmanned operations, as well as feed-through capabilities for coolant, air, or oil.

Mitutoyo America Corp.    Aurora, IL 60504 9176
Sep 17, 2004 Ball Endmill Vision Measuring System features chuck that holds endmill, allowing it to be rotated as system measures R-contour resulting from grinding. Digital angle counter indicates positions of endmill cutting edge as it is rotated. Vision unit captures images for analysis by QSPAK® software, which compares actual and nominal values to determine edge wear. System handles workpieces from 2.5–13 mm dia with ±370° display range, and 0.1° minimum reading.

Mitutoyo America Corp.    Aurora, IL 60504 9176
Sep 17, 2004 Model CP1057® 3-D Flexible Gage uses manually-controlled drive to position instrument on same surface plate to which workpiece is fixtured. Measuring range of 1,000 x 500 x 750 mm can be increased using optional data joint function, which enables movement of instrument during data collection. Suited for measurement and scribing of sheet material workpieces, as well as measurement of large molded resin parts, thermally-stable unit includes air bearings on all axes.

Cole Parmer Instrument Co.    Vernon Hills, IL 60061
Sep 17, 2004 Air Cadet PRO(TM) features gas ballast for purging of contaminants that may condense in pump head. It achieves flow rates of 0.5-1.4 cfm at vacuum level of 56-6 torr, and operates at 37 dB. Hose barb connections measuring 5/16 in. make pump adaptable to any laboratory application ranging from filtration to degassing and vacuum drying. Unit can be placed on countertop or below bench to maximize workspace.

Schunk    Morrisville, NC 27560
Sep 17, 2004 Providing jaw strokes from 10–18 mm per jaw, 2-Jaw Rota 2B includes integrated feed-thru and mounting features for irregular workpieces. Seals and wipers placed in crucial areas help reduce contamination of chuck body and facilitate grease retention. Chuck is suited for both turning centers and stationary applications.

Cole Parmer Instrument Co.    Vernon Hills, IL 60061
Sep 17, 2004 Duplex Chemical Feed Pump is available in various configurations, including manual control system, 4-20 mA control system, and pH pump system, each with duty standby pump. It is also offered as pH pump system with separate pumps. In event of primary pump failure, standby unit provides immediate replacement. Duplex system can also be used to double flow rate of fluid or pump 2 separate fluids simultaneously.

Mitutoyo America Corp.    Aurora, IL 60504 9176
Sep 17, 2004 Along with (1.5+10L/1000) µm Z-axis measuring accuracy at 0.01 µm resolution, Hyper MF/MF-U features 3-axis motorized control and power-driven auto focus. Specifications include 250 x 150 x 150 mm XYZ measuring range, 30 kg max load, and 12 V, 50 W fiber optics illumination. Objectives range from 1–100x, and eyepiece magnifications are 10x, 15x, and 20x. Product can be integrated into statistical process control and compliance routines.

Schunk    Morrisville, NC 27560
Sep 17, 2004 With mono-block design, PZS pneumatic clamping vise and HZS hydraulic clamping vise have no interface between cover and base body. Mechanical seal avoids chip contamination of jaw guides, and central lubrication system protects base jaws and wedge hook system against wear. Due to double air connections on bottom side, PZS can be turned 90° to change clamping orientation. Both versions are square in shape and come in 110, 170, and 250 mm sizes.

Mitutoyo America Corp.    Aurora, IL 60504 9176
Sep 17, 2004 Suited for demanding manufacturing environments, Coolant Proof Micrometer features dust-tight, waterproof, sealed housing. Chip-proof unit can operate anywhere on production floor with accuracy to ±.00005 in. instrument error. LCD readout is visible even under difficult shop lighting conditions. Depending on model, product is equipped with SPC-output ratchet stop-, ratchet-friction thimble-, or friction thimble-adjusters.

Schunk    Morrisville, NC 27560
Sep 17, 2004 Measuring 196 mm in dia, NSE 196 module is mechanically clamped and pneumatically opened, allowing clamped system to be moved in clamped state without interference from air lines. Clamping pin has a 61 mm dia through hole, which makes it possible for workpiece to protrude through clamping system. To facilitate orientation of fixture plates, module also comes with 12 mm precision bore on face.

Mitutoyo America Corp.    Aurora, IL 60504 9176
Sep 17, 2004 With unified, one-piece configuration, Legex® 322 offers opportunities to integrate automated measurement and inspection into processes. It measures and inspects components sized to 300 x 200 x 200 mm with accuracy of MPE_E = (0.8+2 L/1000) µm and speeds to 200 mm/sec. Features include MCOSMOS CMM software platform, UC 200S controller, ceramic-plasma coated Y-axis machine guide rail, thermally-stable components, and real-time temperature compensation.

Mitutoyo America Corp.    Aurora, IL 60504 9176
Sep 17, 2004 With XYZ measuring range of 1,210 x 1,210 x 810 mm, Legex®1200 Series incorporates spheroidal graphite ductile cast iron chassis and air-damped spring isolators to attenuate vibration. Machine, driven by MCOSMOS software, offers accuracy of MPE_E = (0.6+1.5 L/1,000) µm and traverse speeds to 300 mm/sec. Product also features thermally-stable components, real-time temperature compensation, and UC 320VA controller.

Mitutoyo America Corp.    Aurora, IL 60504 9176
Sep 17, 2004 With measuring force of 0.01 N, Super Litematic® VL-50AH is used in applications where higher measuring forces could deflect materials and result in measurement errors. Digital unit offers 0.01/0.1/1.0 µm selectable resolution and uses detection technique that utilizes interferometric laser light holographic diffraction. With measuring range of 0–50 mm, instrument has accuracy of (0.1+L/200) µm and 8-digit display unit with 14mm high characters.

Mitutoyo America Corp.    Aurora, IL 60504 9176
Sep 17, 2004 Using multi-face polygonal mirrors, LSM-544 Series is available in models for use in applications from measurement of ultra-fine wires (0.005 mm dia) at resolutions to 0.01 µm to measurement of cylindrical workpieces as large as 120 mm. Available with integrated or remote displays, series comes standard with RS-232C interface and SPC output on most models. Dust- and splash-proof IP64-rated models are also available.

Mitutoyo America Corp.    Aurora, IL 60504 9176
Sep 17, 2004 QUICK IMAGE® QI-100 and QI-200 Series employ telecentric lens train and feature respective stage travels of 100 x 100 mm and 200 x 100 mm. With 32 x 24 mm field of view, 2D systems capture workpieces of varying thickness and levels in one view. They also simultaneously image features found on items. At 1.3 mega-pixel, CCD camera captures elevations and contours with clarity for viewing, inspection, or analysis on desktop PC or laptop.

Mitutoyo America Corp.    Aurora, IL 60504 9176
Sep 17, 2004 Non-contact QUICK IMAGE® COLOR 2D vision system integrates telecentric optics, CCD color camera, and four-quadrant LED lighting into compact instrument. Field of view measuring 29.5 x 22.2 mm enables complete capture of small workpieces, including those with stepped features, in single view. Standard QIPAK® software provides repeatable, programmable measuring sequences; high evaluation speed; and automatic report generation.

Mitutoyo America Corp.    Aurora, IL 60504 9176
Sep 17, 2004 Suited for large workpieces, Quick Vision® Accel® Systems feature coaxial lighting and programmable ring lights with choice of halogen ring-fiber or white or RGB LED illumination. X- and Y-axes are driven at up to 400 mm/sec, while programmable power turret tube lens provides automatic zooming for wide field of view. QVPAK® software offers 3-D data processing functions, support of touch-probe measurement with video/TP calibration, and illumination tools.

Mitutoyo America Corp.    Aurora, IL 60504 9176
Sep 17, 2004 Quick Vision Accel® 1212/1517/2021 Series features laser focusing to support large variations in height of items measured. Illumination systems include programmable ring lights with choice of halogen ring-fiber or white or RGB LED. QVPAK software includes 3-D data processing and support of touch-probe measurement with video/TP calibration. Systems can be integrated into automated assembly procedures for inspection of plasma and LCD display, photo masks, and screen masks.
