Mikron Bostomatic Corp.    Milford, MA 01757

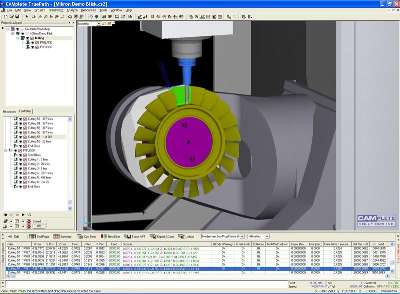

Sep 21, 2004 Intended for 5-axis machines, CAMplete TruePath(TM) presents tool path data in 3D view, graphical view, tabular posted view, tabular un-posted view, and tree view. Simulation and analysis tools are linked directly to tool path editor so users can immediately see effects of tool path changes. With NC format editor, users can create/edit unlimited G-Code formats and apply them to tool path being edited. Users can also modify tool vectors to avoid machine collision.

Mikron Bostomatic Corp.    Milford, MA 01757

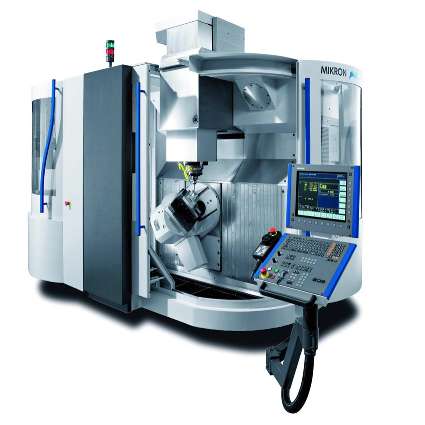

Sep 21, 2004 High-speed Model UCP 600 Vario features modular tool changer that can hold 100-220 tools. With 7-position pallet changing system, workpieces with surface area up to 13 x 13 in., height of 14 in., and max weight of 176 lb can be automatically changed and simultaneously machined. Available with 12,000, 20,000, or 42,000 spindle options, machining center includes rotary/tilt table that swivels between -115 and +30°. Smart machine technology allows unmanned operation.

Saelig Co., Inc.    Pittsford, NY 14534
Sep 21, 2004 Powered from USB port, dual-channel Stingray(TM) combines functions of oscilloscope, data logger, spectrum analyzer, volt meter, frequency meter, and signal generator in single device. It features simultaneous 12-bit sampling on both channels and 32 kbytes of sample buffer with hardware triggering, including delayed time base and pulse width. Stingray includes EasyScope II oscilloscope software and EasyLogger software for continuous PC data logging.

Vanton Pump & Equipment Corp.    Hillside, NJ 07205

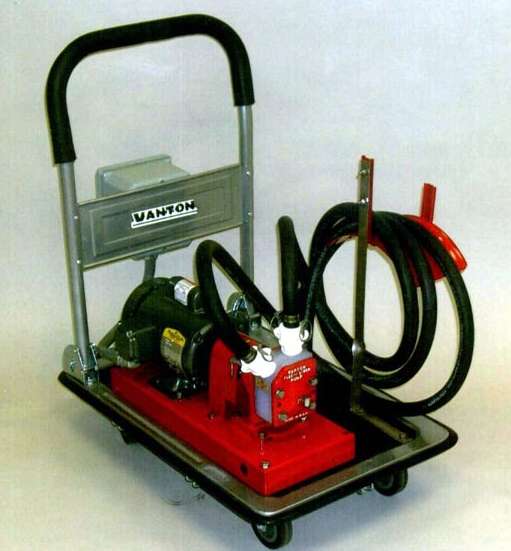

Sep 21, 2004 Flex-i-Cart® consists of Flex-i-liner® sealless, peristaltic type, rotary pump furnished with UHMW polyethylene, polypropylene, or Teflon® body blocks, and 1 of 7 different elastomeric linings. Pump and motor assembly is mounted on rubber-wheeled dolly, along with quick disconnect suction and discharge hoses. Able to handle acids, caustics, solvents, and chlorides, system offers flows from 0.33–40 gpm at pressures to 45 psig and temperatures to 250°F.

NKK Switches    Scottsdale, AZ 85260-3420

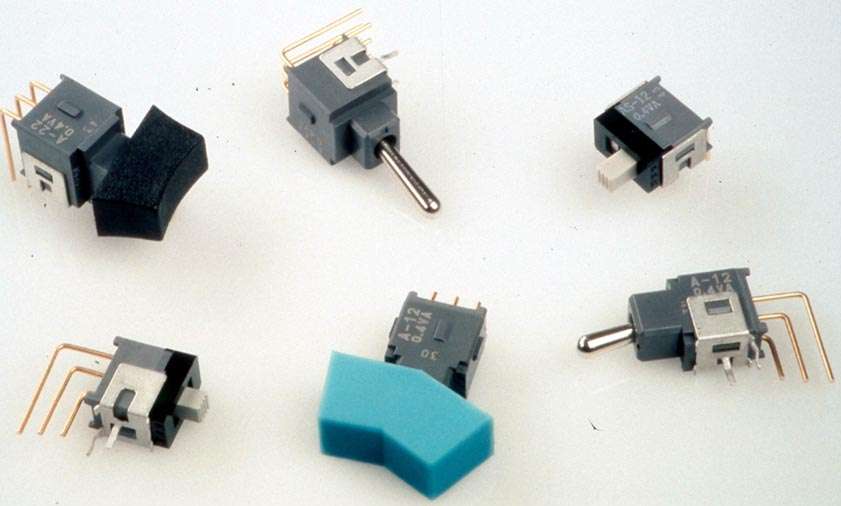

Sep 21, 2004 Washable A switches incorporate Sliding Twin Crossbar mechanism and have sealed bodies that withstand automated soldering and cleaning techniques. Toggles and rockers are available in single- and double-pole models with momentary and maintained actions, while pushbuttons are offered in single- and double-pole momentary circuits. Offered in single- and double-pole maintained circuits, slide-actuated devices feature anti-static superstructure of carbon-impregnated polyamide.

Mesa Electronics    Richmond, CA 94806-1950
Sep 21, 2004 Model 4167 allows use of 2 mini-PCI cards, such as IEEE 802.11 wireless LAN cards, in PC/104-PLUS (PCI-only) system. It uses PCI bus bridge, so only one PC/104-PLUS slot is required. PCI bridge also isolates mini-PCI cards from system, allowing mini-PCI cards to be used in systems with 5 V busses. On-card jumpers are used to select which PC104-PLUS slot the adapter occupies, and status LEDs are provided for mini-PCI slots.

Simonds Industries, Inc.    Fitchburg, MA 01420
Sep 21, 2004 Welder's File Kit comes with 14 in. pipeliner, 12 in. half round bastard, 10 in. mill smooth, spot weld, and Mig weld files designed to facilitate removal of tough materials and welds and provide smooth surface finishes. Kit also comes with carbon and stainless steel brushes to keep file teeth clean of debris and maximize material removal performance.

APEM Components    Haverhill, MA 01835
Sep 21, 2004 Available in variety of colors, Sealing Boots prevent entry of dust, sand, water, and other contaminants. They can be screwed onto switch bushing or snapped over switch actuator, depending on switch type and panel mounting mode. Rated IP67, each boot is supplied with sealing ring or washer and allows for full immersion under 1 m of water for 30 min without water ingress. Applications include medical equipment, farm equipment, and machine tools.

Global Data Integrity    Carlisle CA1 2BS  United Kingdom
Sep 21, 2004 Xintegrity Professional detects accidental or malicious changes to Windows systems during new software installation. Monitored areas include directory structure, registry, files security access permissions, and contents of files. This aids in identification of viruses, trojans, malware, and spyware. Software can also automatically create protected backup files, optionally encrypted with 256 bit AES, and send Email notifications whenever modifications are detected.

ILYICH Abrasive Company    St. Petersburg   Russian Federation
Sep 21, 2004 Suited for grinding hot section segments, AEROBORâ„¢ removes bulk of material as well as tapers and radii and generates required finish quality. Wheel features 1.25 hr max machining time, minimal noise level, and reduced heat generation at cutting surface. With metal removal rates to 0.040 in./hr, it combines metal removal rates of CBN with dressability of vitrified wheel, leading to decreased load on machine and component.

Cellomics, Inc.    Pittsburgh, PA 15219
Sep 21, 2004 Designed to work with ArrayScan® HCS instruments, Spot Detector BioApplication module allows scientists performing drug discovery and basic science research to rapidly analyze variety of cell-based assays. Researchers can scan and analyze 96-well plate in as little as 5 min. Suited for detecting activation of GPCRs, module can also perform assays such as mitotic index, cell proliferation and viability, and receptor internalization.

MGE UPS Systems    Costa Mesa, CA 92626
Sep 21, 2004 From central console, Atlas Software Suite enables network administrators to oversee UPS and power device equipment. Scalable for small or large enterprises, seamless interface integrates point-to-point or centralized enterprise-level monitoring and inventory management. Administrators can receive power alarms via broadcast, SNMP, or email notification, and set up automatic actions. Unattended shutdown of UPS equipment can be performed during extended power outages.

Paul W. Marino Gages, Inc.    Warren, MI 48089-3020
Sep 21, 2004 Fixinspect® system consists of one adapter in shape of hemisphere that fits over bolt or into hole. By measuring contour of hemisphere, it is possible to define exact position of hole or bolt. Available in 3 magnetic types for use with ferrous metals, and 2 threaded, non-magnetic types for use with plastics or non-ferrous metals, all hemispheres are machined out of anodized aluminum with tolerances of .02 mm. Specially shaped variations are also available.

Real-Time Innovations    Medford, MA 02155
Sep 21, 2004 Utilizing Data Distribution Service (DDS), NDDS (Network Data Distribution Service) middleware and tools facilitate building real-time distributed systems. Communication is established when publishers register data produced with middleware and subscribers register data they are interested in receiving. Developed with consideration for requirements of real-time and embedded systems, product minimizes need for data copies and allows application to pre-allocate resources.

Macraigor Systems, LLC    Brookline Village, MA 02447-1008
Sep 21, 2004 Based on proprietary on-chip debug (OCD) technology, usb2Demon is designed for JTAG (IEEE Standard 1149.1) or background debug mode (BDM). It operates as converter of OCD commands, and target port may be JTAG, E-JTAG, OnCE, COP, BDM or any other supported connection. API is fully compatible with microprocessor architectures and software debuggers, including GNU tools suite (GCC, GAS, and GDB). Unit has dedicated JTAG controller and can clock target at up to 24 MHz.

Saelig Co., Inc.    Pittsford, NY 14534
Sep 20, 2004 Multi-functional Model DAD10 is an MP3 message/music on hold device for connection to PABX systems or standalone audio message delivery. It provides stereo output of 2 W into 4 ohms, and consumes 70 mA from 8-15 V supply with no speaker load. Unit stores up to 8 Mb of MP3 data and supports bit rates of 8-192 kb/s. Data can be split into max of 16 tracks and, depending on audio quality required, can have playback times from 8 min to 2 hr.

Polymer Laboratories, Inc.    Amherst, MA 01002
Sep 20, 2004 Suited for analysis of organic and water soluble polymers, PL Rapide Series includes 100 x 10 mm columns, which cover complete spectrum of molecular weight and can be used at flow rates as high as 3.0 mL/min. Typical applications include high-throughput screening from combinatorial synthesis experiments and rapid process monitoring where trends are more important than high resolution and precise analyses.

Edlon, Inc.    Avondale, PA 19311 0667
Sep 20, 2004 Offered in diameters from 1–12 in. with 2, 3, and 5 convolutes, Cable Style Expansion Joints compensate for axial, lateral, and angular movements between 2 anchored points in pipeline. Limit cables facilitate installation between fixed flanges and joint, and can be compressed and bolted in place without interference from integral limit bolts. Joints feature Type 316 stainless steel reinforcing rings, molded bellows, and epoxy-coated steel flanges.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143

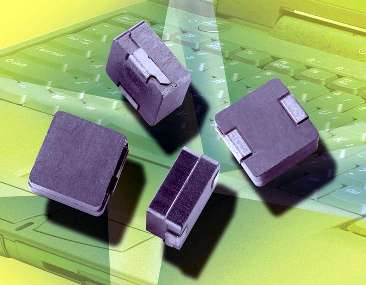

Sep 20, 2004 Available with inductance values of 5.6, 6.8, 8.2, and 10 µH, surface-mount Series IHLP features saturation currents up to 120 A and low losses at frequencies up to 5 MHz. Measuring 0.508 x 0.520 x 0.256 in., each inductor is packaged in self-shielded package that meets military specifications for resistance to thermal shock, moisture, mechanical shock, and vibration. Applications include dc-to-dc conversion and energy storage in computers, servers, and telecom systems.

J. W. Winco, Inc.    New Berlin, WI 53151
Sep 20, 2004 Spring-loaded Side Thrust Pin has elements for holding, positioning, and clamping of workpieces. Protruding height can be adjusted with threaded body. Made of steel, thrust pin is zinc-plated and hardened. Version with seal has yellow finish, while unit without seal has blue passivated finish.
