PRC LASER    Landing, NJ 07850
Sep 29, 2004 Low-powered XL 1000 and 1500 W lasers are designed for thin metal and non-metal processing markets. STS 5000 Power Source offers long term power stability and performance in cutting applications and laser welding.

Hospital Specialty Company    Highland Heights, OH 44143
Sep 29, 2004 Promoting optimum cleanliness in public restrooms, dual channel A1-50 vends products at 50¢ each and features Maxithins® Ultra Thin with Wings Sanitary Napkins and TAMPAX® Tampons. It requires users to insert 2 quarters into product channel of choice to make product automatically dispense at bottom of unit. When empty, machine automatically ejects quarters. ADA-friendly design extends 4 in. from wall and has overall dimensions of 27.8 x 15.2 in.

Tarby    Claremore, OK 74017
Sep 29, 2004 Titan C22 Pump is designed as drop-in replacement for close-coupled pin joint drive configurations. It features flow capacity of 500 gpm and pressure of 175 psi. Elastomer seals at each end of stator enable easy replacement. Conventional rotor/stator designs, as well as long lead geometries, deliver volumetric and mechanical efficiencies. Pump handles thin, flowable liquids to highly viscous materials and solids in suspension.

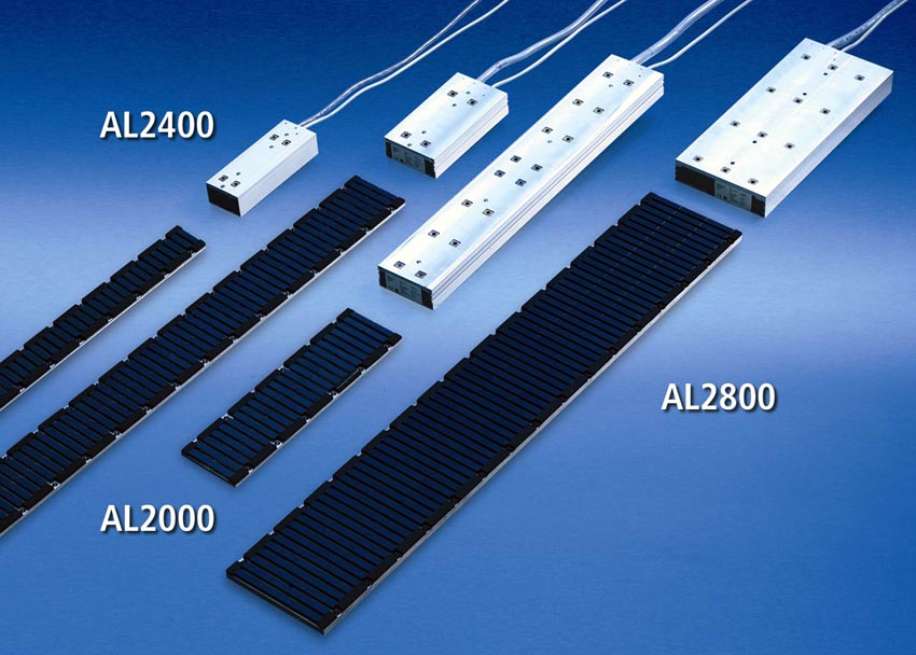

Beckhoff Automation LLC    Minneapolis, MN 55337
Sep 29, 2004 Measuring 50 mm wide, AL2400 series includes 2 motors with peak force of 120 or 240 N. They have pole spacing of 24 mm, reach speeds up to 8 m/s, and are operated with 230 Vac. Offered in 4 models, AL2800 series produces peak forces up to 9,000 N, measure 130 mm wide, and are operated with 400–480 Vac. Pole spacing is 24 mm, and motors reach speeds from 2.5–6 m/s. Products are designed with minimal heat transfer resistance.

Marktech Optoelectronics    Latham, NY 12110
Sep 29, 2004 With luminous intensities up to 1,800 mcd, Cotco LM1-xxx-11 Power LED series is built on InGaAlP and InGaN technologies. They handle forward currents from 30-50 mA depending on wavelength and come in PLCC-4 package that measures 3.0 x 2.8 mm. Integrated reflector offers viewing angle of 120°, and operating temperature range is -40 to +100°F. Available colors include White, Blue, Blue-Green, Green, Yellow, Red-Orange, and Red.

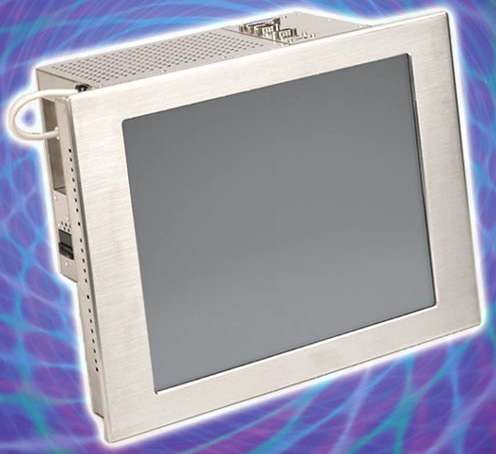

Arista Corp.    Fremont, CA 94538
Sep 29, 2004 Equipped with NEMA 4X rated, stainless steel bezel, panel mount, 17 in. LCD and touch screen interface, ARP-1717AX series allows users to swap computer module or LCD display for maintenance and upgrades. Unit is configured with BoxPC-500, powered by PIII or P4 SBC providing 2 ISA and 3 PCI half-length slots. It can also be configured with slim BoxPC-103H, featuring Intel P4 processor, DC 24 V or 100–230 Vac input power supply, and single PCI slot.

Optek Technology, Inc.    Carrollton, TX 75006-6905
Sep 29, 2004 Model OPV232 low drive current vertical cavity surface emitting laser (VCSEL) is available in plastic, 3 mm high T-1 package with dome lens that creates 3° beam angle. This 850 nm VCSEL offers max forward peak current of 30 mA and reverse voltage of 5 V. With -40 to +85ºC operating temperature, product is optically and spectrally compatible with OPTEK phototransistors, photodarlingtons, and photodiodes.

Mimot - California, LLC    Irvine, CA 92618 2326
Sep 29, 2004 Advantage autoplacer, with 324-feeder capacity, is configured so that when first job is finished, feeders for second job are already waiting. System can place entire range of components, from 0201's up to 55 x 55 mm, with speeds up to 21,600 c/hr without need for fine pitch placer or chip shooter. It has modular design that incorporates integration software package.

EM Microelectronic-US    Colorado Springs, CO 80918
Sep 29, 2004 Featuring programmable voltage reset monitoring and watchdog timer with programmable time window, 615x/625x family of integrated microprocessor supervisory ICs have system-enable output and power saving function compatible with CAN-bus sleep mode. V series includes V6150 and V6155 windowed watchdog ICs, while A series includes A6150, A6155, and A6250 windowed watchdog ICs with built-in 5 V LDO voltage regulator. All products are TTL/CMOS compatible.

PennEngineering Motion Technologies, A PennEngineering Company    Harleysville, PA 19438 0003
Sep 29, 2004 MAEâ„¢ S Series is offered in standard NEMA23 frame size and 3 models with step resolutions of 1.8° in full-step mode. They feature precision-honed stators and ground rotors for tight air gap. Units are available with 4, 6, or 8 leads and single- or double-ended shaft extensions. Offered in lengths of 1.61, 2.17, and 3.09 in., motors achieve holding torques of 67, 139, or 231 oz-in. All are CE approved and manufactured to EN 60034-1:1995-02 specifications.

Danaher Motion    Wood Dale, IL 60191-1073
Sep 29, 2004 Available in diameters from 10–24 mm and leads from 2–45 mm, Metric Lead Screws are suited for positioning light to medium loads in range of equipment. Supernut® design eliminates backlash, while DIN 103 compliant thread forms minimize local stresses. Series XC uses ActiveCAM® technology to provide rigid stainless steel cam for biasing. Applications include semiconductor manufacturing, medical, laboratory/life science equipment, and engraving.

Arques Technology    Austin, TX 78728
Sep 29, 2004 Suited for white LED backlighting, Series AQ consists of 2-channel, dual-gain current regulators with inductorless, 1–1.5x charge-pump circuit. Each LED's driver current is matched to within 2% for uniform LED intensity and color. Driver operates over Li-Ion input voltage of 2.7–6.0 V, with undervoltage lockout. It features fixed 650 kHz frequency, and in full shutdown mode, draws only 10 µA. Unit is suited for small LCD displays or photo flash applications.

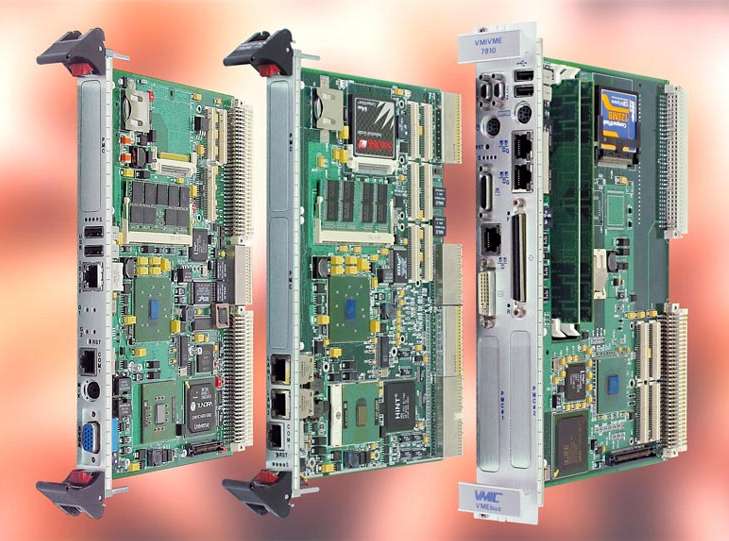

GE Intelligent Platforms    Charlottesville, VA 22911
Sep 29, 2004 Dual-slot VMIVME-7810 integrates up to 4 GB DDR SDRAM, dual Gigabit Ethernet, dual PMC expansion sites, dual channel SCSI, and dual serial ports. Single slot, PICMG 2.16-compliant, VMICPCI-7806 offers up to 1 GB DDR SDRAM, dual PMC expansion sites, and dual Gigabit Ethernet. Single-slot, VITA 31.1-compliant VMIVME-7807 features up to 1.5 GB DDR SDRAM, PCI-X PMC expansion site, dual Gigabit Ethernet, and 4 serial ports. All are based on Intel® Pentium® M processor.

JNJ Industries Inc.    Franklin, MA 02038
Sep 29, 2004 GlobalTech® saturated disposable wipes clean and dry hands, tools, and other surfaces, removing dirt, oil, grease, and other contaminants. Incorporated chelating agent helps remove lead and toxic metal residues from skin and surfaces. Wipes are hydro-entangled, non-woven fabric formulated from natural and synthetic fibers. Attached to one side only, polypropylene fibers facilitate scrubbing but will not scratch glass, acrylics, plastics, or metal.

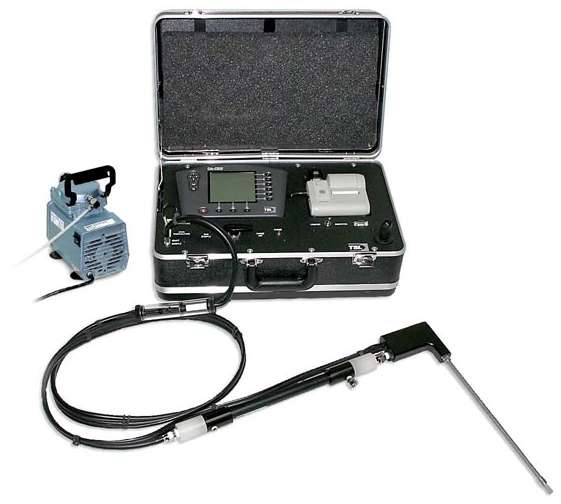

TSI, Inc.    Shoreview, MN 55126-3996
Sep 29, 2004 With on-board CTM-34 test protocol, CA-CALCâ„¢ Series CA-6300 Compliance Protocol Emissions Analyzers guide operators through each step of combustion test process and print reports on-site. Products feature sample conditioner for hands-free, continual water removal and standard, low-maintenance emissions probe. Offered in 4 models, series also features factory-calibrated, field-replaceable sensors.

Cimline, Inc.    Plymouth, MN 55447-4721
Sep 29, 2004 Suited for gravity feed cracksealing, 90 and 115 gal HeatWaveâ„¢ models feature auger type sealant agitator powered by Honda 4 hp engine that results in uniform heating. Trailer-mounted HW 115 is suited for larger pavement maintenance projects, while HW 90 is used for medium-sized jobs. Both models feature spigot engineered to prevent sealant clogging and tube-fired heating system constructed of 2 heavy-duty, single-pass flues.

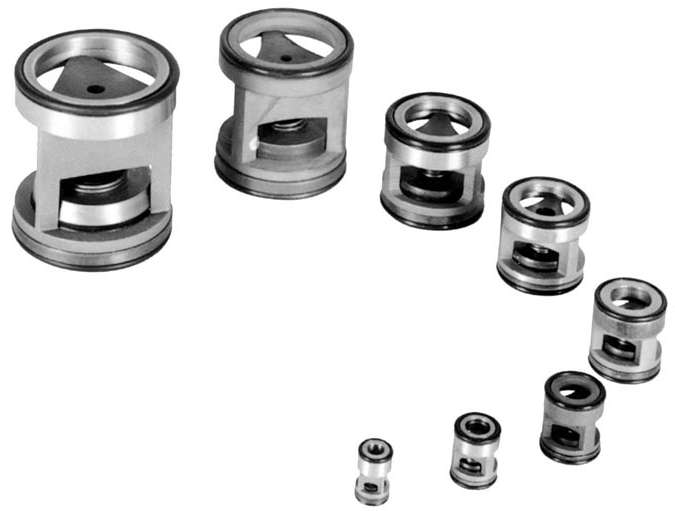

Adaconn & Inserta Products, Inc.    Blue Bell, PA 19422
Sep 29, 2004 ICS Slip-In Check Valves have compact design that controls flow in or out depending on how they are inserted into machined cavity. Also available with fixed orifice, valves feature steel construction and come with O-rings. Sizes from 1/8–3 in. have cracking pressure from 3–90 psi. Mounted in any position, max operating pressure is 5,000 psi, and temperature range is -22 to +175°F. Operating medium is hydraulic fluid with viscosity range of 50–2,000 SSU.

Ready Products Corp.    West Chester, OH 45069
Sep 29, 2004 Retract-A-Bit Mini screwdriver system features bits that can be changed by selecting desired bit and sliding its button into place. Locking collar ensures stability during use. To change bits, users depress collar and retract bit into handle. Screwdriver includes 2 Phillips head, 2 slotted head, and 1 square head bit as well as one ball-point pen. Belt clip facilitates tool transport.

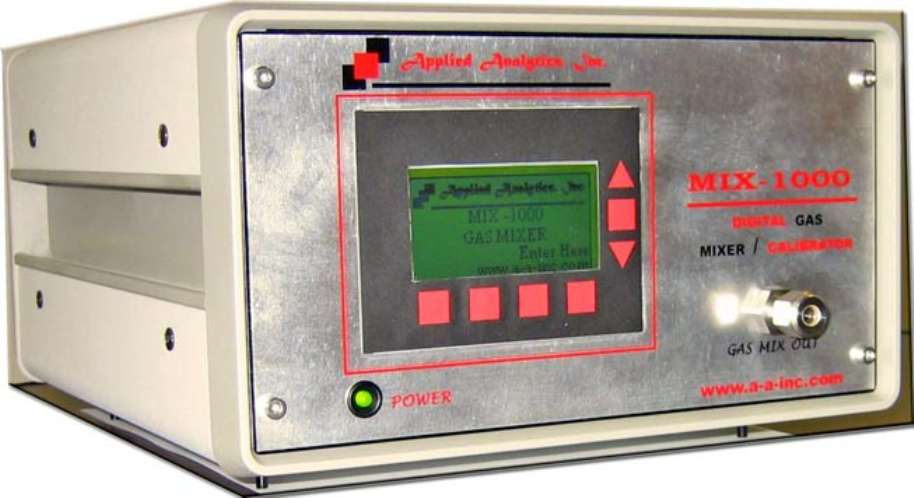

Applied Analytics, Inc.    Concord, MA 01742
Sep 29, 2004 Model MIX 1000 provides 2 inputs and 1 output and can mix up to 4 different gases. Unit can be controlled from front panel using LCD display and 7-key membrane keypad or by using Windows-based software via RS-232 connection. Software controls gradients and responds to external events via event-driven menu, while included totalizer and averager improve experimental control.

Permatex Inc.    Hartford, CT 06106
Sep 29, 2004 Gel Twistâ„¢ Threadlocker no-drip gel enables pin point application, allowing users to get into hard to reach and vertical spaces. Available in Medium Strength Blue Gel and High Strength Red Gel, product stays precisely where applied without drips, runs, spills, or leaks. With 15 min cure time, product prevents parts from loosening and threads from corroding.
