NewSoft Technology Corporation    Fremont, CA 94538
Oct 01, 2004 Compatible with Windows 98SE/Me/2000/XP operating systems, Presto! PhotoDisc v1.0 provides ready-to-use templates and step-by-step workflow to guide users from photo collection to slideshow in 3 steps. Digital photo slideshow suite lets users burn slideshows to VCD, SVCD or DVD for viewing on home DVD player and TV. Software lets users incorporate DVD motion menus, animated titles, transition effects, sound bites, and music into slideshow.

PTG Industries    Lake Mary, FL 32746
Oct 01, 2004 Fiber Tower Marking System features independent components that include q-switched fiber laser, scan head, PCI control board, and graphic-based programming software. It can perform applications such as ITO removal, IC chip package marking, 2D symbologies and linear barcodes, OCR code marking, and on-the-fly marking. Capable of printing alphanumerics, logos, schematics, and graphics, system can be modified to meet unique production needs.

Sensoray    Tigard, OR 97223

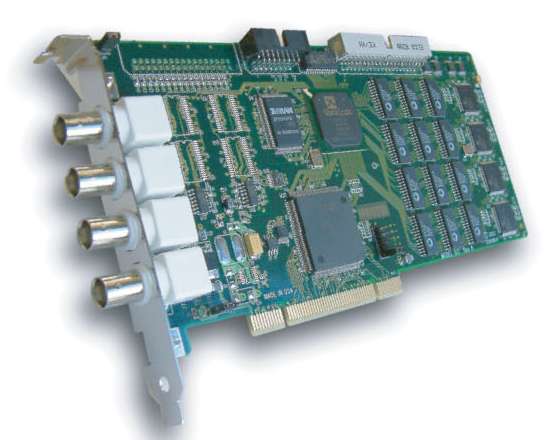

Oct 01, 2004 Combining functions of frame grabber, hardware JPEG compression, and digital I/O into one PCI board, Model 617-4 accepts 4 composite video inputs and routes them to separate video decoders for digitizing. Device offers capture rate of 30 fps at 640 x 480 resolution or 120 fps at 320 x 240 resolution. Caption buffer allows overlaying text on each frame. Text is within transparent box that may be positioned in 1 of 4 possible locations of frame.

Network Physics    Mountain View,, CA 94043
Oct 01, 2004 NetSensory Enterprise Architecture delivers distributed intelligence for global application infrastructure visibility, troubleshooting, and reporting. Product is based on operating system, NetSensoryT OS v4.0, which runs company's NP-2000 appliance and NP-DirectorT. Each appliance collects, baselines, correlates, and stores detailed application service flow knowledge then reports high-level summary, along with automatic or user-programmed alerts.

Contemporary Control Systems, Inc.    Downers Grove, IL 60515
Oct 01, 2004 Able to recover from network failure in less than 300 ms, EISX8M, EICP8M, and EISB Euro switches use RapidRing technology to provide automatic backup link in Ethernet networks when wired in a ring topology. Managed switches can have ring structure comprised of copper or fiber/copper cable using 2 ports of each switch for implementing ring. Products have management attributes such as VLAN, trunking, QoS, SNMP, and programmable fault relay.

Hydromat Inc.    St. Louis, MO 63043

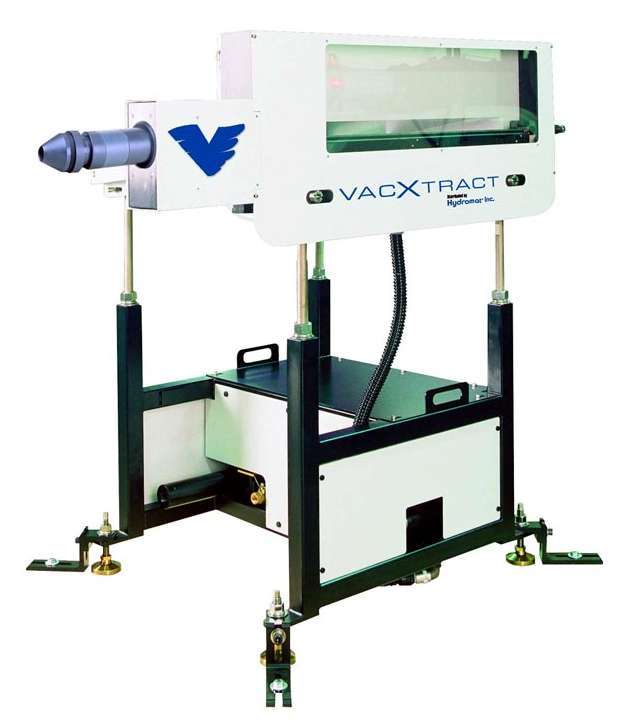

Sep 30, 2004 Suited for twin-spindle CNC lathes, VacXtract unloading device removes work pieces through rear of right spindle in under 2 seconds, allowing left spindle to continue working during unloading cycle. In addition to shop air, system receives power from lathe’s own power supply and is programmed via lathe's CNC control. At proper moment, it creates vacuum inside spindle bore, gently extracting parts, allowing them to accumulate on tilt table.

eCycle, Inc.    Temple, PA 19560
Sep 30, 2004 CMG Silicon Series operates like conventional dc motor and can be operated directly from battery or in conjunction with dc controller. It weighs 14 lb and measures 7 7/8 in. in diameter and 5 in. in length. Motor accommodates both IEC80 and 4F17 hydraulic pump mounting flange standards. Applications include hydraulic power units, robotics, marine propulsion, integrated starter/alternators, engine-generator sets, large centrifugal pumps, and power generation/co-generation.

Under-Wraps    Murrieta, CA 92562

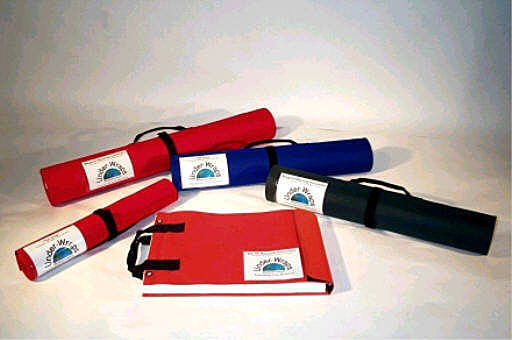

Sep 30, 2004 Made of Teflon®-backed canvas, Under-Wraps Covers are available in The Snap for residential plans, The Big Job for large commercial jobs, and hardback half-plan version. The Snap attaches to plans with 2 clips designed to hold 1-25 pages up to 1/8 in. thick. The Big Job holds 25-100 pages up to ½ in. thick. Available in 11 x 17, 15 x 22, and 18 x 24 in., half-size covers hold plans up to 1½ in. thick. All models include window for job title and handle.

Label-Aire Inc.    Fullerton, CA 92833
Sep 30, 2004 Series 9000 rotary, pressure-sensitive labeling system operates at speeds to 600 containers/min. Configurations range from 4–40 stations with up to 6 applicators. Able to be integrated into most lines, product can be configured to handle 4-panel, neck-on-oval, semi-oval, triangular, 3-panel, or safety seal labeling. System incorporates tool-less change parts for maximized uptime and can be outfitted with 3100 Series applicators.

NAPCO Security Systems, Inc.    Amityville, NY 11701-2800

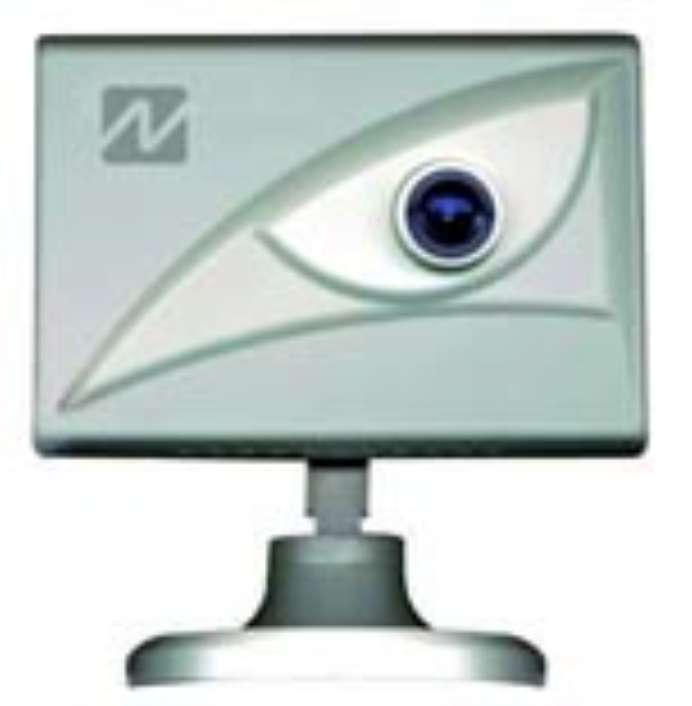

Sep 30, 2004 Measuring 3.875 x 2.5 x 1.625 in., weather-resistant VCAM-I Network/IP Video Camera offers transmission speeds from 5 frames/sec with 640 x 480 resolution to 25 frames/sec with 160 x 120. ViP-GATEWAY Universal 4-Camera IP Module connects up to 4 analog video cameras for monitoring over Internet. Users can look in anytime or have security system trigger video emails on alarm. Video can be auto-archived for later review. Product also supports 802.11G wireless networks.

Advantech Automation Corp.    Cincinnati, OH 45240
Sep 30, 2004 Models PCI-1241/1242/1261 provide 4- and 6-axis of servo and stepper motor control. They support 2D and 3D interpolation for linear, circular, and arc motion, as well as T- and S-curve acceleration. All 3 cards provide precise position and rotation control, as each axis is equipped with 32-bit logical position counter that counts axis pulse output number; and 32-bit real position counter that records feedback pulse from outside encoder or linear scale.

Phoenix Contact    Harrisburg, PA 17111 0100
Sep 30, 2004 Quick Locking SPEEDCON Connection System requires only ½ turn to make secure, watertight, and vibration-proof connection between cordsets and devices. Connectors fulfill same requirements for electrical and mechanical properties as classic M12 plug connector systems. Product range includes IP65 and IP67 cordsets, sensor-actuated boxes, and field wireable, panel-mount connectors. SPEEDCON technology is also integrated in Fieldline modular I/O system.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Sep 30, 2004 Available in 0402, 0603, and 0502 cases, E/H MIL-PRF-55342 Qualified Resistor Chips offer ratings from 100 ohms to 160 kilohms. Units feature high-purity alumina substrate and electroplated nickel barrier layer, which enables operation at temperatures up to +150°C. In addition to low noise of less than -25 dB and low voltage coefficient of ±0.5 ppm/V, non-inductive devices feature absolute TCR down to ±25 ppm/°C and tolerances down to 0.1%.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Sep 30, 2004 Available in sizes down to 0402, Thin Film Series FC offers resistance values from 10–1,000 ohms, depending on case size, with precision tolerances down to 0.1%. Featuring alumina substrate and passivated nichrome resistive layer, units are rated for stability of 500 ppm/°C over 2,000 hr at 70°C and for operating temperature of -55 to +125°C. They are intended for low-noise amplifiers, precision voltage dividers, and attenuation circuitry.

Linear Technology Corp.    Milpitas, CA 95035
Sep 30, 2004 Offering programmable charge current from 0.4-2 A with ±5% accuracy, autonomous Model LTC4060 charges 1-4 cell NiMH and NiCd batteries. Available in 16-lead TSSOP or 5 x 3 mm DFN package with operating voltage from 4.5-10 V, unit uses external PNP transistor to supply current to battery or battery pack. Charger offers 3 options for terminating charge cycle: negative deltaV, max voltage, or max time. Battery drain current is less than 1 µA during sleep mode.

DRI-STEEM Humidifier Co.    Eden Prairie, MN 55344
Sep 30, 2004 Suited for light commercial and residential use, Series VT has removable shroud that allows access to tank, water level control assembly, and electrical connections. Controller-operated drain and flush removes precipitated minerals from tank, while thermal expansion and contraction of heating elements continuously sheds mineral buildup. Controller provides automatic water level control, safety shut-down, operating time monitoring, and rapid heat-up.

Indium Corporation    Clinton, NY 13323
Sep 30, 2004 No-clean, halide-free 3592-35 provides heat stability for high temperatures required in Pb-free wave soldering of mixed-technology and through-hole electronic assemblies. Solvent-based formulation offers wide process window and minimizes solder balling. It can be used with tin/copper, tin/silver/copper, and tin/lead alloys.

Lin Engineering    Santa Clara, CA 95054

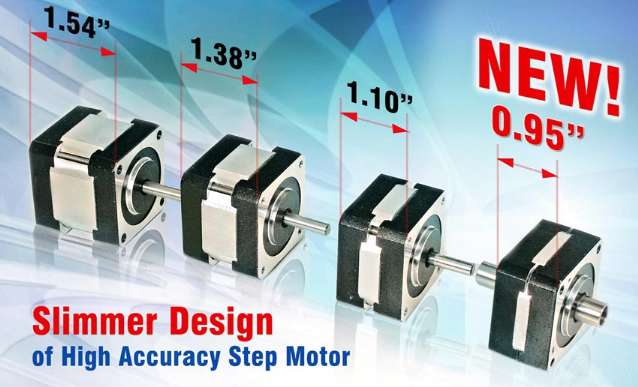

Sep 30, 2004 Available in lengths of 0.92, 1.10, 1.38, and 1.54 in., NEMA Size 17 High Accuracy Motor is capable of holding torques from 12–30 oz-in., depending on length. Emitted inertia is between 0.07–0.13 oz-in². Unipolar and bipolar windings are available to allow for torque and speed required to accommodate specific needs. Motor is suited for microstepping control in applications such as automation, medical, and surveillance cameras.

PennEngineering® (Penn Engineering)    Danboro, PA 18916
Sep 30, 2004 Surface Mount ReelFast(TM) hybrid metal/plastic panel fasteners feature steel retainer and separate metal Phillips drive screw, which is captivated in ABS cap. Assemblies are mounted by snapping screw into soldered retainer. Spring action of cap's plastic fingers holds screw in retracted position. When tightened, plastic cap completely covers retainer. Fasteners come in 2 screw lengths and in thread sizes No. 4-40, No. 6-32, M3, and M3.5.

Newport Corp.    Irvine, CA 92606

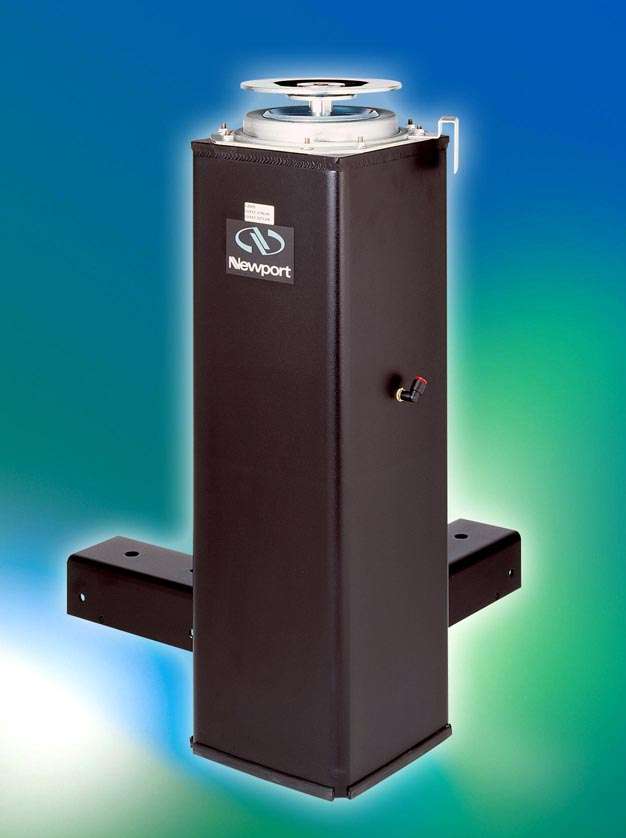

Sep 30, 2004 With industry standard height of 28 in. and side dimension of 10 in., Stabilizer(TM) I-2000 facilitates OEM integration of vibration isolation tables in space-sensitive applications. Product utilizes laminar flow damping, which employs thousands of tiny orifices, as opposed to single macroscopic orifice. Hybrid chamber design minimizes air volume between piston and damper, while use of trifilar pendulum provides horizontal isolation down to low frequencies.
