Hougen Mfg. Inc.    Flint, MI 48501 2005
Oct 05, 2004 Adapter assembly provides quick-release change feature that adapts spindles of drills to use RotaLocâ„¢ and the RotaLoc Plus Annular Cutters. It allows use of proprietary tools with Quick-Shank mounting design in drill models HMD505, HMD904, and 10914. With ¾ in. depth of cut, RotaLoc cutters are available 1/2–1 1/16 in dia in 1/16 in. increments and 12–27 mm dia. RotaLoc Plus tools extend size range to 1 3/8 in. and 35 mm and provide 1 in. depth of cut.

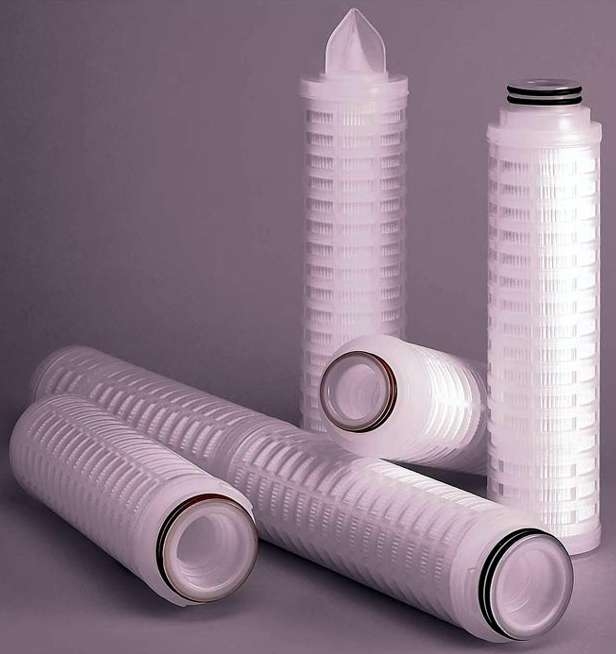

Meissner Filtration Products, Inc.    Camarillo, CA 93012 8760
Oct 05, 2004 Dual layer Protecâ„¢ RM0.5 features glass fiber outer layer and hydrophilic PVDF membrane inner layer, combining flow rates and dirt-holding capacity of glass medium with particle retention of membrane filter. Rated 0.5 µm, prefilter removes particulates and reduces bioburden in biological liquids to protect downstream sterile filters. All components are FDA listed for food contact use and are cleanroom manufactured.

Sugino Corp.    Itasca, IL 60143
Oct 05, 2004 Designed to clean machined parts of cutting fluids and loose chips, U-Jet(TM) III washes up to 6 sides of complex components. Triplex pump produces water pressure to 1,015 psi and delivers it at max flow rate of 13.0 gpm and sonic velocities to 1,100 ft/sec. All washing/cleaning operations are controlled via Mitsubishi PLC controller. Unit incorporates horn nozzle design, and workspace accommodates up to 20 x 10 x 8 in. parts weighing 22 lb max.

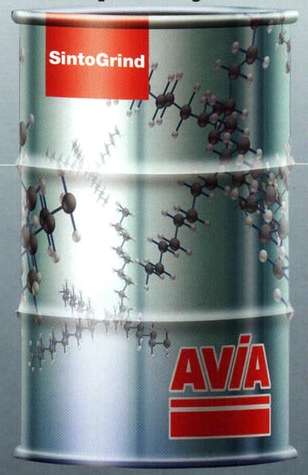

Hirschmann Engineering USA, Inc.    Schaumburg, IL 60173
Oct 05, 2004 SintoGrind TTS is formulated from synthetically produced poly-alpha-olefin based fluid, which provides unlimited life span if properly filtered. Lubricity lends to extended wheel life and minimal heat build-up in workpiece as well as production quality of surface finishes and elimination of surface cracks. Product has no hazardous elements and exhibits stable viscosity at different temperatures.

Igus, Inc.    East Providence, RI 02914 0349

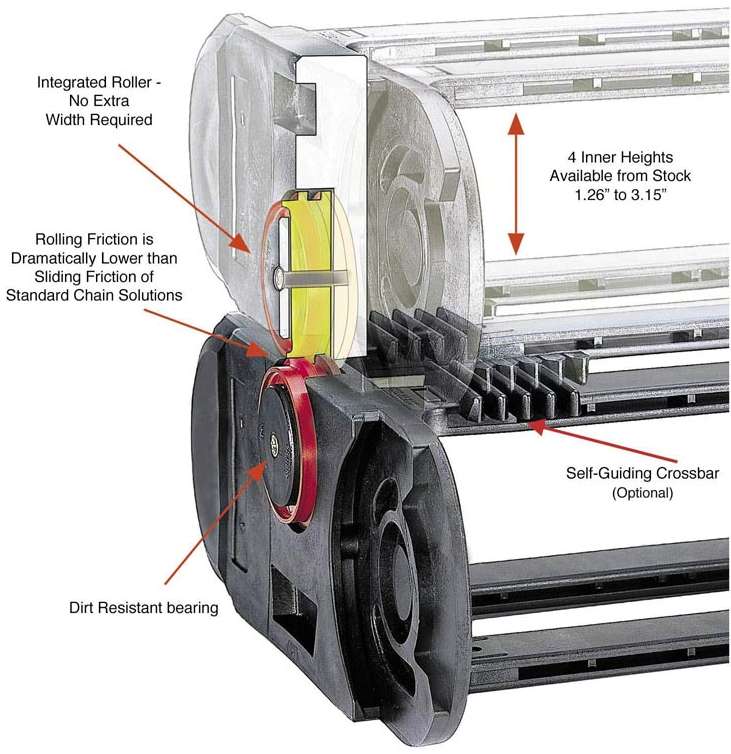

Oct 05, 2004 Rol-E-Chain Energy Chain® is comprised of rollers integrated into side links of cable carrier, enabling travels up to 2,600 ft. Available with 4 inner heights from 1.26-3.15 in., plastic cable carrier houses and protects moving cables and hoses on automated machinery. It integrates with Energy Chain cable carrier system and can be retrofitted in-field. It is suited for cranes, material handling devices, plasma cutters, and high-speed transfer systems.

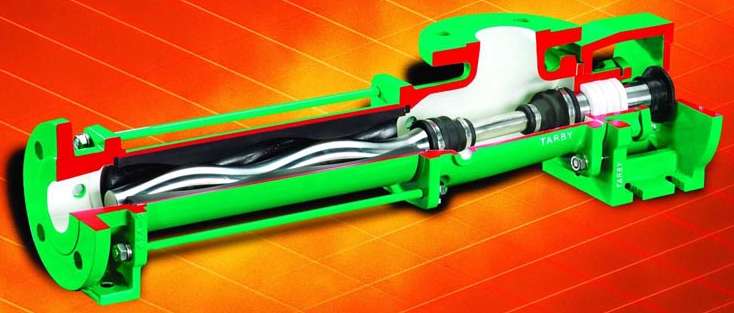

Tarby    Claremore, OK 74017
Oct 05, 2004 Titan C22 general-purpose, progressing cavity pump is designed as drop-in replacement for seepex® BN series pumps, and all internal components are interchangeable. Product handles fluids from thin, flowable liquids to viscous materials and solids in suspension. Features include 500 gpm flow capacities, 175 max pressure, and elastomer seals at each end of stator. Block design allows for close coupled drive configuration.

CONCORD CAMERA CORP.    Hollywood, FL 33021
Oct 05, 2004 Designed with 1 in. slim metal housing and 3 Megapixel/4X digital zoom, Concord 3043 features 16 Mb internal memory and SD card slot, 1.8 in. color TFT LCD, and movie mode with VGA resolution to 15 fps with sound. Unit also offers webcam functionality. Equipped with 3.1 Megapixel CMOS sensor, Concord 3346z features 3X optical/4X digital zoom, 6 Mb internal memory, and SD card slot. It offers 7 pre-set scene modes as well as AF assist lamp and AVI video mode.

SINO-NSH Oil Purifier Machine Manufacture Co.,Ltd    chongqing 96214  China
Oct 05, 2004 NSH LV series purifies and restores hydraulic, machine, coolant, and other lubrication oils in order to prevent machinery breakdown caused by lubrication contaminated with water, gas, and impurities. It removes impurities such as particulate matter, improving properties of lubricating oil to extend lifetime of machinery.

SINO-NSH Oil Purifier Machine Manufacture Co.,Ltd    chongqing 96214  China
Oct 05, 2004 NSH TF purification plant series purifies turbine-lubricating oil and can also be used to treat hydraulic, coolant, and other lubricating oils that contain water, vapor, impurities, sludge, dielectric, and colloid contaminants. Product improves properties of turbine oil and extends maintenance period of equipment.

SINO-NSH Oil Purifier Machine Manufacture Co.,Ltd    chongqing 96214  China
Oct 05, 2004 NSH VF vacuum insulation series filtration plant extends lifetime of oils used in transformers, circuit breakers, mutual inductor, voltage regulators, and switchgears. Also able to inject insulating oil into transformers, product is equipped with regenerators and can improve effects of de-acid and de-color. It increases value of breakdown voltage from 15 to 65 KV.

SINO-NSH Oil Purifier Machine Manufacture Co.,Ltd    chongqing 96214  China
Oct 05, 2004 NSH VFD improves properties of insulation oil by removing trace water, gas, and particulate matter. This helps enhance performance of transformers, circuit breakers, mutual inductors, cable, and capacitors with insulation systems. Product is specifically suited for purifying branded oil and insulating oil of high-voltage and super-high-voltage transformers. It may also be used in treating low-viscosity insulation oil.

IPC 2U GmbH    Langenhagen 30855  Germany
Oct 05, 2004 GW-Series Universal Serial Communication Servers enable devices that use serial interfaces to be connected to LANs, providing link to upper-level computer equipment. This allows PLCs, machines, instruments, and sensors with RS-232/422/485 interfaces to be managed via Ethernet or Internet. Product supports TCP Server, TCP Client, and UDP modes and enable users to add up to 256 virtual ports to computer, each of which can be individually configured.

Continental Fan Mfg. Inc.    Buffalo, NY 14215
Oct 05, 2004 TAPSâ„¢ (Total Air Purification System) uses 6-stage process to purify indoor air and eliminate allergens, bacteria, viruses, mold spores, and animal dander. It also eliminates pollen, mites, aerosols, VOCs, ozone, and CO. It employs electronic sensors to monitor air quality and automatically increase air performance to combat contamination. Warning lights signal presence of toxic chemicals and fumes before they reach dangerous levels.

Brady/TISCOR    Poway, CA 92064
Oct 05, 2004 Tool Track computerized system is comprised of software, hand-held computers, and individualized bar codes that are affixed to tools to identify them. Personnel can use hand-held devices to scan tools’ bar codes to identify tools, and then record data using mobile computers about disbursement, movement, location, and return of tools. Data can be uploaded to PC database for storage of information, report generation, and stock analysis.

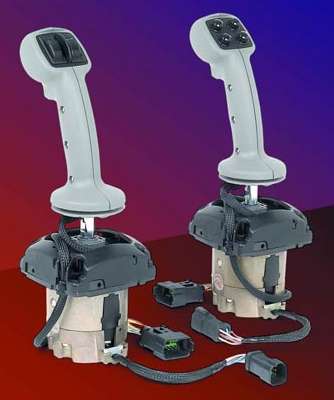

HydraForce, Inc.    Lincolnshire, IL 60069
Oct 05, 2004 With supply voltages from 9–31 Vdc, Electronic Joysticks produce high-resolution 500 Hz PWM output signal and are fully rated for radiated and emission immunity to variety of international standards. Units operate in temperatures from -40 to +85°C, are environmentally-sealed to IP67 specifications, and can withstand vibration to 9 g from 24–2,000 Hz. Available in 13 different handle configurations, joysticks withstand pull forces to 1,200 lb without damage.

Optical Gaging Products, Inc.    Rochester, NY 14621 4839
Oct 05, 2004 Offering 20 x 18 x 8 in. XYZ travel in compact floor-stand system, multi-sensor SmartScope® Flashâ„¢ 500 features AccuCentric® 12x zoom lens, which is automatically calibrated at every magnification change. Optical assembly moves in X-axis across angled steel crossbeam, while part moves in Y-axis on servo-driven stage. Granite platform ensures proper damping and structural integrity. Illumination sources include LED SmartRingâ„¢, coaxial surface illuminator, and LED backlight.

Climax Metal Products Company    Cleveland, OH 44092
Oct 05, 2004 Keyless Locking Assemblies are shaft-to-hub friction connections that rely on concentric surface pressure to affix gears, sprockets, and other drive components to motor-driven shaft. Units help eliminate problems with keyway connections and limitations for QD and tapered bushings. Available in both English and Metric sizes and variety of styles, assemblies are suited for connection of timing pulleys, sprockets, sheaves, cams, levers, and indexing applications.

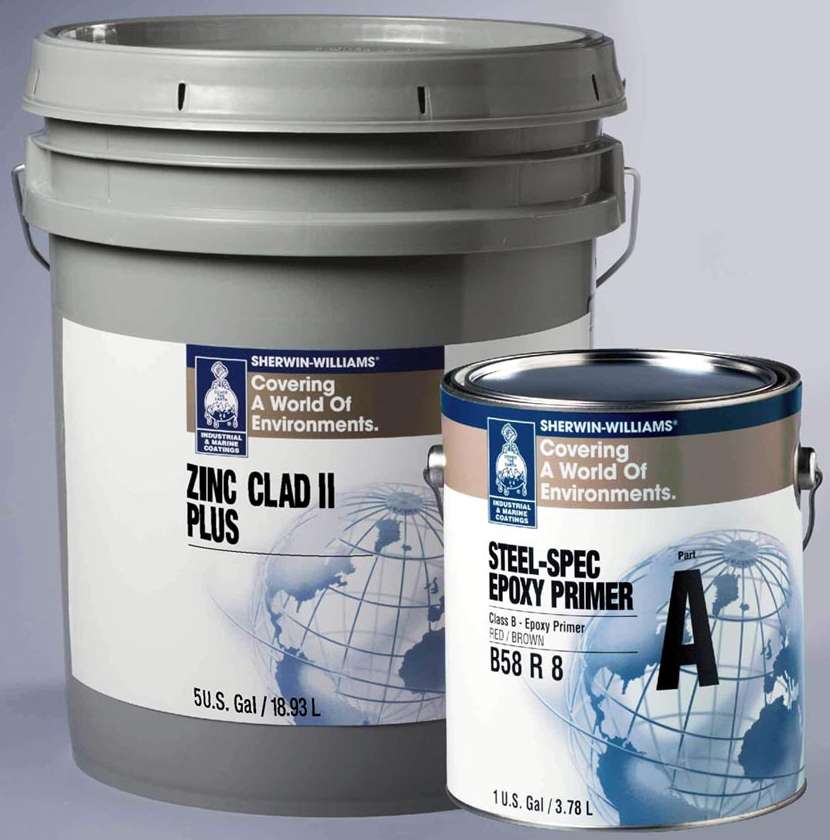

Sherwin-Williams Co. c/o Ultimate Lead Systems    Berea, OH 44017
Oct 05, 2004 Coating system consists of Steel Spec(TM) epoxy primer and Zinc Clad® II Plus inorganic zinc rich coating and meets slip coefficient performance standards for bolted connections per ASTM and AISC specifications. Zinc Clad II Plus is solvent-based, 3-component, inorganic ethyl silicate coating that dries to handle in 20 minutes at 77°F. Corrosion-resistant Steel-Spec topcoat can be applied at temperatures down to 35°F and dries to touch in 15 min.

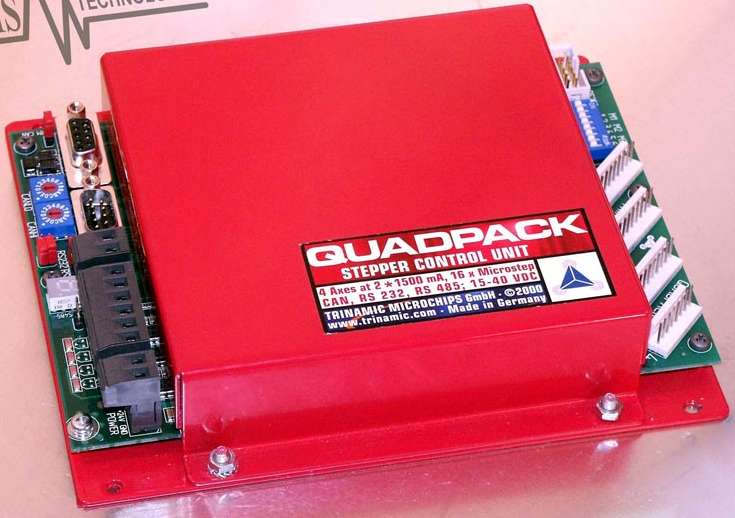

RMS Technologies Inc.    Carson City, NV 89706
Oct 05, 2004 Quadpack 4-Axis Controller/Driver features on-board control interfaces for RS232, RS485, and CAN as well as ability to daisy chain multiple Quadpacks. It provides up to 1.5 A/phase, while smart, multi-level current control keeps motors and drivers cool. Product also offers software selectable step resolutions and automatic 3-phase ramp generation with programmable parameters for maximum frequency and acceleration for each channel.

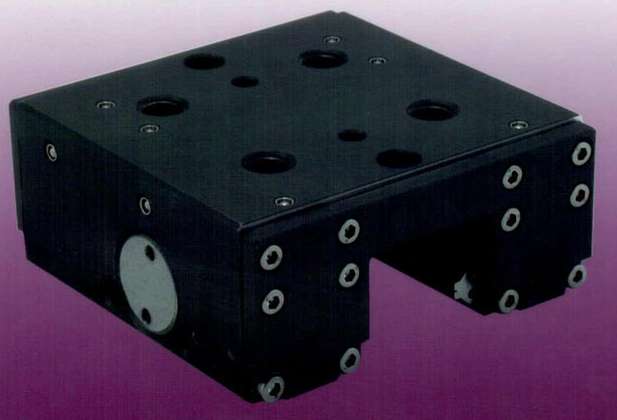

Nexen Group    Vadnais Heights, MN 55127
Oct 05, 2004 Spring-engaged, air-released Profile Rail Brake is designed for max holding and/or dynamic braking. Suited for power-off safety conditions, linear motion control device integrates into profile rail system and is kept disengaged with air pressure. In disengaged mode, brake allows nearly frictionless movement of carriage until air is exhausted and internal springs apply force on brake mechanism that clamps brake onto both sides of rail.
