Elmo USA Corp.    Plainview, NY 11803
Oct 07, 2004 Suited for indoor and outdoor installation, waterproof Model TND4204VX is housed in vandal-resistant, aluminum die-cast body with impact-resistant polycarbonate bubble. It employs DSP circuitry with 1/3 in. color interline-transfer CCD, minimizing smear for image sharpness. Powered by 24 Vac or 12 Vdc, camera features 3-9 mm varifocal lens with auto iris capability, resolution of 480 TVL, S/N of 50 dB, and minimum illumination requirement of 0.35 lux.

Hyde Park Electronics, LLC    Dayton, OH 45420 4017
Oct 07, 2004 Photo Virtuâ„¢ features built-in, teachable, multi-mode technology, including diffuse, background suppression, polarized retroreflective, and thru-beam modes. Light or dark operate functionality is optional. Equipped with flat-profile, dual-mount housing, unit offers sensing ranges from 4.72 in. for diffuse to 49.2 in. for thru-beam. Protection ratings of NEMA 4X and IP67 make it suitable for many environments.

RF Industries    San Diego, CA 92126 4202
Oct 07, 2004 Featuring 2 RJ-45 inputs, Model RFA-4218-20 tests straight and crossover RJ-45 UTP, STP, EIA/10Base-T, 100Base-T, EIA/TIA 568A/568B, FDDI, ATM, TP-PMD and Token Ring cables. LED display is powered by 9 V battery and indicates shorts, open wires, reversed pairs, crossed pairs, and mis-wires. Housed in black, impact-resistant plastic case, Model RFA-4218-20 automatically identifies cable type it is connected to and verifies all connections.

TransEra Electronics Inc.    Waterloo, ON N2V 1Y9  Canada

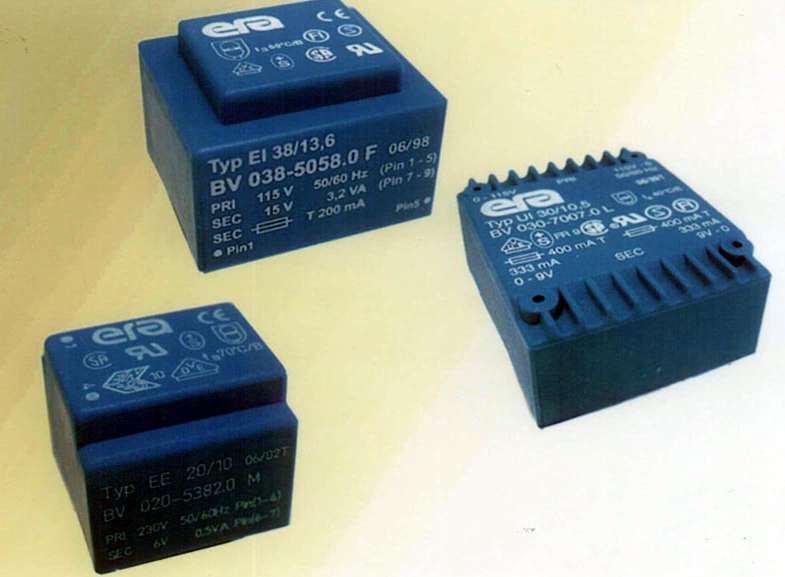

Oct 07, 2004 Using epoxy in place of tape/paper insulation, Encapsulated Transformers resistant to shock, vibration, humidity, and moisture. To fit different space and installation requirements, units come in low profile, print-line, and compact mini-line series. Applications include circuit boards, HVAC systems, appliances, metering, and medical.

Simonds Industries, Inc.    Fitchburg, MA 01420
Oct 07, 2004 Able to cut tough materials, Carbide Tipped Hole Saws are constructed with tungsten carbide tooth tips and precision ground teeth. They are available in 3 tooth-per-inch configuration and in various saw diameters ranging from 9/16–6 in. Hole saw kit composed of most popular specifications used by specific contractor trades is also available.

Oriental Motor U.S.A. Corp.    Torrance, CA 90502

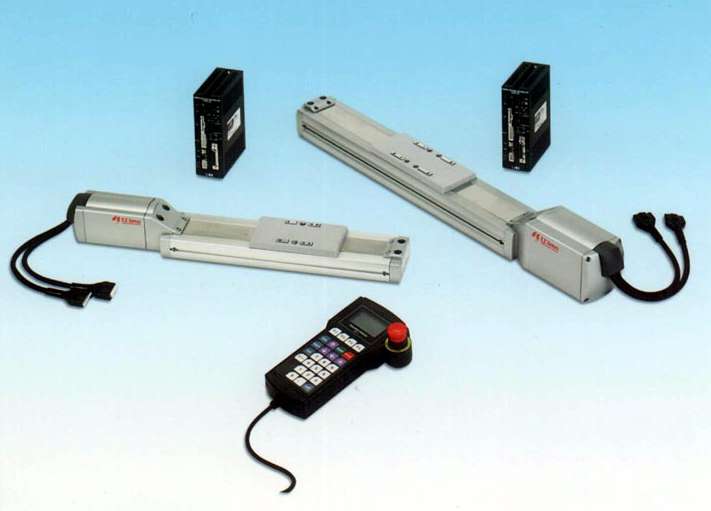

Oct 07, 2004 Linear Series EZS and EZHS provide positioning through use of table and slider driven by ball screw. Units come in stroke lengths of 1.97-19.7 in. with max load of 66 lb. Both series offer repetitive positioning accuracy of ±0.02 mm under full load and speed, with max resolution of 0.01 mm. Series EZS reaches horizontal speeds of 11.8 ips, while Series EZHS achieves horizontal speeds of 31.5 ips and includes software-based smooth drive function.

Cooke Corp.    Auburn Hills, MI 48326 2670
Oct 07, 2004 Digital Intensified CCD Imaging System can achieve gating time of 3 ns with 1,280 x 1,024 CCD format. Researchers can study events that are extremely short in duration and that exhibit either low light or high light level characteristics. Light sources such as pulsed lasers can be synchronized with system to image dynamics of events ranging from ballistics to hypervelocity flows. System provides both outdoor and remote testing capabilities.

Rexnord Industries, LLC    Milwaukee, WI 53214
Oct 07, 2004 For conveying and accumulating tires, 2.5 in. pitch MatTop® LBP3003 chain is constructed with accumulating rollers spaced on 1.5 in. increments along width. Tires can be conveyed through 90° transfer points with MatTop® LBP3004 chain. Elongated rollers, perpendicular to direction of travel, form uniform roller bed for tires to move across. Staggered 1.5 in. rollers are spaced on diagonal distance of 1.5 in. to provide stable handling for tires of all sizes.

Richco, Inc.    Chicago, IL 60680

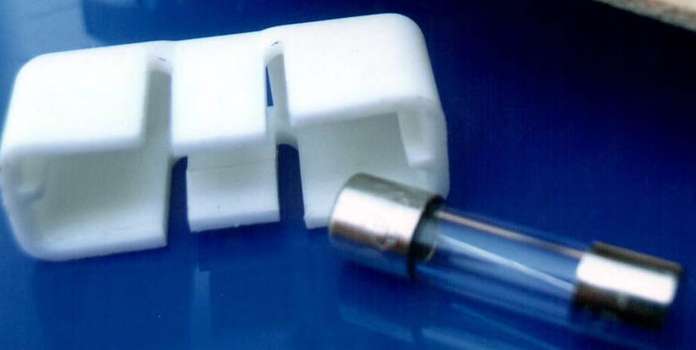

Oct 07, 2004 Made from UL94 V0 flame retardant nylon, FCE-5-19 is suited for use with electrical equipment containing power supply or transformer unit using 5 x 20 mm fuse. Installation requires user to push fuse cover over fuse and its holders on PCB. Cover ensures secure fit by locking onto fuse and its holders, protecting fuse when maintenance needs to take place on surrounding components. Part has square viewing area that enables quick identification of blown fuse.

Malish Corp., Plastic Div.    Willoughby, OH 44094
Oct 07, 2004 Designed for use on industrial rotary machines, Side Brooms use nylon and polypropylene filament. Combination of bristle quality and precision-molded plastic blocks delivers side brooms that withstand tough cleaning challenges. Products are available in diameters from 13–18 in.

Hospital Specialty Co.    Cleveland, OH 44101 4763
Oct 07, 2004 Health Gards® hand held sprays contain Neutrexâ„¢ odor-neutralizing compound, which seeks-out and counteracts malodors. VOC-compliant products deliver deodorization via non-staining, ultra-fine dry mist and are offered in Gala Garden, Very Berry Cherry, Hot Apple Pie, Sassy Citrus, and Mango Madness fragrances. With light spray, scents last for hours wherever odor-neutralizing fragrance is needed.

Hospital Specialty Company    Highland Heights, OH 44143
Oct 07, 2004 Health Gards® Light Touch Dispenser and Aerosols deodorize spaces under 2,000 ft³. VOC-compliant aerosols contain Neutrexâ„¢ odor-neutralizing compound that counteracts malodors. Offered in 5 fragrances, each 2.2 oz. can provides 30 days of continuous deodorization via non-staining, ultra-fine mist. Dispenser features continuous, day-only, and night-only operating modes as well as spray options with selectable time intervals.

Grieve Corporation, The    Round Lake, IL 60073-2898
Oct 07, 2004 Measuring 10 x 13 x 12 ft with 4 in. insulated walls, No. 933 gas-heated 250° vertical conveyor oven has 42 trays, each 72 in. wide x 23 in. long and rated for 100 lb. Trays lower vertically and pass back into heating zone, then exit at top and pass downward through cooling. Two 6,000 cfm, 5 hp recirculating blowers provide 12,000 cfm upward airflow, and four 24 in. dia tubeaxial fans, each driven by 5 hp motor, push/pull air through cooling zone.

Greenlee Textron, Inc.    Rockford, IL 61109
Oct 07, 2004 Model 438PW adapts to Greenlee 100–240 ft fish tape, allowing user to rewind it using 14.4 V or larger battery drill. Also used to pull poly pull line through conduit, product requires user to snap Power Winder into fish tape case, chuck socket into battery drill, and drive Power Winder with drill. It winds 240 ft tape in seconds, and steel 3/8 in. hex socket can be stored on adapter for availability.

ADLINK Technology Inc.    Irvine, CA 92618
Oct 07, 2004 PXI-7900 Series switch modules are PXI Rev. 2.1 and PICMG 2.1 R 2.0 CompactPCI hot swap compliant and can be used in either PXI or CompactPCI systems. Series includes PXI-7901 16-ch general-purpose SPDT relay module, PXI-7921 24-ch 2-wire multiplexer module, and PXI-7931 4 x 8 2-wire matrix module. Each switch module series features distinct functionality to cover needs of variety of applications in measurement and automation systems.

French Technology Press Office, Inc.    Chicago, IL 60601
Oct 07, 2004 LYDYA(TM) Q-CW and CW laser diode drivers are for single diodes, bars, and stacks, and are available with or without TE temperature controller. Computer controllable devices include diode shunt that remains plugged to diode terminals and short-circuits when diode is not used, output stage designed to avoid transients, and high power circuitry that supplies regulated adjustable current and provides over-current protection.

Fette America    Rockaway, NJ 07886
Oct 07, 2004 ABSOLUT System contains and removes active compound and toxic product dust during industrial and pharmaceutical production. Two HEPA filters allow cleaned air to be reintroduced back into production area with no impact on room-to-hallway air balancing. Providing 24-hr operation, system can dedust different tablet presses with one filter system without cross contamination. Integrated weighing systems provide records of quantities that have been extracted.

Richco, Inc.    Chicago, IL 60680
Oct 07, 2004 Available in 20 gf.cm and 40 gf.cm torque variations, RFRT-XXG-CLIP series aids in smooth opening of compartment or door. Snap-in design negates need for separate screws or ultrasonically welding this part. Push and snap-in motion holds damper firmly in place with its fixing wings. Using designated cut out in panel/chassis, damper is pushed into place through panel/chassis, exposing gear to integrate with toothed rack of compartment door.

Richco, Inc.    Chicago, IL 60680
Oct 07, 2004 Constructed with thermoplastic elastomer material, SVF-1 has design that provides spring-like shock absorption. It can be installed by hand and accommodates panel thicknesses from .012–.169 in. by offering use of various mounting options. Uncompressed height of foot is .32 in. with diameter of 1.5 in. It is suited for applications with significant movement and vibration, such as in digital video recorders, players, cooling fans, and HDDs.

Logic Beach, Inc.    La Mesa, CA 91942
Oct 07, 2004 Model CP-2 digital cellular interface communications link provides wireless access to data logging and remote monitoring systems. It utilizes expanding CDMA digital cellular network for modem communication to proprietary data logging and alarming products. Unit provides complete communication and control over data loggers, including real-time viewing, data downloading, and system interrogation and reprogramming.
