Artesyn Technologies    Framingham, MA 01701

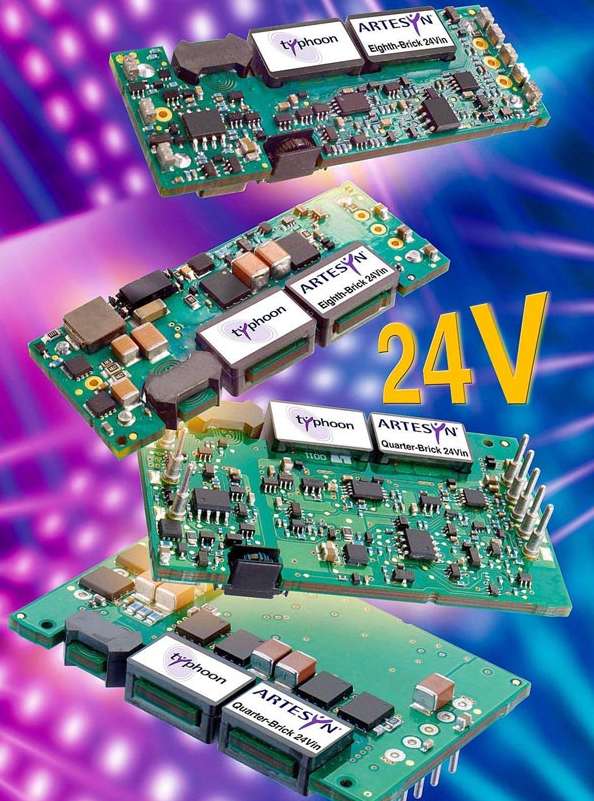

Oct 14, 2004 Typhoon(TM) series of panel mount eighth- and quarter-brick converters includes two 20 A eighth bricks and two 30 A quarter bricks offering single isolated outputs of 1.8 and 3.3 V. Products employ full wave coupled-inductor topology in conjunction with processor-controlled synchronous rectifier circuit. Their 24 V input accommodates voltages in 18-36 V range, and above-board profile is 0.3 in.

Sola/Hevi-Duty, EGS Electrical Group    Rosemont, IL 60018
Oct 14, 2004 With 2 fusing options, Industrial Control Transformers rated up to 1,000 VA help customers comply with UL Standard 508, NEC430-72(C), and NEC450.3(B). WA option includes 2-pole, primary fuse holder for Class CC fuses and secondary fuse holder that accepts type 3AG or equivalent glass fuse. WB option uses same primary fuse holder and includes secondary fuse holder that accepts type FNM or equivalent fuse. Finger safe terminal covers for both options are included.

DELUMPER ® Div., Franklin Miller Inc.    Livingston, NJ 07039

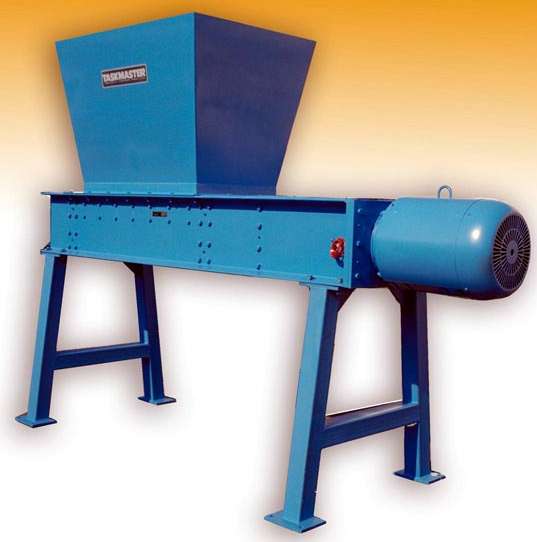

Oct 14, 2004 Able to handle various materials, TASKMASTER®TM 2300 uses counter-rotating banks of intermeshing cutters to reduce bulk solids up to 80%. Product features fully enclosed, dust-tight body of structural steel. Split-body frame design facilitates access to cutters and hastens removal of cutter assembly from top of unit. Hardened and ground cutter disks and spacers ride on 2 parallel hex shafts.

Little Giant Pump Co.    Oklahoma City, OK 73157 2010
Oct 14, 2004 RIM-U Universal Replacement Ice Machine Pump has 1/25 hp motor with upper and lower sealed ball bearings. Pump base, impellers, and discharge adapters are molded from NSF-approved thermoplastic, and all pump parts can be removed without hand tools. Discharge adaptors for ½, 5/8, ¾, and 1 in. tubing are included, along with Y-adaptor for 5/8 in. tubing and selection of 4 impeller sizes. Design and construction materials meet or exceed most OEM specifications.

Little Giant Pump Co.    Oklahoma City, OK 73157 2010
Oct 14, 2004 IAPMO approved Pit Plusâ„¢ systems come pre-assembled with 9S and 10S series sewage pumps, 16-bolt steel cover, 2 in. schedule 80 PVC discharge pipe, and check valve. Corrosion-resistant, bolt-on flange, 2-piece structural foam cover, available on 9 models, facilitates access to pump. Roto-molded polyethylene basin has circumferential ribs, external inlet hub, and anti-torque pump stops. Other equipment includes pump on/off switch and optional indoor/outdoor alarm system.

Cypress Computer Systems    Lapeer, MI 48446
Oct 14, 2004 Built on proprietary SUPREX® technology, short-range wireless DUPREXâ„¢ RF (Dual, Supervised Reader Extender) extends distance between any two access control readers and one controller. Able to span up to 500 ft, product is available with weatherproof enclosure and provides immediate feedback from on-board diagnostics. It features alarm output from central unit, indicating power or communication loss with reader at remote unit.

E Instruments International LLC    Langhorne, PA 19047
Oct 14, 2004 MicroRay Pro, suited for HVAC monitoring and maintenance, has temperature reading capability from -5 to +800ºF. Portable unit provides laser pinpointing to identify measured surface area. Areas of use include bearings, motors, valves, electrical switches, hot spots, engine performances, floor heating systems, and piping.

Proportion-Air, Inc.    McCordsville, IN 46055
Oct 14, 2004 Model FCV allows user to adjust Cv linearly from 0-19 Cv with electrical command. Single package incorporates 1 in. valve with actuator, positioner, and electronics. Available as normally open or normally closed, valve accepts either 0-10 V or 4-20 mA signal.

Proportion-Air, Inc.    McCordsville, IN 46055
Oct 14, 2004 Contained in NEMA 4 housing, Series F measures gas flows as low as 2 scfh with real-time output of 0-10 V or 4-20 mA. Pressure changes that occur when gas is passed through venturi orifice are measured and used to determine flow of gas. Output is linear over flow range.

Servo Magnetics, Inc.    Canoga Park, CA 91303
Oct 14, 2004 Linear Voice Coil Actuator allows user to apply force directly in linear direction without mechanical conversion device such as ball screw or gearbox. Measuring 2.72 in. dia x 1.06 in. long, unit features low-mass, molded inner-moving coil and mounting holes. It can produce peak forces greater than 25 lb with approximately 170 W of power. Custom mountings and winding configurations are available.

Rite-Hite Corp.    Milwaukee, WI 53224
Oct 14, 2004 Barrier® Glider features 3 in. thick, foam-core panels that provide insulation without need for defrost systems. Tubular track, combined with hourglass-shaped rollers enables panels to rotate on track if impacted. Upon impact, panel retention system automatically pulls panels back into position without human intervention. Thermal Air(TM) Sealing System circulates warm air around door perimeter to deliver up to 9 in. of heated seal surface area between wall and panels.

Opto 22    Temecula, CA 92590 3614
Oct 14, 2004 Microsoft Windows-based ioProjectâ„¢ v6 provides integrated set of interoperable applications, programming tools, and diagnostic utilities for developing control programs, operator interfaces, and data acquisition (DAQ) systems for Opto 22 SNAP Ethernet-based I/O and control systems. Software also lets users create subroutines within ioControl to simplify control program development by archiving repeated processes or tasks for future reference.

PCB Piezotronics Inc.    Depew, NY 14043 2495
Oct 14, 2004 Series 474 In-Line Low Pass Filters, used in any low impedance system, attach directly to input of readout instruments to eliminate potentially troublesome high-amplitude resonance peaks. Series 477 In-Line Low Pass Filters for ICP® sensors provide 12 dB/octave or 40 dB/decade roll-off for attenuating high frequency, high-amplitude signals associated with structural resonances. Custom filter options and in-line signal attenuators are available.

Lion Precision Inc.    St. Paul, MN 55126 7014
Oct 14, 2004 UltraLRD eliminates need for sensor changeover. During operation, high-frequency signal is transmitted from bottom of sensor, through label web, and received in top of sensor. Amount of signal reaching receiver is dependent on amount of material through which it travels. With registration repeatability of 0.2 mm and switching frequency of 500 Hz, sensor accurately detects increased signal level which occurs during gap between labels.

Artesyn Technologies, Inc    Boca Raton, FL 33434
Oct 14, 2004 Available for multi-blade SS7/SIGTRAN signaling systems utilizing PICMG 2.16 and ATCA platforms, HA-MTP3 software automatically detects co-operating blades to form HA system in active-active configuration. It utilizes HA Services functions to detect hot-swap requests, affect orderly shut down and restoration, detect failures in field replaceable units, and manage failback when blade returns to service. Software can report alarms and provide notification of failure events.

Aura Communications Technology, Inc.    Wilmington, MA 01887
Oct 14, 2004 LibertyLink® System Development Kit allows manufacturers to evaluate wireless streaming audio capabilities of magnetic communication for use in current and future product designs. Kit utilizes form of near field magnetic communication to enable digital audio performance in wireless devices. LibertyLink technology is inherently private, secure, and by operating at 13 MHz, avoids interference of 2.4 GHz band.

Ultra Tech Machinery, Inc.    Cuyahoga Falls, OH 44224
Oct 14, 2004 Developed for plier grinding applications, CNC Rotary Deburr/Grinding Machine consolidates 3 stations on single dial. Hand operations or single station rotary belt grinding operations can also be performed. Standard features include belt speed of 4,000-7,500 fpm, self-contained coolant system with filtration and magnetic separator, speed modification capabilities at each station, real-time head position and pressure monitoring, and Ethernet capability.

Invensys Systems, Inc.    Foxboro, MA 02035
Oct 14, 2004 Alarm Management Service is designed to minimize nuisance alarms and help process control system operators respond more effectively to abnormal situations. Service utilizes 3-phase approach, which includes alarm system performance study and report; alarm system performance improvement plan; and life cycle alarm maintenance, which includes field service technicians to maintain alarm system performance over time.

Invensys Systems, Inc.    Foxboro, MA 02035
Oct 14, 2004 Available for various process control systems, service provides on-line control loop and valve diagnostics as well as reporting, loop tuning, and continuous remote monitoring to help ensure maximum control loop performance over time. It evaluates current plant or unit control loops utilizing diagnostic software tools. Critically under-performing loops are prioritized for remediation, whereupon experts can perform loop tuning and recommend appropriate valve maintenance activities.

Invensys Systems, Inc.    Foxboro, MA 02035
Oct 14, 2004 Suited for Foxboro I/A Series automation systems, service is designed to protect against cyber attacks and other network intrusions at industrial sites. Site Security Review Service and System Security Hardening Service also help users develop effective security plan, identify specific site vulnerabilities, and protect against potentially catastrophic intrusions.
