Keyence Corporation of America    Elmwood Park, NJ 07407
Oct 18, 2004 Integrating illumination optics and receiver circuitry in sensor head, Series CZ-V20 employs 3 separate, high-intensity RGB LED light sources, which transmit red, green, and blue light onto target surface. Fiber optic cable transmits RGB light through optical system in sensor head, producing uniform beam spot. Polarizing filter cancels reflections from glossy surfaces. Detection performance is virtually unaffected by shape, position, angle, or surface luster.

Solartron Mobrey    Houston, TX 77084
Oct 18, 2004 Frequency Modulated Continuous Wave (FMCW), loop-powered, non-contact transmitters in MRL800 (Pegasus) series, available with both rod and horn antenna, have operating range of 100 ft. Available in intrinsically safe and explosion-proof designs, 2-wire instruments offer reliable level measurement of liquids in aggressive, toxic, or difficult processing environments. Products are also suited for storage monitoring and stock control applications.

Eaton Corporation    Raleigh, NC 27615
Oct 18, 2004 Providing 72 A output power @ 120 V, single-phase, VPC3106 Series 3-phase vertical power distribution units have twenty-four 15 or 20 A, 3-prong receptacles. This allows continuous power draw of 3 A per receptacle. Measuring 70 in. tall and 2 in. deep (excluding circuit breaker box), product mounts in back or side of cabinet and places power outlets in line with installed equipment. Series is made with steel and has black finish.

Siemens Building Technologies, Inc.    Buffalo Grove, IL 60089
Oct 18, 2004 Suitable for residential or light commercial buildings, stand-alone model RDX42.22U offers LCD display of temperature or setpoint in °F or °C. Fan switch permits continuous fan on or automatic fan operation, while system switch allows manual selection of heating, cooling, or off position. Unit can be used in applications requiring 24 Vac 2 stage heat/1 stage cool, 4 pipe fan coil, unitary air handling units and heat pump or compressor based equipment.

Elma Electronic Inc.    Fremont, CA 94538

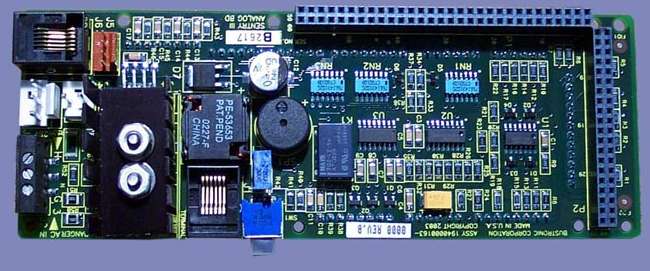

Oct 18, 2004 Sentry I System Monitor, suited for VME/64x, VXI, CompactPCI, and other chassis, monitors up to 8 voltages and can be configured for non-standard voltages. Unit reports fan fail and over-temp status via LEDs. Designed for COTS/Mil programs, microprocessor-based Sentry III Diagnostic Monitor enables users to monitor and control power supplies, fans, and other components in Elma chassis. IPM Sentry shelf manager individually adjusts speed of fans depending on temperature within chassis.

EM Microelectronic-US    Colorado Springs, CO 80918
Oct 18, 2004 Offering up to 22 Kbytes FLASH memory, EM6812 integrates powercheck and brownout functions, delivers up to 2.5 MIPS, and achieves 2,200 MIPS/W. It features supply voltage range of 2–5.5 V and 8-level supply voltage level detection. Consuming 120 µA from 3 V supply in active mode operating at 1 MHz and 0.8 µA in standby mode at 32 kHz, product suits portable, battery-powered applications in harsh environments. Unit also features 16 independently configurable I/Os.

American Fibertek Inc.    Somerset, NJ 08873
Oct 18, 2004 Series 485 transmits and receives one RS485 signal over single optical fiber, while Series 487 transmits and receives two RS485 signals over single optical fiber. Units can be configured for either 2- or 4-wire operation with flip of switch. As part of product operation, transceivers can be biased or non-biased and terminated or not by selectable dip switches. Diagnostic indicators are provided for visual indication of system status.

Advanced Power Technology - Europe    Merignac 33700  France
Oct 18, 2004 Power modules, housed in 62 x 108 mm SP6-P low-profile package, offers minimum parasitic inductance, solderable pins for mounting to top PCB, and base plate for heat spreading and thermal resistance. Offering includes triple phase leg and triple dual common source configurations. Each leg is independent and can be configured as 3-phase bridge or current phase leg. Current ratings range from 13–100 A, and current ratings range from 40–90 A.

Advanced Power Technology - Europe    Merignac 33700  France
Oct 18, 2004 Suited for low power applications, Power Modules in SP3 package offer minimum parasitic inductance, solderable pins for mounting to PCB, and base plate for thermal resistance. Current ratings range from 11–54 A at Tc=80°C for voltages of 500–1,200 V for MOSFET, FREDFET, and CoolMOS modules. Current ratings range from 10–50 A at Tc=80°C for voltages of 600–1,700 V for PT, NPT, and TRENCH IGBT modules. Applications include power factor correction, motor control, UPS, and welding converters.

American Fibertek Inc.    Somerset, NJ 08873
Oct 18, 2004 Residing on host system's server, software-driven Afinety allows security professionals to access status of 900 and 9000 Series digital fiber optic transceivers being used on network platform. Remote access can be obtained from any PC on network or any PC with remote access to host network. Afinety is password-protected to prevent unauthorized access. In event of system malfunction, designated security personnel receive e-mail notification on alarm status.

Pelion Systems, Inc.    Lafayette, CO 80026-2789
Oct 18, 2004 Pelion MPO manages transition to demand-driven manufacturing processes, including Lean, Six Sigma, and Demand Flowâ„¢. It is powered by advanced algorithms supplemented with visual modeling to help manufacturers analyze and design shop floor configurations and processes. Pelion MPO integrates all data management tools needed to analyze and immediately respond to changes in production, supply chain, and distribution requirements based on real-time demand.

Thermal Instrument Co.    Trevose, PA 19053
Oct 18, 2004 Suited for liquids and gases, Thermal Mass Inline Flow Switch, Model 600-9FS, features non-invasive flow path and adjustable set points. Corrosion-resistant unit is made of 316 stainless steel, Hastally C, Monel, Inconel, titanium, or other exotic materials. End connections are available to meet user's requirements.

Midwest Motion Products    Watertown, MN 55388

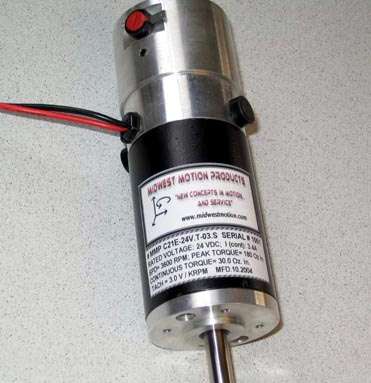

Oct 18, 2004 Measuring 2.14 in. dia x 5.96 in. long with 0.375 in. dia stainless steel output shaft, Model MMP-C21.175E-24V.T-03 requires 3.4 A at 24 Vdc to generate full power. Integral tachometer provides positive, linear feedback signal for closed-loop servo applications at rate of 3 Vdc per 1,000 rpm of rotation. Delivering 80 W of continous output power at 5,000 rpm, motor is rated for 30 oz-in. of continuous torque and 180 oz-in. peak torque.

Contec Microelectronics Europe BV      Netherlands
Oct 18, 2004 PCI Bus Extension System uses high-speed serial transmission and PCI bridge to enable PCI boards to be used at up to 12 m from PC. PCI slot expansion units can extend PCI bus using Cat-5 cable and provides fully compatible PCI bus bridge with transmission over 5 Gbps full duplex link. Applications include areas such as semiconductor manufacturing equipment, robotics and motor control, high-speed remote I/O, and CTI.

Digital Defense, Inc.    San Antonio, TX 78209
Oct 18, 2004 Frontline 3.0â„¢ Security Management Service offers security management portal that provides clients with immediate access to vulnerability management tools, an array of reports, and power to self-schedule internal and external vulnerability assessments. It includes workflow management and reconciling tool and provides analysis data on integrity of network. Active Viewâ„¢ feature allows users to assess entire network and tailor testing based on recent installations or configuration changes.

Cree, Inc.    Durham, NC 27703
Oct 18, 2004 XThin® models XT-24 and XT-27, with respective min radiant flux of 24 and 27 mW, are offered with typical dominant wavelength of 460 nm. Both versions feature low-profile design with typical height of 115 micron and forward voltage of 3.2 V. White light applications include LCD backlighting for mobile appliances and larger format LCD displays, such as those used in car navigation systems.

Canto Software, Inc.    San Francisco, CA 94105
Oct 18, 2004 Available for Workgroup and Enterprise Editions of Cumulus, HELIOS Companion v2.0 combines digital asset management software with file and print server and server-based image replacement solutions. It synchronizes Cumulus catalogs and HELIOS EtherShare and PC Share volumes when users store new files or make changes to existing files. Cataloging process, including reading of metadata and creation of thumbnails, is performed directly on server.

Accordance Systems    Des Moines, IA 50266
Oct 18, 2004 Able to work with any operating system, M100 plugs into standard PC storage bay and uses two 2½ in. disk drives in same space as one 3.5 in. drive. Unit keeps 2 identical images of data, eliminating need to make backups in case of one hard drive failure. It can automatically copy data when failed drive is replaced, allowing user to work while data is being transferred to new disk. System also allows 2.5 in. disks to be copied on demand.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Oct 18, 2004 Based on industry standards such as Wake on LAN® and Preboot eXecution Environment, Remote Deployment Manager v4.20 is used for deployment of software and firmware images in preboot environment. It helps automate operating system deployment to multiple systems and enables system administrators to use single interface for deploying systems. Software also supports scripting of multiple tasks and protects data with image backup and restore technology.

Cotronics Corp.    Brooklyn, NY 11232

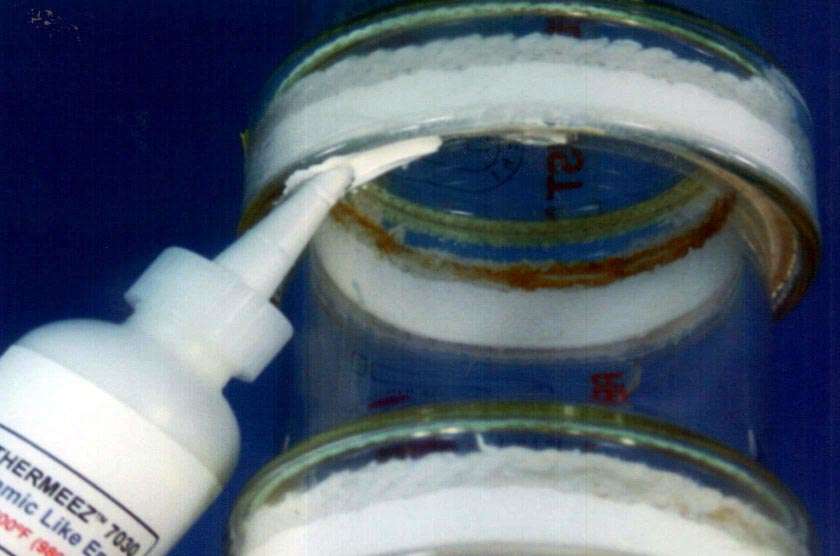

Oct 18, 2004 Applied by caulking cartridge, 7030 sealer forms gas tight seals with no objectionable odors or harmful fibers. Free flowing formulations are available for rapid or automatic dispensing applications. Room temperature-cure product bonds to metals, ceramics, door gaskets, tadpole gaskets, and ceramic cloths with no special surface treatment required. Corrosion and erosion resistant coatings are formed after a quick post cure at 600°F.
