LIT Industries, Inc.    Bessemer City, NC 28016
Oct 15, 2004 InsulToneâ„¢ air laid polyester acoustical blanket is resistant to fungi and bacteria growth and unaffected by grease and oil. Available in white and gray fiber color, product can be fabricated to specifications and formed around corners and curved surfaces. It is offered in widths up to 60 in., thickness from .25–2 in., and weights from 6–20 oz/yd². Applications include HVAC, office furniture, appliances, automotive, high-fidelity speakers.

CS Unitec, Inc.    Norwalk, CT 06850
Oct 15, 2004 Designed for percussion drilling of anchor and thru-holes in concrete, rock, and masonry, Hydraulic Rotary Hammer Drill delivers 3,400 blows/min and uses SDS-Plus shank carbide tipped bits. Product can be switched to rotary mode for drilling steel and wood. Features include safety clutch, adjustable side handle with depth gauge, and sealed gears with permanent lubrication. Weighing 15 lb, product works at 1,450–2,000 psi operating pressure.

Artesyn Technologies    Framingham, MA 01701

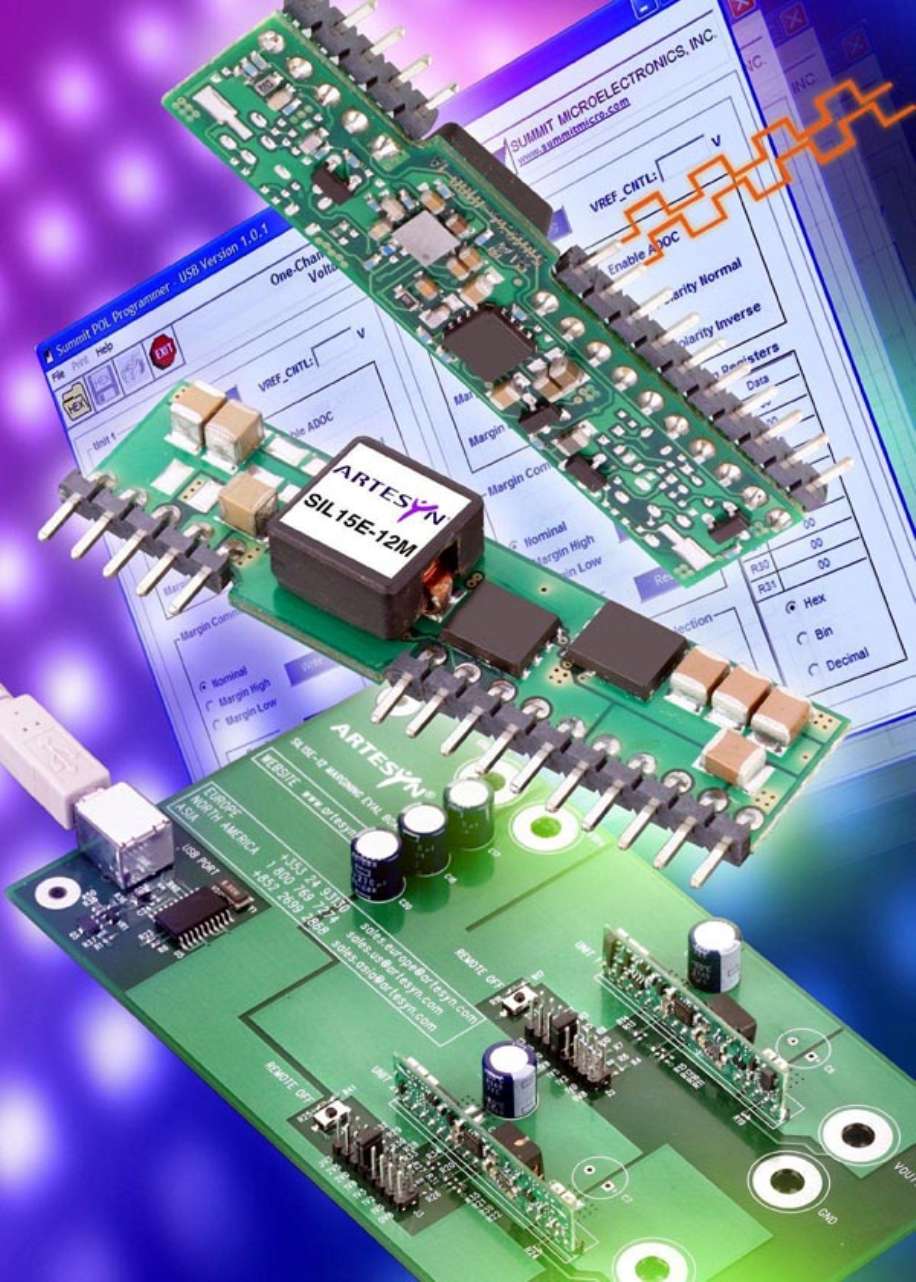

Oct 15, 2004 Non-isolated SIL15E-12M POL converter provides control flexibility for PCB design qualification and production testing. It combines conversion technology with voltage control features and incorporates I²C bus interface with open architecture. Product also provides active DC output control function and generates up to 15 A with full load efficiency of 92%. Converter has input voltage range of 10-14 V and output range of 0.8-3.36 V.

Phoenix Contact    Harrisburg, PA 17111 0100

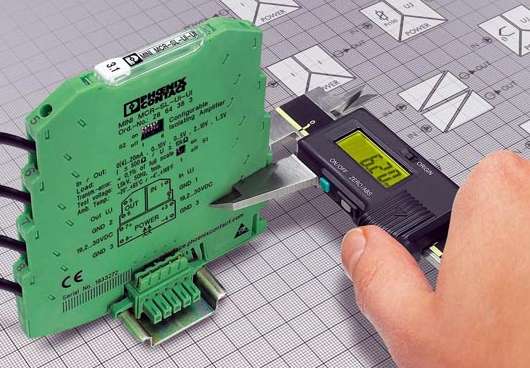

Oct 15, 2004 MINI MCR family, available with choice of screw or spring cage terminals, features 3-way 1.5 kV isolation and power bussing capabilities. Universally configurable and dedicated versions are available to convert signals from RTDs, thermocouples, and analog sensors. Signal splitter, single- and multi-channel, loop powered modules are also available. Hot swappable modules snap onto T-foot bus connector without removing any bus bars or bridging.

FKI Logistex North America    St. Louis, MO 63132

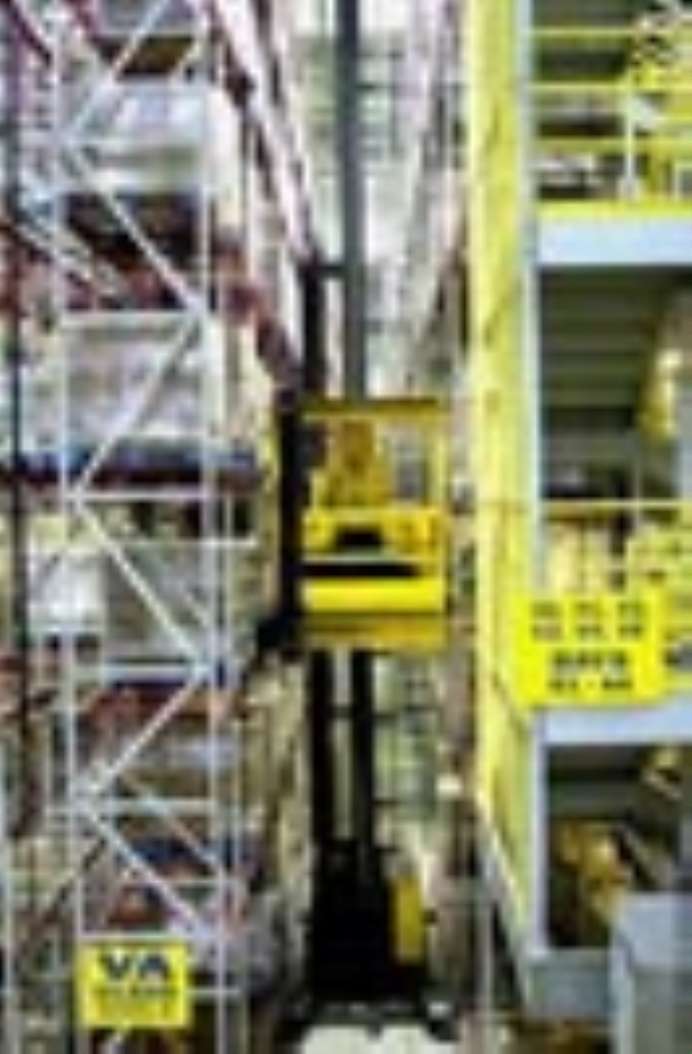

Oct 15, 2004 Cleco Condor is an all-electric, free-roaming, and fully automatable aisle-changing crane that has max horizontal speed of 9.5 ft/sec, max vertical speed of 1.6 ft/sec, and weight capacity of 3,300 lb. Utilizing synchronized traversing or rotating forks or telescopic shuttles to handle load, it can maintain carrying capacity and operating speed at high elevations. Battery charges during in-aisle operations.

STMicroelectronics    Lexington, MA 02421
Oct 15, 2004 Rated 12 A, STS12NH3LL is 30 V part, while 30 V STSJ50NH3LL is rated 50 A. Rated 55 A, 24 V STD55NH2LL has typ On-resistance of 0.01 ohm @ 10 V or 0.012 ohm @ 4.5 V. With typ On-resistance of 0.0039 ohm @ 10 V and 0.0055 ohm @ 5 V, 24 V STD95NH02L is rated 80 A. Offered in PowerFLAT(TM) packages, 30 V STL8NH3LL is rated at 8 A and has typ On-resistance of 0.012 ohm @ 10 V. Model STL50NH3LL is 30 V part rated 27 A with typical On-resistance of 0.011 ohm @ 10 V.

NKK Switches    Scottsdale, AZ 85260-3420
Oct 15, 2004 Available in round or square shapes, JF Series non-illuminated switches are offered with flat square, flat round, sculptured, or piano style actuator types. Dome contact pushbuttons have black housing, which frames available colors of red, orange, green, blue, or gray. Featuring rubber seal construction that prevents contact contamination, SPST, momentary ON, tact-style switches have straight PC terminals and are rated 50 mA @ 24 Vdc.

Alpha Card Systems    Corte Madera, CA 94925
Oct 15, 2004 AlphaTrack Pro guardstation software uses barcode or magnetic stripe on ID cards to verify user's identity and access rights. Each card swipe is time-stamped with ID and station code, and cardholder’s photo and security information is displayed for attendant. Compiled entry and exit times can be used to determine who is on-site at any given time, and reports tailored to specific needs can be generated from log file stored in Access database.

Dortronics Systems, Inc.    Sag Harbor, NY 11963
Oct 15, 2004 Providing 600–1,500 lb of holding force, 1100 Series locks are offered in various configurations for single and pairs of out-swinging, in-swinging, sliding, and overhead doors. Products can also be supplied with built-in door position switches, magnetic bond sensors, LEDs, and anti-tamper devices. Field selectable for 12 or 24 dc voltage, locks offer failsafe release upon command or loss of power. Choice of finish includes brass, polished, and satin chrome.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Oct 15, 2004 Available with 4-20 mA or voltage outputs, dry hermetic transducer features environmentally sealed, stainless steel casing that protects non-drift ceramic, capacitive sensing element. Welded hermetic seal also provides vibration tolerance, rated at 20 g up to 1 kHz. With EMC protection to 100 V/m, device is accurate to 0.25 BFSL and has repeatability level of 0.1%. It operates in temperatures from -40 to +135°C and offers pressure ranges from 50–750 psi.

Dortronics Systems, Inc.    Sag Harbor, NY 11963
Oct 15, 2004 Available in aluminum and custom finishes, 6495 Series is offered in several configurations and used as request-to-exit device for access control systems. Required by codes as No Prior Knowledge R-E-X device, product fits 36 in. wide doors; special width devices are available for doors up to 48 in. wide. Bar is available with single- or dual-contact outputs for R-E-X input to card access systems and proprietary EDR-101 delayed egress systems.

Dortronics Systems, Inc.    Sag Harbor, NY 11963
Oct 15, 2004 Series 7200 provides local audible alarm and output for remote alarm that sounds if door is not closed within specified 5 sec to 90 min time period or has been forced open. Alarm device provides alerts in conjunction with stand-alone or computerized access control systems with one or hundreds of doors. Model 7286-PT features LEDs for indication of door status and mirrored door switch output that also controls power to electric locking device.

Wonderware    Lake Forest, CA 92630
Oct 15, 2004 Built on ArchestrA software architecture, Industrial Application Server v2.0 provides scalability from 250–1 million I/O points across up to 100 computer nodes. It also incorporates self-adjusting communications protocol, system management capabilities, and automatic switching from one node to another via configuration checkbox in ArchestrA IDE. Systems can be configured so that one node fails over to dedicated computer or 2 nodes back each other up.

E-T-A Circuit Breakers    Mount Prospect, IL 60056 6060

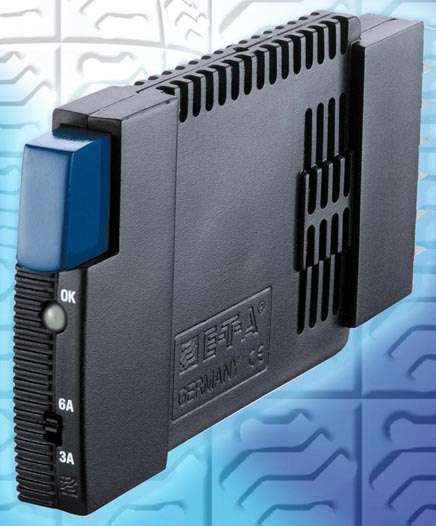

Oct 15, 2004 Electronic ESS20-1 provides selective circuit protection of DIN-rail factory automation equipment connected to switch-mode power supplies. It can also communicate with logic controller or factory control software to identify fault condition. Product limits max amount of current drawn from power supply to no more than 1.8x rated current of breaker, allowing breaker to trip without causing power supply to shut down. Current rating is selectable from 1-6 A.

E-T-A Circuit Breakers    Mount Prospect, IL 60056 6060

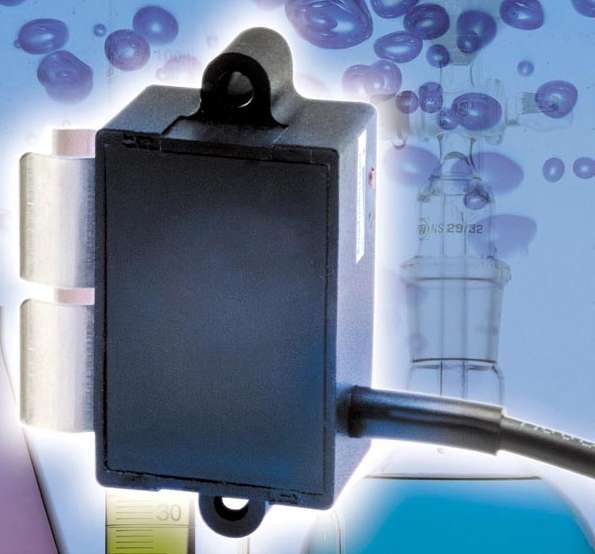

Oct 15, 2004 Featuring clip-on mounting design, TLS 100 capacitive level sensor detects presence or absence of liquids at chosen level within plastic tubes, rubber hoses, and glass or plastic pipes with diameter of 3/8-7/16 in. Sensitivity is adjustable for media of different dielectrics, and aluminum mounting clips serve as sensing electrodes. Sensor is suited for media having temperatures ranging from 32-194°F, has plastic housing rated IP65, and measures 2.3 x 1.6 x 0.8 in.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Oct 14, 2004 Designed to meet needs of mid-sized businesses, xSeries 236 Express Tower Server provides 1 MB L2 cache, 1 GB of 800 MHz DDR2 ECC system memory, dual-channel Ultra320 controller, 5 full-length PCI slots, three 73.4 GB SCSI hot-swap HDDs, and one or two 670 W power supply. DDR2 ECC DIMMs, combined with integrated ECC memory controller, corrects many soft and hard single bit memory errors and minimizes disruption of service to LAN clients.

Bobcat Company    West Fargo, ND 58078

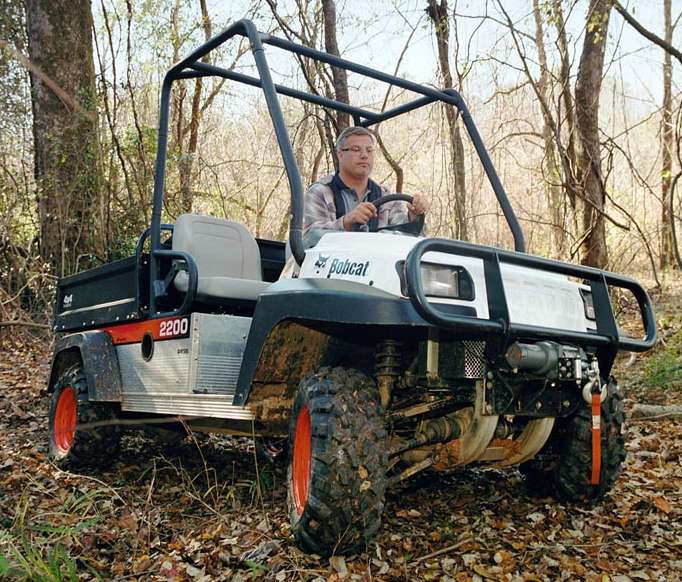

Oct 14, 2004 Equipped with Intellitrak® drive system, 4x4 Bobcat® 2200 features automatic locking differentials that engage when needed and disengage when turning. Vehicle is available with 20 hp Honda gas or Kubota diesel engine and is made with corrosion-resistant aluminum chassis and all-aluminum, tubular frame. Features include 4-point ROPS structure, all-terrain tires, 25 mph travel speed, 1,200 lb load capacity, and 800 lb cargo box capacity.

REHAU, Inc.    Leesburg, VA 22075
Oct 14, 2004 INSULPEX® consists of pre-insulated, flexible RAUPEX® pipe with smooth interior that eliminates corrosion. INSULPEX is produced with bonded layer of CFC-free polyurethane foam insulation that minimizes heat loss and water permeability. Outer casing of seamless, co-extruded polyethylene is black for UV resistance. Using cross-linked polyethylene, Non-Barrier Pipe and O₂ Barrier Pipe range in size from 1–2 in. EVERLOC® compression-sleeve fittings allow immediate pressure testing.

Parker Hannifin Corp., Brass Products Div.    Otsego, MI 49078 1472
Oct 14, 2004 Push-to-connect system consists of MicroWeldâ„¢ fittings and Parflex Microweld tubing designed for air and water supply lines on robotic welding equipment. Silicon-free components have UL94 V-O rating for flame resistance and prevent spatter build-up. No-skive tubing reduces assembly time, while push-to-connect technology facilitates assembly, disassembly, and re-assembly. Fittings are available in various configurations in ¼, 3/8, and ½ in. sizes.

Wayne Machine & Die Co.    Totowa, NJ 07512 1825

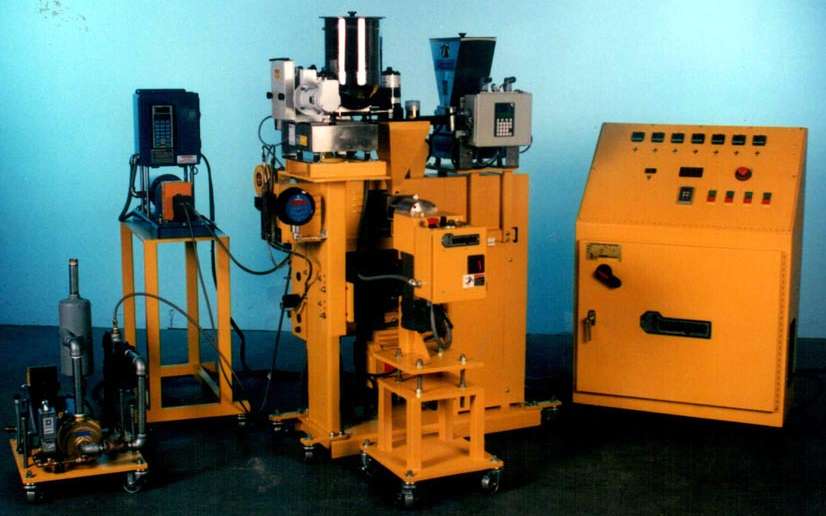

Oct 14, 2004 Outfitted with complete systems for simultaneous introduction of solid, liquid, and gas ingredients and gas extraction, Yellow Jacket extruders produce engineered thermoplastic compounds. Users can compound any combination of materials, irrespective of ingredient phase. Machines have segmented barrel sections with various port endowments for liquid, solid, and gas. Standard screw sizes are 19, 25, 32, and 50 mm, and typical L/D ranges from 36–52:1 and longer.
