Johns Manville    Denver, CO 80202
Oct 20, 2004 Available in 4 mm fiber lengths for thermoplastics such as PA, PP, PBT, and SMA, ThermoFlow® strands exhibit processing, mechanical, and matrix bonding properties suited for extrusion applications. Product features minimal fines and bulk density as well as uniform bundle size and shape. Featuring consistent glass content, strands are suited for automotive, electrical and consumer goods applications.

Bosch Rexroth Corporation    Hoffman Estates, IL 60192-3707
Oct 20, 2004 TS4plus heavy-duty conveyor handles payloads up to 550 lb and features low-profile design that allows products, such as refrigerators and shower stalls, to be assembled at ergonomically-correct heights. It offers line-mount transverse conveyor modules with steel roller chain conveying media, transfer stops that mount directly inside lift-transfer unit, and line-mount lift-position units with fully synchronized lift cylinders for smooth workpiece positioning.

Bosch Rexroth Corp., Pneumatics Div.    Lexington, KY 40511
Oct 20, 2004 AirNC electro-pneumatic servo system incorporates position control, speed control, and force control. System integrates into main control system through digital, analog, or serial communications. Modular components include programmable control unit, ND-7 high performance proportional electro-pneumatic valves, and pneumatic actuators with integrated SSI transducers. Repeatability is ±0.7 mm, and strokes are available from 25–500 mm with accuracy below ±1 mm.

Bosch Rexroth Corp., Pneumatics Div.    Lexington, KY 40511
Oct 20, 2004 Corrosion-resistant ICS cylinder has smooth surface for easy cleanup. It is offered in 304 and 316 stainless steel and lubricated with food grade grease. Cylinder meets ISO 6431 standards and has threaded end caps for increased life and easy repair. Adjustable cushions, with hygienic male cushion screw, bumpers on both ends, and Viton seals are available for high-temperature environments. Bore sizes range from 25–100 mm.

Bosch Rexroth Corp., Pneumatics Div.    Lexington, KY 40511
Oct 20, 2004 ICL Air Cylinder works in secondary packaging/handling applications. It meets ISO/VDMA standards and has hard anodized aluminum surface with stainless steel screws and piston rods. Magnetic piston allows installation of micro-sensors on integrated external rail, without any grooves for particles to collect. Adjustable cushions and noise reducing bumpers on both ends are standard, and Viton seals are available for high temperature environments. Bore sizes range from 32–125 mm.

Marktech Optoelectronics    Latham, NY 12110
Oct 20, 2004 Operating at forward currents to 150 mA, Cotco Dorado LD701 High Flux LEDs feature 7.0 x 7.0 mm molded lens package with 100° viewing angle and exposed pad design for heat transfer. Featuring InGaAlP technology, emitters meet demands of automotive and outdoor applications. Units are available in yellow and red with operating temperature of -20 to +80°. They are also suited for backlighting, architectural lighting, signage, and display and task lighting.

Keithley Instruments, Inc.    Cleveland, OH 44139 1891
Oct 20, 2004 Model KUSB-488 transforms any computer with USB port into full-function, IEEE 488.2 controller that accommodates up to 14 programmable GPIB instruments. Unit works with Windows 2000/XP/Me/98 computer, is USB 2.0 compatible, and has IEEE data transfer rate of 880 kbytes/sec. Built-in 2 m USB cable supplies power, eliminating need for external power sources. There are no external DIP switches and no need to restart computer for system to recognize IEEE 488.2 interface.

Eraser Company, Inc., The    Syracuse, NY 13221
Oct 20, 2004 Heavy-Duty Model E300 processes varnish, enamel, polyester, glass, and resin from round wire between 1–20 AWG, square wire up to ¼ in., or rectangular wire up to ¼ x 2 in. Counter-rotating stripping wheels offer smooth stripping motion for operator. Dust take off port is included for connection to dust removal system.

Hayward Industrial Products Inc., Hayward Filtration    Elizabeth, NJ 07207
Oct 20, 2004 Featuring stainless steel strainer basket inside cast iron strainer body, Model 30R removes dirt and debris from process media. Clamp type cover requires no tools for removal, facilitating replacement and cleaning of strainer basket. Seat on which strainer basket shoulder rests is carefully machined to prevent unwanted material from bypassing strainer basket. Over 75 different baskets are available to match specific application requirements.

Hi-Tech Duravent    Georgetown, MA 01833

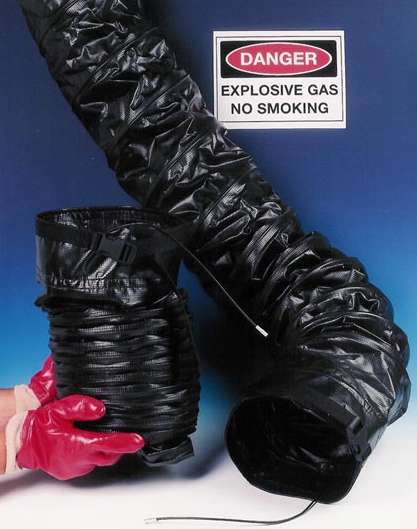

Oct 20, 2004 Suited for use where potential for static buildup in presence of explosive gases exists, EDW-SC PVC-coated, polyester duct has PVC wearstrip and enclosed wire helix with belted and cuffed ends. Flexible hose, manufactured using thermal welding and without adhesives, is compressible to facilitate storage. Conductive throughout, product provides resistivity from 1 x 105 to 1 x 1012 ohm and is offered in 8, 10, and 12 in. ID sizes in varying lengths.

Edwards Vacuum Technology    Wilmington, MA 01887
Oct 20, 2004 Designed for production of substrates used in semiconductor, laser, and scientific industries, custom-built TF600 has 600 mm wide coating chamber with vacuum pumping system in rear. Pumping system options include diffusion, turbomolecular, and cryogenic high vacuum pumps as well as XDS 35i dry scroll pump for backing and chamber roughing. Process options include resistance evaporation, electron beam, RF, DC, and pulsed DC sputtering.

Vision Numeric USA, Inc.    Atlanta, GA 30326

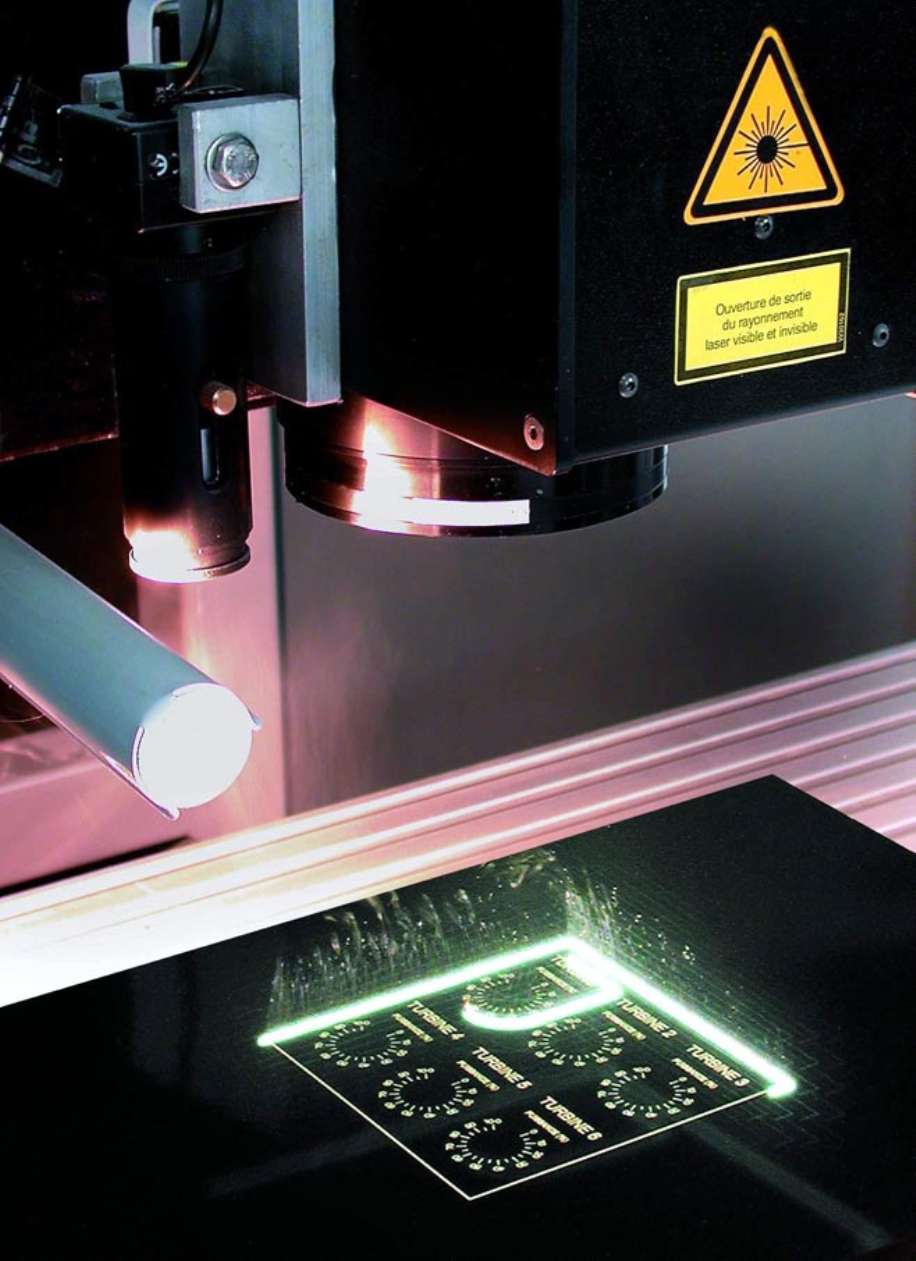

Oct 20, 2004 LaserType v3.0 combines all necessary technical and graphical functions for laser marking, cutting, and deep engraving on any laser machine. Software includes Photo Module to help enhance photographs; automatic simulation and cost estimation; and stamp wizard. Other features include text editor, true shape nesting, Matrix, 3D texturing, and artistic modeling.

CTI Electronics    Stratford, CT 06615

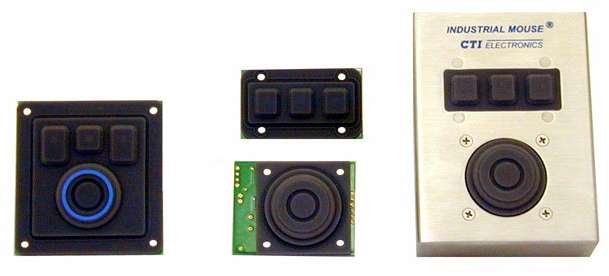

Oct 20, 2004 OrbitalMouseâ„¢ moves cursor in desired direction on display screen, while software adjusts cursor speed to application. Rated for over 10 mil cycles, product design eliminates vibration sensitivity and uses gold plated terminals/contacts and molded silicone rubber. OEM devices, offered with and without switches, have 1.65 x 2.05 in. footprint and require less than ½ in. behind panel. For end users, hand-held or desktop models are packaged in enclosure with switches.

Delavan Ag Pumps, Inc.    Minneapolis, MN 55403
Oct 20, 2004 Featuring special alloy body and end plate, Diamond Series 4400 withstands corrosive agricultural fluids up to 140°F. Pumps offer flow output to 6.5 gpm at 1,800 rpm with electric motor or 9.2 gpm at 2,600 rpm with gas engine at pressures to 150 psig. Units are available in 5/8 in. solid shaft or ½ in. hollow shaft models. Shafts are 416 stainless steel with extra-fine finish to minimize seal wear, and are supported at both ends by heavy-duty sealed bearings.

Quatech, Inc.    Akron, OH 44311

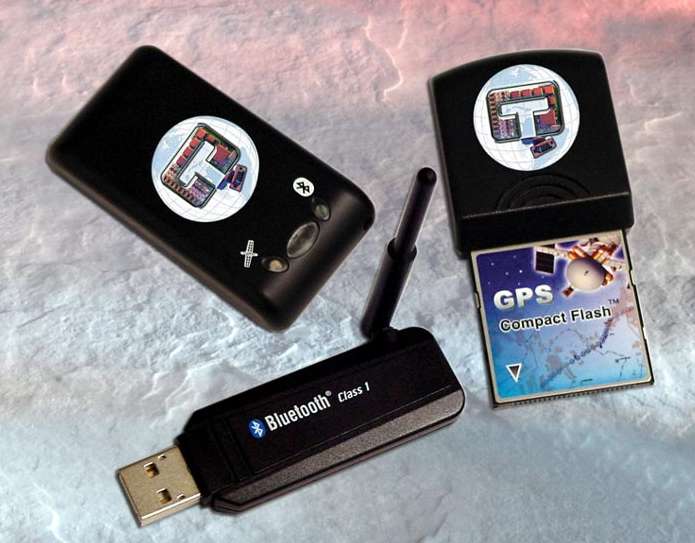

Oct 20, 2004 CompactFlash Adapter provides Class II Bluetooth connectivity capable of communication within 32 ft radius. With attached external antenna, USB Class I Adapter enables communication within radius of 328 ft, while USB Class II Adapter, with integrated antenna, communicates within 32 ft radius. Available with Bluetooth, USB, or CompactFlash interfaces, GPS Receivers are designed to GPS-enable laptop, notebook, tablet, and handheld PCs.

Adaconn & Inserta Products, Inc.    Blue Bell, PA 19422
Oct 20, 2004 INSERTAâ„¢ ICT Thread–In Type Check Valves are all steel with hardened, lapped discs and seats, providing positive fluid shut off. Ranging in size from 5/16–3½ in., units have cracking pressure from 3–90 psi with standard being 15 psi. Mounted in any position, valves feature max operating pressure of 5,000 psi and temperature range of -22 to 175°F. They can be inserted in manifolds, subplates, flanges, or integrated valve systems.

General Monitors    Lake Forest, CA 92630

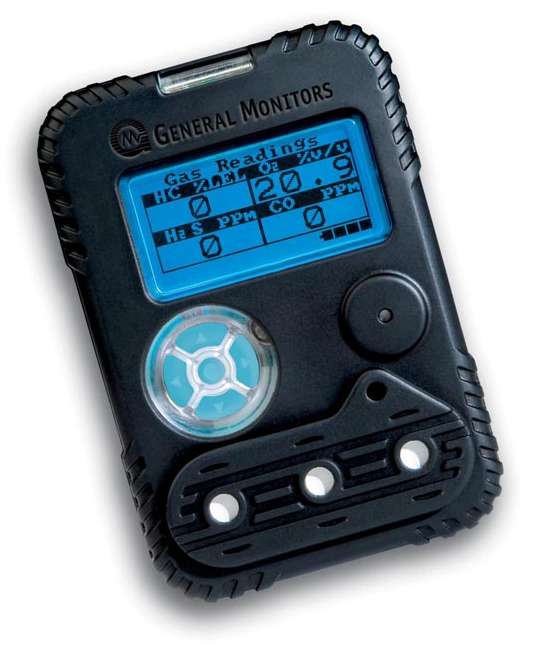

Oct 20, 2004 Measuring less than 3 x 5 in., portable mini-G helps protect employees in hazardous environments. It combines intelligent microprocessor-based design with electronic circuitry, and operates over 30 hr on alkaline batteries. Electrochemical cell and catalytic bead sensors provide continuous monitoring of combustible gases, toxic gases, and/or oxygen deficiency. Bright blue backlit LCD sceen with flip view capability allows visibility in low-light conditions.

Extech Instruments Corp.    Nashua, NH 03063

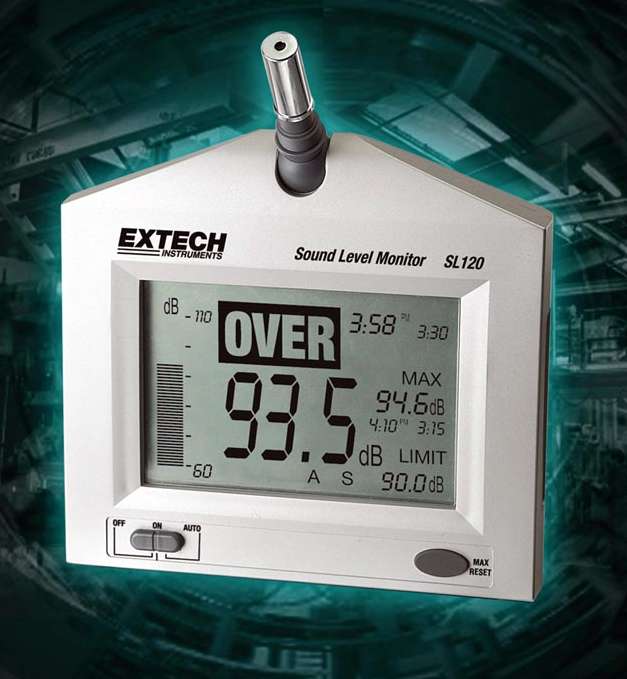

Oct 20, 2004 Model SL120 examines decibel levels and alerts users when they exceed pre-set limits. Large LCD display allows unit to be read from distances greater than 30 ft. Alarm system indicates when quiet is needed through use of relay modules, which illuminate large warning signs and remote noise indicators. Featuring programmable high limit set point of 30-130 db, ANSI Type 2 unit is suited for factories, plants, or refineries where noise level is a concern.

Emerson Process Management / Rosemount Div.    Chanhassen, MN 55317
Oct 20, 2004 MicroCEM(TM) TS field-mountable, continuous emissions monitoring system allows facilities to monitor 2 sample points/stacks with one analyzer system. Monitor extracts sample gas, conditions sample, analyzes sample for desired components, and processes emissions data by utilizing calibration validation calculations/procedures and oxygen diluent corrections. MicroCEM TS stores relevant raw/diluent corrected emissions, flags, calibrations, and alarms for 3 months.

MTS Sensors Group    Cary, NC 27513

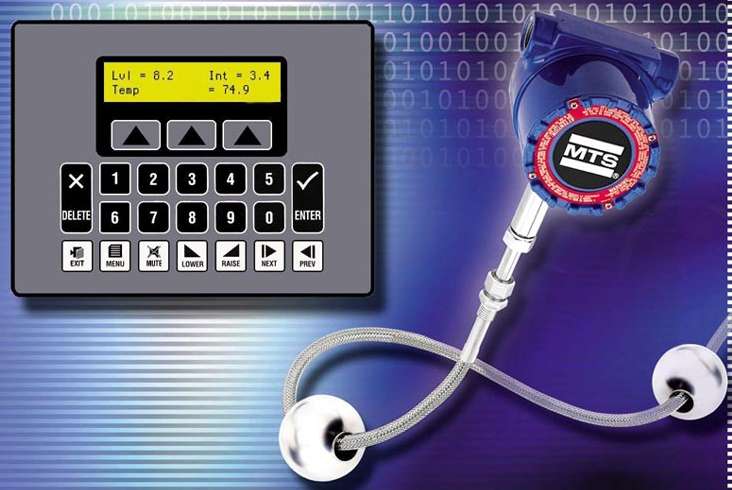

Oct 20, 2004 Designed for use with digital MG Series liquid level sensors, CL01 Slave LCD Operator Interface Terminal provides LCD readout screen with keypad functionality. It presents at-a-glance level, temperature, and interface measurements simultaneously from MTS DDA interface. Features include 2-line x 20-character LCD with LED backlighting and selectable address keys. Applications include tank-side indications, panel mount, or use in NEMA enclosures.
