ITW Rocol North America    Glenview, IL 60025
Oct 15, 2004 Featured in 13 oz packaging, natural-based Accu-Lube® Stick helps minimize heat build-up in belt, disc, or wheel grinding operations. It does not need to be diluted with any other material, is safe for all types of metals, and does not cause contamination or discoloration of products. Since lubricant is biodegradable, non-toxic, and naturally consumed in process, need for clean-up and disposal are eliminated.

ASI Instruments, Inc.    Houston, TX 77024 1802

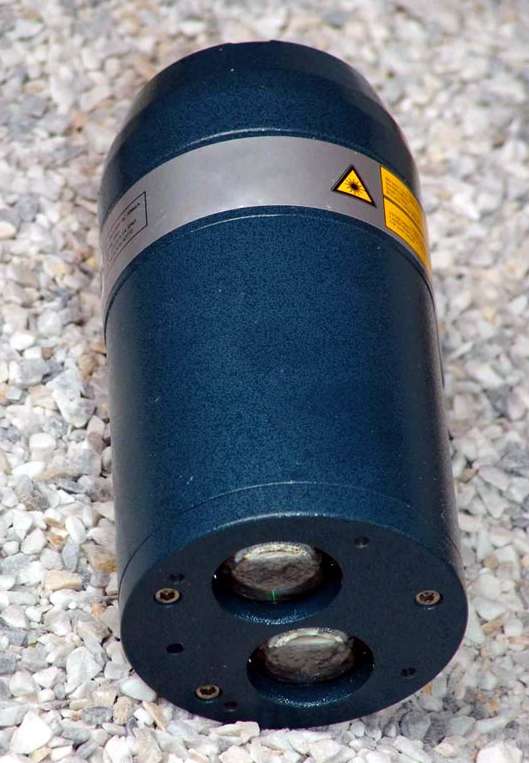

Oct 15, 2004 Featuring all digital design, LaserTrak 200 measures level, position, and distance of bulk solids at up to 200 ft. Timing systems and self-correcting signal processing allow measurement in harsh conditions. Housed in NEMA 4X aluminum enclosure, unit includes stainless steel dust tubes with built-in purge port to prevent dust build-up and protect optical lens from being coated. Transmitter can be programmed with desktop/laptop PC as well as Palm or Pocket PC.

Abanaki Corp., Oil Skimmer Div.    Chagrin Falls, OH 44023
Oct 15, 2004 Coolescerâ„¢ Coolant Refresher takes place of skimmer and aeration system in portable package. Self-contained system removes tramp and hard-to-pick-up grey oils from machine tool coolant sumps, helping to elminate coolant odor. It pumps top ¼ in. layer of coolant and oil through coalescing cartridge where oil is separated from coolant and removed via oil discharge valve. Cleaned coolant is aerated and pumped back to coolant sump.

Gurley Precision Instruments    Troy, NY 12181
Oct 15, 2004 Suited for measuring angles and distances in small envelopes, Model A37 features 37 mm diameter aluminum housing, 3–4 mm diameter stainless steel shaft, and precision ball bearings. Miniature, single-turn, 12-bit unit provides serial, parallel, and multiplexed versions of Gray code or natural binary outputs. Other models include 19 mm diameter encoder with 12-bit resolution and 58 mm diameter encoder with resolutions of 12, 14, 15, or 16 bits.

LEM U.S.A., Inc.    Milwaukee, WI 53224
Oct 15, 2004 Series AP and APR combine split-core functionality and quick-connect wiring in DIN-rail mountable enclosure. Units feature user-selectable measuring ranges from 10-400 A with choice of outputs, including 4-20 mA or 0-5/0-10 V.

SpacePak    Westfield, MA 01085

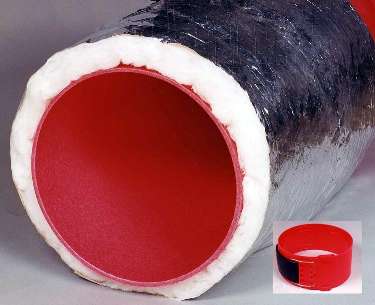

Oct 15, 2004 Model GR8 Duct System is wrapped in blanket of R8 fiberglass insulation and meets R8 codes. Because air stream is over polyethylene plastic, there is no potential to exhaust fiberglass from within ductwork into living space. System includes fitted elbows and T-joints as well as insulated jackets with adhesive tabs. Snap-in-place lockdown clamp eliminates need for male/female unions and tape, and ensures airtight seal, leak tested to 6 in. water column.

Mead Fluid Dynamics, Inc.    Chicago, IL 60641-1902

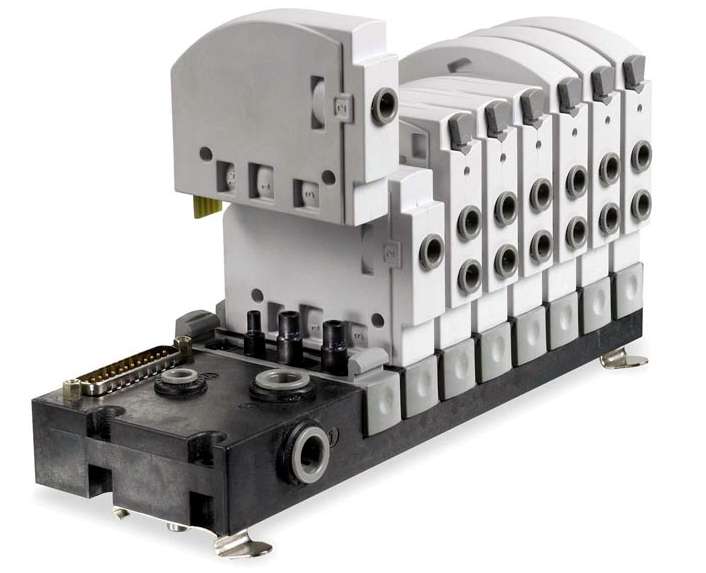

Oct 15, 2004 With all components encapsulated in ½-shell thermoplastic valve body, Isonic® MOD3+ series incorporates internal wiring and built-in PCB connector. Snap-on installation enables electrical and pneumatic connections to be made simultaneously, without tools. Design accommodates 3- and 4-way single and double solenoid valves, as well as direct acting valves on same manifold in expandable control base. System is chemical, heat, and impact resistant.

E Instruments International LLC    Langhorne, PA 19047
Oct 15, 2004 Incorporating pipe pressure leak detector, draft and differential pressure meter, and 7 in. flue gas dual probe, Model BTU 2000+ analyzes O₂, CO, and calculates CO₂. Weighing 2 lb, unit has magnetic rubber shell for hands-free use, and also provides remote PLC communication capabilities. Other features include impact printer, gas sniffer, 250 test memory, and Windows-based software.

Watson-Marlow Bredel Pumps    Wilmington, MA 01887

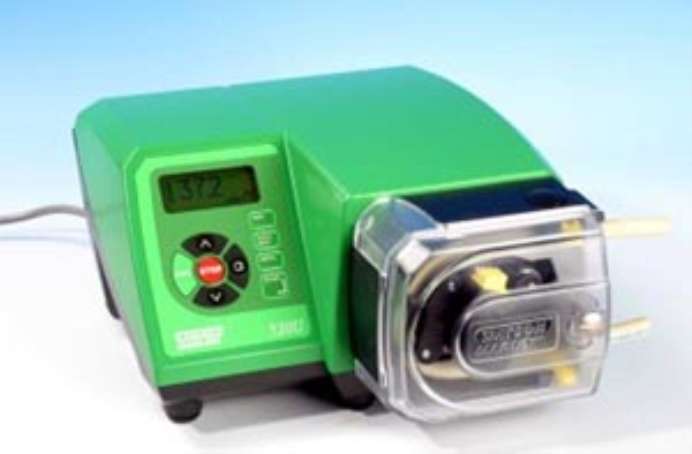

Oct 15, 2004 Model 520Di has full dispensing capability, enabling batch dispensing and automatic or single shot operation. While product is being pumped, ramp and drip feature allows soft start and graduated dosing to prevent splashing or foaming. Up to 50 individual dispensing programs can be stored. Brushless dc motor has speed range of 3,500:1 and 0.1% set speed ratio. Pump is suited for vial or bottle filling of vaccines, biological reagents, and diagnostics.

Sunnex, Inc.    Natick, MA 01760-1314

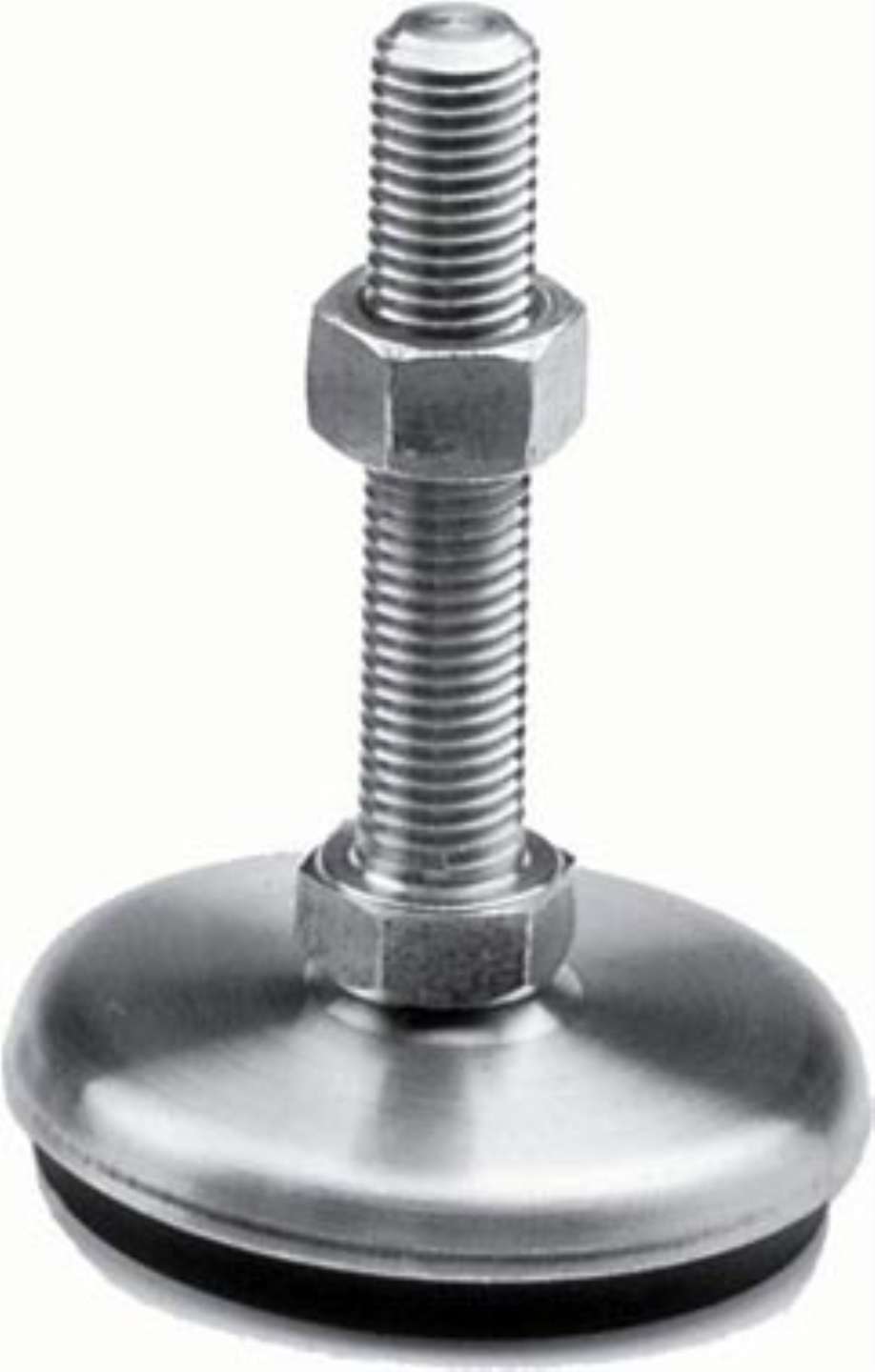

Oct 15, 2004 AM 2100/4100 Series of machine mounts are designed for leveling and vibration damping in applications where moisture, liquids, and corrosive fumes come in contact with machinery. Carrying loads up to 4,000 lb, mounts feature shock absorbing, neoprene rubber soles to reduce vibration and to prevent creeping and walking in compliance with OSHA anchoring requirements. They can also adjust to pitched surfaces by providing ±7º angular play.

Emerson Process Management    Knoxville, TN 37932
Oct 15, 2004 FloBoss 104 Compact Flow Computer performs API 21.1 compliant flow measurement when used with pulse-generating meters such as positive displacement meters, turbine meters, and ultrasonic meters. It generates 1000 pulses/revolutions for high-resolution management. Non-contact pulse sensing improves reliability. Built-in pressure transducers measure upstream pressure and downstream pressure.

Degree Controls Inc.    Milford, NH 03055
Oct 15, 2004 PRONTOflow™ Controller accepts single or dual voltage inputs, is configured to accept 36–60 Vdc, and provides regulated voltage for up to 9 fans. Controller card works with local or remote sensors to provide closed loop temperature-based fan rpm control, fan synchronization, failure monitoring, status reporting, and filter blockage detection. Series also includes standard flow trays of 3, 6, or 9 fans with choice of controller cards and fan capacities.

Makita U.S.A., Inc.    La Mirada, CA 90638

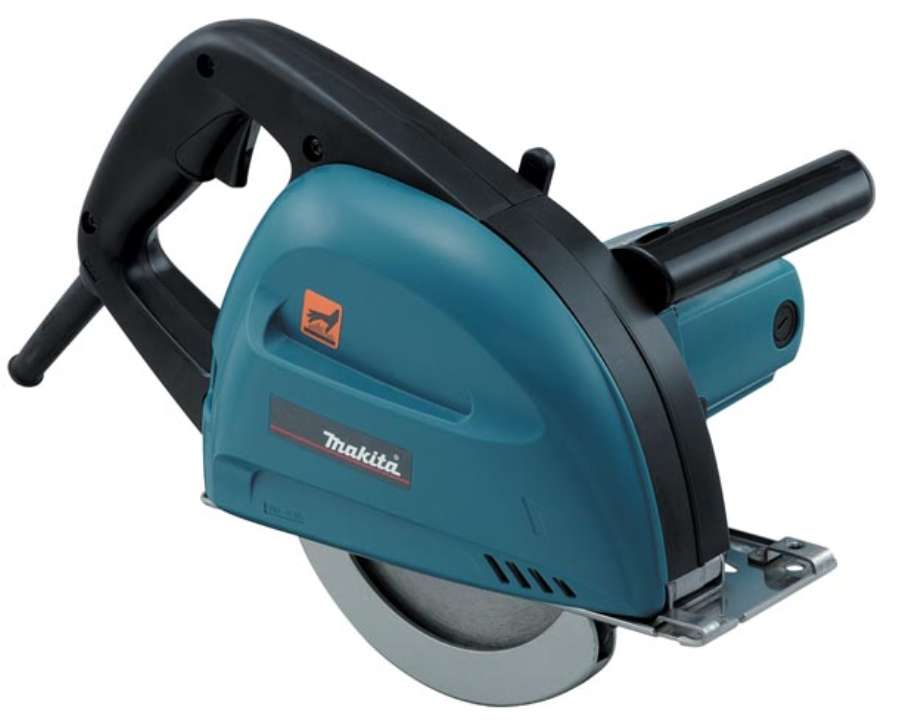

Oct 15, 2004 Model 4131 7¼ in. saw features 13 A motor that cuts through sheet metal, steel studs, pipes, and rebar. No-load speed of 3,500 rpm and large cutting capacity enable single-pass cutting that is virtually spark-free. Heavy duty blade cover provides chip collection and insulates against high temperatures. Saw, with overall length of 11 in. and weighing 10.6 lb, is equipped with heat-resistant CERMET tipped saw blade.

Motion Engineering, Inc.    Santa Barbara, CA 93117

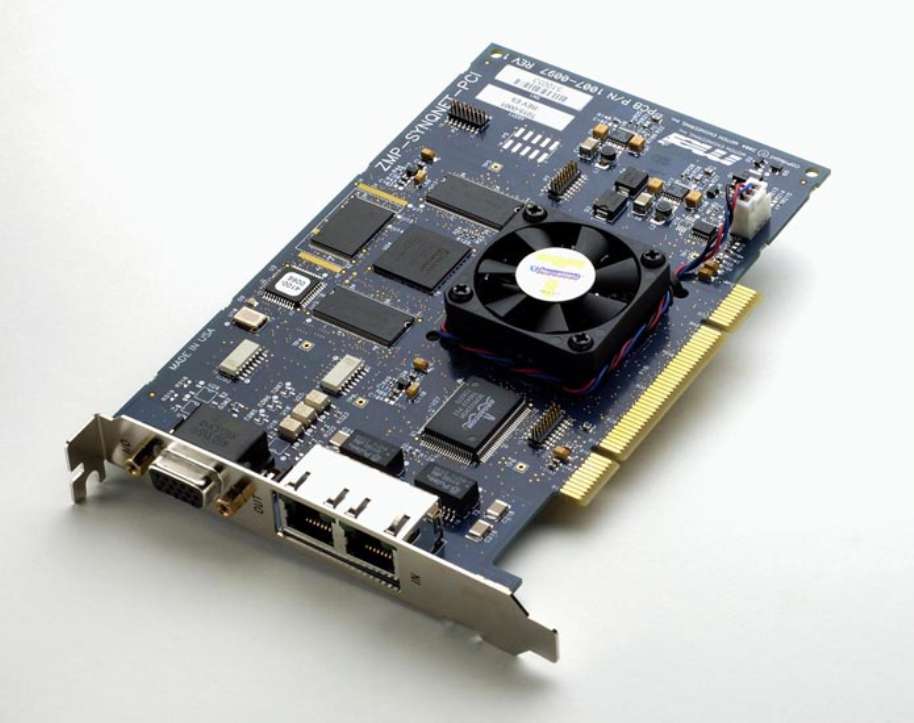

Oct 15, 2004 The 64-bit ZMP-PCI Motion Controller for SynqNet® utilizes 466 MHz PowerPC processor. With double-precision processing power, unit is optimized to work with company's MechaWare advanced servo development environment, and is compatible with Motion Programming Interface. SynqNet motion control network provides 100 Mbps synchronous real-time connection between motion controllers and servo/stepper drives, custom network devices, and I/O modules.

Strong Hold Products, Div. of Fabricated Metals LLC    Louisville, KY 40209-0043

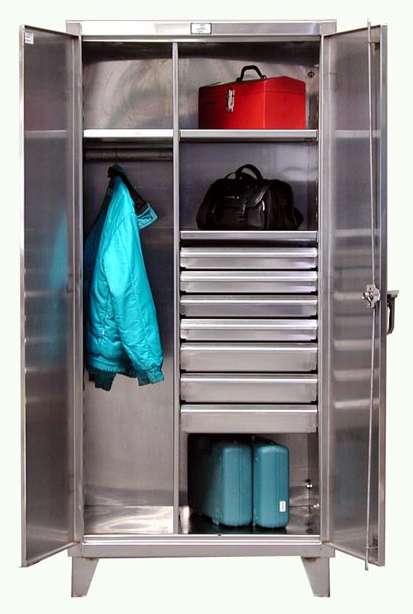

Oct 15, 2004 Made from 12-gauge all-welded stainless steel, wardrobe-style cabinets have 3-point locking mechanism in door to securely store equipment and valuables. All units are equipped with three 14-gauge shelves and one hanger rod. Also available: 4-drawer models with two 3 in. high drawers and two 4 in. high drawers, and 7-drawer models with four 3 in. high drawers and three 4 in. high drawers. All drawers measure 20 in. deep.

PHIHONG USA    Milpitas, CA 95035 5421
Oct 15, 2004 Power supply solutions enable ethernet switches and blades to be field-upgradeable to Power over Ethernet (PoE). Capabilities include power management, ac or dc disconnect, and system programming and monitoring. Ability to add ac and dc input is suited for UPS function in IP phone systems. Field-upgradeable solutions range from 6–48 ports with 200–500 W power supplies and 1.5 kV output isolation. They also offer isolated 12 V switch power and I2C interface.

TKO Dock Doors    Sussex, WI 53089

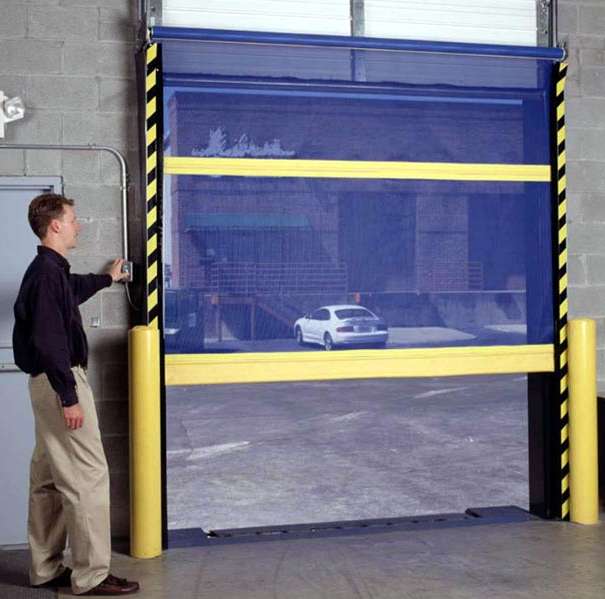

Oct 15, 2004 Flyweight screen door keeps out pests, dust, and debris while letting in fresh air and light. Held securely on each side by extruded aluminum guide track, door rolls up to be completely out of the way. It can be mounted via 3 options and powered by in-tube or external continuous-duty motor, spring action tube, or chain hoist. Horizontal stiffeners provide stability in windy conditions, and horizontal safety stripes offer visual confirmation of screen position.

Spantech, LLC    Glasgow, KY 42141

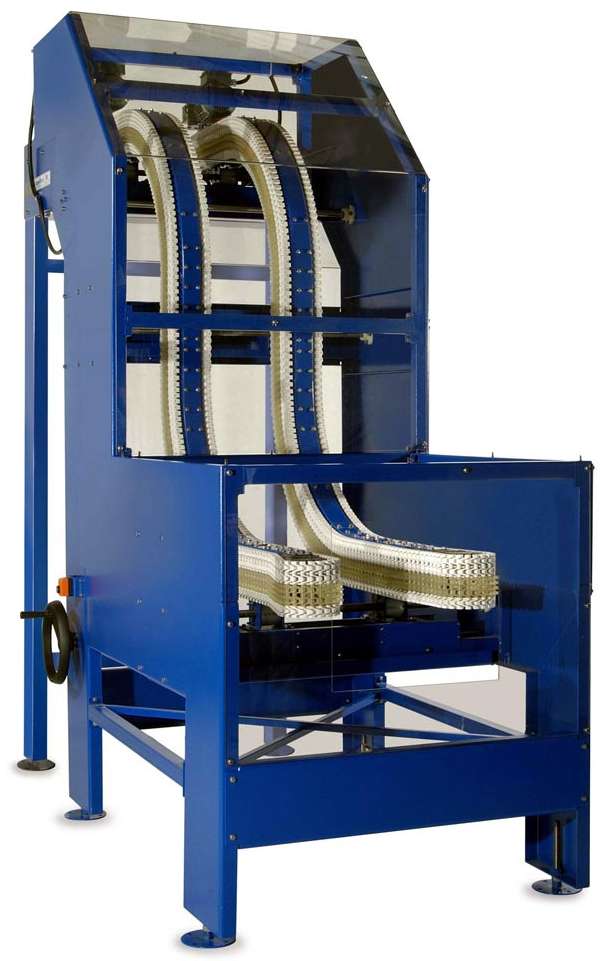

Oct 15, 2004 Configurable for various applications, WhisperTrax(TM) Wedge Conveyor uses dual-chain design to incline or decline product up to 90°. Continuously gripping chain crimps around product at in-feed and transports it at desired angle. Models are available as manually adjustable for fixed position or fully adjustable with hand crank. Variable speed ranges are available, and elevation changes up to 30 ft are possible.

Panasonic Security & Digital Imaging Company / Vision System    Secaucus, NJ 07094
Oct 15, 2004 With on-board networking capabilities for integration into networked systems, self-contained Model WJ-HD220 provides 8 channel inputs plus camera control functionality. It offers 120 Gb recording capacity, pre-alarm screening, time lapse recording, as well as playback and monitoring capabilities. Featuring coax control up to 3,000 feet using Panasonic VD2 for dome camera pan/tilt/zoom operations, DVR also provides electronic zoom with multi-screen or spot monitoring.

LIT Industries, Inc.    Bessemer City, NC 28016

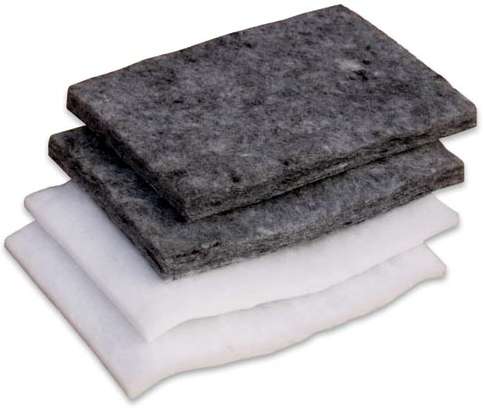

Oct 15, 2004 InsulToneâ„¢ air laid polyester acoustical blanket is resistant to fungi and bacteria growth and unaffected by grease and oil. Available in white and gray fiber color, product can be fabricated to specifications and formed around corners and curved surfaces. It is offered in widths up to 60 in., thickness from .25–2 in., and weights from 6–20 oz/yd². Applications include HVAC, office furniture, appliances, automotive, high-fidelity speakers.
