Marshall Mfg. Co.    Minneapolis, MN 55421
Oct 19, 2004 Available in stainless steel, titanium, Inconel and other exotic metals, Custom Rod and Tube components are offered in diameters from .032–1.250 in. and lengths from .032 in. to 12 ft. Solid tubular part end features include bending and contouring, threads, forms, grooves, and cross holes. Parts can be laser etched for part traceability. They are suited for minimally invasive surgical devices used in coronary, vascular, and orthopedic surgery.

Lincoln Electric Co. Inc., The    Cleveland, OH 44117

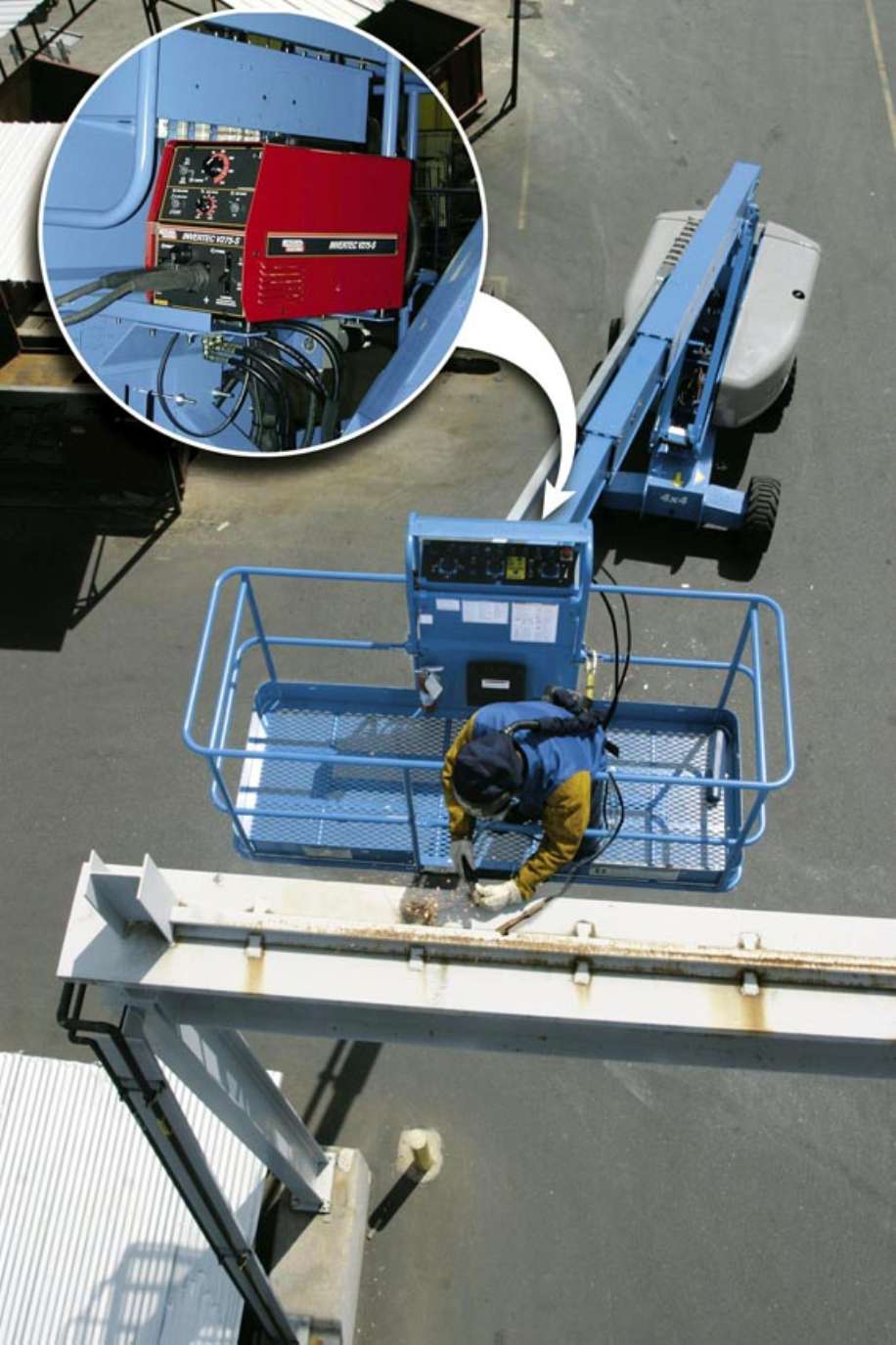

Oct 19, 2004 Powered by a hydraulically-driven 208 Vac 3-phase generator and closed-loop hydraulic drive pump, ArcProâ„¢ 275 produces 12,500 W continuous and 13,500 W peak ac power. It comes standard with Invertec® V275-S welding unit, which is capable of both stick and TIG welding, and provides 275 A at 35% duty cycle. Available on Genie S-80/85, S-60/65, and S-40/45 telescopic booms, welder package is located outside basket behind platform decal plate for maximum workspace.

Premier Pneumatics, Inc., A Member of the K-Tron Process Group    Salina, KS 67402

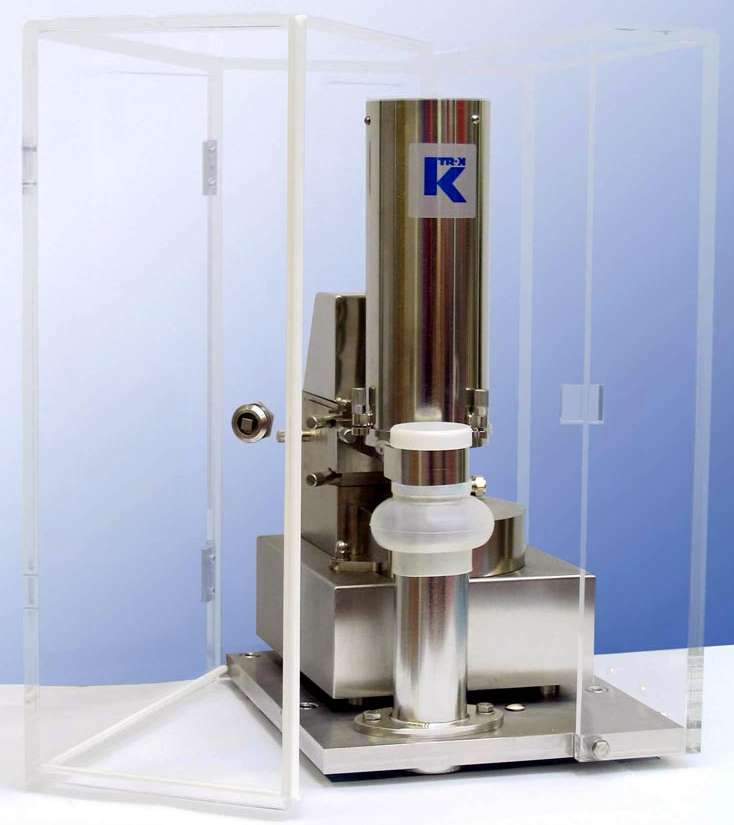

Oct 19, 2004 Model MT12, offered in loss-in-weight and volumetric feeder versions, is available for continuous or batch operation. Scale in loss-in-weight models can be installed with optional draft shield. Configured for standard industrial or sanitary applications, feeder design allows feeder bowl to discharge almost completely when emptying. Unit will accurately feed rates from 20-2,000 g/hr, depending on material and installation environment.

ERICO    Solon, OH 44139-2631

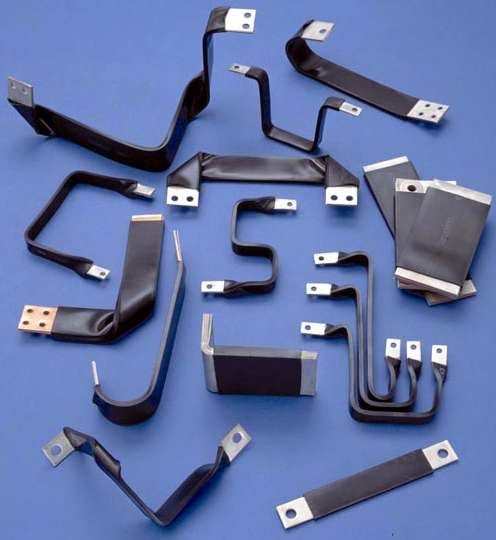

Oct 19, 2004 ERIFLEX® FLEXIBAR conductor consists of one stack of electrolytic copper laminates (99.9% copper) protected within PVC insulation. Internal laminates slide freely within insulation, offering unlimited twisting and bending possibilities. Users create terminals by stripping insulation and punching laminates. UL-recognized for 600 V max, product has max continuous voltage of 1,000 Vac and meets all requirements of IEC 439-1.

Makino Machine Tool Co.    Mason, OH 45040 9695
Oct 19, 2004 Constructed on 10 in. granite base, vertically-oriented Hyper2J weighs 11,020 lb and incorporates finished integral guideways. Each axis, capable of submicrometer movement, achieves 472 ipm feedrate while eliminating effects of heat generated by servo motors and ballscrews. With XYZ travel of 7.87 x 5.9 x 5.9 in., center handles up to 88 lb workpiece on 11.8 x 7.87 in. work table and delivers ±0.3 micron positioning accuracy and ±0.2 micron repeatability.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Oct 19, 2004 CATIA V5.14 widens scope of Virtual Product Modeling by extending capabilities of VPM Navigator with product impact evaluation and virtual 3D representation. It reinforces co-development across supply chain with capabilities for engineering package exchange and reconciliation. Instant Collaborative Design enables designers to informally work together on same design, in real-time or asynchronous mode. With CATIA - Imagine and Shape, designers can create at speed of imagination.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Oct 19, 2004 ENOVIA v5.14 extends capabilities of VPM with virtual product 3D representations and configured product management. It delivers engineering-to-manufacturing common change management, and increases operational efficiency by allowing instant review in 3D virtual collocation environment. Capturing of CATIA v5 technological semantics facilitates knowledge reuse and concurrent engineering across global teams.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Oct 19, 2004 Product Lifecycle Management v5.14 enables enterprise to innovate and manage products and related services throughout business lifecycle. Web-based Lifecycle Application Navigator combines product information access, 2D/3D Web viewing, instant collaboration, and lifecycle management services. Instant collaboration allows designers to informally co-design in asynchronous mode or in real-time. Users can structure, share, and re-use intellectual capital to facilitate decision-making.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Oct 19, 2004 SMARTEAM V5.14 provides cross-platform, single integrated source of product and project data, leveraged through automated, repeatable business processes within and beyond enterprise. End-to-end business process coverage provides accelerated PLM deployment and optimized product development, from styling to manufacturing through packaged templates and implementation methodologies. CATIA integration facilitates unified design collaboration and visbility across enterprise.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Oct 19, 2004 Delivering access to more than 22,000 component-based APIs, CAA RADE v5.14 provides capabilities to leverage Web application integration with 3D PLM solutions. CAA — Interactive Test Capture facilitates quality assurance by offering basic editing feature, integration with v5 technology, and multiplatform support. Featuring open standard architecture, software provides integration of customer know-how and enablement of 3rd party application development.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Oct 19, 2004 By focusing on critical business services rather than IT resources, IBM Tivoli Business Systems Manager V3.1 provides IT and business leaders with executive dashboard that enables both groups to visualize health of key business systems and service levels across enterprise. Web Console provides availability management from virtually anywhere at any time. Desktop workflow functions help users find problems, determine severity, and work toward resolutions.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Oct 19, 2004 WebSphere® Everyplaceâ„¢ Connection Manager v5.1 is a scalable, multipurpose communications platform that creates mobile VPN, which encrypts data over wireless LAN and WAN connections, allowing enterprises to extend existing applications to mobile workers. Seamless network roaming allows mobile users to maintain session persistence when mobile device changes network connections. Dynamic Session Profiles allow recognition of type of network and automatic application of tuning parameters.

FatWire Software    Mineola, NY 11501
Oct 19, 2004 Content Server v6 helps organizations manage content by deploying multi-site applications that support critical business goals. Site Launcher feature allows administrators to duplicate existing or prototype site, manipulate characteristics, and create new site. Security model allows users to control access to content at any level of repository hierarchy, from broad categories down to individual assets. InSite Editor enables content owners to edit content in context.

Worldlabel.com Incorporated    Garrison, NY 10524
Oct 19, 2004 Xtrack(TM) RFID Smart Labels are embedded with tags and put on Thermal Transfer Face-Stock with permanent adhesive. Available for EPC class 1, 0+, and 1.19, products measure 4 x 6 in. and can come with information already encoded and printed. Custom size manufacturing is available with variety of face-stocks and adhesives. EPC class 1.19 ucode 865.5-867.6 MHz (UHF) has available power of 4 W EIRP.

Carpenter Technology Corporation    Wyomissing, PA 19610-1339
Oct 19, 2004 Hiperco® 50 and Hiperco® 50-HS, available in widths to 12½ in. and thickness to 0.020 in., enable engineers to configure larger components in integral units and reduce need for segmented laminations. Both models are iron-cobalt-vanadium soft magnetic materials and exhibit magnetic saturation of 24 kilogauss. When annealed at 1,328° to 1,354°F for 2 hr, original alloy provides room temperature yield strength of 448 MPa, while HS companion alloy provides 620 MPa.

ADM Tronics Unlimited, Inc.    Northvale, NJ 07647 1904
Oct 19, 2004 Suited for paper packaging applications, Aqualene 4346 enables smooth, glossy, and durable surface on paper and board while delivering flexibility for scoring and folds. Product resistance and moisture barrier coating typically requires lay down weights of 1 dry pound per 1,000 ft² down to 1 dry pound per ream (3,000 ft²). Able to be dried in normal heated gas dryers, product can function as alternative to use of LDPE in packaging structures.

STMicroelectronics    Lexington, MA 02421
Oct 19, 2004 With component count of less than 135 external devices, Unicorn II USB (Universal Serial Bus) ADSL (Asynchronous Digital Subscriber Loop) chip set fits on 2-layer, single-sided PCB. Chipset is comprised of ST70138 digital chip with integrated discrete multi-tone engine, USB controller, and USB physical-layer interface. It also includes MTC20174, which integrates analog front end, line driver, and digitally-controlled crystal oscillator.

Midwest Motion Products    Watertown, MN 55388
Oct 19, 2004 Accepting any 12 Vdc power source including batteries, Model MMP.PDSF80-12V.018.1 measures 2.8 in. diameter x 5.6 in. long with 80 mm square gearbox. Output shaft is 10 mm diameter, and is provided with square shaft key and keyway. Equipped with 18:1 gear ratio, motor is rated for 26 lb-in. of continuous torque at 3.9 A of current, and is capable of 70 lb-in. of peak torque. Mounting is accomplished with 4 face-mount threaded screws, 68 mm apart.

Lenox Systems Limited    County Wicklow   Ireland
Oct 19, 2004 Offering max print width of 104 mm and print length of 400 mm, Series CT provides direct thermal/thermal transfer or direct thermal printing at up to 150 mm/sec. Range of interfaces ensures printers can be connected to any PC or terminal. Systems process data and print continuously even when data and graphics vary on each label. Direct or thermal transfer printers, Series CL, operate at up to 200 mm/sec, with max print width of 164 mm and length of 1,249 mm.

Boss Automated Barcode Systems, Inc.    Milford, MI 48381
Oct 18, 2004 BossFlexâ„¢ system turns Win/CE or Intermec handheld pocket PC into barcode reader and provides back-up for barcode scanning in assembly process. Software can be configured to read any barcodes, including 2D matrix system. Able to manage scanning, storage, and printing of transactions, stand-alone mobile application does not require host. System comes with barcode scanner, thermal printer, docking station, battery charger, and PS2 communication port.
