Scientific Technologies Inc. - Automation Sensors    Logan, UT 84321
Oct 28, 2004 Depth Velocity Flow Transmitter, Model DVF-320, uses 4-20 mA signal to monitor and transmit flow rate, and includes 4 programmable outputs to provide liquid level, velocity, and flow metering. IP65 housing with hinged sealing cover protects LCD display. Datalogging function can store multiple readings. Sample rate may be adjusted to record instantaneous depth, velocity, and flow or average flow rate from once every 10 seconds to once a day.

Security Engineered Machinery Co., Inc.    Westboro, MA 01581
Oct 28, 2004 Bolted to solid metal base frame with fork pockets, Model 3 Deployment Kit consists of disintegrator capable of destroying up to 500 lb of waste/hr, evacuation unit, and sound-deadening enclosure. Disintegrator utilizes 7 knives, 5 mounted on solid steel rotor and 2 mounted on stationary bed, that continuously cut items until they are small enough to pass through sizing screen. System destroys paper, hard drives, cell phones, PDAs, credit cards, and video cassettes.

Kernco Instruments Co., Inc.    El Paso, TX 79927 7338

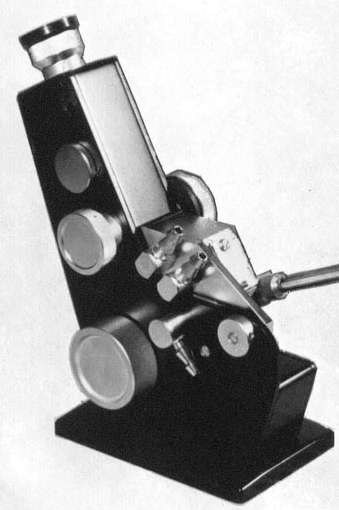

Oct 28, 2004 Model 2WA Abbe refractometer uses natural light transmitted through sample or reflected on it through mirror reflector. It provides refractive index (RI) readings in 1.3000–1.7000 range with 0.001 RI readability and brix (solids) readings of 0-95% with readability of .05%. Accuracy is ±0.0002 and ±0.1%, respectively. Measuring 9 x 11 x 9, portable instrument has thermometer mounted in metal shield that covers temperature range of 0-50°C.

Kernco Instruments Co., Inc.    El Paso, TX 79927 7338

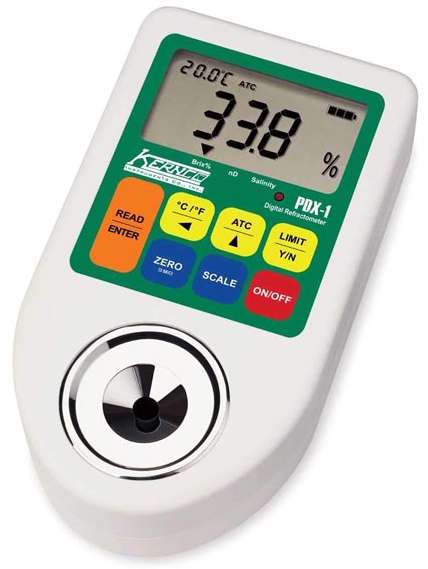

Oct 28, 2004 Measuring 175 x 95 x 45 mm, handheld refractometers in PDX-Series offer pushbutton, menu-driven operation; calibrate with DI water; and use one 9 V battery. All models have automatic temperature compensation from 5 to 35°C and come with brix, salinity and nD scales. Series includes PDX-1/2/3/95 models, which measure brix from 0.0–45.0% to 0.0–95% with 0.1% resolution and ±0.1% accuracy. Models cover various applications due to ranges.

Kernco Instruments Co., Inc.    El Paso, TX 79927 7338

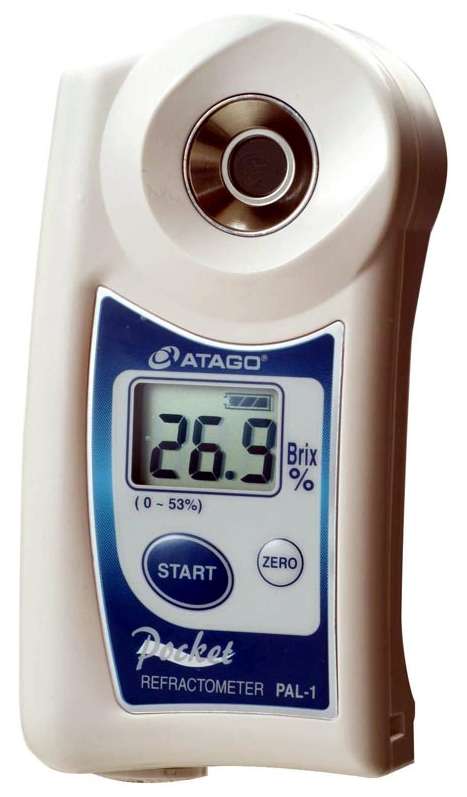

Oct 28, 2004 Portable due to its size of 2.71 x 1.22 x 4.29 in. and weight of 3.5 oz, Model PAL-1 features automatic temperature compensation and waterproof protection rated to class IP65. It runs off of 2 AAA batteries and provides 0.1% minimum brix indication with ±0.2% measurement accuracy over entire range. Operation requires user to apply 2–3 drops onto prism surface and press start key; brix % or concentration % is then displayed in 3 sec.

Kernco Instruments Co., Inc.    El Paso, TX 79927 7338
Oct 28, 2004 Waterproof, digital tester models HI98129 and HI98130 are designed for pH, EC/TDS, and temperature measurement with respective accuracies of ±0.05, ±2% FS, and ±1°F. Featuring automatic temperature compensation, units offer selectable EC/TDS conversion factor and temperature compensation coefficient. Elements of construction include dual-level LCD and replaceable pH electrode cartridge with cloth removable junction and EC/TDS graphite electrode.

GSI Lumonics Inc.    Maple Grove, MN 55369

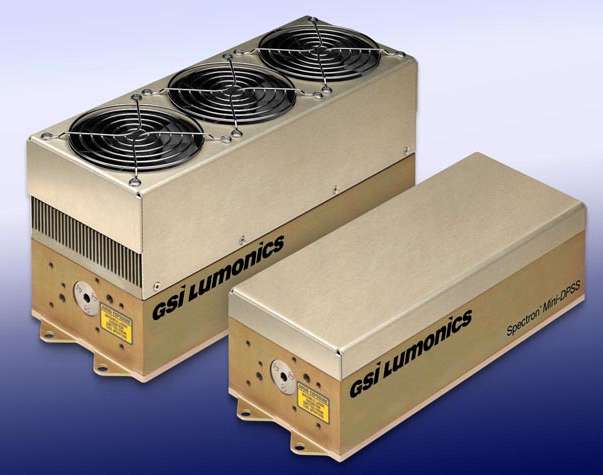

Oct 28, 2004 Designed for precision materials processing applications, Spectron SLD6000 series produces output power from 5–10 W and utilizes conduction-cooled diode bars. Models offer choice of Nd:YAG or Nd:YVO4 lasing media, water or air-cooled configurations, and direct or fiber-coupled options. Diode-pumped, solid-state lasers feature sealed head design and software for laser control, monitoring parameters, and making all data accessible to system builder.

Stahlin Enclosures    Belding, MI 48809
Oct 28, 2004 Equipped with polycarbonate cover for open view, J Series square profile enclosures are available in all configurations, including raised cover option. Products, molded from SolarGuardâ„¢ material formulation for protection from UV degradation, are offered with submersible ratings up to NEMA 6P. SolarGuard features double-protection formulation technology and NPG isopthalic-based resin system that ensures UL 94 5V fire retardancy and weather resistance.

New Pig Corporation    Tipton, PA 16684 0304

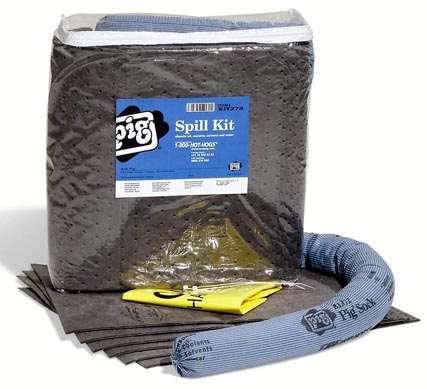

Oct 28, 2004 PIG® Clear Spill Kit contains enough absorbent PIG® mats and socks to absorb up to 5 gal of non-aggressive spills. Clear bag, also included, allows users to inventory availability of contents. Disposal bags are provided for removal of used absorbents. Kit can be placed at multiple locations in workplace where spills are likely to happen. Compact product is also suitable for stowing in vehicles.

Thermo Electron- Weighing & Inspection    Minneapolis, MN 55433-8005

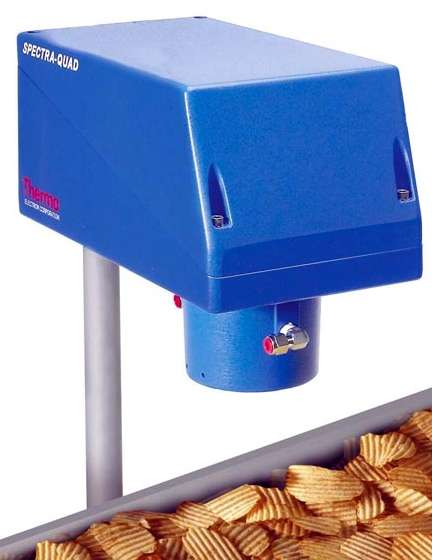

Oct 28, 2004 Spectra-Quad On-Line Analyzer uses filter technology and measurement algorithms to measure product constituents such as moisture, coating weight, and film thickness. Continuous product monitoring of key process variables allows for immediate production line adjustments, avoiding extended periods of off-specification production. Production line start-ups can be controlled to reach optimum conditions in shortest possible time.

Fire Control Instruments, Inc.    Waltham, MA 02451 1122

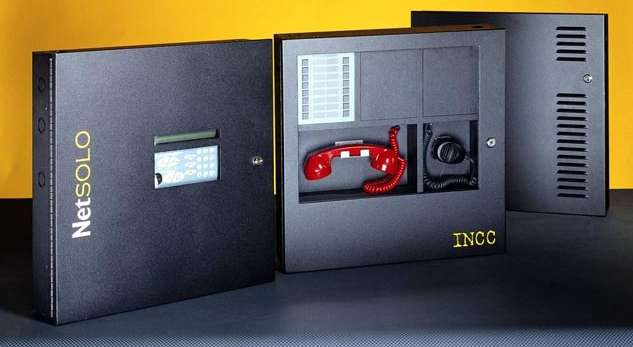

Oct 28, 2004 NetSOLO Broadband provides digital messaging, live voice instructions, and fire fighter telephone communications through distributed network fire alarm system, all on single pair of wires. Expandable system incorporates existing 7100 panels. It uses Boolean logic programming and state-of-the-art digital signal processor.

Fortress Interlocks Ltd    Erlanger, KY 41018

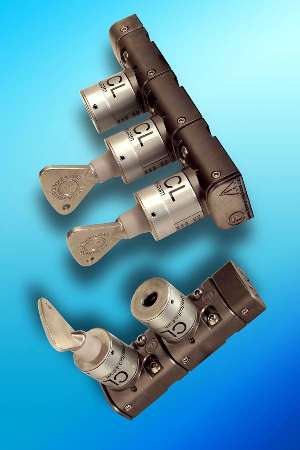

Oct 28, 2004 Model XM exchanges one or more keys for number of other keys. It allows various secondary functions following initial action, such as simultaneous opening of several guard doors around machine enclosure once power supply has been isolated. Keys used to gain access are mechanically trapped until other keys from isolation points are inserted and turned. Body of unit is die-cast zinc, while internal contact components, lock mechanism, and key are stainless steel.

E + E Elektronik GmbH      Austria
Oct 28, 2004 Communicating via 2-wire digital protocol, Model EE03 provides temperature and humidity measurements as well as dewpoint detection for OEM applications. Originally intended for automotive industry, device offers long-term stability and is suited for applications that require remote or embedded RH and temperature measurements or surface condensation monitoring.

Robotic Production Technology    Auburn Hills, MI 48326

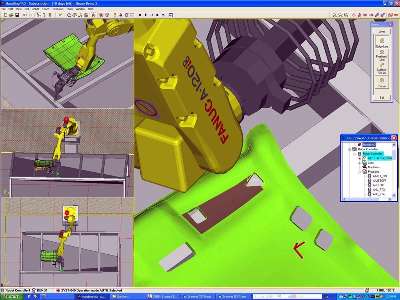

Oct 28, 2004 TrimPro, PC-based, offline software allows users to simulate and program robot in 3D space. It provides tools needed to simulate and optimize cycle times of actual work cells without prototype setup or bringing system down during production. Users can import unique CAD models of parts; create work cell including machines, part transfer devices, and obstacles; and teach robot paths to simulate operation and performance of robotic applications.

Collano AG    Sempach   Switzerland
Oct 28, 2004 UV-Curable, Pressure-Sensitive Adhesives can be applied at room temperature with flexographic and screen printing units. Creation of functional labels with unique end properties is possible since adhesives can be applied in customized patterns. Existing UV bulbs being used to cure UV inks can also be used to cure adhesives.

STMicroelectronics    Lexington, MA 02421

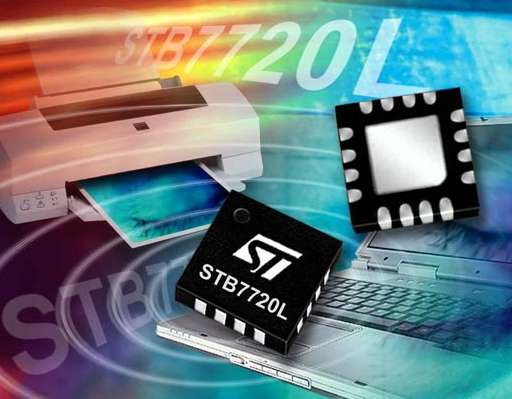

Oct 28, 2004 Optimized for 2.4 GHz ISM band, Model STB7720L achieves 32 dB of power gain and 19 dBm of linear output power, with error vector magnitude of 2% under 802.11g modulation at 54 Mbit/s. Three-stage unit includes linear analog control for DC current and output management, and average channel power detector, which has 20 dB dynamic range and provides buffered DC voltage proportional to average channel output. Amplifier consumes 125 mA at 19 dBm output and 60 mA when quiescent.

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243

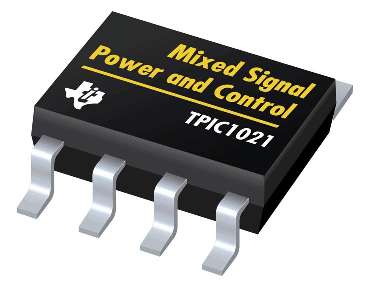

Oct 28, 2004 Stand-alone, local interconnect network transceiver, Model TPIC1021, features ESD protection up to 17 kV IEC and 12 kV HBM. It survives ISO 7637 transients and has fault protection to handle 40 V to 40 V on LIN bus. Unit functions across LIN 2.0 specified data rate up to 20.0 kBit/sec and functions equally well at lower data rates recommended by SAE J2602. To maximize EMI, receiver’s input filter reduces RF interference caused by interference on LIN bus line.

V-Infinity    Beaverton, OR 97005

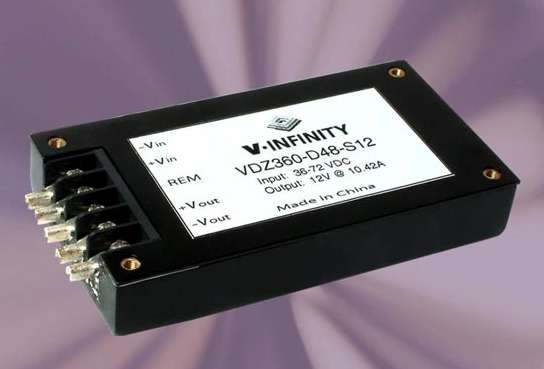

Oct 28, 2004 Offered in 70 models ranging from 75–1,000 W, chassis-mount Series VDZ accepts inputs from 9–400 V in 2:1 and 4:1 ranges. Standard output voltages include 12, 24, 28, and 48 V. Featuring screw terminal connections, converters are vibration and shock tested, operate at temperatures from -40 to +85°C, and achieve high power density without heat sink. Units are suited for industrial, military, and telecom base station manufacturers.

Flexco    Downers Grove, IL 60515-4200
Oct 28, 2004 Sized to accommodate belt widths to 14 in. with one set-up, Clipper Microlacer® is suited for on-site, manual installation of Clipper® Wire Hook Lacing in light-duty conveyor belts. Lacer head enables tool to tightly embed lacing hooks deep into belt for optimized holding strength and minimal wear on splice-contacting conveyor components. Face-strip locking is done with knurled knob that allows for finger tightening, and offset drive handle enables one-handed operation.

Colormax    Pitman, NJ 08071

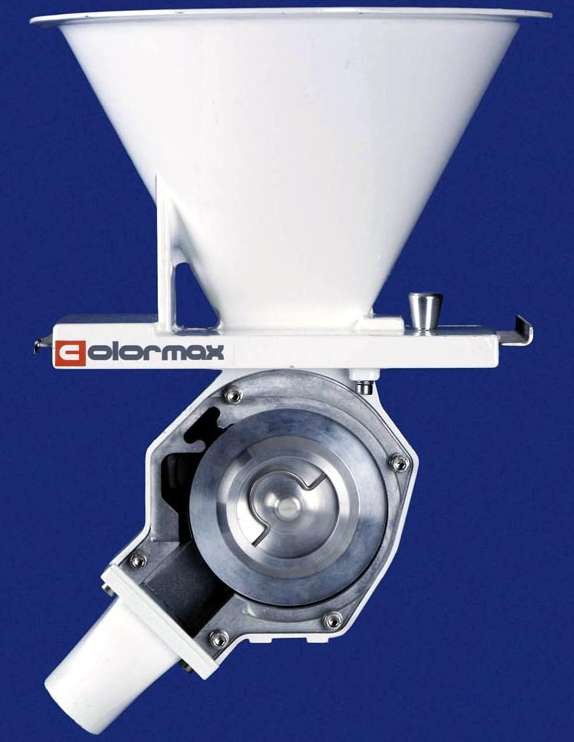

Oct 28, 2004 Posimax B300 accurately doses free flowing masterbatch or additives into process screw via screw-less feeding mechanism. There are no pockets or screws, and machine incorporates feeding disc as only moving part. Material is fed via rotating disc that creates product lock-up zone, identifying 4 areas where materials pass through. Model B300 feeds materials at rate of 11–1,100 lb/hr.
