Diversified Technologies, Inc.    Bedford, MA 01730

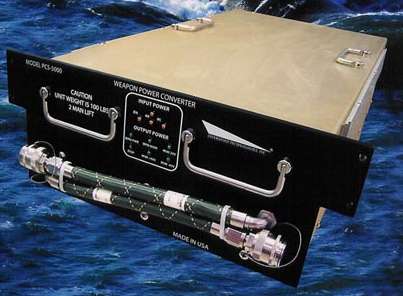

Nov 03, 2004 MIL-qualified, fully isolated power converter, PCS-5000, employs solid-state switching and control algorithms to provide max output waveform fidelity with minimal harmonics and distortion on output. Capable of functioning as frequency converter, load isolator, and ac/ac or ac/dc power supply, it appears to line as resistive load with unity power factor and harmonics. Rack-mountable product provides 1,500 W of power, with galvanically isolated input and output.

Hamworthy Peabody Combustion Inc.    Shelton, CT 06484
Nov 03, 2004 SmartScanâ„¢ 121 microprocessor flame scanner senses presence and condition of flames in various applications. Suited for coal, oil, gas, and non-standard fuel scanning, it features bar graph display, -40º to +140ºF operating temperature, and discrimination techniques. Pilot and ignition systems, available in oil-electric, gas-electric, and direct-spark, offer capacities up to 30 MM BTU/h standards and operate under all furnace and combustion air conditions.

Lin Engineering    Santa Clara, CA 95054
Nov 03, 2004 Size 14, 0.9°, modular step motor, 3509V, integrates windings encapsulated with thermally conductive, ceramic-based polymer. Measuring 0.82 in. thick and 1.44 in. squared, bipolar stepper weighs 0.27 lb and possesses holding torque values to 16 oz-in. Step accuracy is ±1.5 arc min at 1/64 microstepping, and mounting plate allows user to choose from multiple mounting options for Nema 14 and Nema 17 sizes to fit specific applications.

Edmund Optics    Barrington, NJ 08007

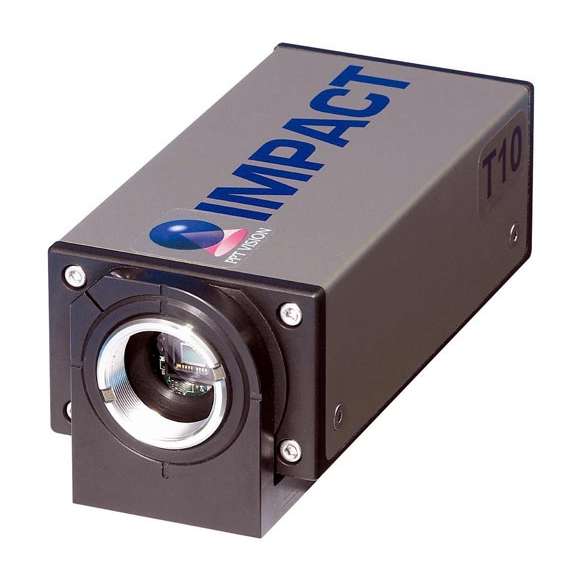

Nov 03, 2004 Impact PPT Camera Systems incorporate high-speed microprocessor, 128 MB solid-state memory, Ethernet and serial interfaces, and real-time OS. CPU supports number of cameras with resolutions from 640 x 480 at 60 fps to 1,600 x 1,200 at 12 fps. Both systems can be programmed with Inspection Builder software, which incorporates algorithms for measurement, defect detection, part location, package inspection, OCR, and data matrix code reading.

Anver Corp. - Anver.Com    Hudson, MA 01749
Nov 03, 2004 Powered by compressed air, Model VPF-57 has circular pad attachment with soft skin foam rings that pick up coils of paper, vinyl, and foil labels without damaging sides. Ergonomic handle and controls can be integrated with virtually any hoist for feeding presses and machinery. Lifter includes vacuum guard system with check valves and audio-visual alarm to signal loss of air. It can be supplied with custom designed vacuum pad attachments to meet user requirements.

Diversified Technology Inc.    Ridgeland, MS 39157
Nov 03, 2004 Based on Intel E7520 chipset, Model ATC5231 utilizes Intel Xeon Processor with 800 MHz system bus in single or dual configurations. Board is compliant with PICMG 3.0/3.1 specifications for AdvancedTCA platforms and is capable of transferring data at 6.4 Gb/s to processor. System memory of up to 16 Gb is supported via 4 ECC-protected DDR SDRAM memory modules. Onboard integration features two 64-bit/100 Mhz PMC sites, 2 Gigabit Ethernet base channels, and 2 USB ports.

TruSeal Technologies Inc.    Beachwood, OH 44122
Nov 03, 2004 GridLocâ„¢ muntin end clips are designed with thin attachment lip and special positioning legs to facilitate repositioning of muntin bars and to provide secure retention of bars within insulating glass unit. Narrow lip locks end clip in place between sealant and glass. Offered in both black and gray, clips accommodate variety of airspaces and muntin bar profiles.

Techcon Systems    Garden Grove, CA 92841
Nov 03, 2004 Measuring 1.06 in. dia x 3.45 in. long, Model TS5622VU-DVD dispenses low-medium viscosity fluids and delivers consistent deposits over range of shot and bead sizes. Stainless steel fluid housing ensures compatibility with variety of chemicals, particularly those used in manufacture of DVDs and CDs, such as UV cure adhesives, resins, and lacquers. With max fluid pressure of 70 psi, valve operates at up to 400 cycles/min and minimizes turbulence to counteract air bubbles.

Anver Corp. - Anver.Com    Hudson, MA 01749

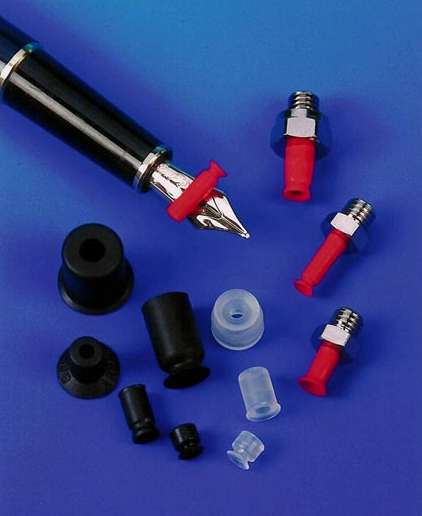

Nov 03, 2004 Available in 40 sizes from 2 mm, EOAT Miniature Vacuum Suction Cups handle delicate parts where gentle attach and release is critical. Units come in flat and single or multiple bellow styles for use with push-in, flanged, and barbed fittings. They feature translucent, non-marking silicone compound that has no dyes, operates up to 600°F, and is FDA-approved. Cups are also offered in anti-static compounds, NBR, nitrile, neoprene, natural gum rubber, vinyl, and urethane.

Orbimatic GmbH    Peterborough PE7 3FT  United Kingdom
Nov 03, 2004 OrbiIMAGE allows still and video images to be captured and stored on standard memory card. Images can be stored with file name matching data log file number, facilitating cross reference for validation purposes. System is supplied with 8 mm diameter probe and 90° adaptor. For smaller diameter tubes, 5 mm probe can be provided.

Bosch Power Tools & Accessories    Mt. Prospect, IL 60056
Nov 03, 2004 Diamond Blades are manufactured with Laser Fusion(TM), which uses laser-generated heat to fuse mixture of synthetic diamonds and bonding material directly into blade core. In Segmented blades, every 5th segment is raised for aggressive cutting, while segmented gullets clear cutting path. Turbo blades keep serrated edge in constant contact with material for smooth action. Continuous Rim blades feature smooth sintered rim to ensure constant contact with material and chip-free results.

Stanley Vidmar    Allentown, PA 18105 1151
Nov 03, 2004 Available for workstations, benches, and cabinets, Work Surfaces consist of seamlessly formed, 16-gauge stainless steel bonded to medium-density fiberboard core. Rounded edges prevent clothing snags and create completely smooth work area. Restaurant-grade stainless steel offers protection against rust and corrosion, while melamine backing on underside of base helps seal out moisture. Work surfaces can be ordered in various lengths from 30–120 in.

Cyclics Corporation    Schenectady, NY 12308
Nov 03, 2004 CBT® 100 and CBT® 200 melt to water-like viscosity when heated, then polymerize into engineering thermoplastic PBT when catalyzed. CBT 100 features processing temperature between 190-240°C, while CBT 200 ranges from 170-240°C. Available in 1- and 2-part systems, both provide natural high-gloss surface, and are not hygroscopic, so dimensional tolerances are maintained. Resins are suited for rotational molding, nanocomposites, compounding, and injection molding.

Master Appliance Corp.    Racine, WI 53403
Nov 03, 2004 Proheat® Variairâ„¢ PH-1300 Heat Gun features separate controls for temperatures from 130–900°F and air flow from 1,425–3,550 fpm. Using closed loop feedback system, electronic circuitry maintains constant temperature at all airflow settings while using any of 5 attachments. UL Certified unit is suited for soldering and desoldering, heating temperature sensitive materials, bending and forming plastics, curing resins, drying filler, and shrinking tubing.

TE Connectivity Ltd.    Berwyn, PA 19312
Nov 03, 2004 Singlemode SC Connectors have been tested to Telcordia GR-326, Issue 3; Service Life-Part A, using standard match-cladding fiber. They incorporate 6-position tuning feature, which optimizes fiber alignment and performance.

Snap-on Industrial    Kenosha, WI 53141 1410
Nov 03, 2004 Available as EEDM88V stand-alone meter, or EEDM88VKT Combo Kit, Fluke 88V identifies nearly any electrical problem on conventional and hybrid vehicles. Unit captures spikes and glitches as short as 250 millionths of a second, has fused current inputs allowing for 20 A current measurements, and internal protection to guard against over-voltage or over-current situations. It includes adjustable backlight and AutoHoldâ„¢, as well as Min/Max/Average and Peak Min/Max functions.

Knuth Machine Tools USA, Inc.    Lincolnshire, IL 60069
Nov 03, 2004 Hydro-Jet Eco 1005 provides burr-free cuts with no dust, smoke, or fumes. Pure water model is suited for cutting rubber, plastic, foam, and paper materials, while abrasive model excels at cutting aluminum, steel, marble, and compound materials. Both are programmed via integrated PC control with graphic interface. Featuring 20 x 40 in. work area, Eco 1005 offers positioning accuracy of 0.004 in. and repeatability of 0.002 in. Max feed is 240 ipm and operating pressure is 22,000 psi.

PHD, Inc.    Fort Wayne, IN 46899
Nov 03, 2004 Available in bore sizes of 8, 12, and 16 mm with standard rotations of 90 and 180°, Series RCC features standard angle adjustment of ±5° in each direction. Internal shock pads eliminate metal to metal contact, minimizing noise and end-of-rotation impact forces. All units are pre-threaded with standard mounting holes. Rotary housing incorporates switch slots for mounting of Series 6790 4 mm reed and solid state switches.

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243

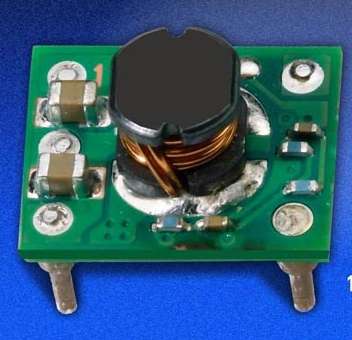

Nov 03, 2004 Plug-in, point-of-load, Model PTH04070W supports up to 3 A output current and eliminates need for heat sink, providing up to 94% efficiency. Operating from 3.3 or 5 V input bus, module leverages switch-mode dc/dc topology to convert 5 V input down to 0.9 V with less than 1 W of power dissipation. Power density is 160 W/in³, and output voltage is adjustable from 0.9–3.6 V using external resistor. Module comes in double-sided, horizontal through-hole or surface-mount package.

Avocent Corp.    Huntsville, AL 35805
Nov 03, 2004 AdminSentinel allows IT managers to access, control, and manage network and data center infrastructure. It uses real-time secure proxy model to perform routine server administrative functions from mobile device. MobileSentinel allows remote control and administration of PDAs and smart phones that connect to computer network. IT administrators can monitor all mobile devices for current status, apply passwords to unprotected devices, and manage mobile user groups.
