Emerson Process Management    Austin, TX 78754
Dec 08, 2004 Built on Microsoft .NET technology, AMS Suite v3.0 offers tools to achieve peak performance of turbo, rotating, and other critical equipment. It enables process manufacturers to move from routine to targeted predictive maintenance programs to maximize equipment performance. Explorer-style interface navigates between equipment types and plants, enabling users to compare performance. Comprehensive or individual performance reports can be downloaded and/or e-mailed.

Omnify Software    Wilmington, MA 01887
Dec 08, 2004 Omnify v2.8 helps design and manufacturing collaboration by providing complete view of product development process throughout enterprise. Key Word Search allows users to search any specified fields within system, while document vaulting provides documentation management. Users can define fields that must be filled in prior to submitting new part request or engineering change. Reporter Module offers change history, used/unused, and approved vendor reports.

Caphyon LTD    Craiova 1100  Romania
Dec 08, 2004 Advanced Installer Professional v2.2 runs on Windows 2000/XP, and packages it creates run on all Microsoft Windows 9x/ME/NT/2k/XP operating systems. Product supports multiple volume installs and Microsoft Authenticode Digital ID signature. It provides ability to edit Custom Action condition and options as well as ability to create new components for files.

Strippit Inc.    Akron, NY 14001-1321

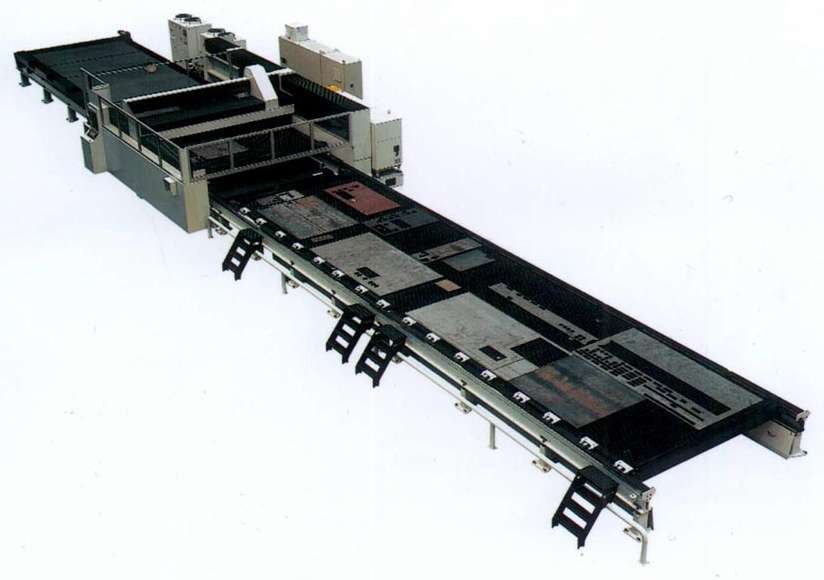

Dec 08, 2004 Able to accommodate up to 16 sheets of 3 x 1.5 m material, Impuls 6530, 8030, and 12530 let user load/unload one table while machine processes parts on another. Systems, able to process flat plate up to 25 mm mild steel, 15 mm aluminum, and 20 mm stainless steel, provide programmable Z-axis with travel up to 280 mm. Impuls 6530 handles workpieces to 256 x 120 in, 8030 accommodates sheets to 315 x 120 in., and 12530 has 492 x 120 in. work area.

Amalgamated Inc.    Fort Wayne, IN 46898-8400
Dec 08, 2004 USA B-20 WINTERIZERâ„¢ ULTRA SOY ADDITIVEâ„¢ improves cold temperature fuel flow down to -30°F CFPP (Cold Flow Plug Point) in bio-diesel blends without use of No. 1-D. With -28°F pour point, product can be added to B-100 soy methyl ester prior to blending soy into No. 2D for rack injection operations down to -20°F ambient. Custom additive package can be formulated with cetane improver, detergent, stabilizer, corrosion inhibitor, rust retardant, or de-icer agent.

Sipex Corp.    Miliptas, CA 95035-1701
Dec 08, 2004 Housed in a 4 x 4 mm QFN package, Model SP7683 generates regulated output current using 2 operating modes. At high input voltages, it functions as linear regulator, at low input voltages, it functions as 1.5x charge pump. Other features include input voltage range 2.7–5.5 V, 1.2 MHz switching frequency, PWM dimming control, and operating temperature range of -40 to +85°C. Unit is targeted for backlighting color displays in portable applications.

Telco Sensors Inc.    Charlotte, NC 28217
Dec 08, 2004 SpaceGuard SG10 Light Curtains offer 2–10 m sensing range with extraneous light immunity of up to 100,000 lux. Systems include self-contained multi-beam infrared transmitter, SGT, and SGR. Two models are available: 40-channel model with 194 cross scanning beams, and 20-channel model with 94 cross scanning beams. Housing has 9.8 mm profile, with active height of 1800 mm. Units require 10–30 Vdc supply voltage with NPN or PNP transistor output.

Schunk    Morrisville, NC 27560
Dec 07, 2004 Available in 5 body sizes from 64–60 mm, 3-finger Series PZN-plus offers stroke from 12–50 mm. Gripping positions of open, closed, or part present are monitored with magnetic or inductive switches. Forces and moments of gripper are spread over several surfaces of multiple-tooth guide. Moment loading capability is maximized, allowing high external loads to be applied without damage. For part loading against hard positions, spring packaged pressure plate is available.

Glacier Computer    Amherst, NH 03031

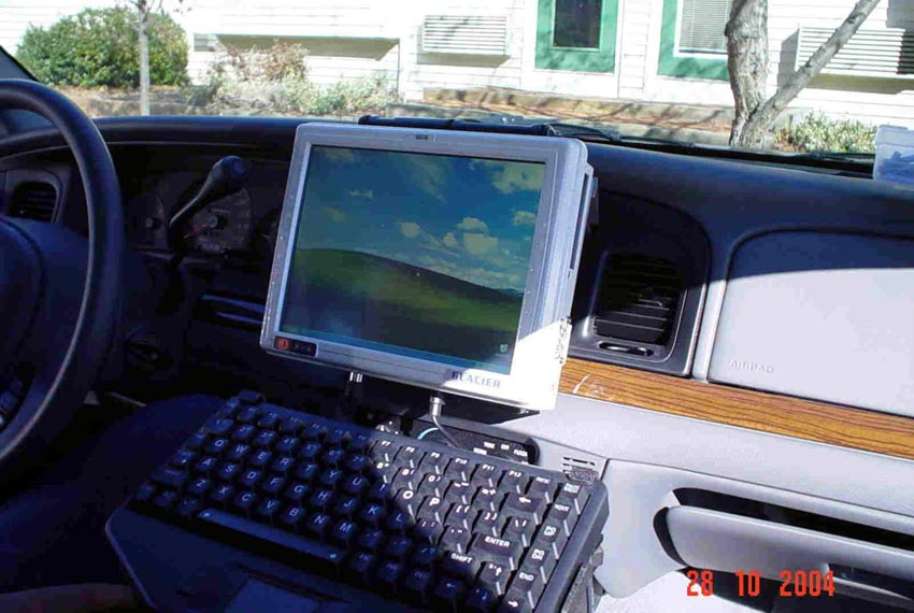

Dec 07, 2004 Model GX 1000 A is an 800 MHz computer with display, touch screen, and multiple standard I/O ports. Sunlight-readable LCD enhancement makes it easy to read in any environment. Rugged, PC-compatible industrial computer installs in forklifts, dock doors, and shop floors. It uses 4 backlight inverters that provide 1350 nits of brightness. Unit runs all Windows operating systems and works with local and wide area wireless networks.

Tidal Engineering Corporation    Randolph, NJ 07869
Dec 07, 2004 TCweb 16-channel thermocouple monitoring system offers PC-based data logging capabilities, allowing unlimited number of data points to be served to Wonderware and Genesis employing OPC and DDE servers, respectively. TCweb connects to Internet via built-in 10BaseT Ethernet communication port or optional 56K fax modem. Offering display resolution of 0.1°C, unit provides temperature measurements at up to 16 times/sec with values reported in °F or °C.

Scientific Technologies Inc.    Fremont, CA 94555
Dec 07, 2004 MegaSafe® MG4600 provides detection capabilities from 14 mm finger to 50 mm arm detection. Protected heights range from 435–2,086 mm and sensing range is 7.5–20 m. MegaSafe® MG4600 includes Individual Beam Indicators to facilitate alignment, field-replaceable safety relays and weld shield, Floating Blanking to block up to 2 beams anywhere in zone, and Exact Channel Select to permanently block selected beams where machine parts will obstruct portion of zone.

Sherwood Technology Limited    Widnes, Cheshire WA8 8FW  United Kingdom
Dec 07, 2004 DataLase non-toxic ink, coating, or substrate additive produces positive image when marked by low power CO₂ laser. It undergoes chemical color change and creates stable, high-contrast image. DataLase allows images such as barcodes, 2D codes, logos, and graphics to be imaged by CO₂ laser directly onto any surface, eliminating need to use adhesive labels on packaging. Virtual label becomes integral part of packaging and will not peel off.

Protek Test & Measurement    Englewood, NJ 07631

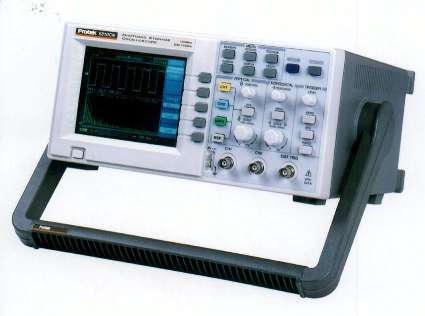

Dec 07, 2004 Offering 1:1 to 100:1 zoom waveform display and 4 K record length for each channel, Model 6810CN features 256 color VGA LCD monitor, while Model 6810MN provides monochrome 320 x 240 pixel LCD display. Units include built-in USB port, ability to provide 20 automatic waveform measurements, auto-setup, and auto-calibration. With 100 MHz analog bandwidth, DSOs also feature memory storage of 10 waveforms and set-ups, FFT function, and pass/fail capabilities.

ASG, Div. of Jergens, Inc.    Cleveland, OH 44110

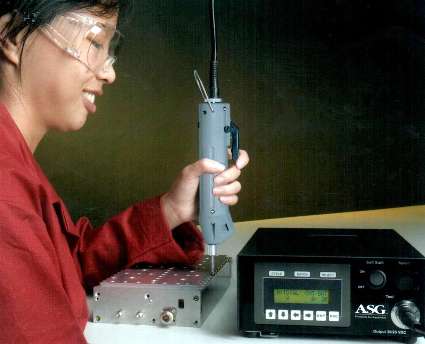

Dec 07, 2004 Model TS IIIâ„¢ Qualifier eliminates many common fastener-related assembly errors. Integrated power supply can be used with dc brush or brushless screwdrivers. When used with electric torque control driver, it can determine if each screw in assembly has been inserted, driven to full depth, torqued to designated value, cross threaded, or stripped. Automatic calibration allows unit to learn-on-the-job by monitoring and remembering proper fastener profiles.

Misumi USA    Schaumburg, IL 60173
Dec 07, 2004 Suited for OEM applications, Locating Pins are made with hardened A2 tool steel for common industrial usage or in corrosion-resistant 304 stainless steel for machines found in food processing, medical, and pharmaceutical industries. Design engineers can specify all critical dimensions in metric and inch sizes, including head heights, lengths, shanks, and diameters in very fine increments, as well as OD tolerances.

Dynisco Instruments    Franklin, MA 02038
Dec 07, 2004 DeviceNet Digital Pressure Transmitters incorporate embedded microprocessor technology, in which low-level analog signal of pressure-sensing element is converted to digital value at rate of 20 ms. Digital pressure signal with 13-bit resolution is made available to master control system continuously via DeviceNet bus. Combined with CANbus circuitry, microprocessor monitors health of sensor electronics and reports fault conditions over bus.

Sellick Equipment, Ltd.    Harrow, ON N0R1G0  Canada

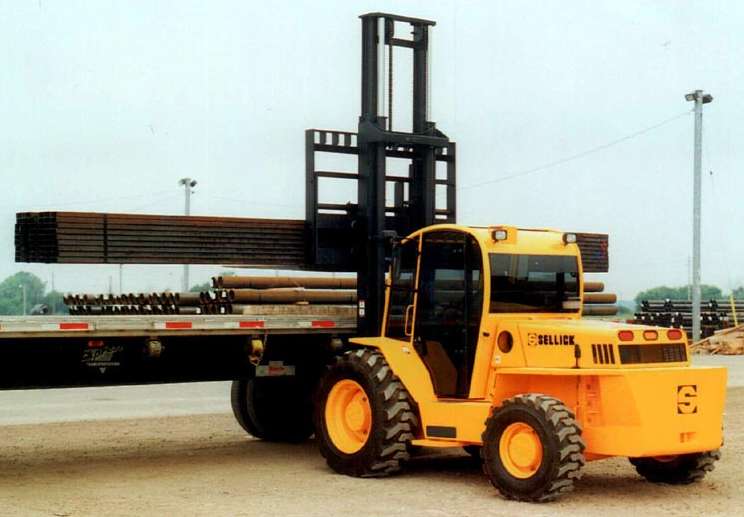

Dec 07, 2004 With design built around safety, visibility, ergonomics, and accessibility, S series has rubber mounted operator platform for reduced noise and vibration levels. Visibility is promoted via SEE-THRU roller mast, and max capacity range is 6,000–12,000 lb. Each model is equipped with Perkins 1100 Tier II emission diesel engine, and optional equipment includes 4 wheel drive, enclosed cab, air conditioning, and fork positioning.

Rotex, Inc.    Cincinnati, OH 45223 1845

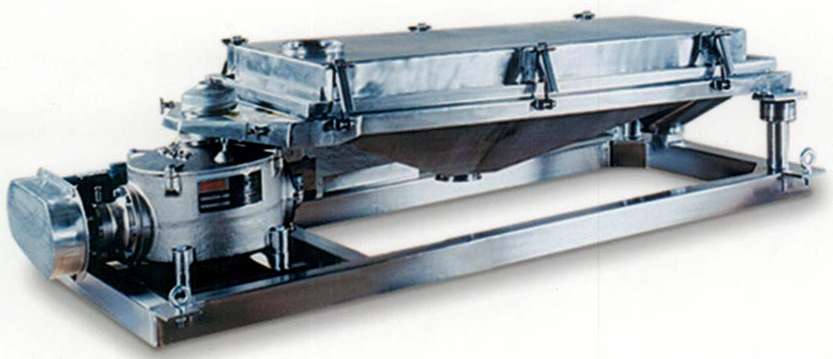

Dec 07, 2004 Rotex Screeners deliver consistent particle size control utilizing gyratory-reciprocating motion with near horizontal screen surface combined with positive screen mesh cleaning system. Product line includes 100 models ranging from 1-5 screen surfaces for separations with openings from ½ in. to 325 mesh. It is suited for use in production, polishing, and various points of distribution, storage, load out, and delivery within fertilizer industry.

V & B Mfg. Co.    Walnut Ridge, AR 72476 0268
Dec 07, 2004 Available in configurations for construction, gardening, and landscaping industries, handles are offered in hundreds of patterns and styles in 4 different grades and can be custom-made to specifications. Handle types include hammers, axes, hatchets, sledges, malls, shovels, picks, hoes, rakes, brooms, and post hole diggers. Configurations include bent and curved shovel handles, D-grip metal and plastic handles, and straight and curved hammer and hatchet handles.

Watson-Marlow Bredel Pumps    Wilmington, MA 01887

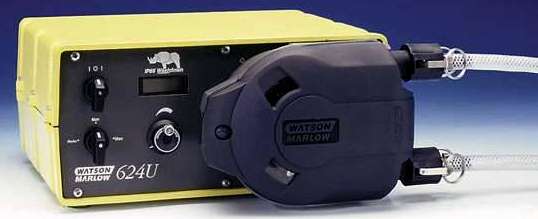

Dec 07, 2004 Used for metering ferric chloride into raw water, 624 U/RE wastewater treatment solution offers vacuum lift, dry priming capability with no possibility of back-flow. Design utilizes twin rollers, providing flow rates from 0.05–12.0 Lpm. Pump accommodates fluctuations in water demand and offers manual speed control, remote switching options, and digital speed display. IP55 rating ensures unit is protected against washdown and dust.
