High Lites    Waterbury, CT 06704
Nov 05, 2004 Series ZC, APS, APA, ZCLED, S, A, and High Glow Special Wording Signs provide single- or double-sided, changeable displays with backlit illumination and low-profile design. They are available with incandescent, fluorescent, and LED light sources and aluminum, steel, or thermoplastic housings. High Glow models can be specified with graphic medium that accommodates reproduction of photos and graphics printed on overhead transparency film.

Thompson Scale Co.    Houston, TX 77055

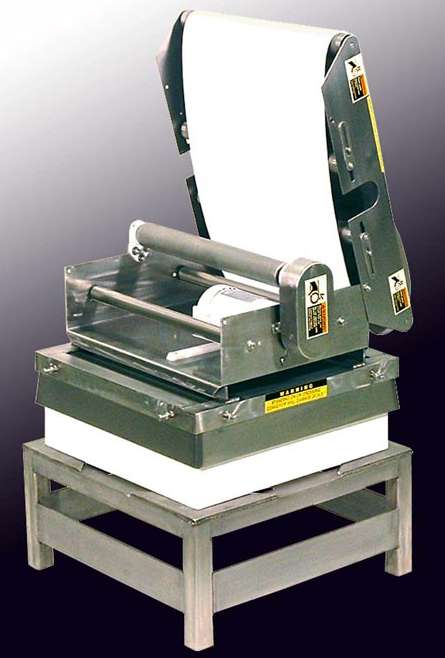

Nov 05, 2004 Featuring all-stainless steel conveyor and food-grade, epoxy powder-coated scale, 4693i Intermediate Package Checkweighers use wash-down rated bearings and drive components along with USDA/FDA approved belts. They weigh products from 0.5–50 kg with conveyor speeds over 250 fpm and offer production to 60 units/min with accuracies to ±0.5 g. Controllers hold 75 unique product recipes in memory and display information on production.

Nidec Copal USA Corp.    Torrance, CA 90501
Nov 05, 2004 Designed for use in medical, optical, and fiber optic communications applications, LPD4 dual-phase, permanent magnet, micro-sized stepping motor has overall axial length of 8.3 mm. It can produce pull-out torque to 11 milli-oz-in. @ 1,875 rpm and holding torque to 23 milli-oz-in. Max unloaded pull-in speed for 3 Vdc motor is 6,000 rpm, and step angle is 22.5°.

Motorsoft Inc.    Lebanon, OH 45036
Nov 05, 2004 Brushed-type, permanent magnet, dc servo motors are offered in 60, 90, and 110 mm dia with respective NEMA frame sizes of 23, 34, and 42. Winding voltages of 12, 24, 36, and 48 V ensure compatibility with industry-standard motor drives available to satisfy torque requirements from 40 to 2,100 oz-in. Applications include factory automation, packaging machines, robotics, coil winders, converting equipment, and laboratory instrumentation.

Gee Plus Inc.    Elgin, SC 29045
Nov 05, 2004 Miniature latching solenoids use permanent magnets to create holding position without requiring power supply. Energized holding force varies from 7.2 oz up to 8.1 lb in models T1L-0420 to T1LP-1253, respectively. Input power varies from 0.5-10 W depending on solenoid size, and solenoid windings are available with 6, 12, and 24 V excitation voltages. Available in 10 models, products vary in size from 0.413 x 0.512 x 0.788 to 2.09 x 1.06 x 1.18 in.

Applimotion, Inc.    Roseville, CA 95678
Nov 05, 2004 HO Series combines NEMA 23 mounting with through hole, encoder, and slotless motor construction, eliminating unwanted magnetic disturbances. Motors come with internally mounted glass encoder grating and encoder read head. Resolutions greater than 29,000,000 counts/revolution can be achieved with repeatability at 0.3 microradians, and torque curves have less than 1% harmonic distortion. Wires, fiber optic cables, and laser beams can be run through motor.

REP Corporation    Bartlett, IL 60103-8146
Nov 05, 2004 Featuring automatic speed and stroke adjustment, G9 family includes 550-ton V79 press with movable traverse located at operator level. Mold thickness adjustment is automatic, and work height is constant. With 130 x 55 in. footprint, product provides up to 31½ x 31½ in. heater platens and has L design injection head that permits floor level feeding of raw material. All presses are controlled by 15 in. touchscreen graphics panel and PC front end.

Hardy Process Solutions    San Diego, CA 92123 1825
Nov 05, 2004 Ethernet/IP Interface allows host controller to monitor filling process controlled by Model HI 3010 Filler/Dispenser. It also allows all 4 weighing channels of Model HI 3030 Weight Controller to be viewed and controlled by host. One instrument with Ethernet/IP port can act as network bridge, communicating data from other HI 3000 Series Instruments connected in Hardy-Links or DeviceNet LAN.

Hardy Process Solutions    San Diego, CA 92123 1825
Nov 05, 2004 Nationwide Field Service Program supports users of process weighing, tension control, and vibration monitoring instrumentation. It assists customers with installation and startup of systems, scale verification and certification, emergency troubleshooting, on-site training, and routine preventative maintenance and inspection. Customers can choose pre-defined service package or service plan that best fits needs through Service By Design program.

Thomas Products Division    Sheboygan, WI 53081

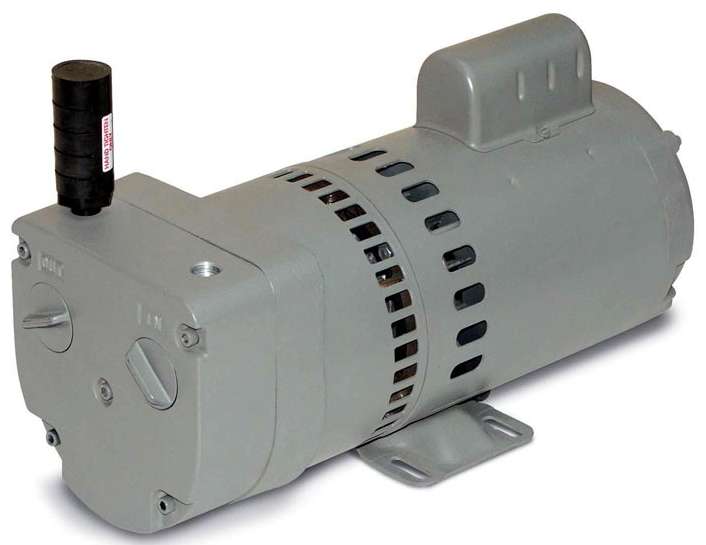

Nov 05, 2004 QR Series pumps, constructed with cast iron pump housing, feature permanently lubricated ball bearing motors. Oil-less pump design includes built-in inlet and exhaust filters, die-cast aluminum sound chamber, and external exhaust muffler. Available with single- or 3-phase ac motors, series provides up to 10 psi continuous pressure or 15 psi intermittent. Max rated vacuum is 26.0 in. Hg, and max flow is 10 cfm.

Soft-AID Computers P Ltd    Pune 411 004  India
Nov 05, 2004 Lobbytech interactive desktop software helps manage visitors by creating and monitoring visitor badges with photo ID. Users can design badge to meet their requirements, adding safety instructions and company logo. Badge is shown on desktop in same manner in which it will be printed. Daily and monthly reports can be generated, and user can search visits by specific visitor. In case of emergency, details of all visitors are immediately accessible.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Nov 05, 2004 Model N5397A interacts with on-chip virtual probing technology, enabling Infiniium Mixed-Signal Oscilloscopes to capture up to 32 internal FPGA signals for each debug pin correlated to external analog activity. Up to 512 internal probe points can be accessed inside FPGA without changing design. Automatic mapping of internal signal names from FPGA design tools to MSO provides identification of on-screen digital waveforms corresponding to internal probe points.

Edwards Signaling & Security Systems    Plainville, CT 06062
Nov 05, 2004 Available in 120/240 Vac and 24 Vac/dc, 2-way Model 5570M can function in balanced or unbalanced line operation and in Master or Satellite mode configuration. It has transformer isolated audio inputs and comes with choice of 4 alert tones. Adaptable to virtually any communications infrastructure, intercom and speaker are rated for NEMA Type 3R installations, as well as Class I Div 2, Class II Div 2, and Class III hazardous locations.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Nov 05, 2004 Used with ESG and PSG vector signal generators, N7622A Signal Studio toolkit ensures highest possible quality of signals to test radar, ultra wideband communications, and wireless power amplifiers. It provides error-correction capabilities at modulation bandwidths as high as 800 MHz. Software removes distortion errors before they are output from signal generator to DUT, so test signal characteristics are nearly indistinguishable from original I/Q waveform.

NAPCO Security Systems, Inc.    Amityville, NY 11701-2800
Nov 05, 2004 Pro-Bitâ„¢ products are constructed of tool steel with hardened cutting points for extended life. All bits include extra-long twist to facilitate material evacuation, while slow taper allows bits to retrieve without breaking. Products have fish accommodation on chuck and flute ends of bellhanger and flex bits. The 54 in. flex bits are comprised of serrated cutting edges.

Uniwest    Pasco, WA 99301
Nov 05, 2004 Tie-Bolt Inspection System uses gravity and thread angle to drive universal probe along thread pattern. Bolt head and shank can be inspected by manually manipulating probe, and one probe can be used to scan variety of bolts with typical inspection time of less than 7 sec. Tie-bolts are rotated at 100, 200, or 400 rpm for full scanning flexibility. Scanning bed accommodates bolt lengths from 1–6 in. and diameters from 5/16–1 in.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Nov 05, 2004 Featuring rack-optimized, 7 U, modular enclosure, entry model eSever BladeCenterâ„¢ holds up to 14 hot-swap HS20, HS40, or JS20 blades. Unit contains high-availability midplane, supporting hot-swap of individual blades. It also features two 2,000 W, hot-swap power modules with option for 2 more. Product supports up to 2 network switch or passthrough modules and comes with 2 hot-swap blowers and ability to integrate Ethernet networking capability.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Nov 05, 2004 CICS® Batch Application Control aids in management of batch processes that have to coexist and share resources with one or more CICS online transaction systems. Program takes related groups of files throughout enterprise off-line for batch processing and brings them online again when batch processing is completed. During this process, software disables associated transactions and writes audit records.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Nov 05, 2004 Rational® Functional Tester v6.1 introduces support for test authoring and modification within Microsoft® Visual Studio .NET IDE using Microsoft Visual Basic .NET as test script language. Tester is advanced, automated functional and regression testing tool for testers and GUI developers who need control for testing Java, VS.NET, and Web-based applications. Features extend technology support, simplify tool adoption, and increase tester productivity.

Richardson Electronics, Ltd.    La Fox, IL 60147
Nov 05, 2004 Operating from 220 Vac internal power supply, 19 in. rack-mountable AL-series L-band Power Amplifiers employ LDMOS technology. Model AL50-D provides 70 Wrms for DAB applications and 200 W CW, while Model AL100-D is rated at 140 Wrms and 400 W CW. Also available are Models LDL15 and LDL80 pallets, which require 35 Vdc supply. LDL15 is rated at 15 Wrms and 45 W CW, and LDL80 is rated at 80 Wrms and 200 W CW.
