Phoenix Contact    Harrisburg, PA 17111 0100
Nov 11, 2004 Sensor/Actuator Cable (SAC) family includes ½ in. ac cordsets, which are available with male and female inserts in straight and angled configurations. Designed to industry standard, 3, 4, and 5 positions are produced with dual keying to prevent mis-mating. Cables meet IP 67 requirements and are available in standard and variable lengths, including 1.5, 3, 5, and 10 m. Cordsets provide solution for customers with standard ac applications.

Zeiss, Carl, Industrial Measuring Technology (IMT) Corp.    Maple Grove, MN 55369

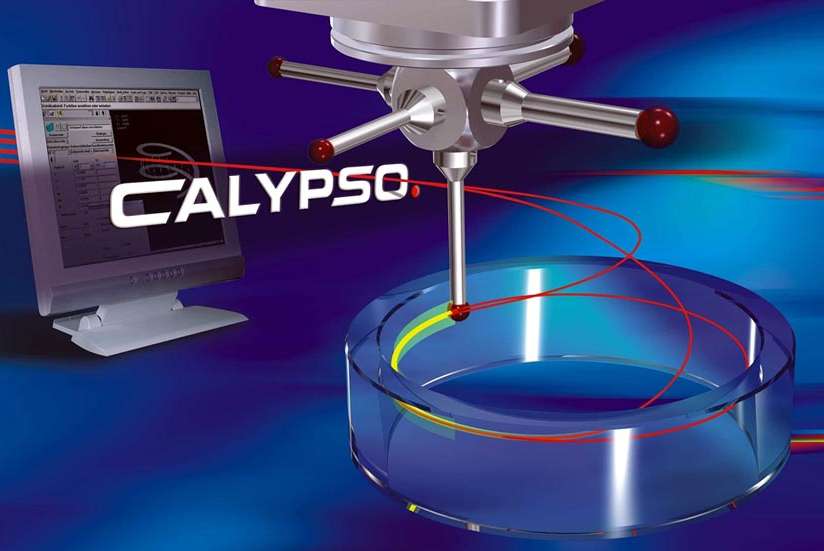

Nov 11, 2004 Utilizing Visual Metrologyâ„¢ concept, CALYPSO® v4.0 has object-oriented foundation and offers self-centered scanning, optimized clearance planes, and ability to view CMM navigation points on CAD screen. It also lets users control evaluation range for circle paths and lines as well as CAD origin. Simulation has graphic representation of probe head and machine volume and support for rotary table. Users can also bring new CAD models into measurement plans.

Advantapure, Div. Of NewAge Industries    Southampton, PA 18966

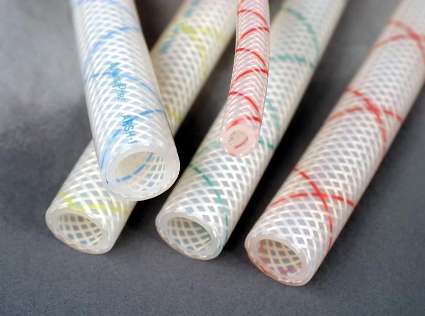

Nov 11, 2004 Color Braid Silicone Hose incorporates platinum-cured silicone elastomer, polyester braiding with tracer line, and outer layer of silicone. Colored braid helps differentiate between lines used for transfer and processing of fluids, air, or granular materials. Offered in ID sizes from 1/16–1 in., sterilizable/autoclavable hose features temperature range of -100 to 400°F and is suited for pharmaceutical, food, beverage, cosmetics, chemical, and medical uses.

Slideways, Inc.    Worcester, MA 01605

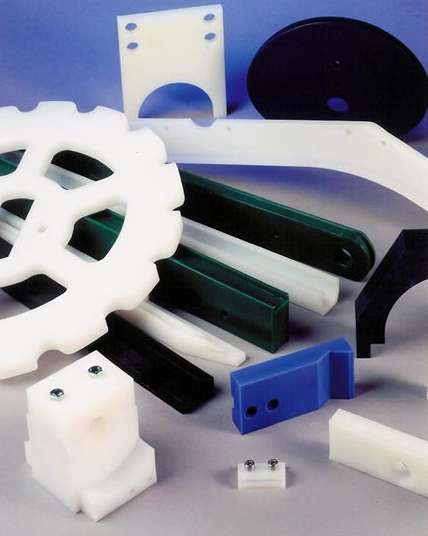

Nov 11, 2004 Custom Machined Plastic Components are produced from materials such as oil-filled nylon for handling high speeds and loads, MD-nylon which features dry lubricant to prevent dust from adhering to wear strips, acetal where stiffness is needed, glass-filled PTFE for chemical resistance, UHMW, and UHMW-HT. Capable of achieving tolerances to ±0.0005 in. and surface finishes to 16 rms, components can be produced in prototype to production quantities.

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243
Nov 11, 2004 Model ADS1271 offers 1.8 µV/C offset drift with low in-band noise of 6.5 µV rms. Onboard linear phase decimation filter suppresses modular and signal out-of-band noise, providing signal pass-band of 90% of Nyquist rate with less than 0.005 db ripple. With 3 selectable operating modes, 24-bit unit offers 105 kSPS data rate, 109 dB SNR resolution, and power dissipation of 35 mW. Selectable frame-sync or SPI serial interface provides interfacing to DSPs and microcontrollers.

PI Vision    Orlando, FL 32811
Nov 11, 2004 Model UVMSâ„¢ D3 Decoder and Display Driver is suitable for controlling banks of video displays. System is modular, with each D3 driving up to 4 display units. D3 exploits built-in switching capabilities of IP network to provide virtual video matrix with almost unlimited potential for expansion. System includes built-in quad feature, supports displays with up to 3,200 x 2,400 pixel resolution, and offers access to replay and live video in any window.

Microchip Technology, Inc.    Chandler, AZ 85224 6199
Nov 11, 2004 Available with 24 or 32 Kbytes of self-programmable Enhanced Flash memory, Flash PIC® Microcontrollers offer 48 MHz operation, 12 Mbps data transfer rates, and are suited for embedded applications. PMOS Electrically Erasable Cell Flash technology allows up to 100,000 erase/write cycles and data retention of more than 40 years. USB 2.0 interface includes onboard transceiver and Parallel Streaming Port for direct data transfers to external peripherals.

Landa Water Cleaning Systems    Camas, WA 98607
Nov 11, 2004 Available in 6 models, portable SLT series sustains operational water temperature of 200°F while delivering cleaning power of 5.2–7.8 gpm at pressures from 3,000–3,200 psi. Products support dual cleaning wands that operate simultaneously. Insulated shut-off spray gun is fitted with swivel crimp to prevent hose tangles, while stainless steel, variable pressure wand facilitates user-adjustment to water pressure while cleaning.

Duff-Norton    Charlotte, NC 28241 7010

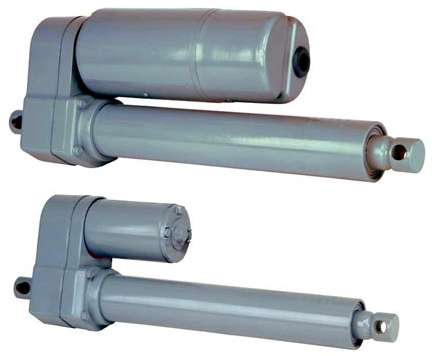

Nov 11, 2004 Fully sealed, gasketed, and permanently lubricated TA Series incorporates all metal gears driving self-locking ACME screw. Configurable to application requirements, product can feature adjustable internal limit switches, ac or dc motors, aluminum housing, stainless steel translating tube, and clevis attachments on each end. Suited for 500 and 1,000 lb load capacities, product travels at speeds to 52 ipm and operates in temperatures from -20 to +120°F.

Hotsy    Camas, WA 98607
Nov 11, 2004 Single-stage, pass-through parts washer, Model 8600, features 16 in. wide steel conveyor belt that moves at speeds to 8 fpm, carrying parts through wash tunnel where they are blasted with hot water spray from 360° spray manifold. Water is heated by three 9 kW tubular heating elements to temperatures up to 140°F. Five horsepower vertical seal-less pump delivers 110 gpm at 40-50 psi. Electrical configurations include 230, 460, and 575 V, all 3-phase.

BEA Inc.    Pittsburgh, PA 15215

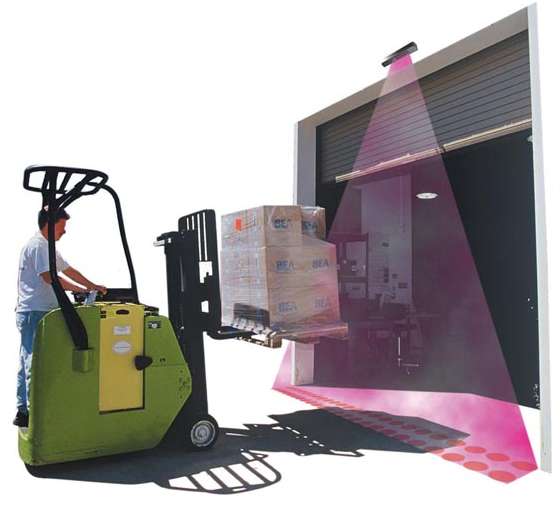

Nov 11, 2004 Utilizing focused, active infrared technology, Iris Sensor generates 2 rows of 24 precise beams to detect objects in door's path throughout door-opening and door-closing cycles. Infinite learn time feature ensures that common objects abandoned inside area of detection will not inhibit sensor function. All features of sensor are programmable by universal remote control. With mounting height up to 13 ft, Iris is suitable for most small industrial doors.

Waytek Inc.    Chanhassen, MN 55317
Nov 11, 2004 Stop/Tail/Turn and Clearance/Marker LED lights, available in red or amber, are 4 in. round sealed LED kits that include LED light, grommet, and pigtail. LEDs are set in impact-resistant plastic housing to increase life expectancy. Also available, sealed white LED back-up kits come with LED light, grommet, and pigtail.

Automated Packaging Systems Inc.    Streetsboro, OH 44241
Nov 11, 2004 Portable, benchtop, AirPouchâ„¢ Express 3 produces air pillows in continuous strips at more than 50 fpm. With 20 x 12 in. footprint, system requires no compressed air and can run in manual, semi-automatic, and automatic modes. Puncture-resistant, DuraClearâ„¢ polyethylene pillow material is preformed with EZ-Tear perforations. It comes fan-folded in box that contains 3,000 linear feet, and 8 x 8 in. material can inflate to approximately 300 ft³ of void fill.

Automated Packaging Systems Inc.    Streetsboro, OH 44241
Nov 11, 2004 Autobag Accu-Count® 100 and 200 count and batch at speeds up to 2,500 packages/hr. Available with 3 bowl configurations, Accu-Count 200 utilizes vibratory bowl feed and count system and is capable of detecting and counting product measuring 1/8 in. dia x 1/8–2.5 in. long x 2 in wide. Accu-Count 100 utilizes batch accumulator and similar features of Accu-Count 200. Both incorporate AutoTouchâ„¢ Control Screen and Individual Part Profiling function.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Nov 11, 2004 TotalStorage® SAN32B-2 offers 4 Gbps port-to-port throughput with auto-sensing capability for connecting to host servers, storage, and switches. It offers 32 non-blocking ports with full duplex throughput at 1, 2, or 4 Gbps link speeds. Switch includes hot-pluggable power supplies and fans, automatic path routing, and nondisruptive firmware upgrades. Scalable ports in 16, 24, or 32 port increments accommodate range of connectivity solutions in 1U form factor.

Curtis-Toledo, Inc.    St. Louis, MO 63133
Nov 11, 2004 Variable speed drive air compressors in AF Series employ TEFC motors and run at exact speed and operating pressure necessary to meet system air requirements. Any decrease in air demand corresponds to direct, linear percentage decrease in power consumption. Features include soft start motor control and color touch screen control, which is capable of calculating cumulative energy savings for each application or system served.

Synergistics, Inc.    Natick, MA 01760
Nov 11, 2004 Requiring no locally installed software, Presidio is fully scalable and can be integrated with various access control system hardware controllers. Through 128SSL encryption, alarms and events are securely monitored in real-time via Internet/Intranet with alarm event information routed automatically to cell phones, pagers, and email. Programmable for up to 255 access levels, Presidio includes anti-passback capability and on-line help screens.

Quality Tools, Inc.    Blairstown, NJ 07825
Nov 11, 2004 Designed to provide increased control for installing drywall on ceilings or walls, Free Hands keeps hands free during installation process. Bright yellow color makes tool easy to locate, and compact size enables it to fit into toolbox or on toolbelt.

Ideal Industries, Inc.    Sycamore, IL 60178
Nov 11, 2004 PowerBladeâ„¢ Cable Cutter installs like drill bit on virtually any corded or uncorded drill with 3/8 in. drive shaft. With turning action of drill, it provides needed force to cleanly slice through up to 750 MCM hard-drawn copper cable or up to 1,000 MCM aluminum cable with minimal cable distortion. Adjustable torque arm securely holds drill in place, while textured Santoprene® grip provides control and minimizes vibration.

Amacoil Inc.    Aston, PA 19014
Nov 11, 2004 Available in 7 sizes, Model RS4 drive nut is configurable for vertical or horizontal travel. Smooth shaft has no threads and operates at rotational speeds to 10,000 rpm. Linear travel speed ranges from 0.5–4.0 ft/sec depending on drive size and payload weight, and RS4 drive offers axial thrust from 22–449 lb. Rolling ring bearings have constant, single-point contact with drive shaft, resulting is zero play when shaft is rotated.
