Meese Orbitron Dunne Co. (MOD)    Saddle Brook, NJ 07662
Dec 22, 2004 Reusable OTP Intermediate Bulk Container features 23 in. wide lid and opening that allow spray balls, nozzles, and other impingement cleaning devices to reach entire interior surface. Use of optional removable liner eliminates cleaning completely. Offered in 275 and 330 gal capacities, chemical- and impact-resistant OTP accommodates 4-way lift access, stacks 2 high when full and 3 high when empty. It is suited for storage and transport of paints, stains, inks, and coatings.

Ophir Optronics, Inc.    Danvers, MA 01923
Dec 22, 2004 Model PD10-pJ offers energy scales from 100 nJ to 200 pJ, as well as pulse rates up to 4,000 Hz. It can make energy measurements as low as 10 pJ. Unit features spectral response of 0.19-1.1 µm, max pulse width of 50 µs, and max average power density of 5 Wcm², with damage threshold of 0.1 J/cm². It is compatible with Nova, Nova II Handheld, LaserStar, Dual Channel LaserStar, and Orion-PE Handheld smart displays.

Hospital Specialty Company    Highland Heights, OH 44143
Dec 22, 2004 Precious® Baby Seat provides safe, secure place for child while patron uses restroom or changes in fitting room. It features Y-harness seat belt, concave bed and head, side supports, and pre-drilled mounting cups. Compact unit fits inside restroom stall or fitting room without compromising limited space and provides molded-in hook for purse or bags. ADA-compliant product comes with installation hardware and mounting template.

Aremco Products, Inc.    Valley Cottage, NY 10989
Dec 22, 2004 Used as reflective coating on high-temperature UV lamps, silicone-based, water-dispersible Corr-Paintâ„¢ CP4040 adheres to glass, quartz, ceramic, and sandblasted as well as marginally prepared metal surfaces. It dries at room temperature and cures as coated component is ramped up to operating temperature. Applied via pneumatic spray equipment, brush, or roller, coating is color-stable and resistant to oxidation, UV light, humidity, and salt spray.

Contec Microelectronics Europe BV      Netherlands

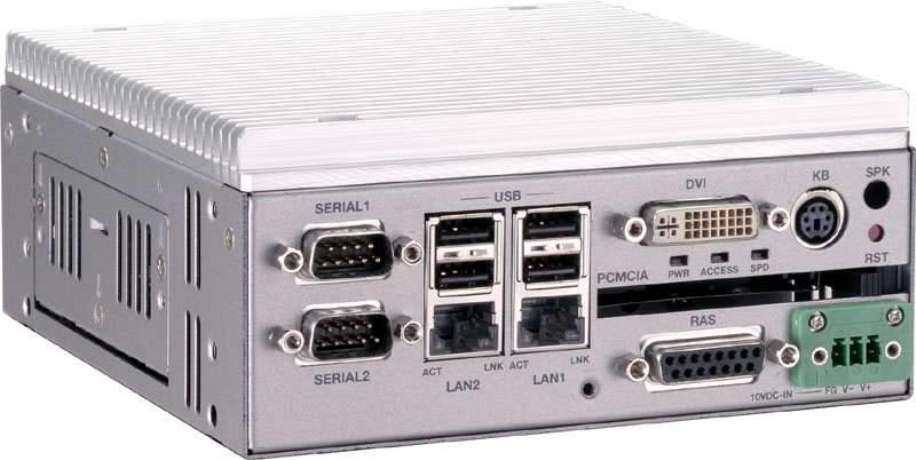

Dec 22, 2004 For PC-based automation solution located close to machines, 146 x 157 x 64 mm BOX-PC 360 series uses 400 MHz Intel Ultra Low Power Celeron embedded CPU with 100 MHz FSB and 256 Kbyte full-speed L2 cache. Heatsink, built into top of external case, eliminates need for fan. External interfaces include CardBus PC card slot, two 100BASE-TX LAN, four USB 2.0, IDE(ATA/100), RS-232C/422/485, and AC97 audio. Slot-in mechanism is used to mount storage devices.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143

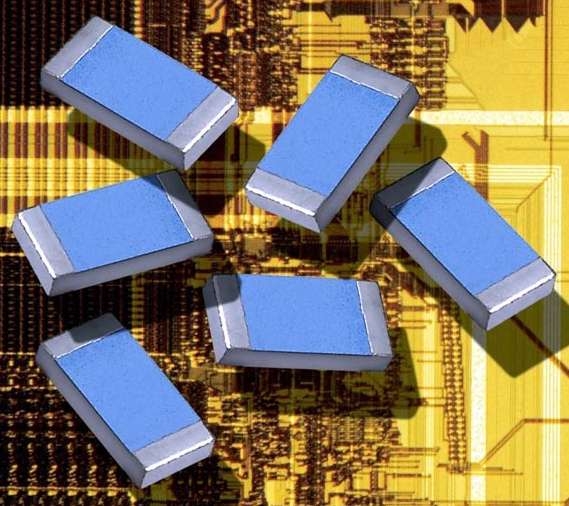

Dec 22, 2004 Measuring 0.126 x 0.062 x 0.025 in., VSMP1206 Bulk Metal® Z-foil resistor combines 0.01% load life stability and ±0.5 ppm/°C nominal TCR in surface-mount package. Use of Z-foil reduces changes in resistance caused by current variation in power resistors and current-sensing resistors with low TCR and thermal resistance. Resistor features full wrap-around terminations, 10 W to 30 kW resistance range, and lead-free or tin/lead alloy terminals.

Fairchild Semiconductor    San Jose, CA 95134

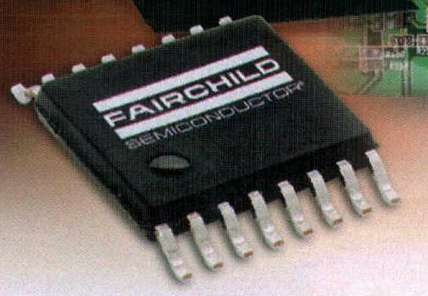

Dec 22, 2004 Lead-free Models FMS6143, FMS6145, and FMS6146 are 3, 5, and 6 channel, 4th order filter/drivers that eliminate need for multiple discrete components. By providing 8 MHz cut-off frequency and 48 dB stopband attenuation, devices meet standard definition video requirements. Internal diode clamps and bias circuitry enable units to accommodate ac- or dc-coupled input signals. Outputs on each device can drive ac- or dc-coupled single coaxial cable loads.

Gateway Safety, Inc.    Cleveland, OH 44144

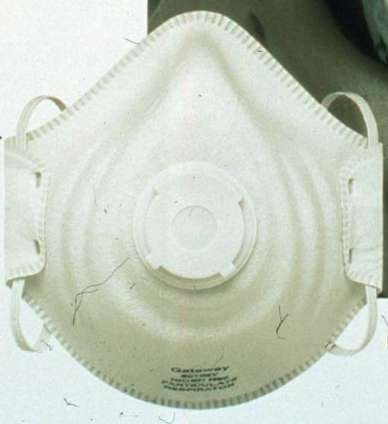

Dec 22, 2004 PeakFit(TM) Respirators are NIOSH approved N95 masks with large contoured design that facilitates breathing and minimizes worker fatigue. Pre-shaped, molded nose bridge fits virtually any facial contour. Soft, closed-cell foam on inside of mask helps to ensure wearer comfort, and design of mask's adjustable, latex-free, cloth head strap allows for custom fit. All PeakFit(TM) models provide protection against variety of contaminants.

Cerro Flow Products, Inc.    St. Louis, MO 63166-6800
Dec 22, 2004 CerroSetâ„¢ Linesets, available in combinations based on tube diameter, insulation thickness, end finish, and refrigerants, may be used in conjunction with split system air conditioning and heat pumps. Specialty linesets are available for icemakers, split system air conditioning, and chilled water systems. Both come in lengths from 10-60 ft in 5 ft intervals. Standard linesets are purged with dry nitrogen and capped to ensure clean, non-oxidized tube prior to installation.

Linear Technology Corp.    Milpitas, CA 95035
Dec 22, 2004 With input voltage capability down to 0.9 V, Model LTC3025 delivers up to 300 mA of output current. It offers micropower operation with 54 µA of quiescent current, and less than 1 µA in shutdown, maximizing runtime in handheld applications. Unit optimizes stability and transient response with low ESR ceramic output capacitors as small as 1 µF. Available in 6-lead DFN package with exposed pad, VLDO includes current limiting and thermal overload shutdown.

Atlanta Drive Systems    Wall Township, NJ 07719
Dec 22, 2004 Developed for use with servo motors, Servo-Worm Reducers feature angular backlash of less than 2 arc-min, with lower backlash levels optional. Units come in 5 sizes with 50–125 mm center distance, input speeds up to 5,000 rpm, and reduction ratios from 4.75 to 52:1. Wide range of motor couplings and mounting flanges are available for assembly to virtually all servo motors. Hollow bore output can be used to mount output shafts, pinion shafts, or other drive elements.

Pro-Lite, Inc.    Costa Mesa, CA 92626
Dec 22, 2004 Suited for indoor and outdoor applications, edge-lit LED Sign is shatter-proof, glass-free, and produced with unbreakable materials. It never leaks gas and is environmentally friendly. Using 18 Vdc, 9–10 W, sign features standard 12 in. character height. It includes on/off switch and is suited for hanging behind window. UL and CUL listed unit can flash or remain static, change colors, do animations, and spell out word vertically or horizontally.

ITT Industries    Newton, MA 02458

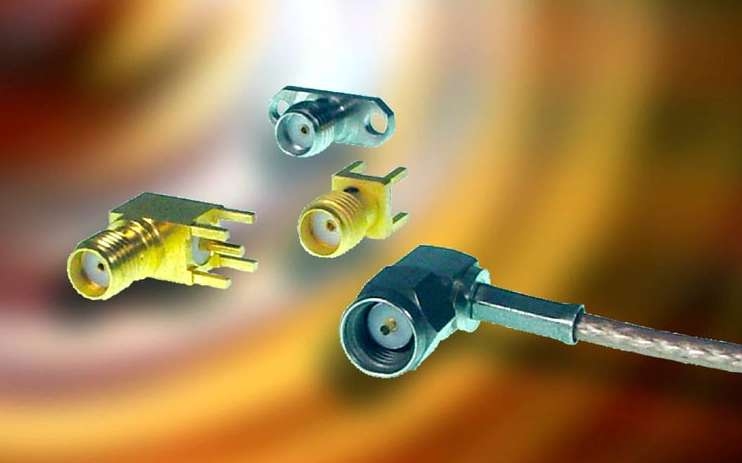

Dec 22, 2004 Brass-bodied, 50 ohm SMA Connectors include straight and right angle plugs and jacks for flexible coaxial cables, 0.141 and 0.085 in. semi-rigid and conformable cables, as well as PCB and flange mount variants. Units include crimp/solder center contacts on plugs and stand-off steps on legs of PCB jacks. Gold-plated finish facilitates performance from dc to 18 GHz. Units are inter-mateable with all SMA connectors conforming to MIL-C-39012 interface specification.

WinSystems, Inc.    Arlington, TX 76011
Dec 22, 2004 Measuring 90 x 96 mm, PPM-Wireless PC/104-Plus module enables both 802.11b and rapid 802.11g wireless networking capabilities. It provides high-speed, industrial data network based upon MiniPCI wireless modules and Ethernet utilizing TCP/IP protocol stack. Unit is provided with empty MiniPCI socket or Intel PRO/Wireless 2200BG Mini-PCI card installed, allowing transfer of data at up to 54 Mbps. Typical indoor range is 100 ft at 54 Mbps or 300 ft at 1 Mbps.

SKF Motion Technologies    Lansdale, PA 19446

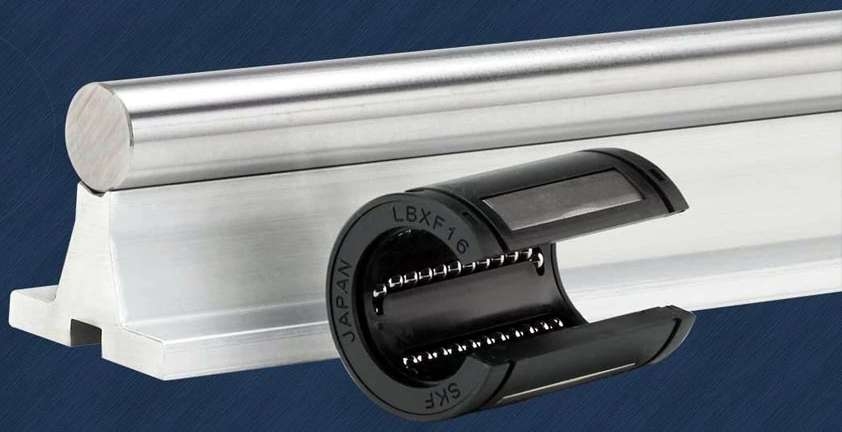

Dec 22, 2004 SKF® inch series shafting and accessories offer users capability to design linear guidance systems for various applications. Shaft materials include hardened and ground carbon steel as well as chrome-plated and stainless steel. Standard shaft diameters range from ¼-2 in. Accessories include inch shaft support rails and shaft end supports, and options include custom hole drilling and shaft lengths as well as pre-drilled and tapped shafts.

Pacific Press Technologies    Mount Carmel, IL 62863

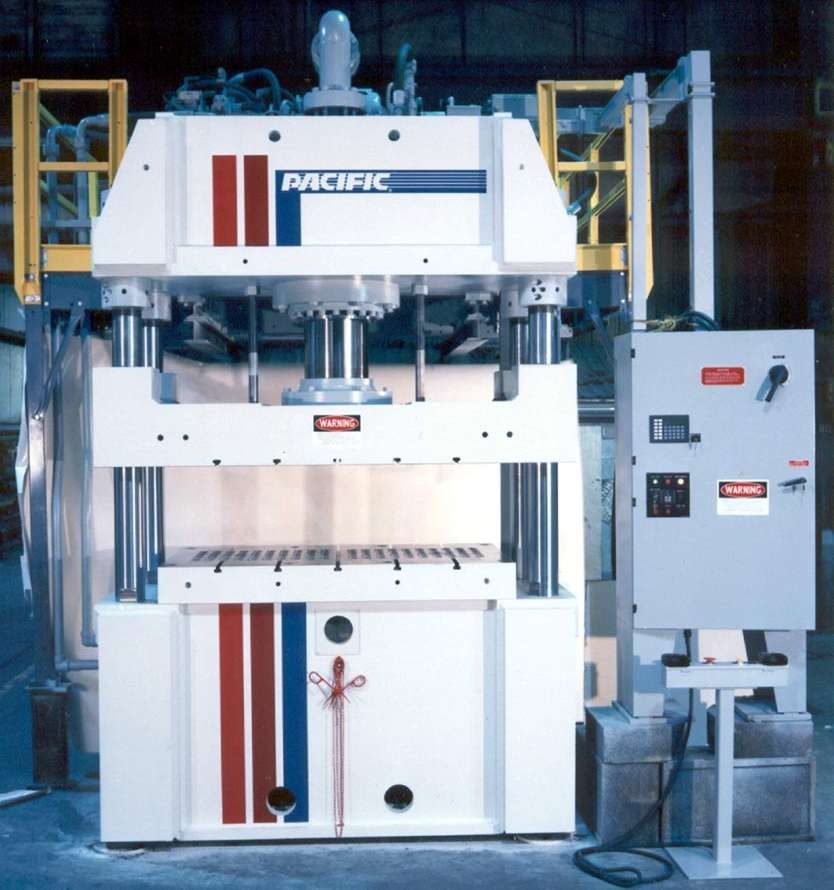

Dec 22, 2004 Suited for use with compression molding, RTM, RIM, and metal forming operations, CX-Series offers 4-post design built with slide guided by bearings around each of 4 corner posts for stability. Press, available in standard sizes from 100-600 tons, is offered with 1-5 cylinders. Welded steel frame construction allows press to absorb and uniformly distribute force in full capacity operations. Options include CNC controls and die cushions.

Hardy Process Solutions    San Diego, CA 92123 1825

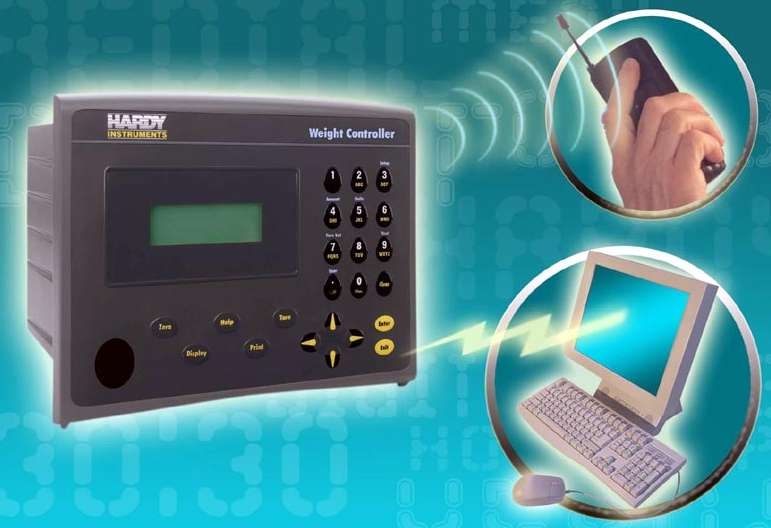

Dec 22, 2004 Enabling users to monitor plant processes, 3000 Series function-specific controllers can send email messages to PC, pager, or WAP-enabled cell phone. Messages can be customized, providing receiver with specific information about process. Smart Diagnostics (SD) option on 3000 Series application-specific process controllers provides remote system monitoring and analysis tool that utilizes conditions and model knowledge to provide system reports, correction, and maintenance.

ASTM International    West Conshohocken, PA 19428-2959
Dec 22, 2004 Fire Hazards in Oxygen Systems is a 2-day Technical and Professional Training Course that helps identify and evaluate hazards in oxygen systems. It focuses on fundamentals of safe practice in design, materials selection, and operation of oxygen systems and explains physical principles on which safe practices are based. Course will use ASTM standards and other documents to improve judgement and support decisions about oxygen systems.

Amara Co.    Cobourg, ON K9A4K8  Canada
Dec 22, 2004 Flash Intro and Banner Builder helps users design animated Flash intros, banners, ads, and pop-ups. Users can take their photos and music and combine them with animated text. Different fonts and effects and unlimited number of text lines can be combined within one Flash animation. All settings for pictures, URL links, fonts, text, colors, and sound are automatically saved. Program creates SWF file that can also be used for other purposes and in other programs.

Malvern Instruments Ltd    Malvern Worcestershire WR14 1XZ  United Kingdom
Dec 22, 2004 Bohlin rheometers are available with v6.40 software, which incorporates flexible data analysis setup and automation. Software also includes multi-wave test mode, which involves application of multiple frequencies. Analysis routines, built into software, include template wizard, model fitting capabilities, Time Temperature Superposition analysis, and data manipulation routines. Automated peak and valley determination wizard is also provided.
