ANCA Pty Ltd    Bayswater North VIC 3153  Australia
Nov 29, 2004 Enhancing production capabilities of GX7, tools are placed in tool holding pockets equally spaced 360° around periphery of rotating part of drum. Tools are removed from pocket and transferred into rotational interchange arm that loads it into machine. Interchange arm is double ended, allowing loading and unloading functions to occur simultaneously. Loader can load either straight shank tools direct from loader or tools held in Nikken KM style collets.

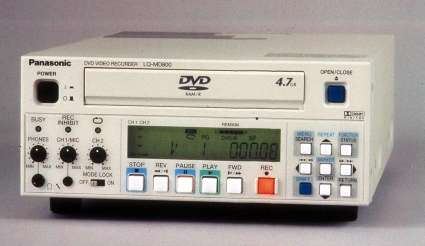

Panasonic - Vision Systems/OEM    Secaucus, NJ 07094
Nov 28, 2004 Model LQ-MD800 can record and playback DVD-RAM and DVD-R media in MPEG-2 format, and can be set for either NTSC or PAL recording. By employing DVD-RAM cartridge encased media, unit offers data-secure recording, while Defect Management System makes data recovery possible if disc is partially damaged. Designed as plug-and-play replacement for VCRs, unit offers RS232C control emulation, DV input, and encrypted encoding capabilities.

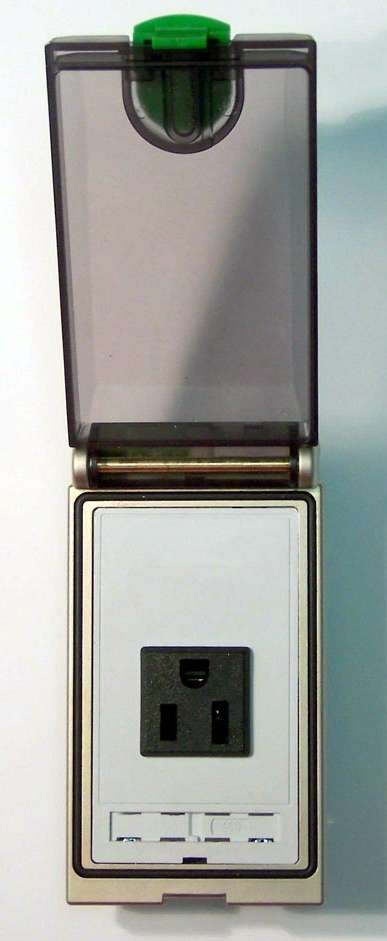

Murrelektronik, Inc.    Duluth, GA 30096
Nov 26, 2004 Slim profile, single and dual mounting frames can be installed with any combination of modular inserts that snap into frame, giving thousands of combination possibilities. Frames have standard flat profile that takes minimum space and allows modules to be fitted closely to panel. Transparent cover, with separate lockable lids, allows clear view of signal indicators and data connectors within cabinet.

Bodine Electric Company    Northfield, IL 60093
Nov 26, 2004 Featuring enclosed construction, e-TORQ Direct Drive Brushless DC Servo Motors are available in widths under 2 in. and diameters from 7-14 in. and larger. Compact products employ electromagnetic design with ironless stator. Lack of iron saturation provides maximum torque linearity, meaning that torque is consistent across speed range without cogging or velocity fluctuations. Motors are offered with various shaft, through hole, and mounting arrangements.

Primera Technology, Inc.    Plymouth, MN 55447-4446
Nov 26, 2004 With print resolution of up to 4800 dpi, inkjet-based LX800 prints at average rate of 2 ips and handles labels up to 8 in. wide and 24 in. long. Full-color, waterproof, scratchproof labels can be printed with any combination of fonts, graphics, bar codes, and photo-realistic images. Printer is suited for packaging products such as water bottles, lip balm, industrial equipment, hazmat, boxes, clothing, candy, coffee, and housewares.

JNJ Industries Inc.    Franklin, MA 02038
Nov 26, 2004 Fully automatic, Recirculation and Filtration System, Model RFS-20 constantly filters and recycles rinse water from stencil and batch cleaners. Four stage filtration system consists of in-line solder trap, followed by 10 micron polypropylene filter for coarse particulates, activated carbon powder filter to remove organics, and 5 micon polypropylene filter for fine particulates and organics. System returns water to stencil cleaner for re-use.

Phoenix Contact    Harrisburg, PA 17111 0100
Nov 26, 2004 MINI Power Supply provides 3.8 A output at 24 V and ensures proper safety compliance. Output currents are available with regulated and adjustable output voltage of 22.5–26 Vdc with constant capacity above 24 V. DIN-rail-mountable, Class 2 unit is fully enclosed and has integral diagnostic feedback via alarm output with LED indication. Pluggable, screw clamp terminal blocks facilitate wiring.

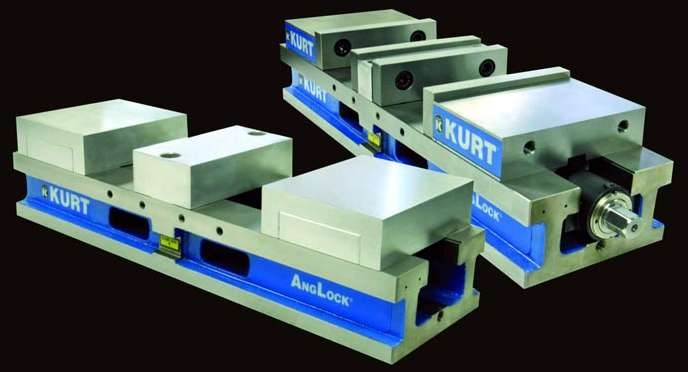

Kurt Manufacturing Co., Industrial Products Div.    Minneapolis, MN 55413 1540
Nov 26, 2004 Equipped with machinable jaws, HDL vises have quick change jaw feature and 4 in. hard jaw opening for both clamping stations. They can be converted from manual to hydraulic operation and have spring pre-load design that facilitates part loading. Double station vises, measuring 21 x 6 in., deliver up to 6,316 lb of clamping force at 70 lb of torque for manual model and 7,800 lb at 5,000 psi for hydraulic model. Vises are made from 80,000 psi ductile iron.

Hybricon Corp.    Ayer, MA 01432
Nov 26, 2004 PICMG 2.18 Serial RapidIO CompactPCI Backplane transfers large amounts of data between cards, with emphasis on real-time applications that require low latency. Available in 8 and 21 slots with two PICMG 2.18 fabric slots, unit features 12-layer design, jumperable geographic address, and 5 or 3.3 V switchable voltage. Custom configurations from 2-21 slots are available, as well as H.110 versions, which comply with PICMG 2.5 R1.0 CompactPCI Computer Telephony Specification.

STM Sensors Inc.    Toledo, OH 43617
Nov 26, 2004 Housed in stainless steel, non-fiber, Miniature Photoelectric Sensors use low outgassing cable such as Teflon®, PEEK, or Kapton. They can be mounted inside chamber wall or use standard electrical feedthrough. Through beam, diffuse, fixed focus, and retro-reflective modes are offered for part presence and edge positioning applications. Sensors target flat panel, CD/DVD, and semiconductor industries.

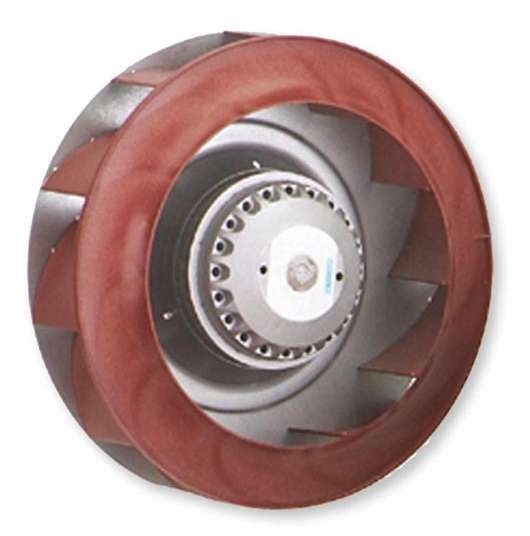

Rosenberg USA    Monroe, NC 28110
Nov 26, 2004 Utilizing backward impellers, ECOFIT Fans feature IP44 protection, are UL Listed, and are rated to Class F with optional thermal protection. They are available in circular, rectangular, and scroll-shaped housings with plastic impellers measuring 5.31 x 1.65 in. Noise is 56 dBa at 60 Hz and 53 dBa at 50 Hz. ECOFIT fans are suited for domestic air conditioning, electronic cabinet cooling, low power industrial heaters, and cowl ventilation.

Master Chemical Corporation    Perrysburg, OH 43552
Nov 26, 2004 Suited for small machine tool sumps, Li'l Sucker utilizes 120 Vac, single-phase, 50 Hz/60 Hz motor. Average suction rate is 85 gpm, and average discharge rate is 40 gpm. Chip basket holds approximately 1.6 cu-ft of chips when full, and polypropylene liner provides 50 micron nominal filtration while vacuuming fluids from sump. When vacuuming is complete, chip basket is removed from machine with hoist to discard collected chips and swarf.

Rite-Hite Aftermarket Corp.    Milwaukee, WI 53223
Nov 26, 2004 Model TS-2000 fits under nose of spotted trailers to prevent trailer landing gear collapse and trailer up-ending. Made of 5½ in. tubular steel, unit features 6 x 30 in. top plate that fits directly under edge of trailer nose, and supports 100,000 lb static load capacity. Dual handles and 16 in. rubber tires help move and position stand. Base pad, measuring 16 x 20 in., includes 4 drain holes to help prevent water collection and ice build-up.

Schneeberger, Inc.    Bedford, MA 01730
Nov 26, 2004 Special Linear Motion Components consist of guideways for special machines, modified standard guideways from single pieces to series volumes, replacement guideways for obsolete machines, and customized solutions. Single rail lengths area available up to 2,000 mm with max width of 150 mm and max height of 50 mm. Rails can be through-hardened and re-ground or inductive-hardened. Coating options for hardness, corrosion resistance, and aesthetics are available.

Master Chemical Corporation    Perrysburg, OH 43552
Nov 26, 2004 TRIM® VHP® E810 delivers boundary and EP lubricity without chlorine or sulfur. Low-foam product keeps machine clean while wetting chips and tools to insure corrosion prevention. Environmentally-friendly, chemical emulsion or soluble oil coolant is suited for horizonal and vertical machining centers equipped with high-pressure, through-the-tool coolant delivery systems, as well as centerless, cylindrical, and creep feed grinding of ferrous and nonferrous metals.

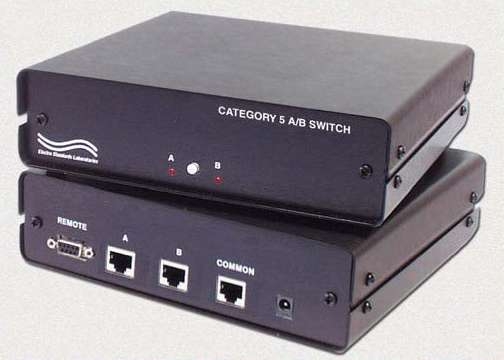

Electro Standards Laboratories    Cranston, RI 02921 3403
Nov 26, 2004 Category 5, Model 4421 connects workstation or device between 2 other devices or networks. A, B, and COMMON ports are RJ45. Front panel button changes switch position, eliminating need to plug and unplug patchcords. Switch includes RS232 serial security Supervisory Remote Port, where upon proper authentication, terminal or computer in terminal mode can communicate with unit, determine status, change switch position, and/or lockout front panel switching capability.

ISOPur Fluid Technologies, Inc.    Rocky Hill, CT 06067
Nov 26, 2004 Utilizing Balanced Charge Agglomeration technology, Agglomeratorâ„¢ improves filtration performance on lubricating, hydraulic, and other non-conductive fluids used in industrial machinery. It also cleans machinery internals over time and improves demulsibility of fluids. Capable of flow-rates of up to 1,200 gph, product can integrate into existing systems to remove sub-micron particles, products of oxidation, ferrous and nonferrous metals, and bacteria.

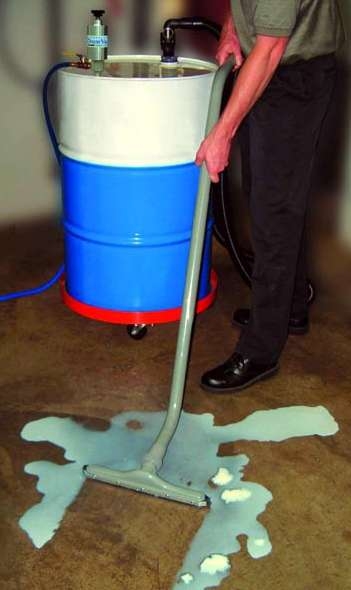

EXAIR Corporation    Cincinnati, OH 45249-1621
Nov 26, 2004 Model 6901 connects directly to any closed head 55 or 30 gal drum. Compressed air powered, stainless steel Reversible Drum Vac installed on that drum permits vacuuming liquid through Spill Recovery Kit as well as ability to pump liquid back out for disposal. Product features chemical-resistant, one-piece ABS handle with attached 14 in. double blade squeegee. Model 6196 Reversible Drum Vac System includes pump assembly, connections, and hose.

AXIOMTEK    Taipei   Taiwan
Nov 26, 2004 Backup and instant recovery solution, EXB-0131, consists of ExBoot backup software with 3.5 in. external hard drive case. It combines ability to perform complete backup of operating systems, applications, user settings, and data with bootability of external hard drive. Protecting users against data loss, product employs automatic full/incremental backups, maintains multiple versions of files, and offers automatic synchronization.

STMicroelectronics    Lexington, MA 02421
Nov 26, 2004 STTH108/110/112/208/310 diodes are built with planar, platinum-doped silicon, which results in max operating temperature of 175°C. Series handles voltages from 800-1,200 V and currents from 1-3 A in industrial, automotive, motor control, lighting, and power conversion applications. With recovery times under 75 ns, products are specifically suited for free-wheeling, clamping, snubbing, and demagnetisation functions in power-switching applications.
