Bematek Systems, Inc.    Salem, MA 01970

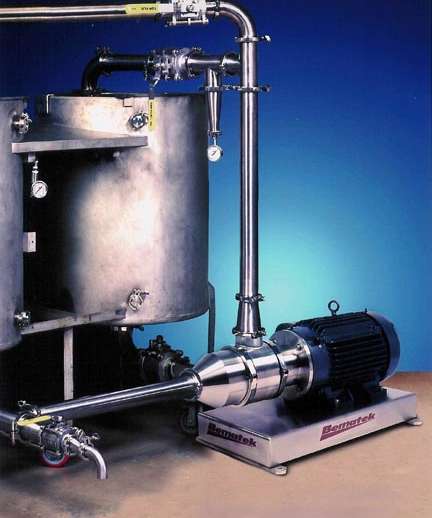

Dec 08, 2004 Series LZ Hi-Shear In-Line Mixer features mixing head with 1-12 shear-action zones consisting of high-speed rotors and stators that can produce shear rates of 200,000/sec each. Mixer processes up to 1,200 gpm with repeatability to ±1%, depending upon ingredients, and all product passes through mixing head, which cuts process time. USDA-, FDA-, and 3A-compliant, mixer is constructed from 316L stainless steel.

Lambda Physik USA, Inc.    Fort Lauderdale, FL 33309

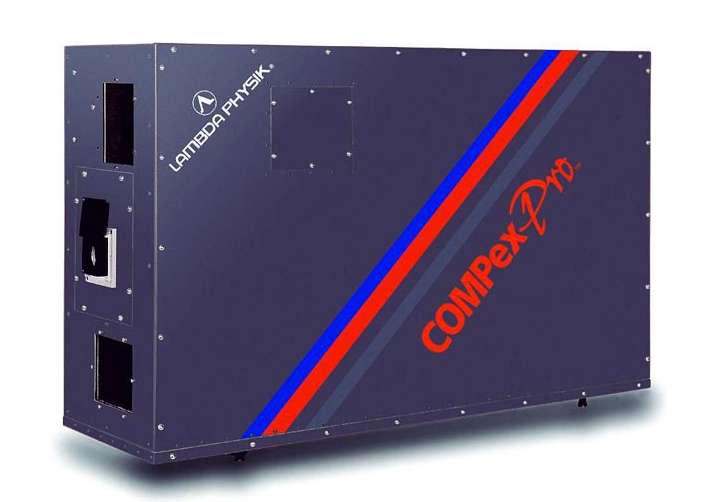

Dec 08, 2004 Offering pulse-to-pulse stability, COMPexProâ„¢ UV lasers are offered with fluorine gas or chlorine gas plasma tubes. Ceramic preionization discharge results in smooth beam profile and stable pulse energies while also preventing build-up of tube contaminants. Lasers deliver energies up to 700 mJ for 248 nm and pulse repetition rates from single-shot up to 100 Hz, and are intended for scientific, medical, and industrial uses requiring medium duty cycles.

AMETEK Prestolite Power & Switch    Troy, OH 45373

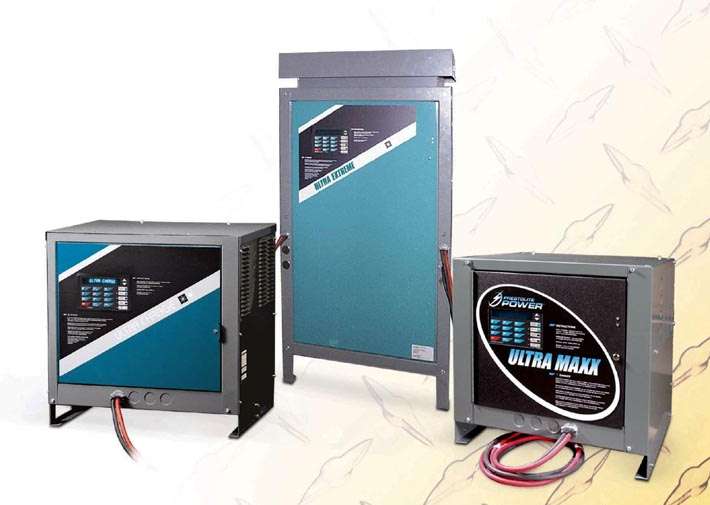

Dec 08, 2004 Equipped with micro-controller, interactive ULTRA Industrial Battery Chargers are designed around silicon-controlled rectifier power supply. With start rate of 16.3 A/100 AH, ULTRA CHARGER charges discharged batteries in 8 hr or less, while ULTRA MAXX Opportunity Charger has start rate of 25 A/100 AH and charges 20% charged batteries to 80% in 3 hr or less. ULTRA EXTREME features start rate of 40 A/100 AH and charges 20% charged batteries to 80% in 2 hr or less.

Ringfeder Power Transmission USA Corporation    Westwood, NJ 07675
Dec 08, 2004 Two-Piece Shrink Discs® come in standard sizes up to 20 in. and metric sizes from 19-500 mm with torque ranges from 136-860,000 lb-ft. Design permits high speed connections without special balancing. Discs provide installer with visual aid to verify that they are properly installed. Applications include wind turbine connections on speed increaser gearboxes and hollow shaft connections in mining gearboxes.

Grove Gear, a Regal-Beloit Company    Union Grove, WI 53182
Dec 08, 2004 Stainless Steel Industrial Worm Gears incorporate stainless steel housing, cover, and external hardware to withstand harsh conditions and resist corrosion. Each reducer is filled with synthetic oil, eliminating need for oil changes. All units are 100% run and leak tested.

Artesyn Technologies    Framingham, MA 01701

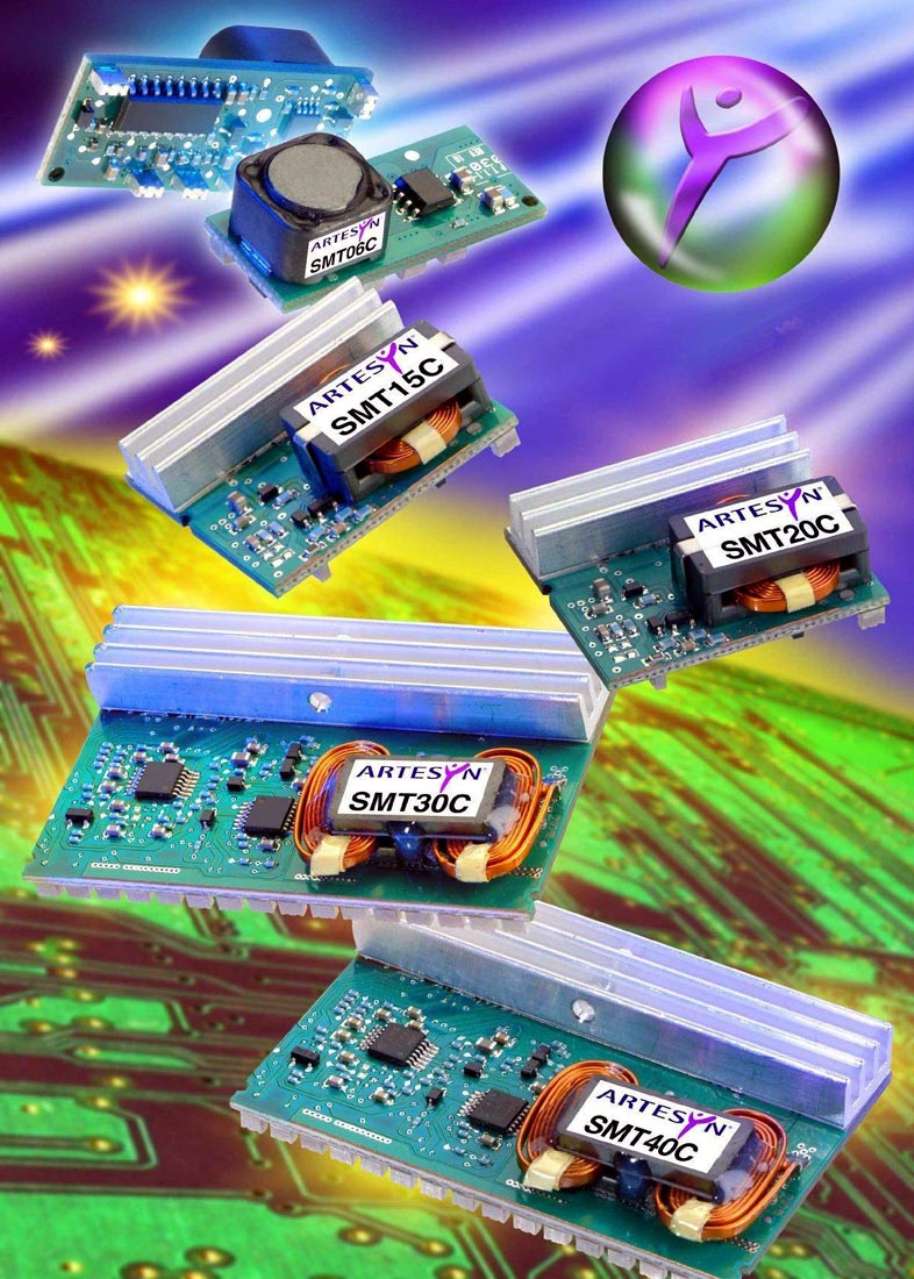

Dec 08, 2004 With height of 0.43 in., non-isolated point-of-load SMT C-class converters are offered in 8 surface-mounted versions, for applications such as workstations, servers, and storage systems. Units offer single programmable output voltages from 0.9-5.0 V and employ open-frame single-board construction. Fixed-frequency switching maximizes conversion efficiency. Converters have no minimum load requirement and can sink as well as source current.

Wisconsin Infrared Systems    East Troy, WI 53120

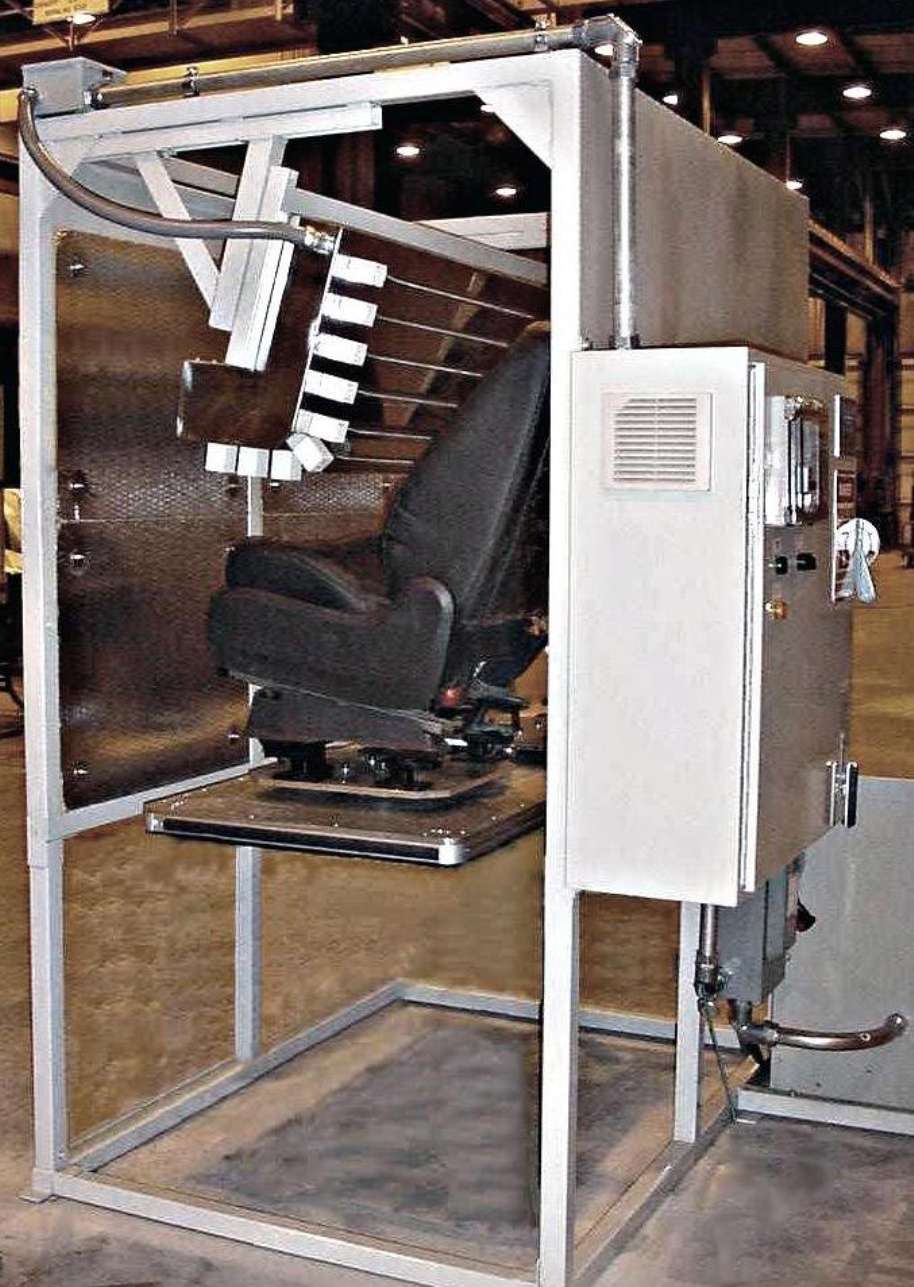

Dec 08, 2004 Model ISC-102-4Z Medium Wave Infrared Seat Dewrinkling Oven has multiple zones that provide optimum heat to different areas of automotive seats. Heating panels are fabricated of type 430 stainless steel and can be moved in multiple directions. It utilizes medium-wave quartz goldenrod tube technology and features snap-in ceramic blocks. Control package uses PLC to store multiple recipes, reducing changeover time.

Linear Technology Corp.    Milpitas, CA 95035
Dec 08, 2004 Model LT5528 Modulator targets wireless infrastructure applications including W-CDMA, TD-SCDMA, GSM, and PHS. It suits broadband fixed wireless access as well as point-to-point radio links and other high performance radios. Unit offers carrier suppression of -47 dBm at 2.14 GHz. I and Q inputs accept complex modulation signals from baseband circuitry and upconvert them directly to RF using local oscillator. Unit achieves ACPR performance of -66 dBc.

Copley Controls Corp.    Canton, MA 02021
Dec 08, 2004 Digital Accelnetâ„¢ Micro products drive servo positioning motors in industrial automation. Compact design enables each amplifier to be located close to motor it drives, minimizing RFI, and includes CANopen networking control of multi-axis motion and built-in Java indexer software. For single-axis torque and velocity control, amplifier accepts ±10 V analog control signals and digital PWM inputs. Output ranges are 20–55 V or 20–90 V, depending on current.

AMETEK Power Instruments    Rochester, NY 14605

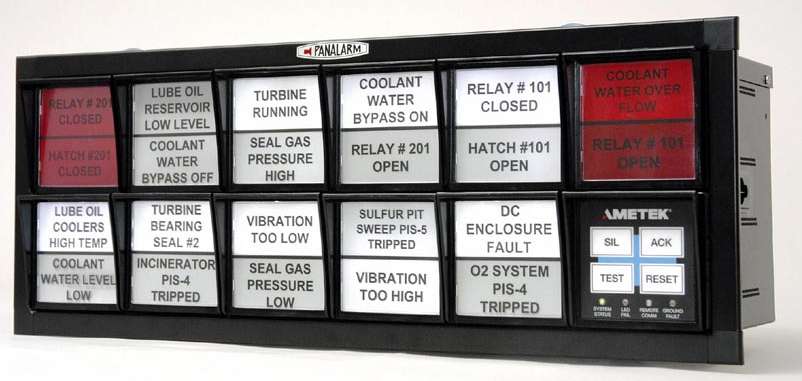

Dec 08, 2004 Multifunctional Panalarm Series 90A Annunciator visually displays and timestamps alarms to determine sequence of events and offers serial and Ethernet capabilities that lets users centralize alarms from multiple locations. LEDs provide visual indication of all alarms. Measuring less than 7 in. deep, series can be installed into control panels, system cabinets, and consoles. Users can create any size system up to 13 rows by 13 columns of windows.

Phoenix Contact    Harrisburg, PA 17111 0100

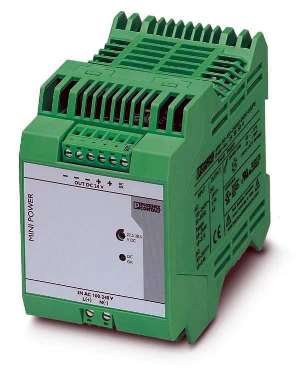

Dec 08, 2004 Suited for applications requiring UL 1310 Listed, Class 2 power source, MINI Power Supply provides 3.8 A output at 24 V. Output currents are available with regulated and adjustable output voltage of 22.5–26 Vdc with constant capacity above 24 V. DIN-rail mountable unit is fully enclosed, has integral diagnostic feedback via alarm output with LED indication, and incorporates pluggable screw clamp terminal blocks. MTBF rating is greater than 500,000 hr.

TE Connectivity Ltd.    Berwyn, PA 19312
Dec 08, 2004 White Polyester Labels combine thermal transfer printable film with permanent acrylic adhesive back to provide resistance to common solvents and fluids used in PCB processing. Over 50 standard label sizes and configurations are available, and products are rated for nominal shelf life up to 2 years. Applications include PCB boards, electrical systems, motors, and electronic components such as integrated circuits, processors, and memory chips.

Home Theater By Design, Inc.    Ashland, MA 01721

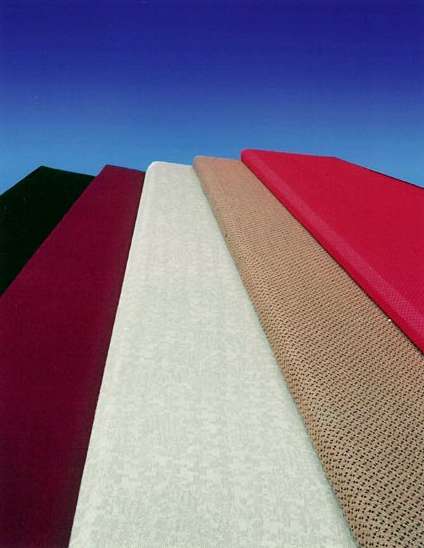

Dec 08, 2004 Fabric-Wrapped Acoustical Wall Panels are offered with 3 types of core materials to provide absorptive, reflective, or diffusive sound conditioning and facilitate audio clarity within room. Available in over 100 fabric colors, textures, and edge treatments, panels range in size up to 4 x 8 ft in 1 or 2 in. thickness with flat, rounded, beveled, and angled edges. Class A fire rated units can be mounted by adhesive, impaling clip, Z-clip, or hook-and-loop techniques.

Astro-Med, Inc.    West Warwick, RI 02893

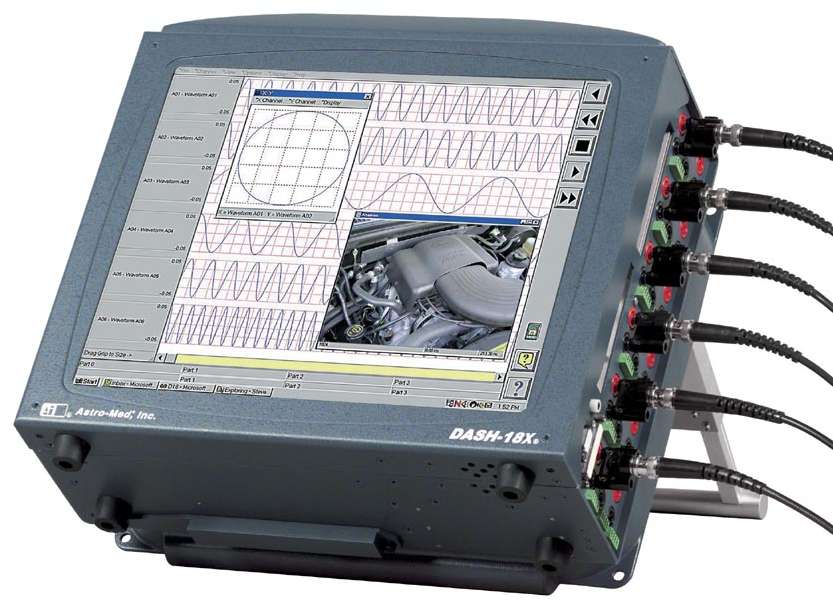

Dec 08, 2004 For real-time data viewing and analysis, Dash 18X incorporates 18 universal input channels, built-in CDRW or DVDRW option, and 10/100BaseT Ethernet interface. It is designed for field or lab use in applications from process trending to transient capture. Data sample rate of 100 kHz per channel allows data to stream directly to internal hard drive. Monitor, with 1280 x 1024 resolution, lets users view data from any angle and customize touch-panel interface.

Marktech Optoelectronics    Latham, NY 12110

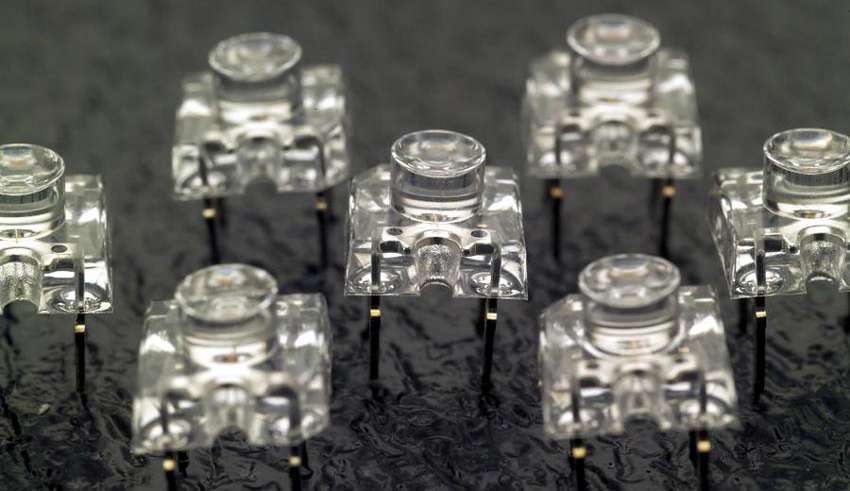

Dec 08, 2004 With 7.6 mm² 4-lead P4 package and 120º viewing angle, LP379 series utilizes concave, water clear lens for even distribution of light. It employs AlGaInP and InGaN/SiC technologies and is available in Red (639 nm), Yellow (594 nm), Green (520 nm, 562 nm), Blue-Green (502 nm), and Blue (465 nm). Offering intensities up to 4,200 mlm, reflow solderable series is suited for backlighting and applications such as Channel Letters.

Dieselcraft Fluid Engineering    Auburn, CA 95604
Dec 08, 2004 Fuel Purifier deals with raw contaminants that lead to degradation, oxidation, and repolymerization of fuel. Single-step unit removes 99% of water and 95% of dust, dirt, and other contaminates found in all diesel fuel. Product cleans fuel without use of replaceable, changeable, or cleanable filter elements by continually pre-filtering and polishing fuel. There are 7 models available with flow rates from 5–2,500 gph.

Aculight Corporation    Bothell, WA 98011
Dec 08, 2004 Operating in the eye-safe region near 1.54 microns, Model PF1550-36 measures 12 x 13 x 3.5 in. and can be rack-mounted or used on bench-top. Fully contained laser has all-fiber design, and power levels can be remote-controlled with PC via RS-485 port. Unit generates diffraction-limited, 3–5 ns pulses at repetition rates between 20 kHz and 1 MHz. It produces 4 W of average power at repetition rates over 50 kHz and peak powers in excess of 15 kW.

Bicron Electronics Co.    Canaan, CT 06018

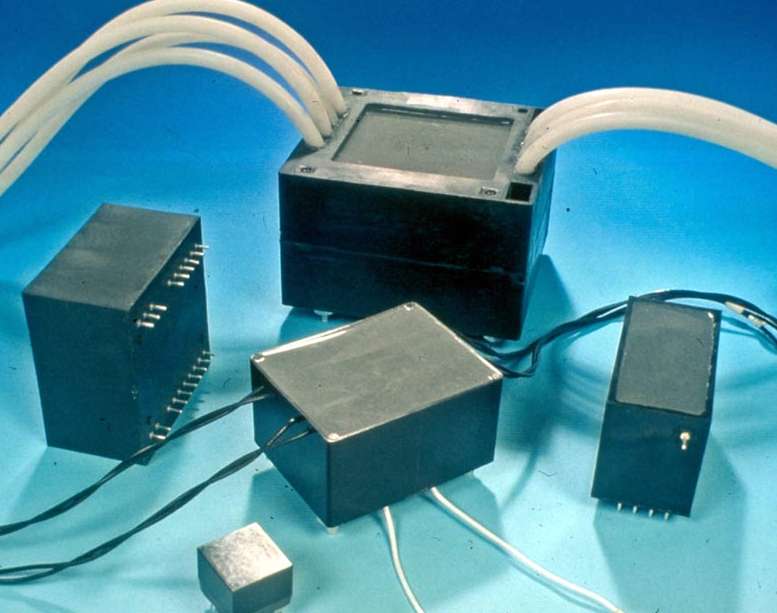

Dec 08, 2004 Suited for high-frequency switching applications, Encapsulated Switch Mode and Pulse Transformer models B9718, B9582, B8831, B9261, B9250, and B9615 are designed to meet reliability demands for BIL ratings at PCB level found in power management, control, and conversion systems. Configurations and ratings are available for applications involving switching frequencies from 10–500 kHz, hipot requirements from 5–40 kVac, and BIL ratings to 60 kV.

Parvus Corp.    Salt Lake City, UT 84115 2913
Dec 08, 2004 With PC/104-Plus form factor of 3.550 x 3.775 in., USB104+ module provides 4 downstream ports: 2 supplying up to 500 mA drive, and 2 enhanced ports supporting up to 2 A drive, which can directly power attached devices. All downstream ports allow mixed, simultaneous connections of USB 2.0 and/or 1.1 devices at different speeds from 1.5–480 Mbps. Board supports hot insert and is compatible with real-time operating systems.

Weigh-Tronix, Inc.    Fairmont, MN 56031
Dec 08, 2004 Model E1010 Indicator comes with NEMA 6/4X rating and enables sophisticated weighing, checkweighing, counting, and process control performance. Rugged package is impervious to moisture and dust and resistant to high-pressure washdown.
