Altera Corp.    San Jose, CA 95134-1941
Dec 13, 2004 Quartus® II v4.2 includes PowerPlay technology, which offers detailed estimates of static and dynamic power, and assists user from design conception through implementation. During implementation phase, designer can refine power estimations by using power analyzer tool, which combines vectorless power analysis algorithm with place-and-route results. Tools for analyzing and controlling clock skew and data skew allow designers to model clock jitter.

Electro Standards Laboratories    Cranston, RI 02921 3403
Dec 10, 2004 Watch Dog Automatic Fallback Switch, Model 4145, detects carrier presence signal on port A and if carrier is lost, automatically switches to port B. It maintains connection to port B until it detects carrier presence again on port A, then automatically returns to A position. User can override Automatic Fallback and operate Watch Dog as A/B switch. Optional Remote RS232 serial port allows off-site operator to monitor operation mode and switch position.

Guyson Corporation of U.S.A.    Saratoga Springs, NY 12866
Dec 10, 2004 Rotary indexing blast system, Model RX-400, features 30 x 36 in. blast cabinet and large side door for inspection, adjustment, and maintenance. Hinged doors actuated by pneumatic cylinders seal front of cabinet at load/unload station to prevent escape of blast media. Inside chamber, multiple blast guns are mounted on gearmotor-powered oscillator. Stroke and frequency of sweeping nozzle motion is adjustable, as are stroke count and duration of blast cycle and blow-off.

Norgren    Littleton, CO 80120
Dec 10, 2004 Series 07 removes liquid and solid particles down to 5 microns and provides airline lubrication to one or more air-driven devices or tools. It features push-to-lock adjusting knob coupled with tamper-resistant option. Available in 1/8 or ¼ in. port sizes, FRL is suited for operating temperatures of 0–125°F with recommended regulating pressure from 5–500 psi. Users benefit from nearly constant oil density output with varying airflow.

Command Tooling Systems LLC    Ramsey, MN 55303
Dec 10, 2004 Balancing Equipment, available with 1- or 2-plane measuring capabilities, has setup software that identifies location of unbalance on toolholder. It allows for balancing methods including balancing rings, or basic drilling for metal removal. Unit comes with standard clam ping spindle, in CT 40, CT 50, HSK 40 or HSK 63 Forms A through F. Equipment is designed for use with ThermoLock® Shrink Fit toolholders, and MicroMaxâ„¢ and VersaMaxâ„¢ boring heads.

Microstar Laboratories, Inc.    Bellevue, WA 98004-3039
Dec 10, 2004 DAPstudio helps users develop data acquisition and control systems with real-time components or with high channel counts. It includes DAPL 2000 real-time OS, which is onboard intelligence that protects against local delays and allows synchronization between hardware in different PCs on network over separate DAP-to-DAP network. With mouse, user can select and deselect channels, set all or some of them to certain values, and apply gains selectively.

Berkeley Varitronics Systems    Metuchen, NJ 08840-1217

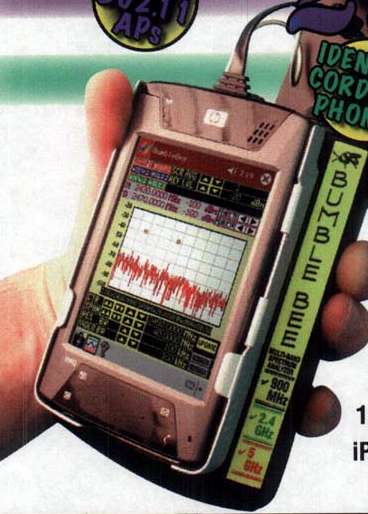

Dec 10, 2004 Interfacing with IPAQ® PocketPC®, handheld Bumble Bee(TM) measures 900 MHz, 2.4 GHz, 5.15-5.35 GHz, and 5.725-5.850 GHz wireless bands. It allows user to capture, display, and record each band for network installation, coverage, and interference analysis. Touchscreen allows field engineers to tap points of interest in waveform and zoom in for further analysis. Functions include 3 waveform traces, peak hold, peak search, and user-selectable packet/interference triggers.

Paul N. Gardner Co., Inc.    Pompano Beach, FL 33060 6608
Dec 10, 2004 Working on spectrophotometric principle, ColorTest features 45°/0° measuring geometry according to DIN 5033. External probe illuminates sample with defined light source to measure spectrally light remitted. Unit includes external spring-loaded probe head, automatic/manual start trigger, 4-button menu control, and non-volatile memory for 1,000 color readings. It is suited for quality control, color distance measurement, and measurement of absolute color spaces.

Telescript, Inc.    Norwood, NJ 07648
Dec 10, 2004 Models FPS-150-F, FPS-120-F, and DV-8 are 15, 12, and 8 in. LCD teleprompters, with folding design and custom cases. Largest model weighs 15 lb and has viewing range up to 40 ft with 450 or 0–1,800 nits of brightness. Weighing 10 lb, FPS-120-F has 25 ft viewing range with 300, 700, or 1,500 nits of brightness. Flat panel DV-8 weighs 5 lb and offers viewing range up to 15 ft with 300 nits of brightness. All units feature anti-reflective glass.

Gates Corporation    Denver, CO 80202

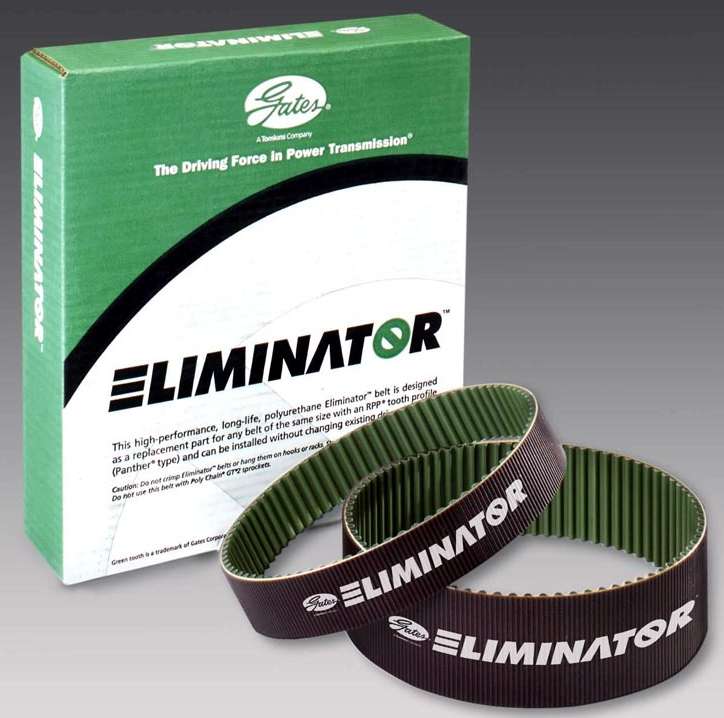

Dec 10, 2004 Eliminatorâ„¢ belt, engineered to replace RPP® tooth profile belts of same width and comparable length, run on existing RPP sprockets and idlers with same tension as original belt. Polyurethane synchronous belts with green tooth color are available in 8 mm pitch size with 12, 22, 35, and 60 mm widths; 26 belt lengths; and 104 part numbers, or 14 mm pitch size with 20, 42, 65, 90, and 120 mm widths; 16 belt lengths; and 80 part numbers.

Renishaw, Inc.    Hoffman Estates, IL 60192
Dec 10, 2004 Signum(TM) RESM Rotary Ring Encoder delivers speeds to over 3,600 rev/min and accuracy to ±0.5 arc sec, with resolution and repeatability to 0.02 arc sec. Signum(TM) software enables real-time system diagnostics via PC's USB port. IN-TRAC(TM) optical reference mark, embedded in scale track, is repeatable in both directions at operational speeds over 3,600 rev/min. Rated for temperatures up to 85°C, RESM comprises low-profile ring, SR readhead, and Si interface.

Zero-Max, Inc.    Minneapolis, MN 55441 5537
Dec 10, 2004 Single-disc Model SD005 and double-disc Model SC005 are 16 mm in diameter with operating torque of 4.43 lb-in. and maximum speed of 10,000 rpm. Suited for miniature servomotor systems, units feature zero-backlash, flexible metal stainless discs, and keyless clamp-style mounting hubs. Model SD005 provides smaller package with greater torsional and axial stiffness than Model SC005 that allows for small amounts of parallel misalignment.

Ultraflo Corp.    Sainte Genevieve, MO 63670
Dec 10, 2004 Series 410/412 offers bi-directional, bubble-tight shut-off pressure rating of 150 psi, and resilient seat design, which provides full isolation of body parts from line media. Featuring wafer style body, Model 410 ranges in size from 24–36 in., while Model 412 offers double flanged style body and is available from 24–48 in. Valve bodies come in cast and ductile iron, cast steel, and stainless steel and comply with ASME/ANSI 125/150 flange drilling standards.

TURCK, Inc.    Plymouth, MN 55441
Dec 10, 2004 Rod style, non-contact EZ-track Model R10 uses magnetostrictive technology to monitor position of hydraulic cylinders. Sensors are 13.5–30 Vdc units with variety of analog outputs including voltage, current, and differential, which can be programmed over active stroke length of sensor. Utilizing 16-bit resolution, Model R10 can achieve repeatability to 0.001% of full stroke. Sensing rod is stainless steel and available in stroke lengths from 2–180 in.

ITT Industries Cannon    Watertown MA 02172
Dec 10, 2004 Offering lifecycle of more than 6 million actuations, Model AJ4 is environmentally-sealed to IP67 with potted electronics and redundant mode operation. It meets international standards including ISO 11452-2/5, IOS 7637-0 and SEA J1113/41. Suited for material handling, agricultural, and construction equipment, unit is fabricated in aluminum with operating voltage of 9-16 Vdc. Output options include 0.5-4.5 Vdc, 500 Hz for PWM and J1939 for CAN BUS.

Automated Packaging Systems Inc.    Streetsboro, OH 44241
Dec 10, 2004 Usable with AirPouchâ„¢ Express 3 Void-Fill System, AirPouch Pillows feature EZ-Tearâ„¢ perforations, which have 1 in. of regular perforation at each side of pillow, with clean cut through center of pillow. Perforations are strong enough to be pulled from bins or overhead hoppers, yet individual pillows can be easily separated for packing. Made of puncture-resistant, DuraClearâ„¢ material, standard pillows come in 8 in. width and various lengths.

Dimas North America    Olathe, KS 66061
Dec 10, 2004 Utilizing Cummins 85 hp turbocharged diesel engine, Model RS 8500 delivers travel speeds up to 4 mph with zero turn radius for accurate alignment and cutting. It features 26 in. blade and inline right angle gearbox that uses 14 belts. Upcutting blade rotation lifts slurry from cut. Sealed bladeshaft assembly operates 250+ hours before needing to be greased. Single-handle control facilitates forward and reverse travel, as well as blade raising and lowering.

KEP Co. - Kessler-Ellis Products Co.    Eatontown, NJ 07724
Dec 10, 2004 Infilink-HMIâ„¢ v4.06 operator interface solution provides users with ability to import windows from other projects, edit users in run mode, import animated GIF images, and telephony and text-to-speech (TTS) scripting. TTS functionality lets Windows XP users read string tag over speakers, into PA system, or through telephone mode. Software provides real-time and historical trending, real and historical alarms, and data and alarm logging.

Rotex, Inc.    Cincinnati, OH 45223 1845
Dec 10, 2004 With screener refurbishing service, process includes disassembling entire machine; replacing or reconditioning all major components, including top cover, screen box, bottom pan, and screen frames; and reassembly. Refurbished machine is provided with features such as compensating clamps, automatic tensioning screen frame design, top cover design, and seals. Entire unit can be refurbished, or just major components. Work is backed by 1-year warranty.

Phillips Industries    Santa Fe Springs, CA 90670
Dec 10, 2004 STA-DRY® Slim-7â„¢ provides users with molded, 7-way connection suited for any heavy-duty trailer. Molded connectors between modules have ribs and o-rings that keep moisture and contaminants from penetrating electrical system. Integral design enables harness to be threaded through trailer configurations with tight areas, eliminating potential for unintentional disconnect.
