Honeywell Power Supplies    Northford, CT 06472
Jan 13, 2005 Ranging from 2.5-6 A output, Access Control Power Supplies offer filtered and electronically regulated output. They feature circuit-breaker battery protection, LED indicators, and built-in charger for sealed lead-acid or gel-type batteries. Switching power supply/charger, Model HPS312CX converts low-voltage ac input into 6, 12, or 24 Vdc at 3.0 A continuous supply current. It comes kitted with plug-in transformer, 5 AH battery, steel enclosure, and connecting hardware.

Multi-Tech Systems, Inc.    Mounds View, MN 55444
Jan 13, 2005 Enabling designers to add Ethernet connectivity to IP networks, 1 x 2.5 in. SocketEthernet IPâ„¢ module integrates Ethernet bridge and complete TCP/IP protocol stack into one universal socket. Model MTXCSEM-HV connects serial devices to IP network, supporting DTE speeds to 230 Kbps. It meets EN 60601-1 requirements for medical electrical equipment safety and includes 10/100BaseT Ethernet, LED driver outputs, command line interface, and flash memory.

Colder Products Co.    St. Paul, MN 55114
Jan 12, 2005 For applications requiring medical grade quality and gamma sterilization, NS4 ABS Series is made from acrylonitrile butadiene styrene (ABS) material and features non-spill shut-off valve. It provides single-click connection and incorporates thumb latch for secure, single-handed operation. Terminations include 3/8 in. OD PTF compression; 1/8, ¼, and 3/8 in. ID hose barb; and ¼ in. male NPT thread and ¼ in. male BSPT thread.

Vicon Industries Inc.    Hauppauge, NY 11788

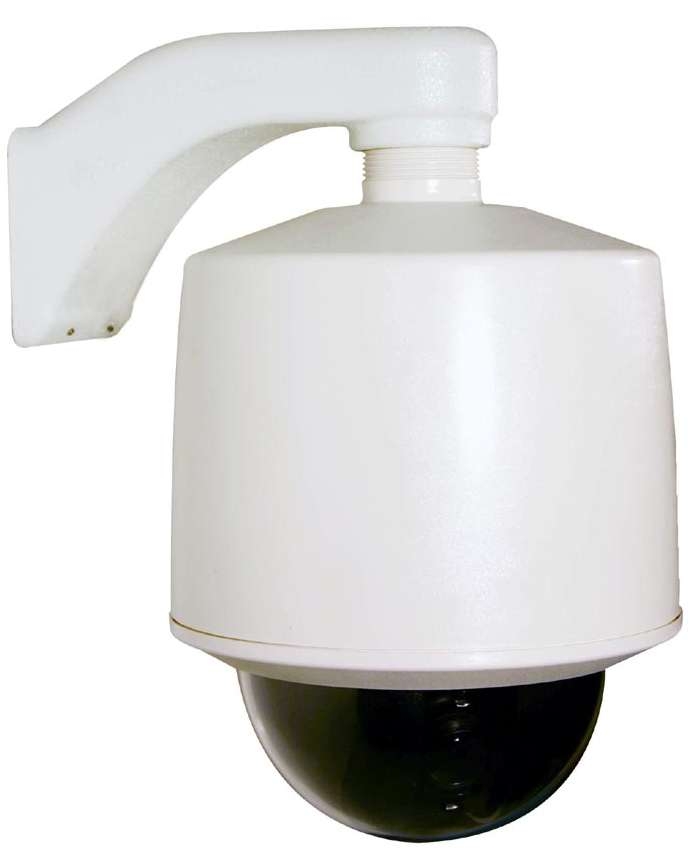

Jan 12, 2005 SurveyorVFT IP Camera Dome provides IP video source for remotely managed and controlled digital video management system. It features 100 Mbps LAN interface board and is comprised of camera, pan/tilt drive, receiver, and CPU-based electronics, all concealed in covert enclosure. Available in NTSC and PAL versions, 3 models offer 22x high-resolution camera/lens, ExView CCD technology, or 23x day/night camera/lens, depending on model.

Vicon Industries Inc.    Hauppauge, NY 11788

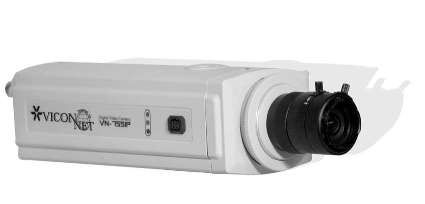

Jan 12, 2005 Based on ViconNet software platform, Model VN-755IP provides 4 video channels and 3 external analog video inputs. Images received from camera can be displayed, recorded, or archived. Equipped with 100 Mbps LAN interface board, camera allows direct plug-in to network switch. CCD device has over 380,000 pixels, providing sharp color image. Minimum scene illumination of 0.05 ftc provides usable video output at f/1.2, 25 IRE, incandescent lighting.

Serac, Inc.    Carol Stream, IL 60188 2243

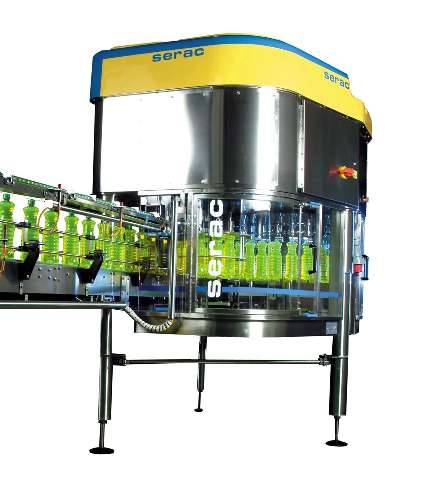

Jan 12, 2005 Mechanical components of Canopy® Rotary Filling and Capping Machines are located at upper part of machines, ensuring operation at eye level and facilitating maintenance. To start production, weight of empty containers and production rate are only parameters needed. There is no contact between nozzle and bottle during filling, and nozzle creates laminar flow of product, minimizing foaming and splashing. Integrated drain pan is accessible and washable.

Eriez Magnetics    Erie, PA 16506

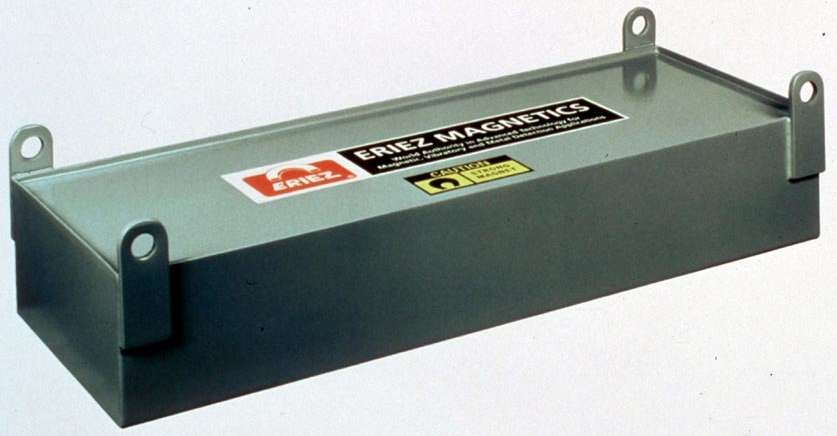

Jan 12, 2005 Series SD Permanent Plate Magnets handle problems associated with fine iron and tramp iron contamination in processing lines. Superpower unit has magnetic field that projects 2-3 in. into burden, while Maxipower's field projects 3-4 in. Rare Earth Magnet creates field with enough power to virtually eliminate wash-off. Also available, Brutepower plate magnets create 4-5 in. deep field. SuperBrute series is suited for use in restricted areas.

Panduit Corp.    Tinley Park, IL 60477 3091
Jan 12, 2005 J-Pro Cable Support System provides alternative to metal J hooks for routing communication cables. Non-metallic J hook features horizontal and vertical 1 in. bend radius control, which helps prevent degradation of cable performance. Product is manufactured from materials suited for use in air handling spaces per UL 2043 and CAN/ULC S102.2.

Premier Pneumatics, Inc., A Member of the K-Tron Process Group    Salina, KS 67402
Jan 12, 2005 Consisting of 1-8 feeders and central microprocessor-based controller, ProRate(TM)/Gravimetric Feeder continuously meters raw materials into central station hopper. Each feeder operates in independent, continuous loss-in-weight scaling mode to insure accuracy of each ingredient. Controller monitors weight signals of each feeder and adjusts auger speed to match recipe feed rate. Unit controls 1-8 feeders simultaneously, providing capacity from 1-80,000 lb/hr.

Calex Mfg. Co., Inc.    Concord, CA 94520

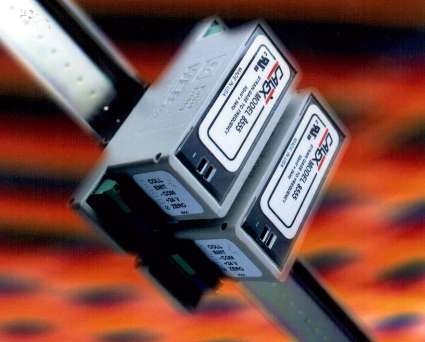

Jan 12, 2005 DIN-mount Model 8555 accepts 0–50 mV differential or single-ended signal and converts it to 0–5 kHz pulse compatible with PLC high-speed inputs. Output is an isolated floating optocoupler transistor, which provides dc isolation from input and dc power. It is linear to 0.01% with accuracy of better than 0.1%. Powered by 24 Vdc with max current draw of 45 mA, Model 8555 provides control system for variety of weighing applications when combined with Micro PLC.

Mid-West Instrument    Sterling Heights, MI 48314

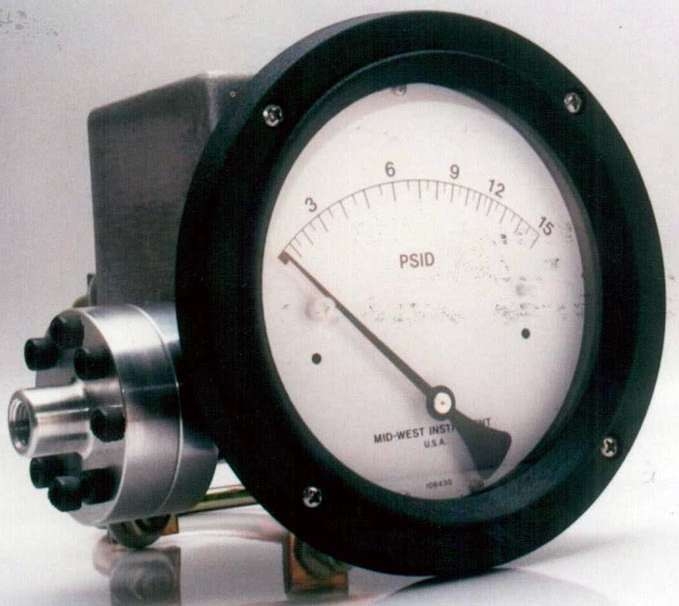

Jan 12, 2005 Available with pressure containing elements in aluminum or 316/316L stainless steel, Model 240 is offered with variety of elastomers to handle almost any media. Product comes in 1- or 2-switch as well as 10 A relay configurations and is suited for applications that require explosion-proof gauges and switches with diaphragm isolation. Differential pressure (DP) ranges from 0–20 in. H₂O to 0–100 psid, with safe working pressure up to 1,500 psid.

Stratos Lightwave Inc.    Chicago, IL 60706

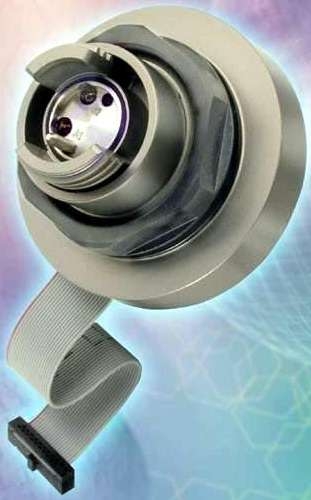

Jan 12, 2005 Housed completely within bulkhead connector, media converters handle optical-to-electrical as well as full physical layer conversion. Series consists of standard options, including Gigabit Ethernet and Fast Ethernet media conversion using RJ-45 interface connection. Other variations include Ethernet MII or GMII ribbon cable interfaces and 1x/2x Fiber channel transceivers. All versions feature Expanded Beam optics and can be equipped with 1–4 optical channels.

Extech Instruments Corp.    Nashua, NH 03063
Jan 12, 2005 Model RH520 provides simultaneous numerical and graphical displays of humidity from 20-95% and temperature from -20 to 140°F. Graphic displays are cursor-controlled with adjustable X/Y axis resolution, allowing temperature and humidity to be monitored within user-specified range. Sample rate is adjustable from 0.1 sec to 200 min/sample, permitting daily, weekly, or monthly graphs. Internal memory records up to 49,000 readings and can be transferred to PC for analysis.

Degree Controls Inc.    Milford, NH 03055
Jan 12, 2005 Utilizing thermistor technology, AccuSense F900 measures airflow temperature and velocity from 30–200 fpm to 30–2,000 fpm, depending on calibration. Product, resistant to mechanical shock and vibration, is available with temperature compensation settings of ±5% of reading from 10–35°C and ±10% of reading from 10–60°C. With supply voltage of 7–13 Vdc, series has linear 0–4 V output or digital output for direct control of airflow environment.

Neopost    Hayward, CA 94544
Jan 12, 2005 Capable of filling up to 4,200 envelopes/hr, Model SI 82 features Load 'N Go® technology, which allows user to load documents and just press button for operation. Secure ‘N Feedâ„¢ technology electromechanically verifies thickness of document to ensure that proper number of pages is included in each piece. With feeder swap ability, Model SI 82 can be reloaded during operation. Optical mark reading ensures that documents will arrive at intended address.

GETAC Inc.    Lake Forest, CA 92630

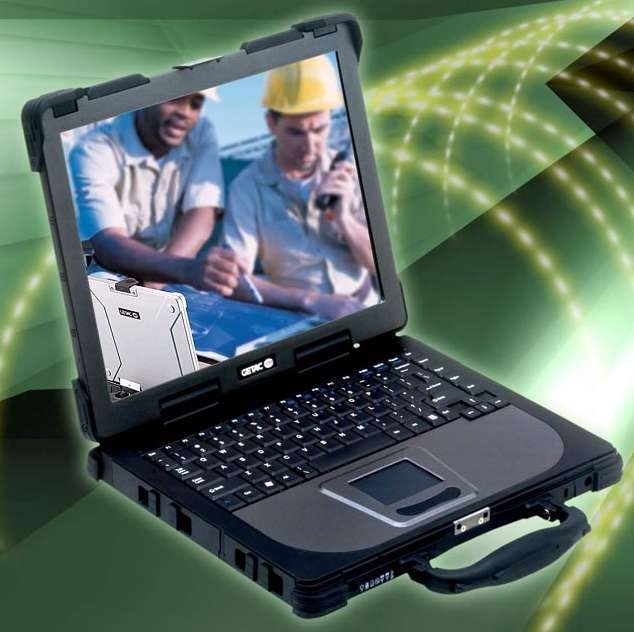

Jan 12, 2005 Running on Intel 1.4 GHz Dothan LV Processor with Centrinoâ„¢ Mobile Technology, MobileForceâ„¢ M220 meets MIL-STD 810F standards for extreme use. Bay 1 accommodates optical drive or second battery, while removable HDD bay enables users to share laptop securely. Protected against ingress of dust and water to IP54 standard, computer features 14.1 in. TFT XGA LCD screen with 64 MB shared RAM. Processor is equipped with up to 2 GB DDR SDRAM; 400 MHz FSB; and 40, 60, or 80 GB HDD.

Tinius Olsen, Inc.    Horsham, PA 19044-8009
Jan 12, 2005 Model IT 504 enables impact strength testing using Charpy or Izod configurations, which can be added and removed via T-slotted block without changing pendulum. Tester offers selectable energy units, selectable strength calculations, and break type input options of complete, hinge, partial, non-break, and necking. It includes automatic or manual toss correction, auto calibration for bearing windage and friction, and automatic or manual update of specimen number.

Remke Industries, Inc.    Wheeling, IL 60090 6039

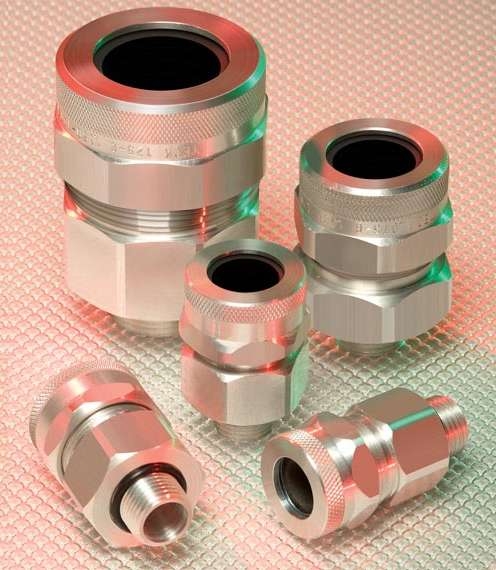

Jan 12, 2005 Available in aluminum, nickel-plated aluminum, and stainless steel, MC Cable Connectors include PowR-Lock Grounding Seal with stainless steel tines that ground connector to armored cable. PowR-Lock provides 360° strain relief and environmental seal that meets or exceeds UL and CSA requirements. Viton® O-Ring ensures watertight and corrosion-resistant termination seal. Connectors can be used indoors or out for vertical or horizontal cable runs in wet/dry locations.

Chromalox    Pittsburgh, PA 15238
Jan 12, 2005 Electrically heated, 100% efficient HACS produces zero emissions. Available for up to 150 kW and 7,000 scfm air at 5 in. WG, unit is suited for temporary on-site comfort heat, curing plaster, drying paint, spot heating for personnel, and freeze protection for equipment. High limit temperature and low limit airflow controls ensure safety during operation. Painted carbon steel construction offers weather resistance, and all electrical enclosures are NEMA 4 rated.

NKK Switches    Scottsdale, AZ 85260-3420

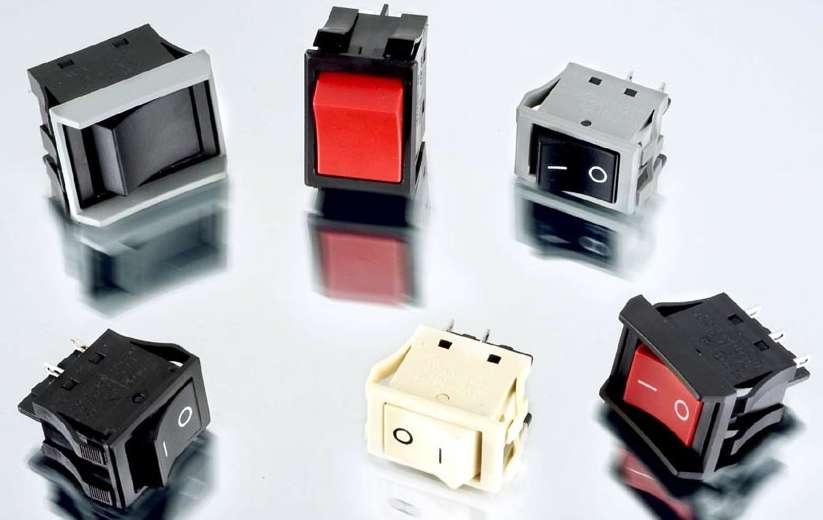

Jan 12, 2005 Constructed for dust resistance, snap-in-mounted JW series features external insulating barriers, interior PPS seal between actuator and contact area, polyamide housing and case, as well as molded-in and epoxy-sealed terminals. JWM and JWL models, certified for TV-5 and TV-8 ratings respectively, are UL, CSA, and VDE approved. Able to exceed 160 A inrush load, JWL devices are rated at 16 A @ 125/250 Vac, and JWM versions are rated 10 A.
