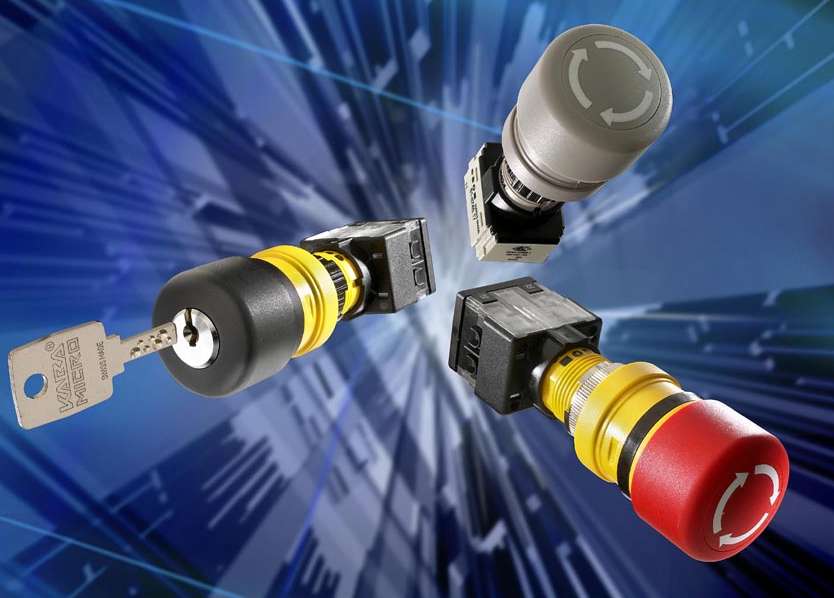

EAO Switch Corp.    Milford, CT 06460
Dec 15, 2004 Rated at 250 Vac and compliant with EN 60947-5-5 and EN418 directives, Series 61 is 27 mm in diameter and mounts in 16 mm diameter hole. IP65-rated units include colored status indication ring and offer twist or security-oriented key release action. Nine different switching elements are available with silver or gold contacts, and both solder/plug-in or screw terminals. Switches are suited for machinery, process control, and access control equipment.

FCI/Burndy Products    Manchester, NH 03108
Dec 15, 2004 Suited for terminating copper conductors in various electrical connections, HYLUGâ„¢ uninsulated terminals are manufactured from seamless electrolytic copper tubing with heavy-duty wall thickness. With proprietary brite finish, terminals feature internally beveled barrel end and electro-tin plated terminals for corrosion resistance. Products are UL listed and CSA certified to 600 V and may be used on applications to 35 kV.

Cypress Computer Systems    Lapeer, MI 48446
Dec 15, 2004 Built on SUPREX® technology, DUPREXâ„¢ RF (Dual, Supervised Reader Extender) extends distance between 2 access control readers and one controller. Able to span up to 10,000 ft, product has weatherproof enclosure, making it suited for indoor or outdoor installation. It provides immediate feedback from on-board diagnostics, while alarm output from central unit indicates power or communication loss with reader at remote unit.

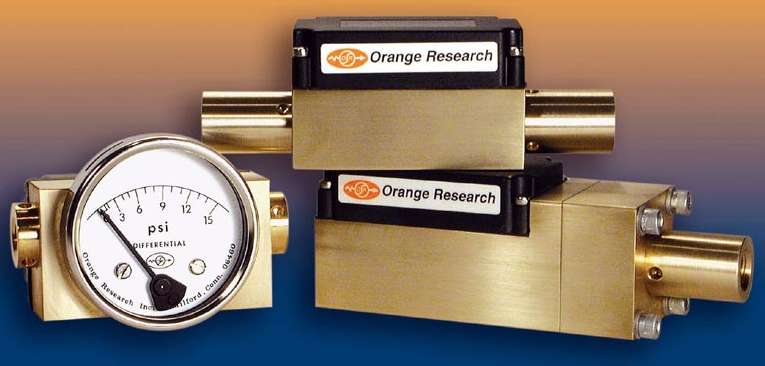

Orange Research, Inc.    Milford, CT 06460
Dec 15, 2004 Suited for use where dangerous gases and vapors may exist, differential pressure (DP) gauges and flowmeters offer operating ranges from 5 in. of water to 1,000 psi DP and flow rates from 0–10 gpm. Switch and gauge-switch combinations with Class 1 - Div. 2 hazardous rating are available in DP models 1203, 1503, 1516, 1803, and 1833 as well as in flow models 2223 and 2323. Switches are SPST or SPDT and are housed in NEMA 4X watertight enclosures.

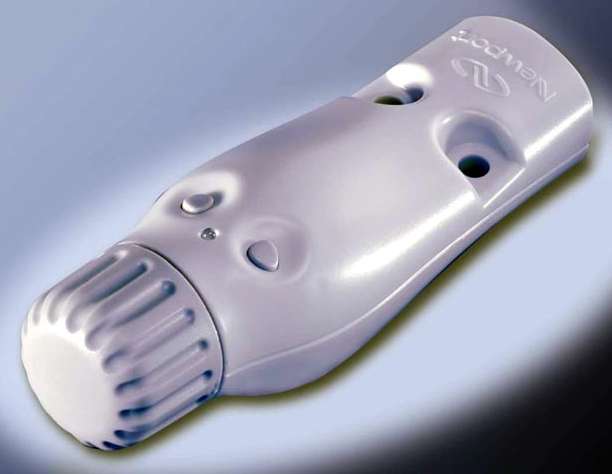

Newport Corp.    Irvine, CA 92606
Dec 15, 2004 NewStepâ„¢ NSA12V6 provides automation solution for laser and electro-optic experiments. Suited for processes operating in vacuum to 10_-6 Torr, actuator enables precise motorized control of translation stages and mechanically adjustable mounts. Unit measures 60 mm long x 30 mm dia and provides up to 11 mm travel with better than 0.3 micron incremental steps at 1 mm/sec with max load of 28 N. Product has non-rotating tip and suits OEM and laboratory applications.

Cinch Connector Div., Labinal Components & Systems Inc.    Lombard, IL 60148
Dec 15, 2004 Low Profile Connectors suit applications requiring compact-footprint interconnects between PCBs or components. Offered in custom, flexible footprint configurations with contact spacing as close as 1.0 mm, they support signal speeds in excess of 20 GHz with contact resistance of less than 25 milliohm. Products utilize CIN::APSE® contact technology with solderless wound-wire contact, and are offered in contact counts from under 10 to over 2,000.

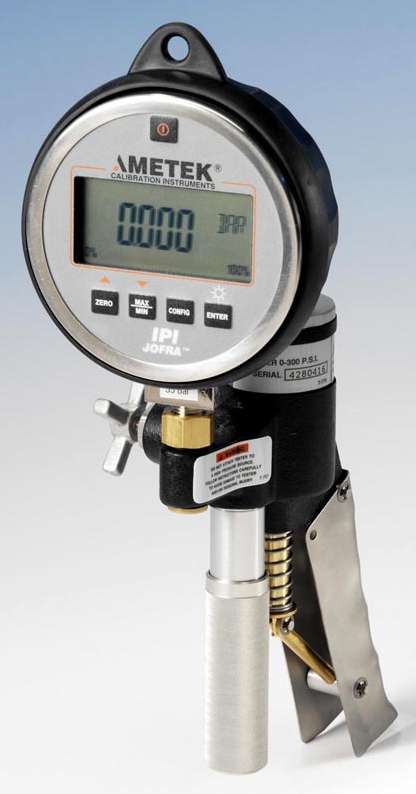

AMETEK Test & Calibration Instruments    Largo, FL 33773
Dec 15, 2004 JOFRA IPI series combines analog gage functionality with digital calibrator display. Available to 10,000 psi with pressure ranges from vacuum to 500 psi, series offers 18 different pressure units, serial communications capability, and accuracy of +0.05%. Set-up is via menu-driven display, and indicator can be calibrated locally. Temperature compensated indicators can be used in applications from safety valve checks to system pressure verification.

Wire Belt Company Of America    Londonderry, NH 03053-7449
Dec 15, 2004 CarrySmart(TM) conveyors include Flex-Turn, Flat-Flex Straight, Flat-Flex Shuttle, and Spreader or Converger conveyor types. Flex-Turn power turning units gently convey product around corners and feature open construction that facilitates cleaning. Spreader or Converger types reposition product for handling or alignment during conveyor to conveyor transfers. CarrySmart conveyors are customizable, and belts are constructed from stainless steel.

Photovac Inc.    Waltham, MA 02451 1166
Dec 15, 2004 Weighing 8.1 lb, MicroFID(TM) incorporates tutor key that guides end-user through basic operation. Critical data is displayed and logged in less than 3 sec within 0.5-50,000 ppm concentration range via built-in datalogger, and 2-step calibration holds for entire workday. Immune to possible interferences such as water vapor, self-contained, hand-held unit is intrinsically safe and features built-in handle and rubberized keypad.

Bel-Art Products    Wayne, NJ 07470
Dec 15, 2004 Available in 4 sizes from 10.25-36 in. ID, Scienceware® Table-Top Buchner Funnels are manufactured of chemical-resistant polyethylene. They can be provided with medium or coarse porosity filter plate or used with perforated plate and filter paper. Largest size has liquid filtering capacity of 50 gal. Available accessories include fitted lids with gas ports to contain vapor and rings that prevent filter paper from floating.

Moyno Inc. Unit Of Robbins & Myers, Inc.    Springfield, OH 45501 0960
Dec 15, 2004 Offering flow rates to 1,000 gpm, Moyno® 2000 CC Pumps feature sealed, Ultra-Drive® gear-type universal joint drive train and rotor/stator pumping element geometry. ANSI flat face flanges are provided on suction and discharge ends. Single mechanical seals meet DIN Standard 24960 and ISO 3069. Pumps are suited for scum and grease pumping, lime slurry transfer and dosing, chemical metering and transfer, and positive displacement sludge transfer.

Linear Technology Corp.    Milpitas, CA 95035
Dec 15, 2004 Packaged in 4 x 4 mm QFN, LT1942 integrated quad switching regulator provides necessary power supply functions for 2-7 in. TFT LCD panels and their white LED backlighting. It operates from input voltage of 2.6-16 V and has 1 MHz switching frequency. Incorporating 2 boost and one inverting DC/DC converters as well as Schottky diodes, product also features programmable power sequencing, independently set TFT supply output voltages, and soft-start.

FCI/Burndy Products    Manchester, NH 03108
Dec 15, 2004 PATRIOTâ„¢ PATCUT employs latch-style cutting head that permits interference-free closure for mid-span cuts and rotates 180°. Ergonomic design enables one-hand operation, leaving user's other hand free to manipulate conductor into proper cutting position. Capable of cutting 1.29 in. copper and aluminum cable, unit comes with carrying case to hold tool, retention lanyard, battery charger, and two 18 V Ni/MH batteries.

Banner Engineering Corp.    Minneapolis, MN 55441
Dec 15, 2004 PresencePLUS® enables users to set up vision sensors in multiple geographic manufacturing locations or accommodate multiple languages in one location. Available in English, Simplified and Traditional Chinese, French, German, Italian, Japanese, Portuguese, and Spanish, software translates text, buttons, commands, and icons into user's native language with one mouse click. It operates on Windows® OS, providing common GUI across all Banner vision products.

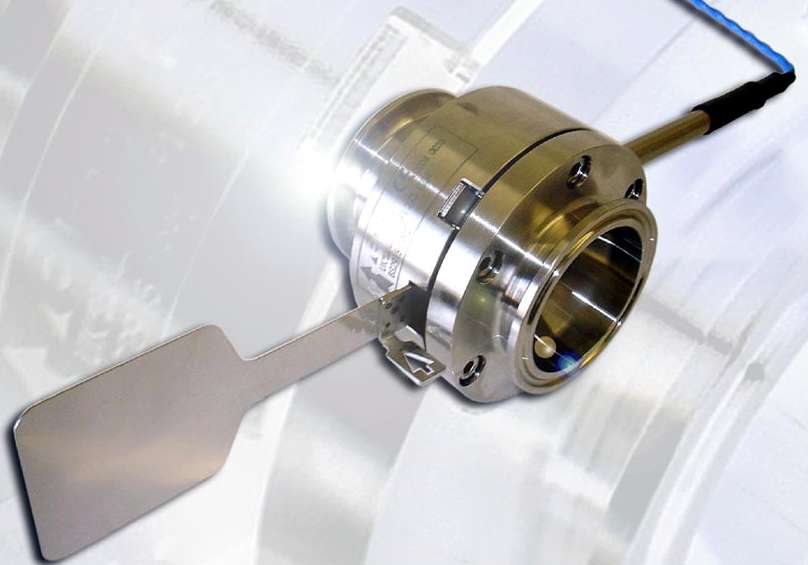

Elfab Limited    Tyne & Wear NE29 8SD  United Kingdom
Dec 15, 2004 Designed for use in aseptic and hygienic process conditions, Hygienic Opti-Gard features non-fragmenting, reverse-acting rupture disc with smooth, uninterrupted surface finish. It fits directly between ISO2852 standard food industry couplings and clamp fittings. With performance tolerance of 5% across burst pressure range and 95% operating ratio, product is supplied with Integral Flo-Tel burst-detection device and suited for liquid, gas, and vapor applications.

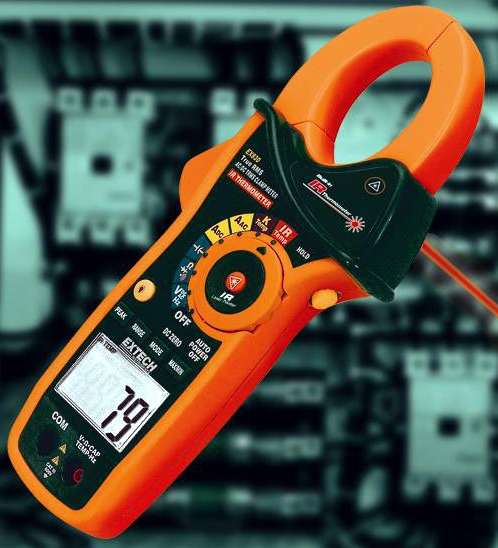

Extech Instruments Corp.    Nashua, NH 03063
Dec 15, 2004 Each 1,000 A clamp incorporates built-in, non-contact IR thermometer with laser pointer to monitor temperature and locate hot spots on motors and electrical devices. Unit also features min/max, data hold, and auto ranging features. Both series feature 4,000 count, backlit LCD and ergonomically designed, double-molded housing. Meters measure resistance, capacitance, frequency, and continuity. Peak Hold function captures inrush currents and transients.

Rabbit Semiconductor    Davis, CA 95616
Dec 15, 2004 Multi-Port Serial-to-Ethernet Kit allows multiple ports to convert data from serial to Ethernet. It also enables bi-directional conversion from Serial-to-Ethernet and Ethernet-to-Serial. Kit provides hardware and software necessary for sensors and other serial devices to communicate via LAN or other network. Implementation of optional RabbitWeb software module lets user web-enable applications to allow monitoring and control of serial devices via Internet or Intranet.

Videojet Technologies, Inc.    Wood Dale, IL 60191-1073
Dec 15, 2004 Marsh® 8000 prints 150 x 300 dpi, large characters and bar codes for outer-case coding on shipping containers and corrugated cartons. Capable of line speeds up to 200 fpm, unit features color touch-screen GUI that facilitates operation and language/character setting. Controller is housed in IP54-rated stainless steel enclosure and runs up to 8 printheads. Ethernet and RS-232 connections enable communications to corporate networks and other devices.

Lexair, Inc.    Lexington, KY 40511 1018
Dec 15, 2004 Mini-Rhinobar single-tube bar feeder is engineered for Swiss type CNC screw machines and small, fixed-head CNC lathes. Oil fills gap between bar stock and feed tube, acting as noise damping support. Oil flow and pressure are controlled with single valve, which also allows for accurate bar control and minimizes vibration. Mini-Rhinobar can be controlled from remote pendant for safe operation. Feed tubes range from ¼â€“1 5/8 in. in 1/8 in. increments.

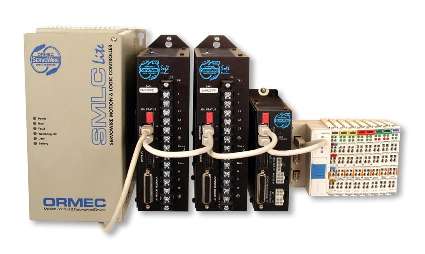

Ormec Systems Corp.    Rochester, NY 14625
Dec 15, 2004 By eliminating standalone motion controller and PLC combination, up to 3½ axes can be controlled from SMLC-Lite with Firewire-based motion control networking. ServoWire Controller features Intel Celeron processor, built-in Ethernet, FireWire and serial ports plus adapter, and Flash memory for program storage. All-digital ServoWire SM Drives support variety of actuator technologies, including brushless motors, dc brush motors, and voice coils operating from 24 Vdc to 460 Vac.
