Pro-Lite, Inc.    Costa Mesa, CA 92626
Dec 16, 2004 XPression name badges use red LEDs for readability and contain micro magnet for attachment to shirt pocket. Up to 120 characters can be programmed for display via Windows-compatible PC software, and area is provided for displaying custom logo or web address. Xpression SC serial cable-programming model comes with badge, serial cable, cell battery, and XPression software CD. XPression IR model also adds IR transmitter.

Carr Lane Manufacturing Co.    St. Louis, MO 63119
Dec 16, 2004 Solid alignment pins have ground shank and threaded end for knob handle, and locking balls hold pin in place by spring force. Knob handles can be permanently secured with thread-locking adhesive. Available in stainless steel, products come in standard shank diameters from 3/16-½ in. and various grip lengths. Products require users to push to insert and pull to remove.

Microchip Technology, Inc.    Chandler, AZ 85224 6199
Dec 16, 2004 PICDEMâ„¢ Z 2.4 GHz Demonstration Kit supports ZigBeeâ„¢ protocol, providing evaluation and development platform with hardware, software source-code, and PCB layout files needed to prototype wireless products. Kit is based on PIC18LF4620 microcontroller, with integrated nanoWatt Technology power-managed modes, 64 Kbytes flash program memory, and analog, control, and communications peripherals. Platform also incorporates Chipcon's CC2420 2.4 GHz RF transceiver.

Sensortechnics Inc.    Dublin, CA 94568
Dec 16, 2004 Compensated for temperature and air pressure fluctuations, transmitter series CTU9000CS has all-welded stainless steel diaphragm and cable with integrated vent tube that allows true reference pressure to sensor element. Its 21.8 mm OD makes sensor suited for use in small-diameter probe tubes or tanks with small apertures. Product supplies 4–20 mA output signal and is suited for measurement of low-level ranges from 3.3 ft of water (1.5 psi) FS.

Webb Wheel Products, Inc.    Cullman, AL 35055
Dec 16, 2004 BTS self-cleaning drum is available in 16½ x 7, 16½ x 8, and 16½ x 8.62 drum sizes for rear drive and trailer axle applications. Drum reduces heat and debris accumulation that negatively affects brakes on heavy-duty vehicles. In addition to cooling process, ribbed exterior of drum provides greater surface area for heat dissipation and vents that allow removal of debris, heat, and dust. It also reduces noise levels from brakes.

ANCA Pty Ltd    Bayswater North VIC 3153  Australia
Dec 16, 2004 PLX pallet style loader can load tools from 1–16 mm diameter and up to 250 mm length. Capacity ranges from 154 tools for 16 mm dia. up to 1,242 tools for 1 mm dia. PLX uses pallet to store tools in loading cell, and 2 pallets are required for each tool size, 1 pallet for tool blanks and another for finished tool. Option to load KM20 collets is available. Large door opening provides good operator access.

RMS Technologies Inc.    Carson City, NV 89706

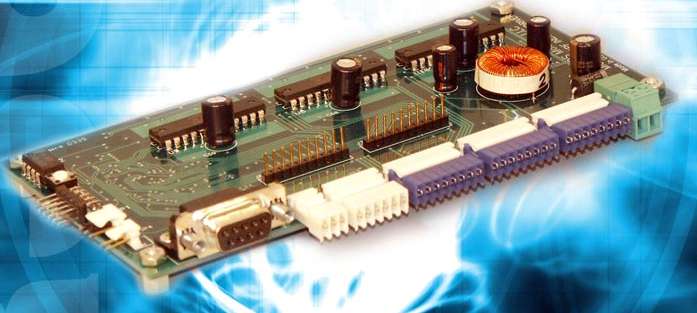

Dec 16, 2004 R364 3-axis driver/controller provides output currents ranging from 0.2–1.5 A/phase peak, with step resolutions from full, ½, ¼, 1/8, 1/16, 1/32, and 1/64. Unit can be configured and controlled via ASCII interface over either RS232 protocol for single module control or RS485 for multiple module control. Users can store all motor parameters on board with simple ASCII command. R364 also features ability to accommodate 8 digital or analog inputs.

STMicroelectronics    Lexington, MA 02421

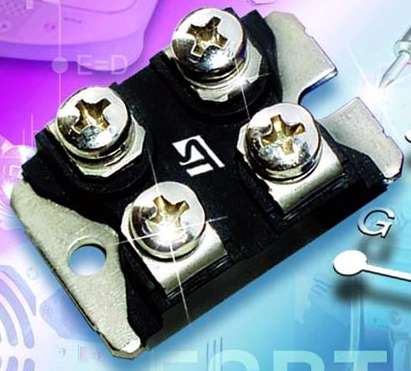

Dec 16, 2004 Supplied in screw-mounted ISOTOP package, 4-terminal STE50DE100 hybrid emitter-switched bipolar transistor sustains collector-source voltage of 1,000 V and collector currents up to 50 A. Power dissipation is 160 W at 25˚C and max operating junction temperature is 150˚C. Due to cascode configuration and dedicated bipolar technology, device offers square reverse bias safe operating area, enabling it to work in hard switching topologies.

Matsushita Electric Industrial Co., Ltd.    Osaka 571-8501  Japan
Dec 16, 2004 Designed to optimize camera phone picture quality, v Maicovicon(TM) utilizes low-noise wafer process technology and can arrange 3 megapixels on one chip with 1/3.2 in. optical format (image diagonal of 5.6 mm). Signal read-out technology extends battery life by using minimal wattage. Able to take clear, crisp pictures in low-light environments, product reproduces images that can be enlarged without compromising picture quality.

Kobe Steel, Ltd.    Tokyo 141-8688  Japan
Dec 16, 2004 Developed for laboratory use, Model 100D26-LH features low center of gravity due to horizontal operation. Design utilizes strong parts and materials, eliminating vibrations created by machine and tire. With natural frequency of 350 Hz, machine enables accurate measurements of tire unbalance at high speeds to be taken.

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
Dec 16, 2004 Series RHI58 features 58 mm diameter housing with mounting profile of less than 2 in. Hollow shaft configuration allows encoders to be mounted to application's shaft without couplings, while torque rest prevents rotation. Models come with pulse outputs up to 5,000 ppr, max frequency of 200 kHz, and choice of 3 or 6 outputs and cable connection. Additional features include 10 or 12 mm diameter shaft bore, alarm output, and 10-30 Vdc or 5 Vdc power.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143

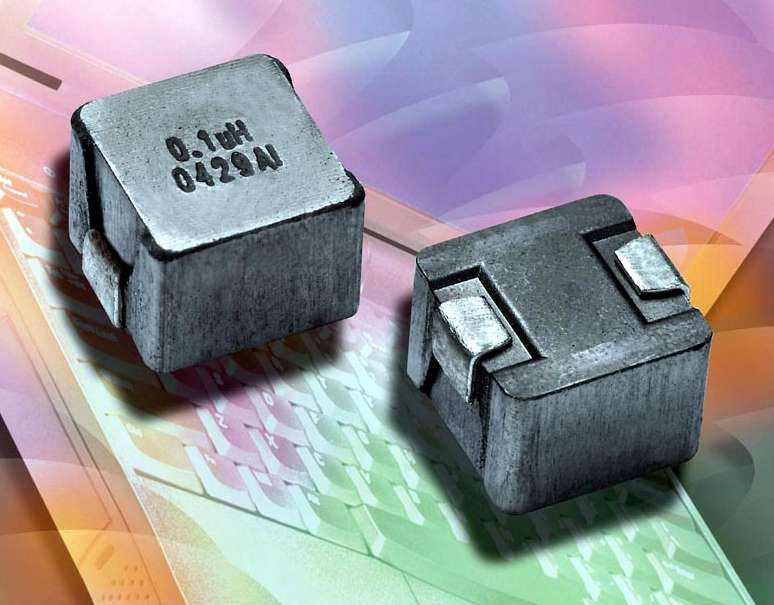

Dec 16, 2004 High-Current Models IHLP-2525EZ-05 and IHLP-2525EZ-01 offer inductance ranges of 0.1–2.2 µH and 3.3–10 µH, respectively. Units measure 0.255 x 0.270 in. with max height profile of 0.197 in. Both occupy standard 2525 footprint while providing typical DCR values from 0.81–53.3 mOhm. Packaged in 100% Pb-free, shielded composite housing, inductors handle high transient current spikes without saturation and operate up to 5 MHz with temperature range of -55 to +125°C.

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
Dec 16, 2004 CorrTran Transmitters satisfy Class I, Division 2 hazardous location applications. They allow users to monitor effectiveness of corrosion inhibitors online, and detect and correct corrosion issues through upkeep and preventive maintenance. Units feature 2-wire, loop-powered 4-20 mA signal with HART protocol. Through these signals, general corrosion or pitting of pipe or vessels can be detected. Various probe styles and materials are available.

Advanced Thermal Solutions Inc.    Norwood, MA 02062
Dec 16, 2004 Model ATVS-NxTâ„¢ hot wire anemometer is a portable scanner that measures temperature from -30 to 150°C and air velocity from 0–51 m/s for thermally characterizing electronic packages. Operating with embedded PC, unit includes 8 Gb hard drive, CD/RW drive, and Ethernet connections, allowing operation over Internet. It supports up to 32 sensors for simultaneous, single-point measurements. StageVIEW-NxTâ„¢ software is provided for data acquisition and reporting.

Power Measurement    Saanichton, BC V8M2A5  Canada
Dec 16, 2004 Web-enabled ION Enterprise® v5.5 monitors energy systems with tools for analysis and control. Options let users integrate power and energy information with process and building automation applications, while OPC (Open Process Control) client and server functionality lets users exchange data with OPC-compliant devices and systems. It communicates via real-time protocols and supports demand management and power quality assurance energy-management strategies.

Load Cell Central    Monroeton, PA 18832

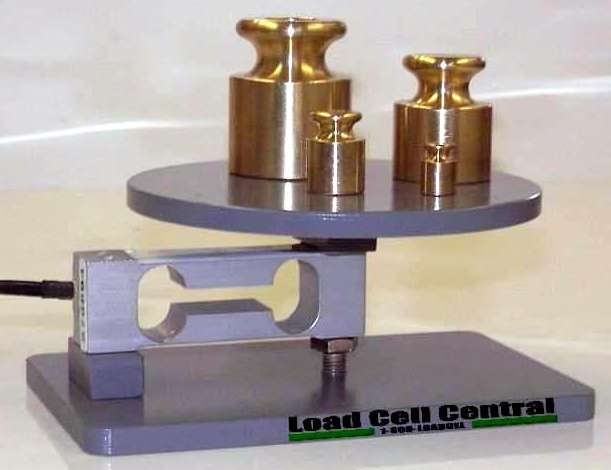

Dec 16, 2004 Featuring all-aluminum construction, VWA (Versatile Weighing Assembly) can output to digital display or interface with computer or PLC via analog or RS232 outputs. Unit incorporates model LCC-ESP single point load cell and is suited for use on workbench or lab table. Available in capacities from 150 g to 200 kg, balance allows measurements to be taken from anywhere on 4 in. dia weighing surface with equally precise results.

Universal Separators, Inc.    Madison, WI 53705
Dec 16, 2004 Able to recycle both coolant and washwater, SmartSkim® CoolantLoopâ„¢ is targeted for use in plants with individual coolant sumps. It incorporates SmartSkim® CrossFlow Separator, which removes oil and solids by gravity and without use of filters or coalescer media. Coolant circulates continuously within the system for multi-pass filtration and aeration. Available in 4 models from 300–1,200 gal, product processes up to 600 gph depending on model.

Honeywell Power Supplies    Northford, CT 06472
Dec 16, 2004 Models HPF602ULADA and HPF902ULADA connect to virtually any fire alarm control panel to provide additional power needed for Notification Appliance circuit expansion. Units offer 6.0 or 9.0 A of notification power, with direct AC power connections, on-board battery charging circuit, and backup battery space. Each contains ground fault detection indicators and built-in ANSI cadence patterns, which can upgrade older control panels that lack cadence capability.

TLV Corporation    Charlotte, NC 28273

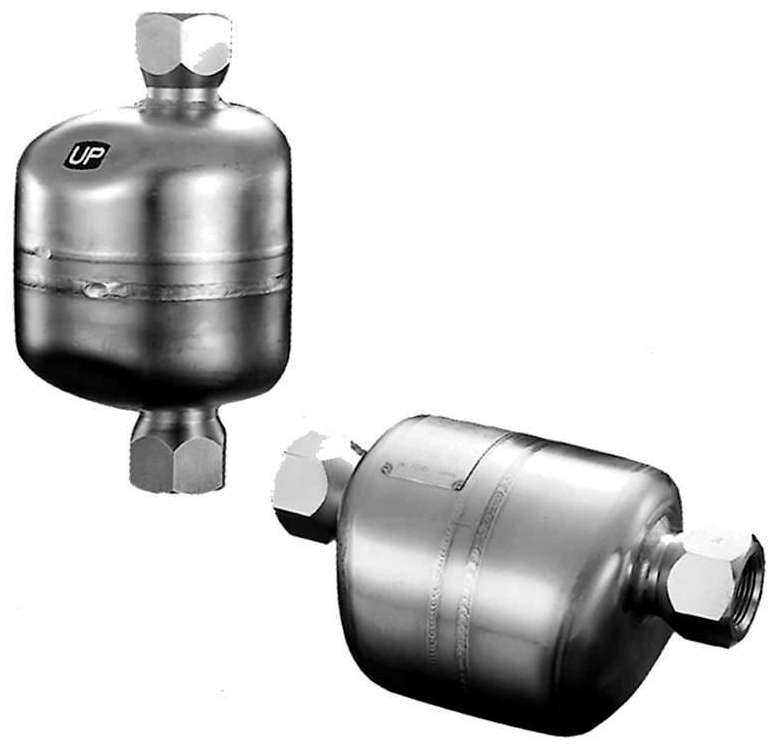

Dec 16, 2004 Horizontal SS5NH and vertical SS5VH facilitate drainage of condensate from high-pressure superheated steam mains and turbines. They provide seal-tight shutoff with constant water seal and rotational seating design that eliminates concentrated valve wear. Its 3-point seating ensures steam-tight seal, even under no-load superheat conditions. Stainless steel products have up to 1,720 psig hydraulic shock rating and operate for pressures to 659 psig.

Rittal Corporation    Springfield, OH 45504
Dec 16, 2004 Modular Industrial Workstations have NEMA Type 12 rating and are constructed with main housing based on proprietary TS8 platform. Work surfaces are made from particle board laminated with heavy-duty T-molding edging. Modular under-table housing measures 24 x 24 x 35 or 39 in., while floor enclosure houses equipment and provides storage for folders, writing utensils, and tools. Various monitor housings, working surfaces, and base/pedestals are available.
