Henkel Loctite Corporation    Rocky Hill, CT 06067
Dec 22, 2004 Loctite® 3629 features low temperature cure, making it suited for applications where heat sensitive materials must be bonded prior to wave soldering. Successfully tested in lead-free production environments, surface mount product also meets standards of on-board reliability testing such as SIR testing. Available in syringes and cassettes, uncured adhesive is fluorescent under UV light, and unique color facilitates visual inspection.

3M Electrical Specialties Div.    Austin, TX 78726
Dec 22, 2004 Orange/Blue O/B+ Connector features wide range spring that accommodates two No. 22 AWG wires, three No. 12 AWG wires, or four No. 14 AWG wires. Small shell fits into tight spaces, while flexible skirt helps protect workers from contact with overstripped wires.

Birchwood Casey    Eden Prairie, MN 55344 2138

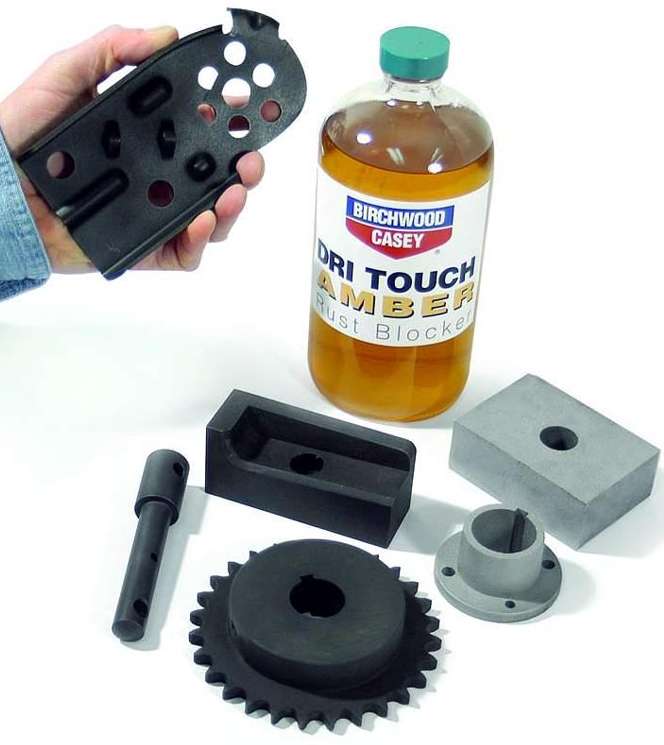

Dec 21, 2004 DRI TOUCH® AMBER forms dry-to-touch, humidity- and corrosion-resistant barrier film on cast iron, steel, and MIM components that are machined or have characteristics such as blind holes, recesses, and uneven surfaces. Applied to wet or dry surfaces, product will not drain off parts or wick off into packaging materials. It penetrates and de-waters recessed areas without damaging non-metallic components and leaves non-dimensional, soft waxy film.

Dortronics Systems, Inc.    Sag Harbor, NY 11963
Dec 21, 2004 Available for indoor and outdoor use, Series 7201 features high intensity red and green LEDs on single panel designed to mount in standard electrical box enclosure. When used outdoors, weatherproof LEDs are mounted on gasketed plate for harsh exterior installations. Devices interface with almost any access control reader or proximity device. They are also available in multiple configurations with key switches for specialized access control applications.

EFD Inc.    East Providence, RI 02914-1342
Dec 21, 2004 Benchtop Model 2400 uses air regulator and microprocessor-controlled timer to make uniform dots and neat beads, or fill cavities with consistent amounts of grease. Amount of grease applied is determined by air pressure, tip size, and dispense time. Rated at 0–100 psi, regulator handles viscosities from light lubricants to thick grease. Dispense time can be adjusted in .1, .01, .001, or .0001 sec increments for precise control of deposit size.

Beswick Engineering Co., Inc.    Greenland, NH 03840
Dec 21, 2004 Diaphragm pressure regulator Model PRD controls output pressures from 0–40 psig, with maximum rated inlet supply pressure of 300 psig. Both inlet and outlet ports are tapped 10–32 UNF. Suited for gas and pnemuatic applications, non-relieving, single-stage regulator is offered in brass, anodized aluminum, 303 stainless steel for corrosion resistance, and 316 stainless steel for high purity applications. Unit can be mounted inline or panel mounted.

SKF USA, Inc.    Lansdale, PA 19446
Dec 21, 2004 Featuring wear resistance, Hybrid Bearings combine silicon nitride rolling elements with steel rings. Inherent insulating properties prevent electrical arcing, which can cause fluting pattern surface damage to raceways. Standard types include hybrid single row, deep groove ball bearings with bore diameters from 5-110 mm; sealed and greased-for-life ball bearings protected by steel-reinforced, synthetic rubber seals; and open basic design bearings without seals.

Waldmann Lighting Co.    Wheeling, IL 60090-6051
Dec 21, 2004 Model ESD Omnivue features conductive coatings and static dissipative materials and coatings, which eliminate static discharge. Three 9 W, 5,000 K compact fluorescent lamps provide 27 W of light from top and both sides of magnifier, or 18 W of side-to-side lighting. Three-diopter, fully rotational magnifier lens provides precise positioning to eliminate glare. Spring-loaded base and arm allow light adjustment.

GI Industries Inc.    Monroe, CT 06468
Dec 21, 2004 Model DCM-600 spins cleaning brush inside ductwork and breaks deposits loose from walls. Compressed air comes out of brush head to push debris to vacuum source, while negative air HEPA vacuum captures dirt and debris. Unit includes ½ hp motor with forward/reverse controls for cross-scrubbing, and variable speed control that allows slow speed for flex/insulated ducts and high speed for steel or piping. Steel frame and pneumatic tires facilitate transport.

Taylor Hobson, Inc.    West Chicago, IL 60185
Dec 21, 2004 Talysurf CLI Systems provide 3D surface profiling, as well as mechanical and analytical capabilities for 2D measurements. Models CLI 2000, 1000, and 500 offer measuring envelopes of 200, 100, and 50 mm, respectively. Chromatic Length Aberration Gauge, Laser Triangulation Gauge, and Inductive Gauge units are available to meet user requirements. Talysurf CLI Systems are suited for processes that require precision control of shape, texture, or surface microstructures.

Curtis-Toledo, Inc.    St. Louis, MO 63133
Dec 21, 2004 Available in models from 5–15 hp, Ultra-Pack™ Compressors are factory-equipped with magnetic motor starter, air-cooled after-cooler, dual control, automatic tank drain, low oil level shutdown, and tank isolator pads. To facilitate installation, compressors come as complete air systems, plumbed, pre-wired, and ready to run.

Clippard Instrument Laboratory, Inc.    Cincinnati, OH 45239
Dec 21, 2004 Models JFC-4 and JFC-5 are combination needle and check valve flow controls used to control air flow from air cylinders. Units control speed at which piston strokes, either while extending or retracting, depending on location in circuit. They allow free flow from inlet to outlet past needle and check valve. In reverse flow, check valve is sealed and flow must pass through metered passage controlled by tapered adjustment needle.

FCI Electronics    Etters, PA 17319 9769

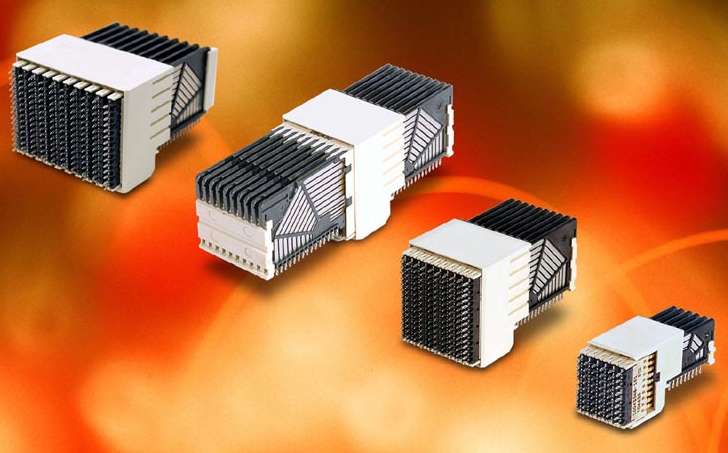

Dec 21, 2004 Offered with 3 and 2 mm column spacing in 150- and 120-position configurations, AirMax VS® 2-piece header-receptacle connector system allows for allocation of signals within connector. Insert molded leadframe assembly enables same connector to be used for differential pair signals, single ended signals, or power. Enabling systems to grow from 2.5–25 Gbps, part accommodates 63 differential pairs or 95 single ended lines per inch for 25 mm card slot.

NKK Switches    Scottsdale, AZ 85260-3420

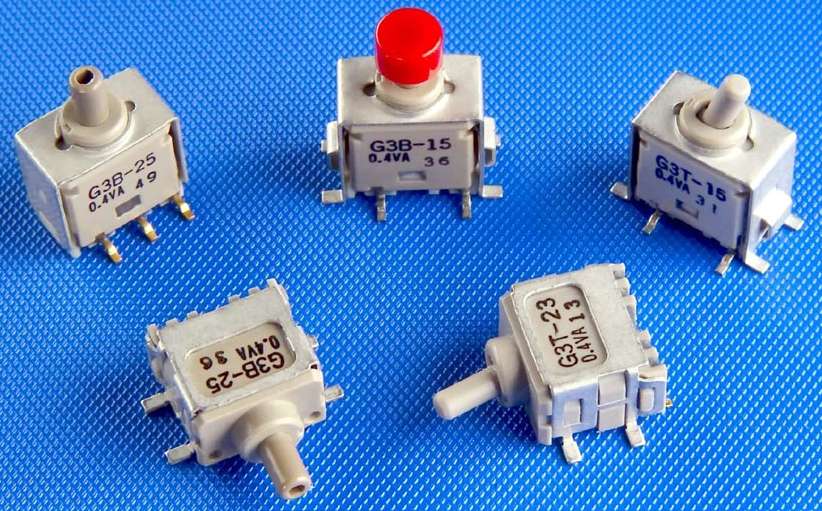

Dec 21, 2004 Series G3T toggles and G3B pushbuttons feature Sliding Twin Crossbar contact mechanism for logic level switching reliability. Contacts are gold-plated and wiped clean with every actuation. Both series have bushing and housing constructed of one molded piece with rubber o-ring. Available as single- or double-pole, G3T toggles can be configured in 5 circuits, including momentary and maintained action, while G3B pushbuttons are offered in momentary circuits.

Fairchild Semiconductor    San Jose, CA 95134

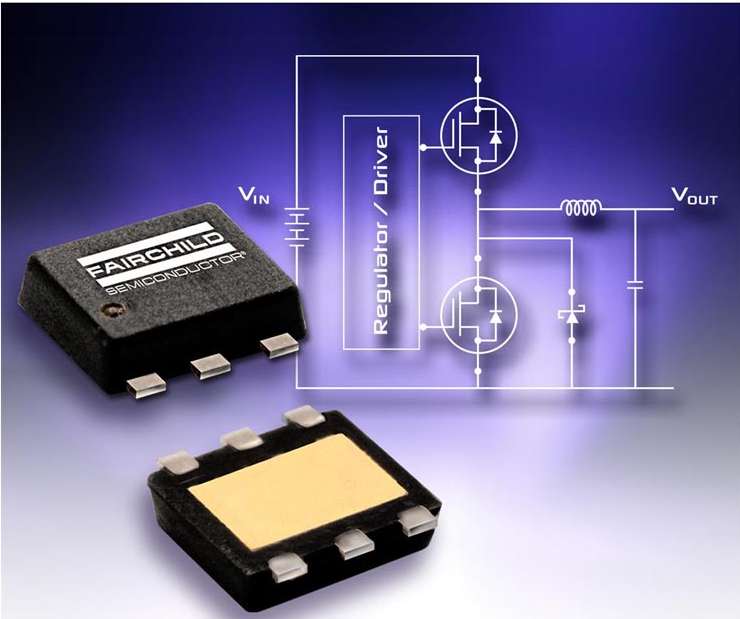

Dec 21, 2004 Model FDC6020C delivers above 1 A continuous current in miniature spot power and point of load dc/dc switching converter designs. Two MOSFETs are integrated into one SuperSOT-6 FLMP and each provides RDS(on) characteristic of 52 milliohms for P-Channel and 27 milliohms for N-Channel, at 4.5 V. Junction-to-case thermal resistance of 1° C/W and junction-to-ambient thermal resistance of 68° C/W enables highest possible current densities at optimum operating temperatures.

MULE LIGHTING, INC.    Providence, RI 02905
Dec 21, 2004 KES Series commercial/industrial emergency lighting units feature self-contained design that provides ac lockout and brownout protection. Hands-off battery design automatically recharges when necessary, and units can be adapted with self-diagnostics system. Drawing from battery power, automatic fixture delivers 90 min to 8 hr of operation time when power is lost. Able to run 10 remote light heads, 6 and 12 V models accommodate up to 3 glare-free lamp heads.

Electro Industries/Gaugetech    Westbury, NY 11590

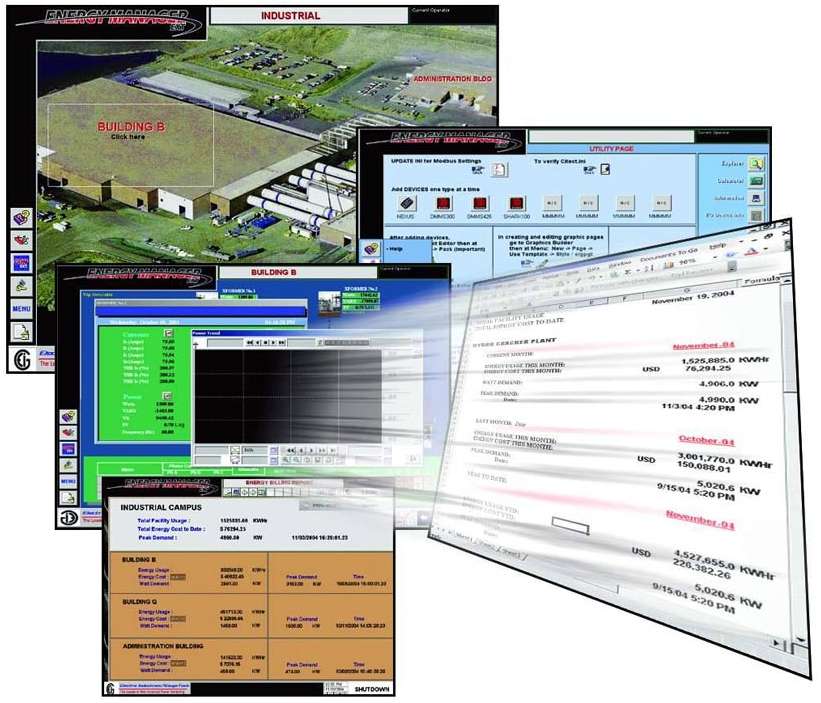

Dec 21, 2004 Energy Manager EXT allows users to view real-time data and analyze Power Quality through Web using EI branded power monitoring nodes. Suite of applications can analyze power quality using AI technology, report causes of power quality problems, and suggest solutions. Features include system reliability reporting tools and automated downloading and cost allocation capabilities, which let users allocate electrical usage costs over differing departments.

AMETEK U.S. Gauge    Feasterville, PA 19053
Dec 21, 2004 All-welded process gauge and diaphragm seal assembly consists of SOLFRUNT 1981 process gauge with stainless steel internals mounted and welded onto M&G diaphragm seal, which is available with 316L stainless steel or Hastelloy C wetted parts. Design with seamless Bourdon tube provides minimal leak paths. Standard units have female top for instrument connection and NPT male bottom for process connection.

COMSOL Inc.    Burlington, MA 01803
Dec 21, 2004 Supporting 64-bit processors, FEMLAB v3.1 simulates and analyzes complex systems involving MEMS, nanotechnology, fuel cells, photonics, biomedical engineering, and earth sciences. It solves Navier-Stokes equations governing flow through complex 3D geometry. Multigrid preconditioner optimizes computationally intensive routines. Quadrilateral, hexahedral, and prism meshes are provided for modeling anisotropic materials and thin layers.

COMSOL Inc.    Burlington, MA 01803
Dec 21, 2004 Offered as add-on to core FEMLAB package, FEMLAB MEMS Module provides application modes optimized for microscale modeling, and separate modes address electrostatics, stresses and strains, piezoelectrics, and electrokinetics. Materials modeling, together with application modes allows user to make feasibility studies, optimize designs, and experiment with different designs and parameters. Model Library provides ready-to-run models that illustrate basic principles.
