Testing Machines, Inc.    Islandia, NY 11749
Dec 23, 2004 Lab Master® Z-Directional Tensile Tester determines internal bond strength to 113 kg with 4.5 g resolution and ±0.02% FS accuracy. Position is measured and controlled with 0.1 µm resolution and 0.2 µm repeatability. By applying force in Z-direction until ply separation occurs, peak force can be measured. Curves are generated by thousands of data points per test to obtain material’s properties. Tester conforms to TAPPI T 541 and exceeds ISO 7500-1 Class 0.5 requirements.

Contemporary Controls Ltd    Coventry West Midla CV4 7EZ  United Kingdom
Dec 23, 2004 Series EISB B-Line Industrial Ethernet Unmanaged Switches provide up to 24 ports of connectivity in 1.75 in. of DIN-rail space. Units withstand extreme environmental conditions and temperatures from -40 to +75°C. Series includes several versions ranging from all twisted-pair 8, 16, and 24-port models to mix of twisted-pair and fiber optic models of same port count in aluminum enclosure. Each port has LED showing link, activity, and data rate by color.

Seco-Larm    Irvine, CA 92606-5012
Dec 23, 2004 Providing eight 12 Vdc and eight 24 Vac outputs, ENFORCER EVP-124M6-P16 centralizes power sources for multiple CCTV cameras and/or CCTV accessories. Power input, power transformer, dc converter, and all fused power outputs are housed in 12 x 12 x 3½ in. steel enclosure with ventilation holes and removable cover. All outputs feature red LED status indicators and resettable positive temperature coefficient-type fuses rated for 1.1 A at 250 Vac.

B & K Precision Corp.    Yorba Linda, CA 92887

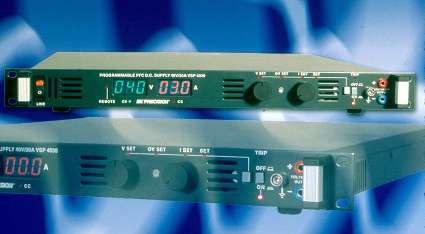

Dec 23, 2004 With output of 0–40 Vdc, 0–30 A, Model VSP4030 comes in 19 in. rack-mounted chassis measuring 1U high. Output voltage control is provided via manual tuning, remote control from RS-232 interface, and analog remote sensing. Soft switching technique ensures that switching action occurs when voltage across switching device is at minimum, eliminating sharp voltage transients. Up to 9 power supplies can be cascaded, producing more that 10 kW of dc power.

Magnatrol Valve Corp.    Hawthorne, NJ 07507
Dec 23, 2004 Available in bronze or stainless steel, 2-way Solenoid Valves control flow of water, oil, gas, steam, brine, solvents, cryogenics, and oxygen. They feature packless construction with continuous duty coils for all voltages. Units are offered normally open or normally closed with pressures to 500 psig and operating temperature to 400°F.

LDPI Lighting    Eau Claire, WI 54703
Dec 23, 2004 Suited for industrial or commercial work areas, Task Lighting Carts are available with 1-4 four foot fixtures. Standard 2-fixture, 4 ft cart can be positioned for vertical or horizontal light mounting. Fixtures are attached to swivel mount brackets, enabling directional aiming of light source. Requiring 120 or 277 V power supply, models include Class I, Div 1 explosion proof; Class I, Div 2 hazardous location; general industrial; and inspection.

Dorner Mfg. Corp.    Hartland, WI 53029 0020

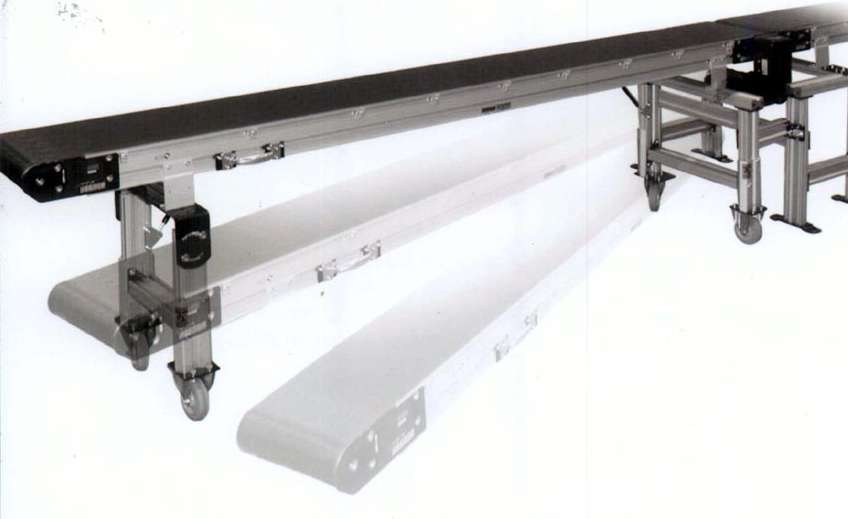

Dec 23, 2004 Pivot conveyors, suited for use in plants where conveyor lines stretch across floors, mount to pivot base and swing left or right to create walk-through access for employees. To prevent product flow interruption, conveyors come with interlock switches and timer. Product flow automatically resumes after conveyor returns to inline position.

Dixon Bayco, Ltd.    Winnipeg, MB R2R 0J2  Canada

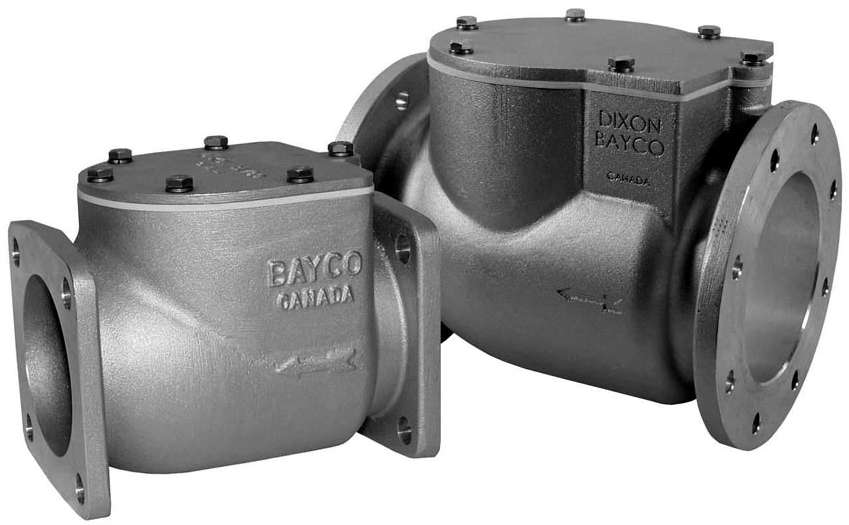

Dec 23, 2004 Line of 3 and 4 in. swing check valves protects food-grade and dry bulk contents at temperatures to 350°F. Computer-generated design eliminates flow restrictions through body by allowing flapper to swing completely out of airflow. Cast-aluminum construction includes all-stainless steel hardware, elastomer permanently bonded to drop-in metal flapper assembly, and sealed, compartmentalized cartridge that houses all functioning components.

Sharp Microelectronics    Camas, WA 98607 9489

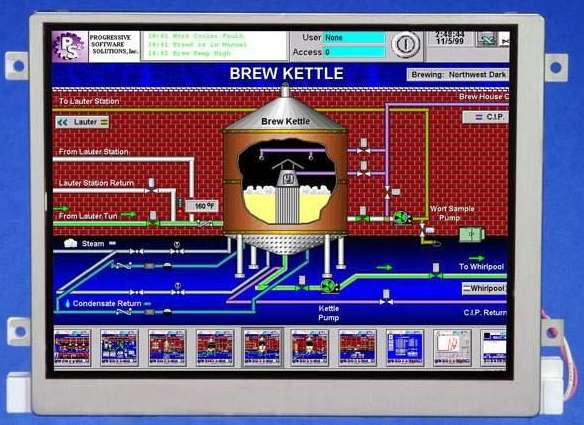

Dec 23, 2004 Consuming 4.7 W of power, LQ064V3DG01 Transmissive TFT-LCD module is backlit by 2 CCFTs and has 350 nits total brightness. Shock-resistant unit has landscape display orientation and is ROHS-compliant. With dot pitch of 0.204 (H) x 0.204 (V) and active area of 130.56 x 97.92, module features 262,144 colors and 640 x RGB x 480 dot format. It can be used in control systems, factory automation, handheld instrumentation, and test and measurement equipment.

Hilti Inc.    Tulsa, OK 74121
Dec 23, 2004 Model WSC 267-E incorporates 2-point cutting angle lock that keeps blade securely in place for making bevel cuts up to 45°. Smart Powerâ„¢ system allows unit to maintain constant blade speed under load. With automatic variable amperage motor, 13.5 A tool features 6 speed settings, spindle lock, safety switch, and directional dust extraction vent. Counter-balance system reduces vibration, and heavy-duty cast magnesium base works with optional guide rail.

Babcock & Wilcox    Barberton, OH 44203 0351

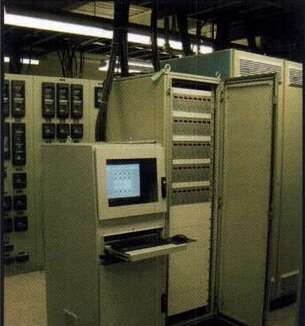

Dec 23, 2004 Available as permanent installation or as tuning service, Flame Doctor® provides real time analysis for individual burners. It identifies poorly performing burners and provides root cause diagnosis to help guide adjustments. System features intuitive user interface and ability to communicate to other boiler operating systems. Use results in optimized boiler efficiency, distribution of combustion air, and control of CO and NOx emissions.

Gamewell Co., The    Ashland, MA 01721
Dec 23, 2004 Networkable Audio Evacuation Systems support up to 6 channels of digital audio, including line paging and 2-way telephone communications, plus various control functions, all operating on single pair of wires or fiber optic cables. Units provide prerecorded messages and emergency paging during life safety emergency. They are available as integrated systems within panel, as well as expansion systems in addendum to panel.

Haas Automation, Inc.    Oxnard, CA 93030
Dec 23, 2004 Series GR Granite Profilers feature 10-pocket automatic tool changer and 40-taper, 10,000 rpm spindle with 15 hp vector drive that provides power and torque to profile laminated granite slabs up to 6 cm thick. Machines can radius edges, cut 2D and 3D contours, and perform sink cutouts and core drillings. Open-table design allows pod-mounting of large or awkwardly shaped workpieces. Brushless servo motors combined with high-pitch ballscrews produce rapids up to 2,100 ipm.

Paul N. Gardner Co., Inc.    Pompano Beach, FL 33060 6608
Dec 23, 2004 Built into thick steel plate housing, Elcometer 2000 utilizes 2 ground glass discs for grinding. Fixed upper disc adjusts operating force between 11-220 lb, while bottom plate rotates at 100 rpm. Movement is provided by geared motor system capable of carrying out tests under extreme conditions. One counter keeps track of number of revolutions and automatically stops motor, while another counter shows total after each test cycle.

Oseco, Inc., A Halma Group Co.    Broken Arrow, OK 74012-1449
Dec 23, 2004 Fluoropolymer-booted insert holder is constructed with solid PTFE resin insert pressed into inner diameter of stainless steel holder. When used with fluoropolymer lined rupture disk, only fluoropolymer is in contact with corrosive media. Available in sizes from 1–8 in., non-torque-sensitive, flat-seated holder bolts between standard ANSI pipe flanges. It is compatible with forward acting and reverse buckling disk designs, and is suitable for applications up to 500°F.

The Advantage Group    St.Louis, MO 63131

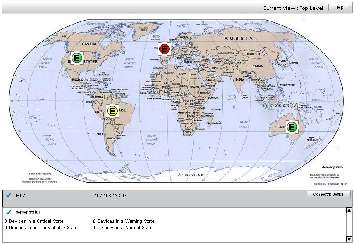

Dec 23, 2004 Enterprise Premier communicates with multiple Enterprise Advanced servers, allowing processing and network traffic to be spread across multiple operating systems. While Enterprise Advanced can monitor up to 1,000 devices, linking many servers allows Enterprise Premier to manage tens of thousands of devices from single console. User defined hierarchical view with alarm propagation allows managers to quickly spot potential trouble areas and take necessary action.

Cooper Hand Tools    Raleigh, NC 27612

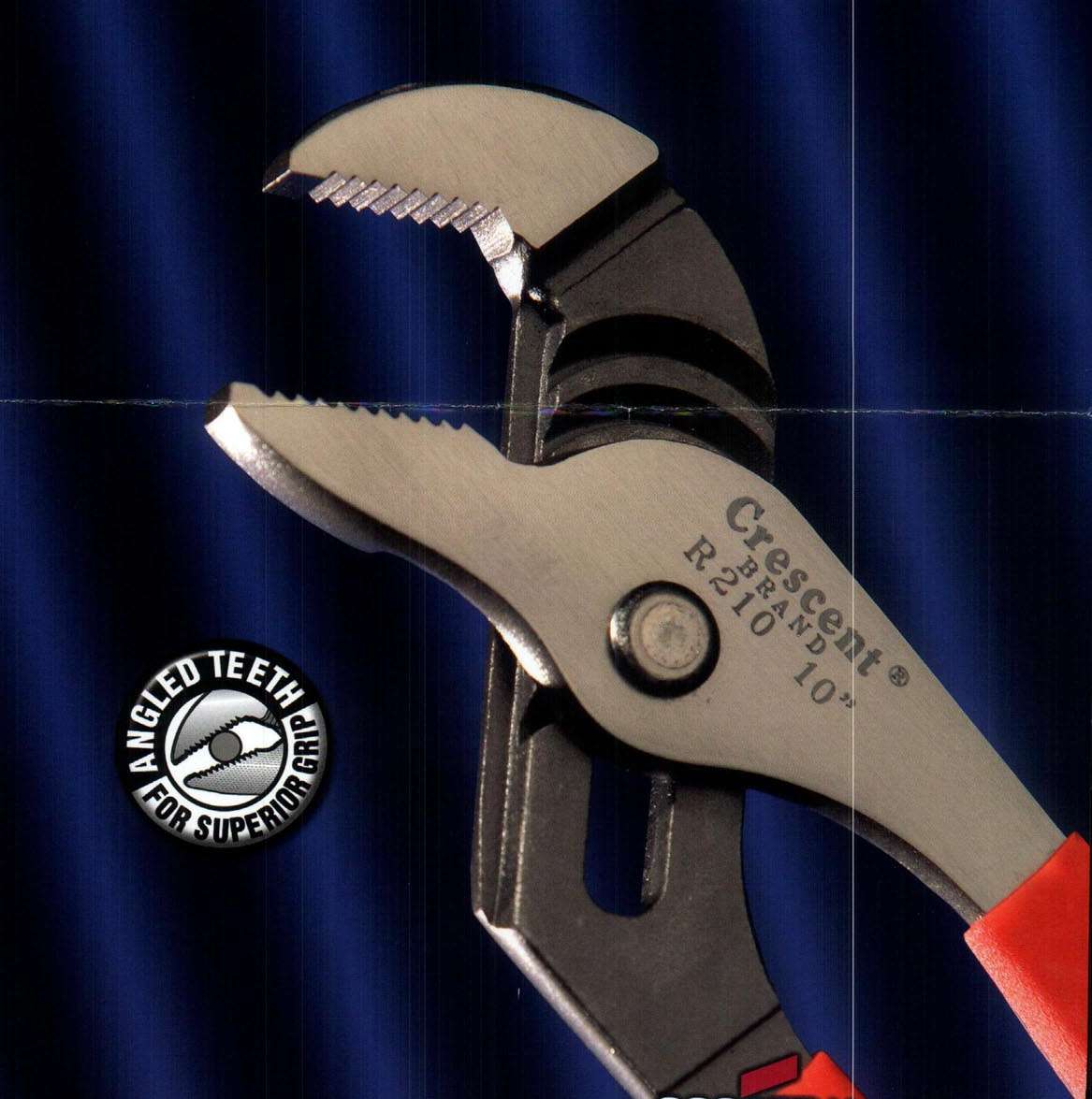

Dec 23, 2004 Available in sizes from 7–20 in., Crescent® Tongue and Groove Pliers are forged alloy steel with induction hardened teeth and straight jaws. Ten inch size is also offered in extra-wide and curve jaw model, in addition to straight jaw. Angled bias teeth minimize chance of marring workpiece or rounding off fastener. Joint features precision-machined undercut rib and groove that won't slip, allowing jaws to be held tightly together as gripping pressure increases.

Richco, Inc.    Chicago, IL 60680
Dec 23, 2004 Series FM elastomeric rivets connect small cooling fans to fan components and mounting hardware. High elongation rubber allows for assembly by hand and eliminates need for screws and nuts. Two styles are available: one with low profile end for single-direction, short protrusion on mounting panel side, and another for 2-direction mounting of fan components to leading fan flange. Both are black EPDM rubber available in 2 different durometers.

Linear Technology Corp.    Milpitas, CA 95035
Dec 23, 2004 With profile height of 1 mm, LTC3426 employs antiringing circuitry, internal soft-start, and internal 2 A MOSFET switch. Its 1.6-4.2V input voltage range enables product to operate from dual cell Alkaline/NiMH/NiCd to single cell Li-Ion batteries, delivering outputs up to 5.5 V with efficiencies over 90%. It has constant 1.2 MHz switching frequency, and 100 milliohm switch generates up to 800 mA of output current @ 5 V from 3.3 V supply.

Phillips Industries    Santa Fe Springs, CA 90670
Dec 23, 2004 Able to retain its flexibility in temperatures down to -85°F, ARCTIC SUPERFLEXâ„¢ also holds its shape to +175°F. Cable is resistant to chemicals, oils, and fuel and can be identified by deep blue jacketing. Offered in 100 or 250 ft lengths, 7-conductor cable satisfies ABS requirements and meets SAE J2394 specifications. Other electrical cable ranging from 2–6 conductors are available.
