FCI Electronics    Etters, PA 17319 9769

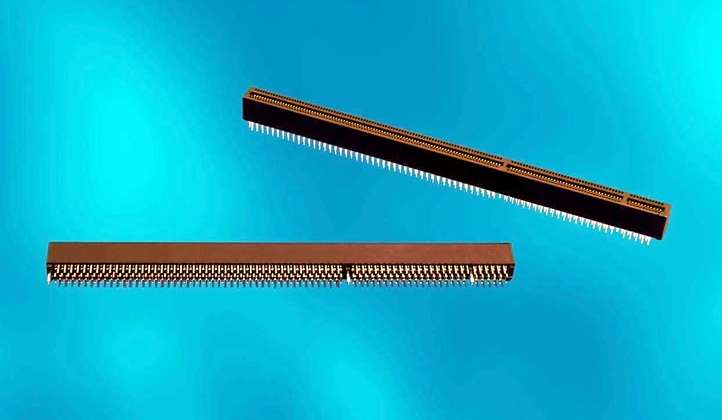

Dec 17, 2004 Card Edge Connectors enable implementation of high-speed serial PCI Express signaling to riser cards in rack-mount servers. Series 10037901 is keyed to accept standard PCI Express x8 add-in card or 280-position riser card that can support PCI, PCI-X, or PCI Express add-in cards. Series 10027747 is keyed to accept 3-slot riser that provides two x8 PCI Express slots supporting x4 links and one PCI-X slot in 2U form factor. Soldertail length allows use on 2.36 mm thick motherboards.

Sheldon Mfg. Inc.    Cornelius, OR 97113 8507
Dec 17, 2004 SHELLAB Incubators features lift-out shaker platform, which accommodates range of flask clamps, test tube racks, and microtiter plate clamps. Counterbalanced weighting system is adjustable to accommodate off-center loads, varying capacities, and stroke lengths of 0.5, 0.75, and 1.0 in. Units perform complete range of shaking executions from gentle to rigorous at 30–400 rpm. Over-temperature protection is provided by independent safety thermostat.

Thermotek Inc.    Carrollton, TX 75007

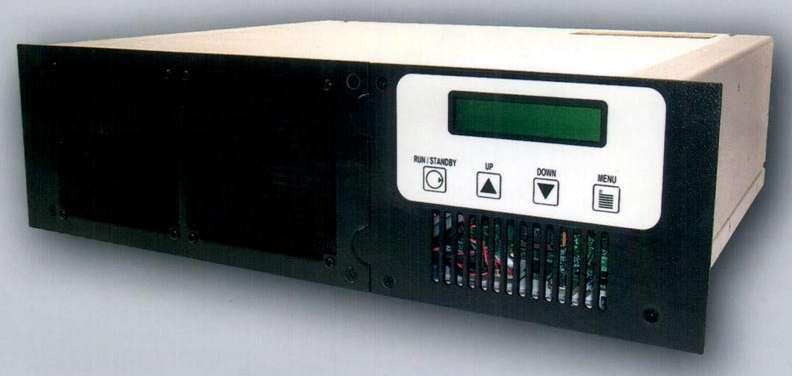

Dec 17, 2004 Offered in 3U package, solid-state Rack Mount Chiller uses proprietary thermoelectric high-cycle technology to cool or heat with liquid or air. Modular unit, scalable to low- and high-wattage, can be mounted inside, underneath, or next to other equipment and does not vibrate. Able to control temperatures within 1/10°, CFC-free product weighs ~48 lb and comes in 2 configurations: 19 x 15 x 5.25 in. and 19 x 22 x 5.25 in.

Unitek Miyachi Corporation    Monrovia, CA 91017 7133
Dec 17, 2004 Suited for applications in automotive, aerospace, and appliance industries, MH series 1201, 1301, 1501, and 1601 heads are designed for benchtop use. Models 1501 and 1601 can optionally be configured for pedestal use, as C frame prevents electrode deflection during weld. All heads utilize ac or dc inverter controls and are available with displacement and force monitoring options.

Norgren    Littleton, CO 80120

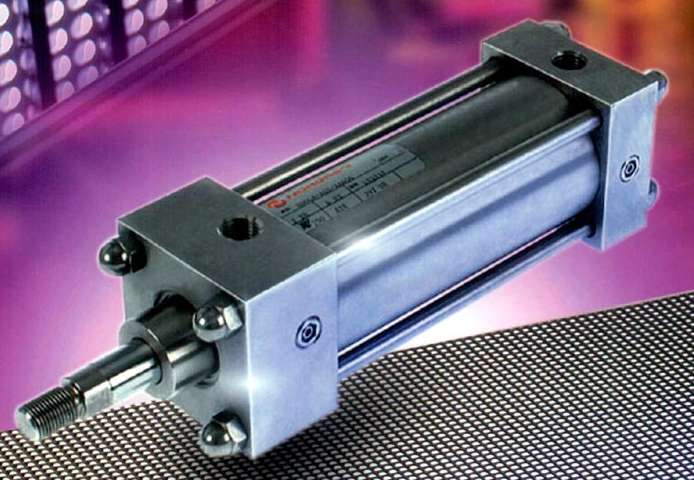

Dec 17, 2004 NFPA stainless steel cylinders are available as double acting, magnetic piston with buffer or adjustable cushioning. Actuators can be specified with bore sizes up to 8 in., and operating temperature range is -40 to +200°F. All internal components come lubricated with Teflon®-based grease. Designed for push and pull applications, cylinders can be operated with filtered compressed air to 250 psi or petroleum based hydraulic fluid to 400 psi.

Alkco Mfg. Co.    Franklin Park, IL 60131 8389
Dec 17, 2004 SoftGlo wall-recessed night-lights provide soft functional illumination at floor level, while presenting unobtrusive design that melds with architectural interiors. Choice of louvered or subtly regressed shields distribute light in no-glare direct/indirect pattern. Units feature 20-gauge galvanized steel housing. Frame and faceplate are stamped or die-cast aluminum or steel. Standard finishes include white, stainless steel, or painted matte aluminum.

d’ac Lighting    Mamaroneck, NY 10543
Dec 17, 2004 Available in suspended pendant and ceiling mount models, Dome Fixture is characterized by 11¾ in. high, dome-shaped, prismatic acrylic globe with polished trim ring along bottom circumference and narrow ringed top cap that serves as ballast compartment. Contemporary, light industrial aesthetic is suited for range of commercial interior applications. Fixture uses incandescent, halogen, triple or quad tube compact fluorescent, or metal halide lamps.

LAM Lighting Systems, Inc.    Santa Ana, CA 92704 6598
Dec 17, 2004 Imperial Collection includes pendant lights, ceiling lights, and ADA-compliant wall sconces. Pendant lights are characterized by broad domed shapes with bold aperture and pendant-rod trims. Wall sconces feature same design, but are turned on side in semi-spherical shape. All are constructed from aluminum and steel components. Illumination is provided by choice of compact linear fluorescent, compact fluorescent, incandescent, or HID sources.

Nessen Lighting, Inc.    Mamaroneck, NY 10543
Dec 17, 2004 Eclipse is characterized by convex, polished-spun, metal reflector, finished in white, with round mirror floating in center. Light is reflected off curved reflector, onto face peering at mirror, providing effect of total solar eclipse. Illumination is provided by 3 medium-base incandescent lamps controlled via wall switch. Eclipse uses all solid brass components with polished or brushed brass, polished or satin chrome, or polished satin nickel finish.

ALLSCAPE    Santa Ana, CA 92704

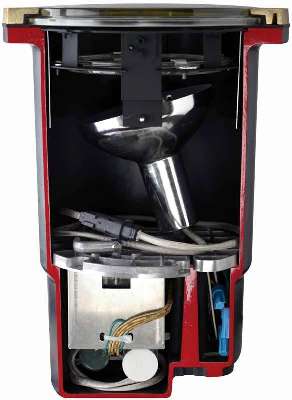

Dec 17, 2004 Dual-lens Model SL-43-HPBB recesses into ground, leaving only heavy-duty, die-cast lens frame and external lens visible at ground level. Internal reflector adjusts through 25° of tilt and 360° rotation, allowing light to be aimed directly onto walls, columns, or signage. Illumination is provided by metal halide, fluorescent, incandescent, or high-pressure sodium sources. Compression-molded Rhinoliteâ„¢ housing offers resistance to UV rays and corrosive elements.

Linear Technology Corp.    Milpitas, CA 95035
Dec 17, 2004 Manufactured in TSSOP-16E thermally enhanced package, LT3434EFE maintains quiescent current under 100 µA and operates within VIN range of 3.3-60 V. Its 3 A internal switch delivers up to 2.75 A continuous output current at voltages down to 1.25 V. Product has oscillator, control, and logic circuitry integrated into one chip; features 200 kHz switching frequency; and is offered in E- and I-grade options with -40 to +125°C temperature range.

Mustang Technologies    Green Bay, WI 54308
Dec 17, 2004 TracReturns is a return material authorization/return merchandise authorization software suited for small manufacturers and distributors. It tracks complete return/RMA process from customer's initial phone call, through receiving and repairing product, to final return of product back to customer.

Midwest Motion Products    Watertown, MN 55388

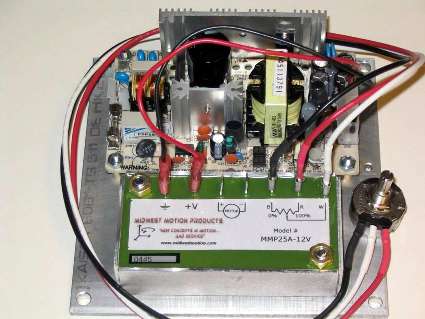

Dec 17, 2004 Suited for 12 Vdc motors and gearmotors, Model MMP.115VAC-12VDC features continuous output of 5 A at 12 Vdc out. DC power supply and control module are packaged in 6 x 6 in. aluminum base plate. Each unit is provided with 10 Kohm speed adjust potentiometer, plus terminals and connectors required to provide ac input to on-board power supply. Chassis has 4 through-holes for mounting, measuring 0.250 in. diameter and spaced 5.5 in. apart, center to center.

Greenheck    Schofield, WI 54476 0410
Dec 17, 2004 Featuring insulated double-wall construction, Model VFC vertical fan coil air handling unit is suited for use in schools, office buildings, and medical facilities. Panels on each side of unit offer access to all internal components, and internal neoprene isolation reduces potential of vibration noise. Equipped with flexible blower connection to housing, unit is available in 7 sizes with capacities from 300–3,500 cfm and up to 3.5 in. wg.

Data I/O Corporation    Redmond, WA 98073-9746
Dec 17, 2004 Flexible, modular ImageWriterâ„¢ enables device programming on any board inside test fixture, helping electronics manufacturers manage production with multiple product configurations for single target board. It is based on open architecture that enables seamless integration with automated test and manufacturing systems and facilitates programming of devices already mounted on circuit board. Product can be controlled directly via ATE signal or from any process control software.

Quail Electronics    Livermore, CA 94550
Dec 17, 2004 Power strips, offered as part numbers 0310.PS6-6 and 0310.PS6-15, compliment green dot hospital grade power cords and are supplied with power cord lengths of 6 and 15 ft., respectively. Each features one NEMA 5-15P plug and 6 NEMA 5-15R receptacles, all rated 15A, 125 V. Products are designed to meet UL and CSA requirements for use in hospitals and medical offices.

Highlites, Inc.    Waterbury, CT 06704
Dec 17, 2004 Highlites' Special Wording Signs provide single and double-sided changeable illuminated signage to clearly mark entrances, exits, restrooms, stairwells, elevators, and other special use areas in commercial, institutional, and industrial environments. Available for wall, ceiling, or end mounting, product lines encompass incandescent, fluorescent, and LED light sources with aluminum, steel, or thermoplastic housing.

NetSupport, Inc.    Alpharetta, GA 30005
Dec 17, 2004 NetSupport DNA Helpdesk v2.0 provides detailed recording and tracking of user help requests. With browser-based interface, software features ability to attach files to tickets, customizable fields, automatic assignment by priority, and time logging against tickets. Status reports such as total calls, status, and average resolution time are available. Software is available as standalone product or as component of NetSupport DNA asset management software.

TDK Semiconductor Corporation    Tustin, CA 92780
Dec 16, 2004 Suited for residential time-of-use and pre-payment metering, Model 71M6511 integrates 21-bit delta-sigma converter with 3 sensor channels, 32-bit compute engine, MCU, RTC, LCD driver, and voltage reference. Device delivers linearity over 2,000:1 current range and under adverse environmental conditions. Requiring single 3.3 V capacitive supply circuit, Model 71M6511 consumes less than 9 mA in mission and 4 µA in battery backup modes.

Snap-on Industrial    Kenosha, WI 53141 1410
Dec 16, 2004 Versa Volt CTLED918 groups 3 LEDs together, multiplying light output. Interchangeable base can be removed and recharged when batteries are low, and with spare battery base, user will always have fully charged battery. Flashlight head swivels 120° to expand number of directional angles possible. Partially pulling 2-position trigger activates unit for short bursts of light, while fully depressing trigger puts light into full-time ON position.
