Stockwell Rubber Co. Inc.    Philadelphia, PA 19136-1512

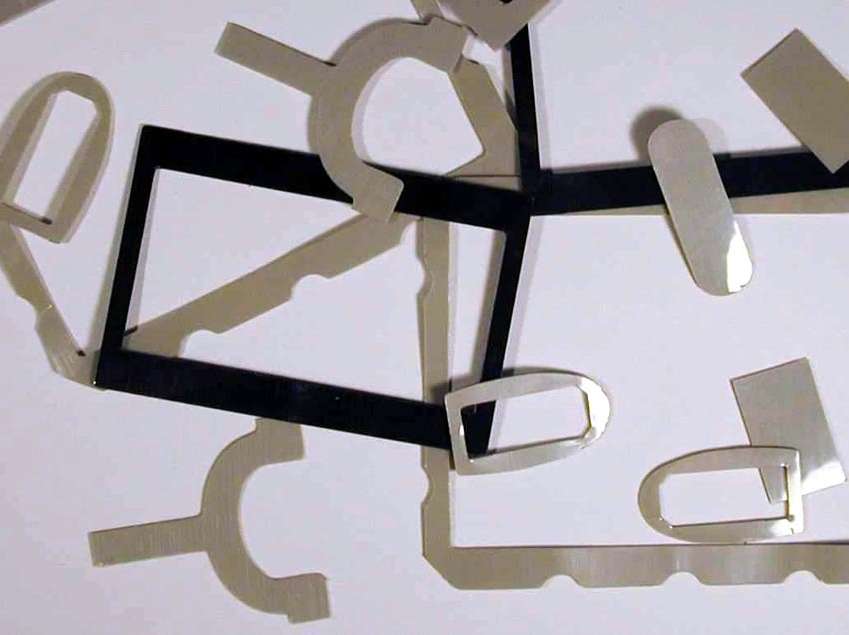

Dec 20, 2004 Flexible silicone rubber adhesive pads, LCD gaskets, and window gaskets are specified for hand-held and portable units requiring low-temperature functionality. Able to maintain consistent bond strength down to -70°F, 30 durometer silicone rubber substrate with silicone polymer adhesive on both sides allows for thermal expansion and contraction of mating plastic components and metal frames. Adhesive composite is available in .025 and .040 in. nominal thicknesses.

Stockwell Rubber Co. Inc.    Philadelphia, PA 19136-1512
Dec 20, 2004 Pads and gaskets made from R10404-M are suited for use in electronic assemblies requiring mechanical shock isolation and thermal conductivity. Particle-filled, closed cell, silicone sponge rubber requires ~25–30% deflection to optimize thermal transfer properties. Flexible and compressible, it withstands -80 to +400°F temperatures and maintains 0.65 W/m-K thermal conductivity. It comes in 6 thicknesses from .032–.250 in. and with TR3 thermally conductive acrylic adhesive.

WIN Enterprises    North Andover, MA 01845
Dec 20, 2004 Rack-mountable 1U Model PL-01022 features Pentium 4 processor and up to 1 Gb DDR RAM. It supports 3 Gigabit Ethernet and two 10/100 LAN, CompactFlash socket, 2 serial ports, and 2 USB ports. Designed to speed time-to-market for software developers and system integrators, Model PL-01022 is available with Linux and Windows CE/XP Embedded. It is suited for networking, Internet appliance, industrial automation, and point-of-service applications.

Wisconsin Infrared Systems    East Troy, WI 53120

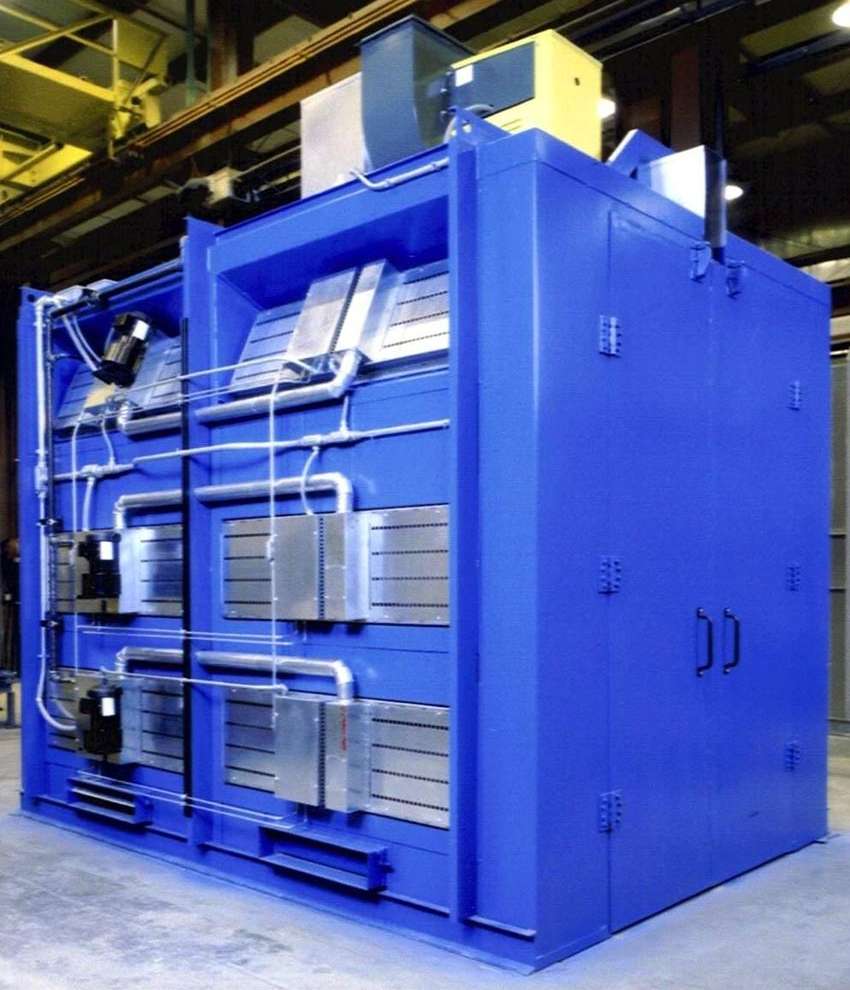

Dec 20, 2004 Rated for 200-600°F, indexing batch oven employs 12 SunCat(TM) Gas Catalytic Medium-Wave burners, each rated at 88,000 BTUH. Able to operate at temperatures to 1,700°F, IR heaters have combustion blower that feeds oxygen to face of heater and acts as source for convective air. Oven features 14 ft x 6 ft x 10 ft 6 in. work chamber, 4 in. thick tongue and groove panel construction, modulating exhaust damper, and multiple zones with selective operation.

Milwaukee Electric Tool Corp.    Brookfield, WI 53005-2550
Dec 20, 2004 Hammers incorporate vibration isolation system and in-line design to reduce worker fatigue. Speed control matches tool speed to the job, while electronic feedback control circuit provides soft-start and maintains tool speed under load. Built with all-metal barrels and gear housings as well as steel gears and components, models include 5337-21, ¾ in. hex demolition hammer; 5340-21, 2 in. spline rotary hammer; 5339-21 SDS-Max demolition hammer; and 5342-21, 2 in. SDS-Max rotary hammer.

TURCK, Inc.    Plymouth, MN 55441
Dec 20, 2004 EZ-Track® R10 rod style, non-contact linear displacement transducers utilize magnetostrictive technology to monitor position of magnet along active stroke of rod without causing wear on sensor parts. Ranging from 13.5–30 Vdc, sensors feature variety of analog outputs including voltage, current, and differential, which can be programmed over active stroke length of sensor. With 16-bit resolution, Model R10 LOT achieves repeatability to 0.001% of full stroke.

OTEK Corp.    Tucson, AZ 85714
Dec 20, 2004 Requiring 5 Vdc at 500 µA, Model 518 features 3.5 digit LCD display and NEMA 3 housing with NEMA 4X optional. Flat Pack design needs only 3/8 in. hole through panel to make wire connections behind panel. Featuring single IC construction, meter offers auto zero, auto polarity, and 1,000 Meg input impedance. It is suited for portable and stationary harsh environment applications.

Alliance Scale Inc.    Canton, MA 02021
Dec 20, 2004 Alliance Truck Scales feature modular Survivor® EZ Steel Deck, which is 3/16 in. plate supported by 12 in. high beams and offering 2–65 deflection factor. Incorporating 4–12 load cells, scales can include range of digital weight indicators and displays. Units are offered in lengths from 10–117 ft and widths of 10–14 ft. Made to withstand harsh weather, they have epoxy primer, hard-coat alkyd enamel finish, and asphalt coating applied to interior and underside.

Proportion-Air, Inc.    McCordsville, IN 46055

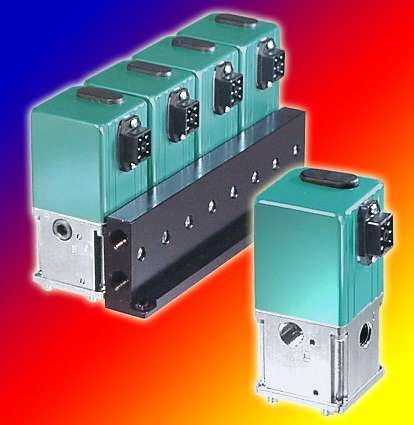

Dec 20, 2004 Up to 4 Model QB3 electronic pressure regulators can be mounted to manifold, which offers common supply and exhaust port with individual controlled outlet ports to minimize plumbing. Model QB3 is capable of controlling pressure or vacuum electronically by accepting command signal of either 0-10 V or 4-20 mA. Pneumatic output is linear to command input.

Viking Pump Inc., A Unit Of IDEX Corp.    Cedar Falls, IA 50613 0008
Dec 20, 2004 Viking Mag Drive® 855 Series internal gear pumps offer adjustable end clearance and are suited for hazardous or hard-to-seal liquids. Thrust-controlled design allows short-term run dry capabilities, and pump construction is designed to facilitate draining, disassembly, repair, and reassembly. Series offers flow rates to 135 gpm, with pressures up to 200 psi, at temperatures from -60 to +500°F.

Schneeberger, Inc.    Bedford, MA 01730

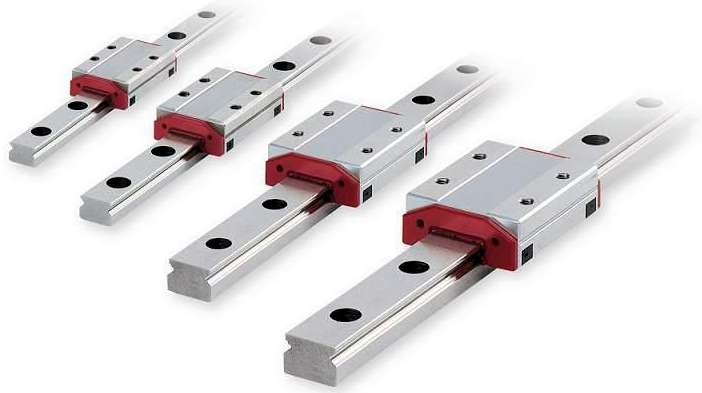

Dec 20, 2004 Made from stainless steel, MINIRAIL 2-row, miniature guideways utilize ball-retainer design and interchangeable carriage with wipers on each end. They are capable of speeds of 5 m/s and accelerations of 300 m/s². Standard models MN 7, MN 9, MN 12, and MN 15 have respective max lengths of 760, 935, 945, and 950 mm. Wide model MN 14 has max length of 740 mm, while wide models MN 18, MN 24, and MN 42 have max length of 950 mm.

SAIA-Burgess USA Inc.    Vernon Hills, IL 60061
Dec 20, 2004 Available with 12 or 24 Vdc input voltage, Push Type Series P-8 offers 10%, 25%, 50%, and continuous duty cycles. Plunger is pulled into solenoid coil when coil is energized. Shaft extension then pushes out through hole in end of mounting bushing. Integrated return spring is provided to send plunger/shaft assembly back to starting position. Suited for office automation and medical devices, solenoids provide max force of 20 oz and max stroke of 0.187 in.

DiagnoSYS    Petersfield GU32 3QH  United Kingdom
Dec 20, 2004 ScanPoint 50 Inline Automated Optical Inspection System detects manufacturing defects such as positional, missing, skewed, misplaced, incorrect device, incorrect polarity, solder, and lead defects. Dual lighting delivers capability of inspecting laser marks on ICs and SOT devices. TestVue32 software imports CAD or pick and place data facilitating creation of board programs. Vu-Point image comparison software enables inspection of low volume assemblies without programming.

Wagner Companies, The    Bulter, WI 53007
Dec 20, 2004 Style D formed handrail brackets offer 1? in. horizontal and vertical clearance to meet code requirements and recommendations of Americans with Disabilities Act Accessibility Guidelines. ADAAG Section Advisory 505.6 states that space between wall and handrail must be 1? in. and that horizontal projections should be 1? inches minimum below bottom of handrail gripping surface. Brackets meet both clearance requirements.

COMSOL Inc.    Burlington, MA 01803
Dec 20, 2004 FEMLAB multiphysics package includes dedicated Heat Transfer Module that provides users with surface-to-surface radiation, non-isothermal flow, and bioheat equation heat analysis capabilities. Add-on module also lets users model multiple physics simultaneously. Accompanying Model Library has over 20 ready-to-run model files that show how to investigate heat transfer types and provides base of examples that can be tailored to application requirements.

Tohnichi America Corp.    Northbrook, IL 60062-2420
Dec 20, 2004 Offered in torque range from 0–600 to 0–3,000 lb-ft, DB Dial Indicating Torque Wrenches have one dial that measures and adjusts torque from both directions. Moveable dial enables torque pointer to be preset to desired torque. QL Click Type Torque Wrenches have audible click that indicates proper application of torque. Fixed ratchet head has 24 teeth, and movement at 15° intervals allows for tightening in confined spaces. Torque ranges from 4–750 to 15–1,500 lb-ft.

COMSOL Inc.    Burlington, MA 01803
Dec 20, 2004 FEMLAB® scientific modeling software uses flexible finite element modeling to investigate geophysical processes that behave in ways in which one or more partial differential equations can predict. Module provides interfaces for fundamental physics tuned explicitly to geologic investigation. Users decide which physics are important in specific problems, module prompts for information and sets up the math, and FEMLAB solves code.

Rayven, Inc.    St. Paul, MN 55104
Dec 20, 2004 Perfect Spool traverse-winded spools are used for all narrow slit products. They handle 3 or 6 in. cores and product width in range of .075–2 in. material. Finished spools can be up to 9 ft wide with OD of 24 in.

Pinpoint Laser Systems    Peabody, MA 01960
Dec 20, 2004 Laser Microgage Kit includes 90-Line laser squaring attachment for checking machine beds, vertical cutting machinery, roll parallelism, and geometric parameters. Laser beam enters 90-Line through port in front and exits out side port at 90° to incoming beam. Internal optics allow operator to place 90-Line anywhere along laser path and establish right angle references. Unit includes locking mechanism for pre-set positions and friction lock to hold beam in place.

CGW, Camel Grinding Wheels, USA    Niles, IL 60714
Dec 20, 2004 Contaminant-free products, made of white aluminum oxide/stainless steel, contain less than .01% of iron, sulfur, and chlorine. Offering includes 4-7 in. flap discs, 4½-7 in. T1 and T27 thin reinforced cut-off wheels, and T27 1/8 and ¼ in. depressed center wheels. Stainless steel, 14 in. chop saw blade and 6-8 in. Premium Grain Bench Wheels are also available. Products are suited for food-grade, nuclear, and stainless steel applications.
