Actel Corp.    Mountain View, CA 94043 4655
Jan 28, 2005 Single-chip, live-at-power-up ProASIC3 and ProASIC3E deliver 64-bit, 66 MHz PCI performance and integrated secure in-system programmability. ProASIC3 offers 30 k to 1 million system gates, 18–108 kbits of true dual-port SRAM, and 81–288 user I/Os, while ProASIC3E provides 600 k to 3 million system gates, 108–504 kbits of true dual-port SRAM, and up to 616 user I/Os. Both feature 1.5 V core voltage and up to 350 MHz external system performance.

Panda Software    Glendale, CA 91204
Jan 28, 2005 In addition to English and Spanish, AdminSecure protection administration console is available in French, German, Simplified Chinese, Italian, Japanese, and Portuguese, facilitating deployment of protection. In companies with networks spread across several countries, administrators in different branches can manage protection without language barriers. Malicious content can be filtered in accordance with local vocabulary with rules set by administrator.

Actel Corp.    Mountain View, CA 94043 4655
Jan 28, 2005 FlashPro3 Device Programmer supports company's flash-based ProASIC3 and ProASIC3E FPGA families. Compatible with high-speed USB 2.0 specification, Kit allows engineers to design and program nonvolatile devices as well as examine secure in-system programmability using AES encryption. Also, by connecting programmer to FPGAs already soldered on board using JTAG 10-pin interface, FlashPro3 may be used for in-system programming of customer boards.

Actel Corp.    Mountain View, CA 94043 4655
Jan 28, 2005 DirectCore and CompanionCore IP Portfolios offer 90 intellectual property cores to support company's ProASIC3 and ProASIC3E device families. Ported cores leverage features of devices, including 66 MHz 64 bit PCI performance, on-chip user flash memory, enhanced I/O and memory, and secure in-system programmability. Applications include telecommunications, consumer multimedia, networking, industrial control, encryption, automotive, military/aerospace, and computing.

Compuware Corp.    Detroit, MI 48226
Jan 28, 2005 OptimalJ v3.3 collaborative development solution builds enterprise grade applications that integrate with broad array of legacy and packaged applications. With detailed analysis capabilities, DevPartner 3.3 helps testing teams build quality assurance into initial phases of development process. Vantage Analyzer for J2EE service management solution helps developers quickly identify and isolate performance and availability problems.

Prosilica Inc.    Burnaby V5J 5E9  Canada
Jan 28, 2005 Targeted toward OEM and analog replacement markets, digital Model EC1280 is capable of 29 full-resolution frames/sec. Backplane provides IEEE-1394 port and 4-pin Hirose connector for external triggering. Available with monochrome or color sensor, miniature plug-and-play unit does not require framegrabber, but communicates with host computer through firewire interface. Camera is DCAM-compliant and can be used with range of machine vision software.

SKF USA, Inc.    Lansdale, PA 19446
Jan 27, 2005 Explorer angular contact ball bearings feature ground transition raceways/shoulders and modified polyamide/brass cage geometry. They are manufactured from steel with low oxygen content to prevent formation of fatigue-causing oxide inclusions in steel. Upgraded balls offer running accuracy to ISO P6 and heat-treating process stabilizes rings at 150ºC for minimal dimensional changes. Sealed and shielded units contain high temperature urea base grease.

Ethertouch    Cranford, NJ 07016

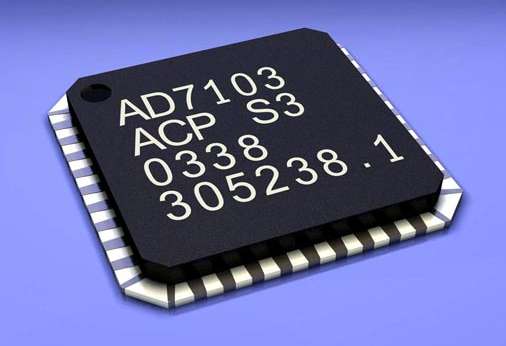

Jan 27, 2005 Designed for sensing presence or absence of motion, Model AD7103 40-pin ASIC achieves 16-bit resolution, which enables measurement down to 4 af/rtHz. Configuration features 3 discreet channels with 4 selectable inputs, allowing for 12 independent inputs. In full operational mode, device typically consumes 8.5 mA from 2.6–5.5V power supply. Single chip capacitive sensor includes onboard oscillator, ADC conversion, and serial peripheral interface.

Phoenix Contact    Harrisburg, PA 17111 0100

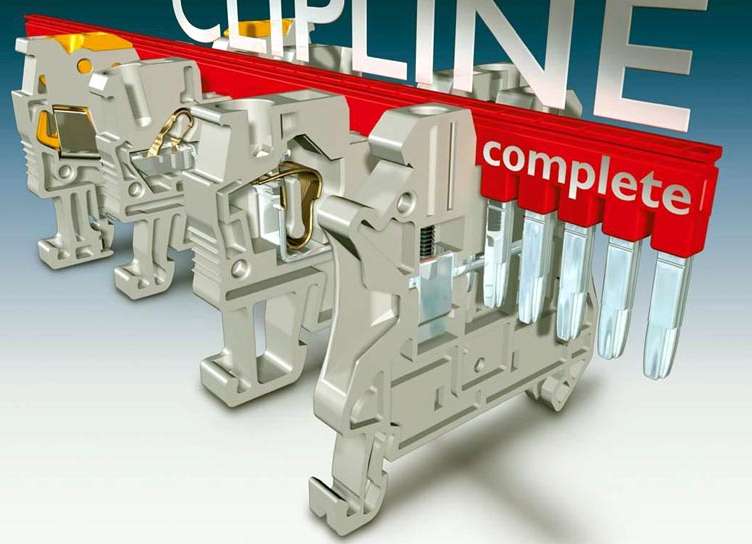

Jan 27, 2005 CLIPLINE Complete terminal blocks are offered with screw clamp, spring-cage, auto-spring, and insulation displacement connectors to provide proper connection in any application. All connection systems work with one another via dual bridge system, which accepts same push-in jumpers and accessories. Flexible bridge system enables chain, step-down, and skip bridging. Product also incorporates modular testing system and standardized labeling system.

Geodetic Systems, Inc.    Melbourne, FL 32901

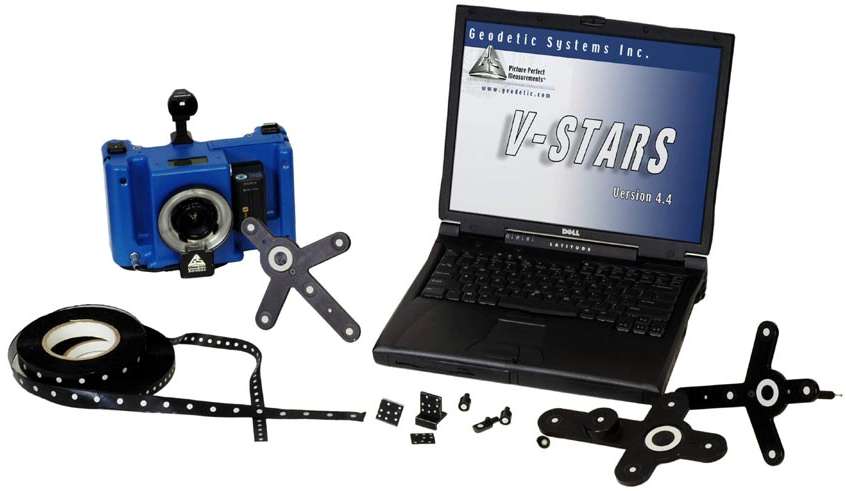

Jan 27, 2005 V-STARS v4.4 enables 3D data collection and analysis with image/point processing, support for multiple coordinate systems, CAD file support, and best-fit capability for point cloud-to-surface model analysis. Software automatically processes collected images and extracts required 3D data, which can then be aligned into object coordinate system, compared to previous measurements, analyzed, or exported. It also offers wireless interface for INCA3 cameras.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Jan 27, 2005 Offered for IBM eServer® pSeries® and RS/6000® families of workstations and servers, IBM 7204 External Disk Drive Model 646 uses LVD interface and magnetoresistive heads. Formatted physical capacity of 146 Gb of data is provided in low voltage differential multi-mode drive. Operating at speeds to 10,000 rpm, drive has average read seek time of 4.7 msec, write time of 5.3 msec, and max media data transfer rate of 100.0 Mb/sec. Average latency is 3.0 msec.

Topper Industrial    Sturtevant, WI 53177
Jan 27, 2005 Radical Tilt Stand pivots at center of gravity using pendulum design, while low-pressure pneumatic cylinder, requiring minimum of 60 psi, performs rotation. Stand is equipped with standard pilot check valves and speed control valve. Controls can be mounted on stand for hand operation or on floor for foot operation. Radical Tilt Stand is used when part is loaded vertically into container, or when part slides out of container horizontally.

Brevini USA, Inc.    Vernon Hills, IL 60061
Jan 27, 2005 Suited for 3–12 ton applications, Series PWD 2100 offers hydraulic version that allows for direct fitting of cartridge axial piston motors, and universal input version that offers external 5 in. diameter brakes with associated backstop device. For line pulls in excess of 12 tons, Series SLW-SCW is based on S Series gearboxes with epicyclic gear design. Both series feature double sealing and optional epoxy paint finishes to withstand rigorous conditions.

Cirronet Inc.    Norcross, GA 30093
Jan 27, 2005 With transmit power of 500 mW and receive sensitivity of 104 dBm, SEM Ethernet Bridges and HopNet Modems utilize omni-directional antennas for 20 plus mile range. SEM Series provides high-speed wireless connectivity between Ethernet devices, while HopNet serial and Modbus modems provide high-speed wireless connectivity between serial devices. Based on 900 MHz FHSS WIT910 radio module, both support multi-point operation and offer over-the-air data rate of 172.6 kilobits/sec.

Linear Technology Corp.    Milpitas, CA 95035

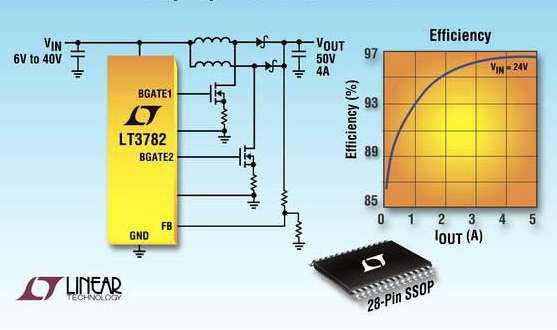

Jan 27, 2005 Using 2 inductors, step-up, 2-phase Model LT3782 can regulate 50 V output at 4 A load current with 96% efficiency from input source of 10-36 V. Unit includes adjustable slope compensation, time delay, and undervoltage lockout, as well as synchronous operation and clock synchronization. Operating from input range of 6-40 V, Model LT3782 uses constant frequency 150-500 kHz current mode architecture, and, with 10 V gate drive, it can drive industrial grade MOSFETs.

Whizlabs Software Pvt Ltd    New Delhi 110058  India
Jan 27, 2005 With content and questions based on latest pattern of actual exam, WebSphere (287) Exam Simulator provides time-simulated environment with 260 questions across 5 mock exams of varying difficulty levels. It also includes one quiz, comprised of 150 questions, and option to choose number of questions, topics, and difficulty level of questions to create customized exam. Tips N Tricks give insight into useful pointers to follow and pitfalls to avoid.

Midwest Motion Products    Watertown, MN 55388

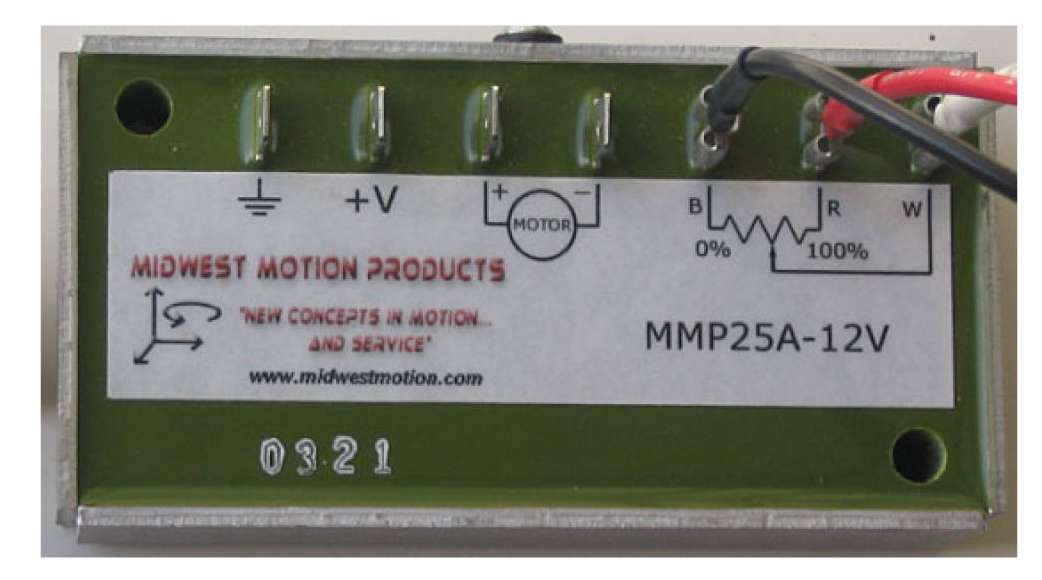

Jan 27, 2005 Operating from 10-20 Vdc, Model MMP25A-12V features INTERNAL 3300 micro farad electrolytic filter capacitor for ac ripple control. Solid state PWM, unidirectional unit is suited for any battery-powered or other dc power sourced applications that require adjustable speed of dc motor or gear motor. Able to deliver 25 A at nominal 12 Vdc, fully encapsulated control provides up to 500 W of output and meets IP65 standard for resistance to elements.

Broadcom Corp.    San Jose, CA 95110
Jan 27, 2005 Internet Protocol phone chip, Model BCM1103 integrates 10/100/1000 Mbps Gigabit Ethernet switch and two 10/100 Mbps Fast Ethernet transceivers. BroadSAFE(TM) technology enables secure transmission of voice packets, while hardware security module performs voice encryption and authentication. Identifier embedded in each chip is virtually impossible to decode, hack, or steal. RISC processor and DSP support PhonexChange(TM) IP telephony software suite.

Shuttle Inc.    Deutschland   Germany
Jan 27, 2005 Model XP17 TempAR 17 in. active-matrix LCD TFT display features 1,280 x 1,024 pixel native resolution. Protected by tempered glass panel with anti-reflective coating, unit offers 500:1 contrast ratio for sharp, crisp images. It is suited for content design professionals and serious gamers.

Likno Software    Athens 11526  Greece
Jan 27, 2005 Likno Web Button Maker v1.0 allows users to design and create endless variety of 3D buttons with different effects, backgrounds, and text options by customizing dimension, text, size, shadow, lighting, texture, and shape. Users can choose from pre-defined shapes and styles offered in program, ranging from plastic to metallic, or import templates and apply custom features and effects to them.
