KOA Speer Electronics Inc.    Bradford, PA 16701

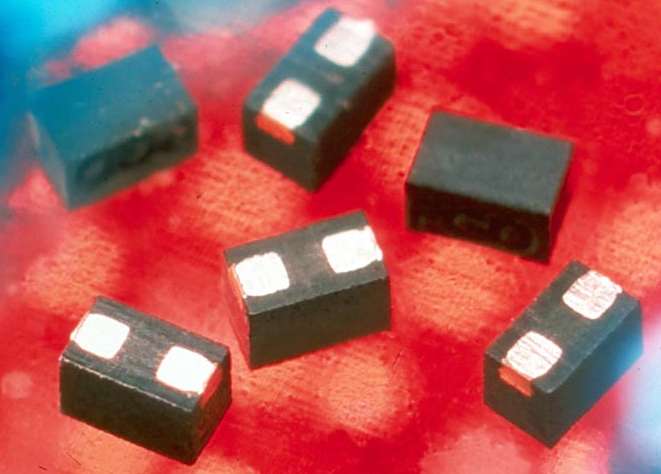

Dec 24, 2004 Available in IE (0402) size, series PGD diode suppresses ESD voltage events in digital circuitry. Miniature, bi-directional PGD1E-0402 ESD Suppressor features 7.0 V diode breakdown voltage, -55 to +125°C temperature range, and 5.0 V operating voltage. Packaged on 7 in. embossed plastic with 5,000 pcs/reel, 100% lead-free product is suited for applications such as portable products, A/V equipment, networking systems, high-speed data lines, and computer components.

Fluid Components Intl.    San Marcos, CA 92069 5115
Dec 24, 2004 Combining non-clogging, thermal dispersion sensing element with microprocessor-based electronics, Series ST75 measures air or gas flows in line sizes from 0.25–2.0 in. Units provide 3 outputs of mass flow rate, totalized flow, and media temperature with accuracy of ±2% of reading and ±0.5% repeatability. Standard outputs, fully scaleable from 4–20 mA and 0–10 V, are user assignable to flow rate and/or temperature and also include 0–1 kHz pulse output of total flow.

Welch Fluorocarbon, Inc.    Dover, NH 03820
Dec 24, 2004 Able to withstand temperatures from -400 to +400°F, lay-flat fluoropolymer bags are chemically inert, non-wettable, and non-contaminating. Impact- and tear-resistant products, unaffected by outdoor elements, come in standard and custom sizes with heat-sealed seams. Manufactured from fluoropolymers such as Teflon® FEP and PFA, Modified PTFE, Tefzel® ETFE, and Tedlar® PVF, products suit applications from agriculture to biomedicine.

Habasit America (formerly Habasit Belting)    Suwanee, GA 30024

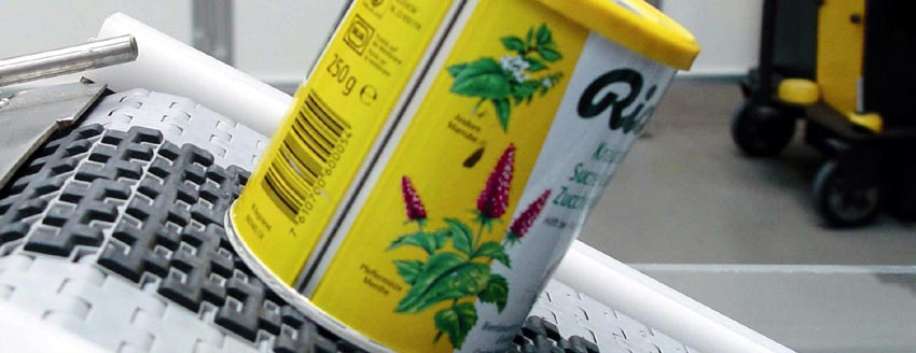

Dec 24, 2004 Used in material handling applications, M1220 GripTop 0.5 in. high-friction HabasitLINK plastic modular belt conveys products up inclines to 25°. Abrasion-resistant polypropylene belt is driven by universal 0.5 in. sprockets and has 0.63 in. nosebar diameter that facilitates tight transfers. Optimized for transport of boxes, crates, and paper-based products where conveyors operate 24 hr/day, product is also available with white food-quality rubber.

Astris Energi Inc.    mississauga L5L1X2  Canada
Dec 24, 2004 Freedom II, powered by Model E7 AFC Generator, runs smoothly and silently and can be refueled in minutes. Generator is fueled by 33 L carbon fiber cylinder of compressed hydrogen and can operate for over 3 days between refills. Emission-free generator contains two 900 W POWERSTACK MC250 alkaline fuel cell stacks and can deliver 20% overload factor for acceleration and hill climbing. With curb weight of 760 lb, car has cruising speed of 17–19 mph.

Phonetics, Inc.    Aston, PA 19014 1522
Dec 24, 2004 Skymetry monitors and controls equipment and environmental conditions at industrial plants and other facilities and offers duplex pump control capabilities. When hazardous environmental conditions occur, system automatically alerts facility managers to take appropriate steps to prevent dangerous event. Access to www.skymetry.com enables managers to remotely monitor input and output status and alarm history as well as control outputs.

Performance Solution Technologies    Seal Beach, CA 90740
Dec 24, 2004 MProWeb v3.0 offers focus, alignment, and performance management tools so user can manage strategic goals and daily tasks, people and projects, daily exchange of information, and meeting management. Browser-based solution connects processes of planning and execution, providing feedback and updates via text and scorecard systems. Synchronizing with MS Outlook, MProWeb offers 1-click visibility into report's tasks, follow-through, to-dos, appointments, and prioritization of activity.

Amtel Security Systems Inc.    Miami, FL 33172 2707
Dec 24, 2004 Added to new or existing Ethernet network with remote download capability, XP/IP universal TCP/IP control panel provides connectivity options for TCP/IP, RS232, RS485, modem, and wireless. It has 2 ports that accept RS232 and Wiegand interface, and comes with 8-bit, 22 MHz processor. With memory for 20,000+ users and 3,000 transaction buffer, panel includes lock status sense circuit, expansion ports, interface for keypad, and optional LCD display.

Oseco, Inc., A Halma Group Co.    Broken Arrow, OK 74012-1449
Dec 23, 2004 For processes that operate under vacuum conditions, rupture disks with vacuum support ensure that disk does not collapse under differential back-pressure and operates correctly. One-piece vacuum support eliminates potential failure sites and has smooth design that reduces accumulation. Rupture disks are suited for agricultural/bulk powder, aerospace, chemical, gas, petroleum, pharmaceutical, and power applications.

GE Company, GE Lighting    Cleveland, OH 44112

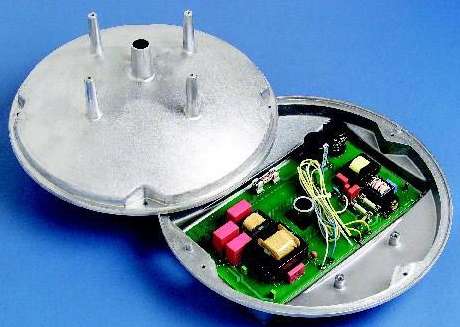

Dec 23, 2004 Suited for commercial and industrial end-users, GE High-Watt 250-400 Electronic HID Ballast features self-contained construction that facilitates thermal management and installation. It operates multiple lamp types from 250–400 W, provides consistent light levels over lamp's life, and eliminates lamp color shift. Ballast provides up to 10% improvement in lamp lumen depreciation when powering quartz metal halide lamps and 5% for ceramic metal halide lamps.

GE Company, GE Lighting    Cleveland, OH 44112
Dec 23, 2004 Open-rated GE 250 W PA SPXX CMH® lamp is designed to replace 400 W metal halide lamps in retail, grocery, and gas/convenience stores as well as industrial environments. Designed for vertical and horizontal burn positions, product produces light output similar to that of 400 W metal halide lamps while consuming 150 W less power.

Photron USA, Inc.    San Diego, CA 92126

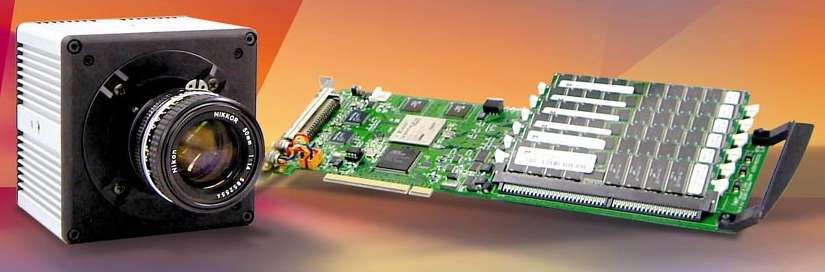

Dec 23, 2004 FASTCAM-X 1024 PCIâ„¢ PC-based video imaging system uses light-sensitive, 10-bit CMOS sensor with 17 micron square pixels. Global electronic shutter operates down to 2 µsec to capture high-speed events without blur. Suited for PC-based imaging from 60–109,500 fps, slow motion imaging system has 20 memory slots, 14 preset resolution patterns, and 33 preset frame rate patterns. Variable aspect ratios are automatically configured to user-selected framing speed.

Haas Automation, Inc.    Oxnard, CA 93030
Dec 23, 2004 Model HRT320FB incorporates Hirth type face gear coupler and 12.6 in. dia platter, which can be positioned in 1° increments with accuracy of ±3 arc-sec and repeatability of ±1 arc-sec. Once positioned, platter provides rigidity and 3,500 lb-ft brake torque necessary to perform heavy off-center milling, tapping, and drilling operations. Brushless servo motor provides indexing speed of 80°/sec and spindle torque of 500 lb-ft.

AMETEK Test & Calibration Instruments    Largo, FL 33773
Dec 23, 2004 Liquid baths ATC140A/B and ATC250A/B are fitted with 6.3 in. deep, 2.5 in. dia well that can be used as dry-block calibrator and liquid calibration bath with magnetic stirrer. They have aluminum outer casings with die-cast tops and bottoms, dual-zone heating block, and independently controlled zones. Function keys let users select switch test or auto-stepping functions, and backlit display provides information on status of unit and calibration.

CW Graphics    Oakland, CA 94619

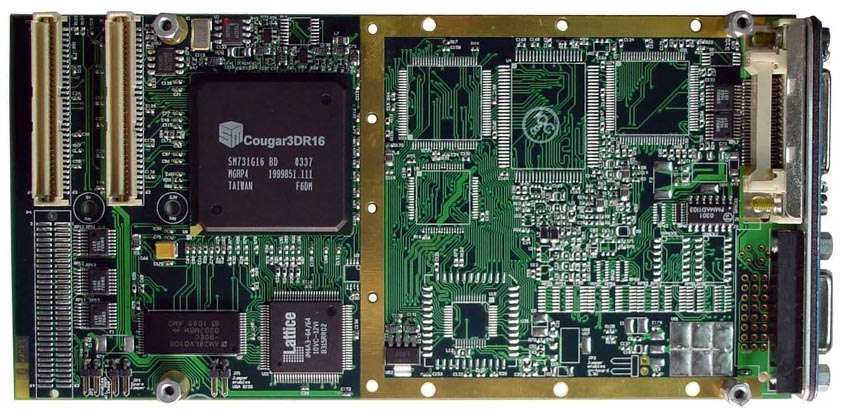

Dec 23, 2004 Designed for VME, CompactPCI, and PCI systems, Topaz/PMC card combines VGA/LVDS/DVI graphics with video, DVI, and RGB digitizers. PMC graphics display controller and video capture card, powered by Silicon Motion’s 128-bit SM731 graphics accelerator, addresses applications with front and rear-panel I/O configurations. It supports screen resolutions to 1,600 x 1,200 and features on-board 33/66 MHz, 32-bit PCI interface and 16 Mb SDRAM.

Baldor Electric Company    Fort Smith, AR 72901
Dec 23, 2004 Model H2 Adjustable Speed Control has graphical display and keypad with multi-line display, selectable text sizes, navigation arrows, and soft programming keys. Diagnostic information is available with error logging and help text features, and point and click operation is available from desktop PC. With horsepower range of 1-60 hp, drive offers volts/hertz inverter, encoderless vector, closed loop vector, or ac servo motor control selections.

Anver Corp. - Anver.Com    Hudson, MA 01749
Dec 23, 2004 EZ-Tilt Adapter bolts onto air-, electric-, and battery-powered vacuum lifters and is self-locking in both vertical and horizontal positions to keep loads from moving. Equipped with handlebar for added leverage, adapter eliminates latches or pinch points. Offset bale attachment is available for further balancing loads. EZ-Tilt Adapter is suited for lifting and tilting stone slabs as well as large 10 x 4 ft sheets of aluminum.

Testing Machines, Inc.    Islandia, NY 11749
Dec 23, 2004 Lab Master® Z-Directional Tensile Tester determines internal bond strength to 113 kg with 4.5 g resolution and ±0.02% FS accuracy. Position is measured and controlled with 0.1 µm resolution and 0.2 µm repeatability. By applying force in Z-direction until ply separation occurs, peak force can be measured. Curves are generated by thousands of data points per test to obtain material’s properties. Tester conforms to TAPPI T 541 and exceeds ISO 7500-1 Class 0.5 requirements.

Contemporary Controls Ltd    Coventry West Midla CV4 7EZ  United Kingdom

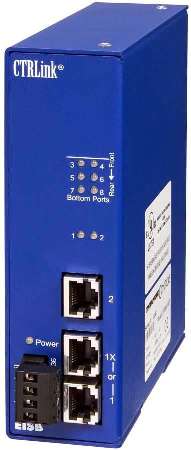

Dec 23, 2004 Series EISB B-Line Industrial Ethernet Unmanaged Switches provide up to 24 ports of connectivity in 1.75 in. of DIN-rail space. Units withstand extreme environmental conditions and temperatures from -40 to +75°C. Series includes several versions ranging from all twisted-pair 8, 16, and 24-port models to mix of twisted-pair and fiber optic models of same port count in aluminum enclosure. Each port has LED showing link, activity, and data rate by color.

Seco-Larm    Irvine, CA 92606-5012

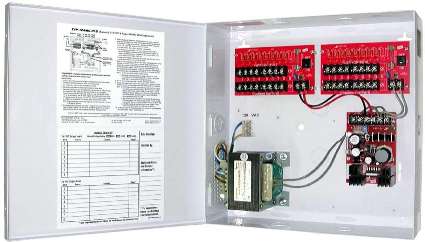

Dec 23, 2004 Providing eight 12 Vdc and eight 24 Vac outputs, ENFORCER EVP-124M6-P16 centralizes power sources for multiple CCTV cameras and/or CCTV accessories. Power input, power transformer, dc converter, and all fused power outputs are housed in 12 x 12 x 3½ in. steel enclosure with ventilation holes and removable cover. All outputs feature red LED status indicators and resettable positive temperature coefficient-type fuses rated for 1.1 A at 250 Vac.
