ITW Switches, An Illinois Tool Works Co.    Harwood Heights, IL 60656 3512
Jan 10, 2005 Suited for PCB mount, Lo-Carb Series 100 miniature right-angle switch is rated up to 800 mA at 30 Vdc. It features momentary or self-lock action, single or double pole, PCB terminals, and non-shorting silver contacts. Full travel is 0.14 in. and travel lock is 0.10 in. Offered with variety of keycap styles and colors, switch is suited for toys, consumer electronics, telecom/datacom, test and measurement, audio, and medical applications.

MadgeTech    Warner, NH 03278
Jan 10, 2005 Measuring 2¼ in. long x 5/8 in. dia, MicroTemp Temperature Recorder can be put into shipments in wet or harsh environments and provide instant accept or reject capability. Waterproof unit is made of 316L stainless steel and features green and red LEDs as well as programmable alarm limits that can be set for specific temperature range over time. Reading rates vary from 1 every 2 sec to 1 every 12 hr. All data is date stamped and NIST traceable.

Owens Design, Inc.    Fremont, CA 94538
Jan 10, 2005 Heating/Cooling Module is BOLTS compatible for integration with standard wafer handling automation. It uses resistive heating elements to achieve better than 450°C heating in less than 15 sec. After processing, module rapidly cools wafer to allow safe return to FOUP. Backside particle and metals contamination is minimized through low contact wafer chuck.

Triple E Corp.    Lowell, MA 01852
Jan 10, 2005 Featuring solid aluminum construction, D+1600 Series incorporates stainless steel inject/eject plate that provides up to 104 lb insertion force and withstands unlimited board injection/ejection cycles. Extruded aluminum card guide system maximizes cooling airflow and will not flex or break. Models D+1605 and D+1607 accommodate up to 5 or 7 horizontal mount, 6U, 4HP boards respectively and include ball bearing fans, auto-ranging power supply, and VME64X or cPCI backplane.

Brady Corp.    Milwaukee, WI 53201 2131
Jan 10, 2005 NetDoc provides users with web-enabled solution for managing cabling, network, telephony, and legacy connections. It provides complete ANSI/TIA/EIA 606A compliance for documentation of horizontal and backbone cables, hardware, assets, pathways, locations, and users. Helping users identify, locate, and fix problems within physical network, software incorporates MS Excel import tool and integrates seamlessly with LabelMark label design software.

Watlow    St. Louis, MO 63146
Jan 10, 2005 Available in materials such as stainless steel, nickel, Inconel®, aluminum, copper, and bronze, IFC (Interference Fit Construction) heated parts can customized into various shapes and sizes to meet end-user requirements. With FEA (Finite Element Analysis) or iterative prototyping process, heated parts can achieve thermal transfer and temperature uniformity equaling ±1%. All heated part joints can be welded to ensure vacuum-tight seal.

Spiroflow Systems, Inc.    Monroe, NC 28110
Jan 10, 2005 Available in carbon steel, stainless steel, and USDA/3A Dairy model, Type 5 Bulk Bag Discharger utilizes removable frame design that minimizes necessary height for forklift tines, and allows operator to load bag and frame at lower half of discharger. Upper frame uses sealing mechanism that ensures no product loss during discharge, while locking system facilitates access to bag spout through large viewing porthole.

Tri-Lite, Inc.    Chicago, IL 60622
Jan 10, 2005 Series FLDL combines dual-arm dock light with rubber-encased shock absorber, which allows arm to deflect and rebound from blow, minimizing likelihood of damage to lamp head. Lamp head options include polycarbonate, which is cool to touch; traditional metal; and energy-efficient, high-pressure sodium. Available in 40, 60, or 90 in. arm lengths, lights are suited for warehouse loading docks, rail car platforms, and cargo container facilities.

IMAJE USA    Kennesaw, GA 30144 7000
Jan 10, 2005 Featuring modular design, Series 2000 System can be changed between 4 and 6 in. print head configuration, 200 and 300 dpi print resolution, thermal transfer and direct thermal printing, and blow, tamp, and wipe applicators. It includes built-in keypad and display, as well as machine status indication. High-speed interfaces facilitate download of information to print. Additional features include Ethernet 10/100, wireless option, and IP addressing.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143

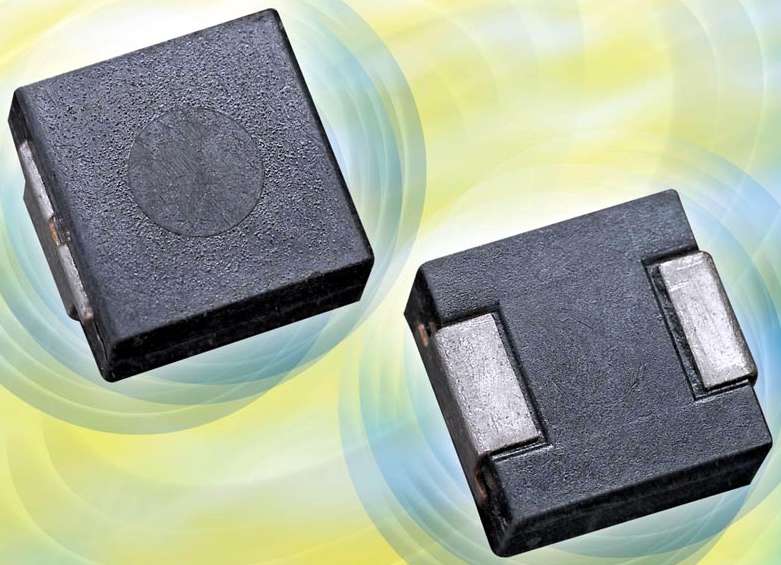

Jan 10, 2005 Featuring 100% lead-free composite construction, IHLM-2525CZ-01 series is supplied in 0.255 x 0.270 x 0.118 in. package. Molded construction allows for protection against electrical shock and is resistant to moisture, salt, and chemicals. Operating over frequency range up to 5 MHz, series is specified for saturation currents from 7–60 A and for typ DCR values up to 102 milliohms. It suits voltage regulator module and dc-to-dc converter applications.

Interpower Corporation    Oskaloosa, IA 52577-0115

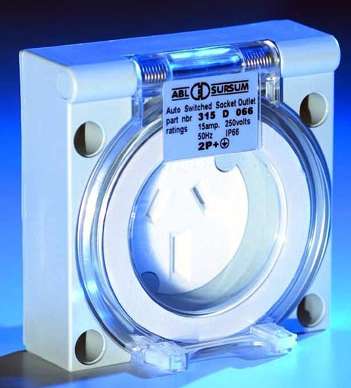

Jan 10, 2005 Constructed to prevent ingress of dust and splashing water, Interpower™ Australian enclosure outlets have snap lid cover with seal and threaded plug connection. Lid can be locked in open position, and outlets are configured in 10, 15, and 20 A, AS/NSZ 3112 pattern. Products are used for connection to equipment rated from 10–20 A with service at 250 Vac. Applications include equipment designed for industry or factory locations with dust/moisture issues.

Nordson Corp., Packaging Systems    Duluth, GA 30097
Jan 10, 2005 ClassicBlue hot melt dispensing guns and modules feature EasyOnâ„¢ technology, with guided, one-way fit. Fully rebuildable products have integral heater, inspection port, and side cover. Featuring air-open/spring-closed actuation, guns and modules come in ClassicBlue standard ball and seat design, ClassicBlue RC reduced cavity needle and seat design, and ClassicBlue ZC style with zero cavity needle and nozzle.

IOtech, Inc.    Bedford Heights, OH 44146-1833

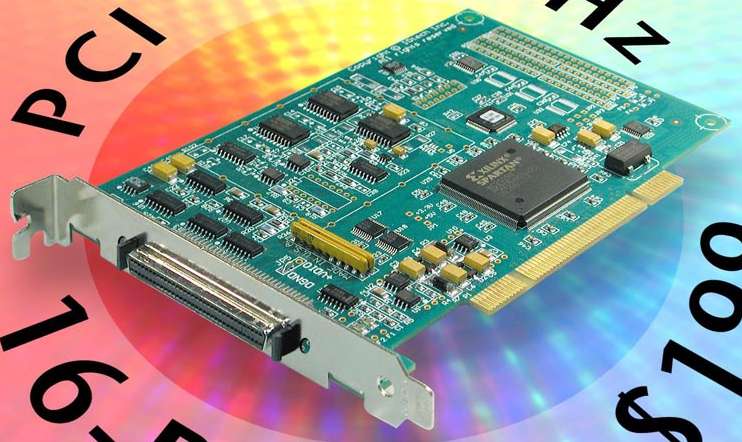

Jan 10, 2005 DaqBoard/500(TM) series includes 2 models, each with 200 kHz ADC, one counter input, 2 timer outputs, and DMA bus mastering. DaqBoard/505(TM) offers 16 channels of 16-bit analog inputs, 24 digital I/O lines, and one counter input, while DaqBoard/500(TM) also provides two 16-bit analog outputs with 100-kHz waveform capability. Featuring 100% digital calibration, up to 4 DaqBoards per PC result in channel expansion of up to 64 analog input channels and 96 digital I/O signals.

Sensors Unlimited, Inc. (SUI)    Princeton, NJ 08540

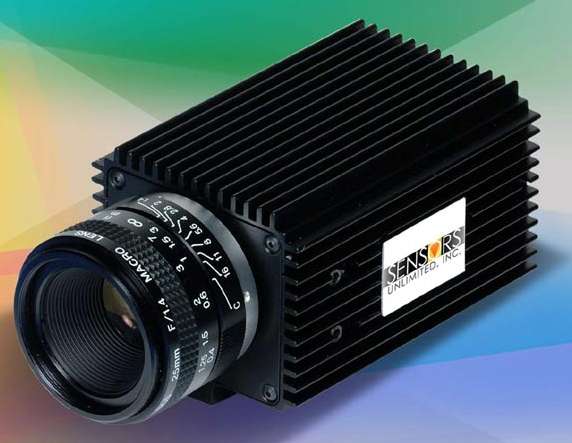

Jan 10, 2005 Windowed Snapshot MiniCamera features full frame imaging with region of interest (ROI) windowing capabilities. Ranging in size from 200 x 200 to 16 x 16 pixels, 4 preset ROI windows are available in addition to user-selectable windows. Camera can also be controlled by serial commands and has 320 x 256 resolution on 25 micron pitch. It can operate in daylight or room lit conditions, and full frame imaging is simultaneously delivered via composite video and 12-bit digital RS-422.

Carlo GAVAZZI Automation Components    Buffalo Grove, IL 60089

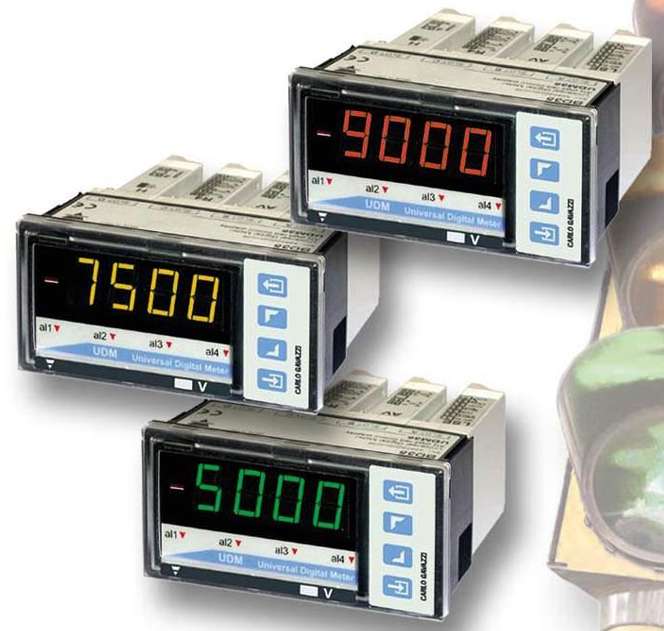

Jan 10, 2005 Measuring 48 x 96 mm, UDM Series is comprised of TRMS modular instruments in 3.5-digit (UMD35) and 4-digit (UMD40) versions with scaling and filtering capabilities. Plug and play modules enable series to measure up to 5 A/500 V ac/dc, 20 Kohm, RTD, and thermocouple input. Features include cold junction compensation, excitation output, and time integration. Variable control and retransmission is performed via 4 alarm setpoints, scalable analog output, and/or RS232/485 serial port.

Banner Engineering Corp.    Minneapolis, MN 55441
Jan 10, 2005 Offered in 18 mm threaded-barrel mount or side-hole mount, WORLD-BEAM® QS18 Glass Fiber Optic Sensors are suited for confined locations or for piping fiber into wet, abrasive, corrosive, or high-temperature environments up to 480°C. Units work with thousands of glass fiber options.

Thermo Electron Corporation / Molecular Spectroscopy    Madison, WI 53711-4495
Jan 10, 2005 Through plug-and-play sampling, Nicoletâ„¢ 380 routine analysis FT-IR spectrometer identifies, quantifies, and verifies samples. Dynamically aligned interferometer ensures reproducible results, while integrated scan buttons on spectrometer benchtop facilitate operation of common FT-IR functions. Users can achieve wavelength precision of better than 0.01 cm^-1, and integral electronics include 24-bit ADC and USB 2.0 interface.

Weldcraft    Appleton, WI 54911

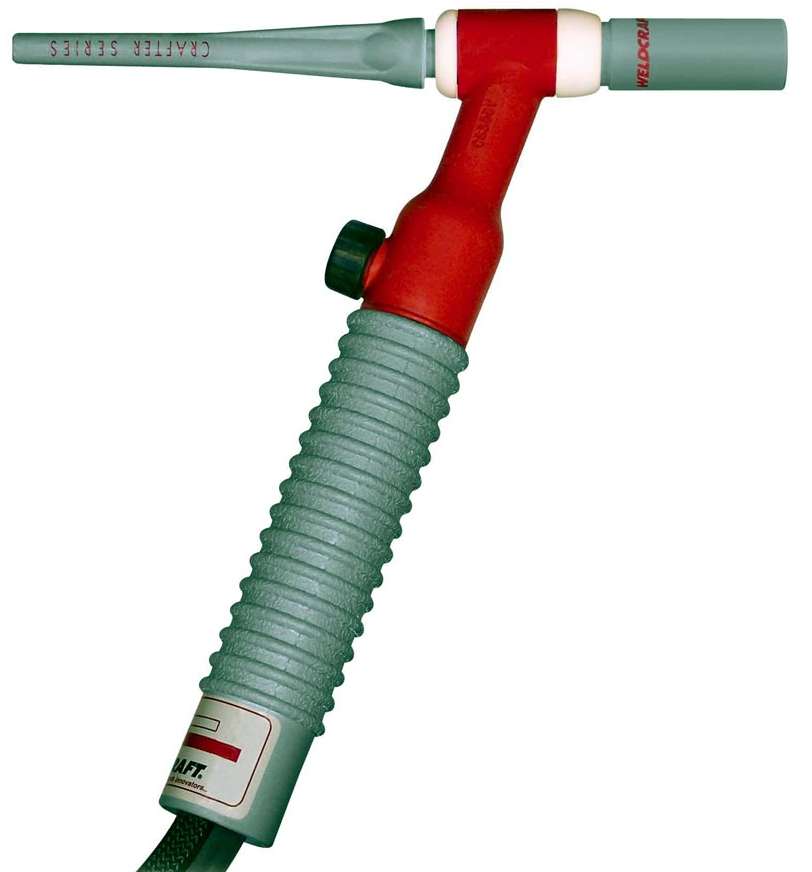

Jan 10, 2005 Crafter Series(TM) models CS300 and CS300V combine heat dam and speed channel technology to offer 60% duty cycle at 300 A. Portable units have gas valve on handle of torch that allows user to manually control gas flow without gas solenoid in power supply. Torches come weld-ready with all front-end parts needed for TIG applications and are available with 12.5 and 25 ft cable lengths.

Para Light Corp.    Walnut, CA 91789

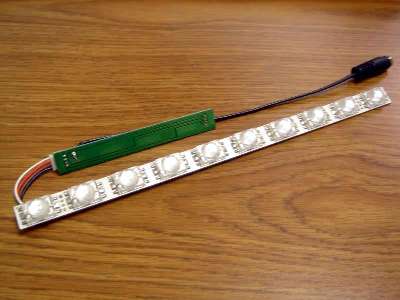

Jan 10, 2005 Suited for decorative and emergency lighting applications, Model LS07G5 is made up of individual 35 mA LEDs deploying RGB technology. IC controller allows adjustability and enables thousands of different color combinations. Standard unit includes 10 E-power LEDs on strip measuring 10 in. long. Operating in temperature range of -20 to +80°C, Model LS07G5 offers viewing angle of 100°, total flux of 20 lumens, and input of 5 V.

ID Technology Corp.    Fort Worth, TX 76106
Jan 10, 2005 Suited for installation in complicated production lines and environments, MACSA Series F-1000 Laser Systems incorporate compact design and adjustable marking head. Systems clearly and permanently mark labels, cardboard, PET, glass, and wood. Software enables users to link multiple F-1000 systems for increased control and production.
