Gateway    Irvine, CA 92618
Jan 18, 2005 Entry-level eMachines T3624 comes with 60 GB hard drive and 2.66 GHz Intel® Celeron® D 330 processor. Utilizing 2.80 GHz Intel Celeron D 335 processor, T3828 incorporates 80 Gb hard drive and has 256 Mb DDR SDRAM. Equipped with 16X DVD+/-RW multi-format drive, T3958 is powered by 2.93 GHz Intel Celeron D 340 processor and has 80 Gb hard drive. Featuring 160 Gb Serial ATA 7,200 rpm hard drive, T5026 has 512 Mb dual channel memory and 3.06 GHz Intel Pentium IV 519 processor.

Advanced Power Technology    Bend, OR 97702
Jan 18, 2005 Series DQ features extremely soft recovery, minimizing EMI, which eliminates need for snubbers. Thermally stable units are rated to 175°C maximum junction temperature with low leakage, low switching losses, and low static losses. Avalanche energy rated FREDs are suited for switch mode power supplies, UPS, motor drives, and welders. They can be used as snubber diodes, hard-switched PFC boost diodes, and free-wheeling diodes.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Jan 18, 2005 BCcomponents 2322 673 xxxxx twin vertical SMD PTC devices integrate 2 positive temperature coefficient (PTC) thermistors into one package. They are constructed from ceramic disc, reflow soldered to lead-frame, which results in flat pick-up area of 30 mm² to facilitate automated assembly. Components are available in variants with max trip times from 1.2–4.0 sec and max current ratings from 2.5–4.0 A. All devices function across -40 to +85°C temperature range.

Ophir Optronics, Inc.    Danvers, MA 01923
Jan 18, 2005 BeamStar FX Beam Profiler CCD Camera is available with variable attenuator option that provides control over 4 orders of magnitude from 350–1,100 nm wavelengths. Attenuation is variable from microwatts to watts. Beam splitters include UV grade fused silica wedge beam splitter that fits onto camera and another splitter that stands alone on adjustable stand. Latter allows camera operation up to 2 W, while former allows operation up to 40 W.

Brooks Automation Inc.    Chelmsford, MA 01824
Jan 18, 2005 Lean Manufacturing Solution gives A&D manufacturers real-time information and tools to streamline operations and reduce inventories. Solution links disparate information systems such as MES, enterprise resource planning, and product lifecycle management with actionable data from manufacturing operations and the supply/demand chain. Manufacturers can capture/define decision-making rules and automate corrective actions to improve performance metrics.

duMONT Co., LLC., The    Greenfield, MA 01302
Jan 18, 2005 Designed for BeamStar FX Beam Profiler CCD cameras, variable attenuator option provides control over 4 orders of magnitude between 350–1100 nm wavelengths and suits pulsed lasers. BeamStar FX series beam splitters include UV grade fused silica wedge beam splitter that fits onto camera and another splitter that stands alone on its own adjustable stand. Each splitter reduces laser beam intensity by approximately 20 times.

Royal Diversified Products    Warren, RI 02885

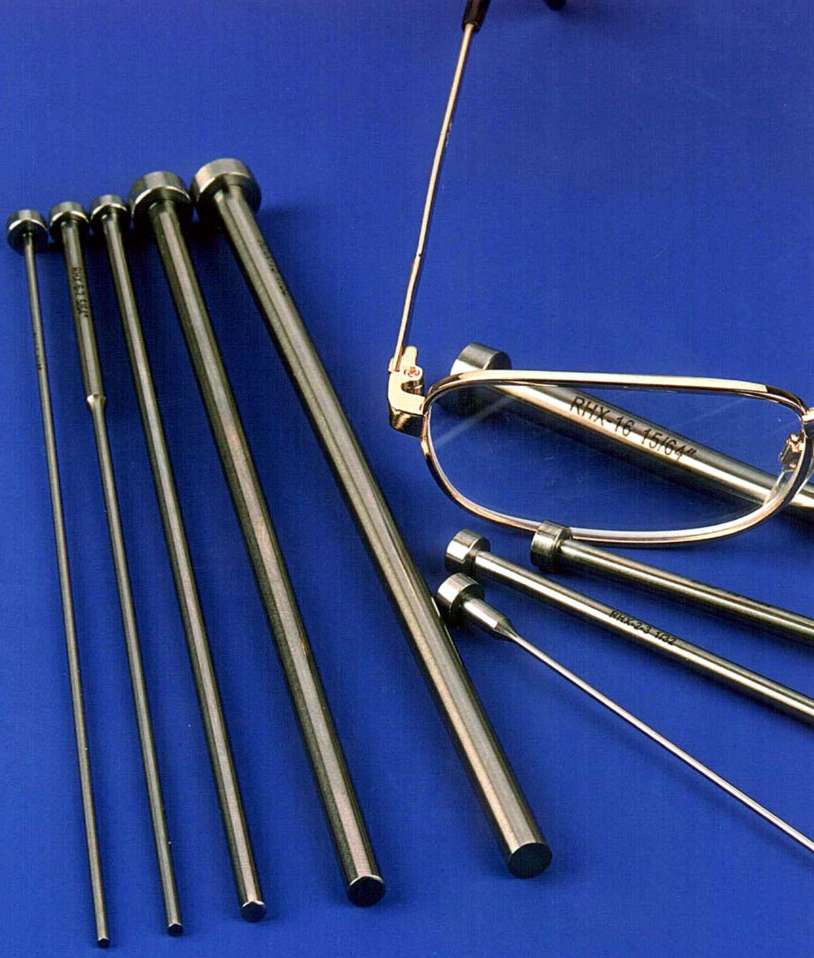

Jan 17, 2005 Constructed from hotwork die steel, RHX Hard-Coreâ„¢ Series H-13 Ejector Pins are hardened throughout to 50–55 RC and have surface that is ion nitrided to 65–74 Rc. Products, marked for identification, come in 1/32–½ in. dia and 6, 10, and 14 in. lengths as well as +.005 in. oversize and ½, 2, 3, and 4 in. shoulder lengths. Diameter tolerances can be held to .0003 in., and pins eliminate flaking, cracking, and dishing. They are thermal resistant to 1,100°F.

Hayward Industrial Products Inc., Hayward Flow Control Systems    Clemmons, NC 27012
Jan 17, 2005 Plastic, lateral, 3-way ball valves replace conventional valve/tee connection combinations as well as zero dead-leg valves in piping system layouts. Available in sizes from ½â€“6 in., products can be made of PVC or CPVC with choice of FPM or EPDM seals. Integral ball permits flow to be diverted from center port to left or right ports without shutoff position. Valves feature one-piece molded body and true union design that permits removal from piping system.

Delaire USA, Inc.    Manasquan, NJ 08736
Jan 17, 2005 RF Solid State Switch Modules provide low-loss, high-speed switching capability for analog and digital applications. Bandwidth extends from dc–1,000 MHz and can be designed over specific range or over maximum range, depending on switch module selected. DB-9 or DB-15 connector is used to supply power as well as switch control signals depending on size of switch element. Applications include RF signal switching for in service and test equipment.

CyberResearch, Inc.    Branford, CT 06405 2932
Jan 17, 2005 Designed for in-field use, LPA 617 ATX PC workstation has impact-resistant ABS chassis supported by aluminum framework. It supports CPU speeds to 3.2 GHz and includes floppy drive, 40 Gb hard drive, CD-ROM drive, and two 5.25 in. bays. Most models have 5 PCI slots, and one combines 3 ISA with 4 PCI expansion slots. Pentium® 4 models have 460 W power supply, while Celeron® and Athlon® models have 400 W power supply. All models include 256 Mb RAM and Windows® XP.

Highlites, Inc.    Waterbury, CT 06704

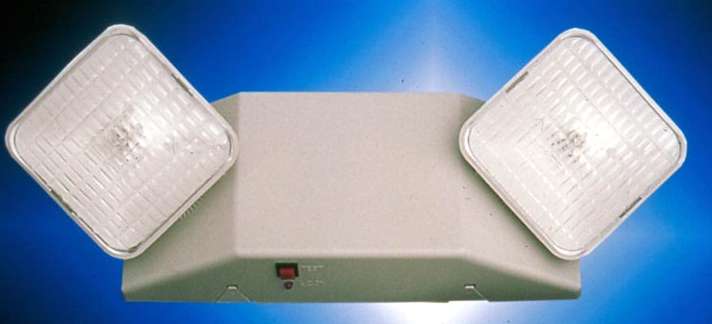

Jan 17, 2005 Series HL provides multi-directional emergency lighting for commercial, institutional, and industrial interiors. Self-contained, fully automatic, wall units provide adjustable or fixed lens, glareless light distribution when line voltage is interrupted. Internal solid-state transfer switch automatically connects battery to dual lamp heads if utility power fails. Upon restoration of normal power, battery disconnects from load and becomes fully recharged within 12 hr.

Lee Industries, Inc.    Philipsburg, PA 16866
Jan 17, 2005 Vacuum Pans are used for products such as jams, jellies, candies, and other concentrations. Efficient evaporating can be accomplished by lowering boiling point to prevent damage to end product that would normally occur when boiling at atmospheric temperatures. Pans can be custom-designed to meet product requirements with features such as scrape-surface agitation, internal booster coils, and properly sized pre-condensers and pumps.

QC Industries    Batavia, OH 45103

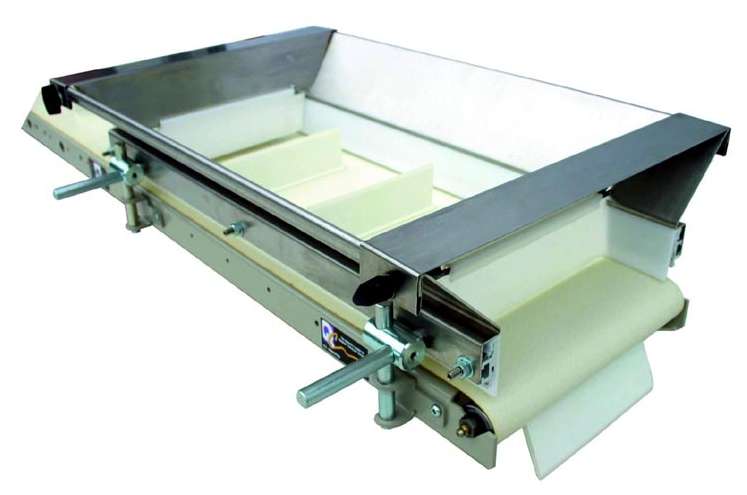

Jan 17, 2005 Adjustable hopper, created by using flared side rails with 2 end stops, is designed with stainless steel finish. Used as stand-alone accessory or with end stops, flared side rails attach to conveyor with adjustable guide rails and come in 12–48 in. lengths for applications that require drop zone wider than conveyor width. End stops, compatible with 1 and 2 in. cleats, facilitate control in directing product flow. Swing gate helps contain product.

Interroll Corp.    Wilmington, NC 28405
Jan 17, 2005 Available in varying lengths, Modular Series 1700 features shock-absorbing, noise-reducing plastic housing with load capacity up to 360 lb, depending on materials and sizes. When produced with precision bearings, it can handle speeds to 400 fpm. Tube is offered in galvanized, mill finish, PVC, and stainless steel options. Shaft comes in variety of materials and configurations, including Taperhex, which is self-adjusting and suited for replacement purposes.

ipd, the intelligent products division of Coreco Imaging, Inc.    Billerica, MA 01821
Jan 17, 2005 Designed for applications that require line or area scan digital cameras, NetSight II DCL allows users to match image of choice to inspection needs. It provides asynchronous acquisition of images from up to 2 Camera Link cameras and 1 FireWire camera using IEEE 1394 port. System is equipped with 256 Mb program memory, 20 Gb storage memory, programmable digital I/O, and built-in Ethernet connectivity. NetSight II DCL uses Sherlockâ„¢ vision software as its interface.

ANCA Pty Ltd    Bayswater North, Victoria 3153  Australia
Jan 17, 2005 Capable of grinding round, eccentric, and step punches up to 6 in., PGX produces optimal grinding results for HSS and carbide punches. Unit is equipped with 30 in. grinding wheel, directly programmable via CNC from 200–3,000 rpm. PunchCam software allows for programming of generic and complex shapes. System also employs digital servo drives, cast iron work head, and automatic wheel balancer. All axes and grinding spindle are direct-driven.

SSI Shredding Systems, Inc.    Wilsonville, OR 97070 9286
Jan 17, 2005 Measuring 9 ft long, single-shaft PRI-MAX™ PR-590SD is suited for on-site processing of waste material from 5–20 tons/hr. It features variable speed drive, bi-directional shaft rotation, open-grate cutting table, and shockload protection, which guards against overfeeding and damage by non-shreddables. Model PR-590SD is suited for items such as railroad ties, dimensional lumber, and paper cores. Large process area minimizes bridging of large, flat objects like plywood.

Meissner Filtration Products, Inc.    Camarillo, CA 93012 8760
Jan 17, 2005 Rated 0.5 µm, Protecâ„¢ RF0.5 borosilicate glass fiber prefilter removes colloids, aggregated and non-product proteins, lipids, and particles to protect membrane filters downstream. It is cleanroom manufactured and offers high contaminant holding capacity.

Electro Static Technology    Mechanic Falls, ME 04256

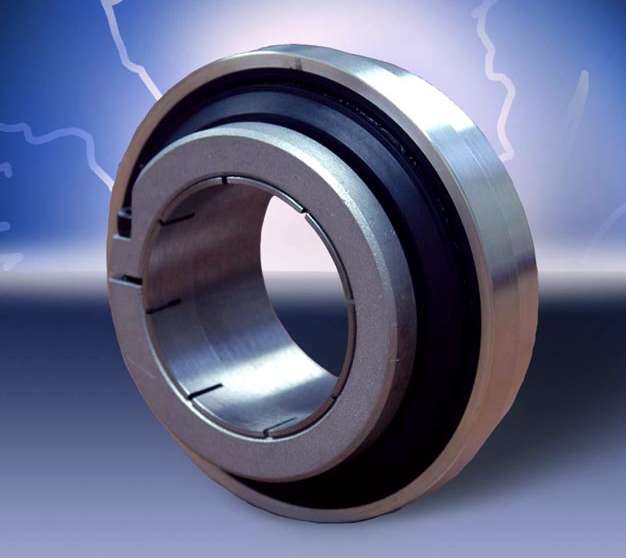

Jan 17, 2005 Aegisâ„¢ Shaft Grounding Coupling prevents electrical damage to bearings of AC motors with variable frequency drives by safely passing harmful shaft current to ground. With Electron Transport Technologyâ„¢, coupling provides virtual short between shaft and motor frame that keeps shaft current and voltage from building up. It provides cleanroom-quality bearing isolation with dust-proof seal that also protects against water spray.

Brookfield Engineering Laboratories, Inc.    Middleboro, MA 02346

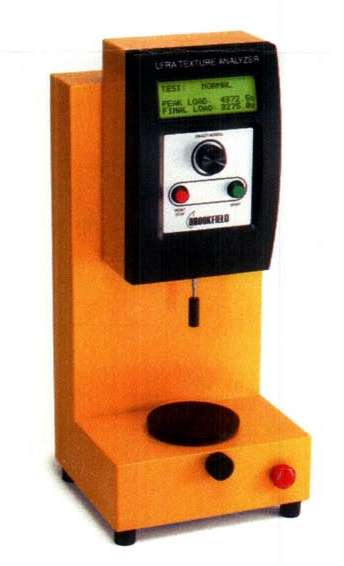

Jan 17, 2005 Model LFRA features automated Bloom Gel Test function, which facilitates analysis for verification of established gelatin specifications. Texture profile analysis using Excel-based software enables lab technician to generate analytical data. Industrial applications include pharmaceuticals, personal care products, rubber, wax, sponges, paint, caulking, and adhesives. Food applications include butter and cheese products, sauces, and baked goods.
