Chelsio Communications    Sunnyvale, CA 94085
Feb 10, 2005 Model T210 Protocol Engine is a 10 Gb Ethernet adapter with full TCP/IP Offload and iSCSI acceleration. Model N210 is a 10 Gb Ethernet adapter with turn-key software drivers for all major operating systems. Four-port Gigabit Ethernet protocol engine, Model T204 is targeted for storage applications that may not yet require 10 Gb performance.

STMicroelectronics    Lexington, MA 02421
Feb 10, 2005 With maximum junction temperature of 175°F, Models STPS1150, STPS2150, and STPS3150 are 150 V Schottky diodes that handle continuous forward currents up to 1, 2, and 3 A, respectively. Negligible reverse recovery charge means near-zero switching losses. Available in surface-mount and axial-lead packages, units minimize voltage transients and oscillations during fast switching, and are suited for secondary rectification of fly-back power supplies.

Brocade Communication Systems    San Jose, CA 95131
Feb 10, 2005 EMC® Connectrixâ„¢ DS-4100B SAN switch solution provides ports-on-demand scalability. Base 16-port configuration can be non-disruptively scaled to 24 and 32 ports. Based on SilkWorm 4100, switch features redundant and hot-swappable power supplies and fans, hot-swappable SFP media, hot code loading and activation, and extensive enterprise-level security. Each port is auto-sensing for data link speeds of 1, 2, or 4 Gbit/sec, offering full forward and backward compatibility.

HED, Inc.    Hartford, WI 53027
Feb 10, 2005 CL-407 module, configurable as slave module in CAN system, has 4 A available on outputs and 60 mA 5 Vdc regulated supply for providing power to external input devices. Features include 2 switch-to-battery or 8-bit analog inputs, three 0–5 Vdc 12-bit analog inputs, and 7 PWM or digital 4 A sourcing outputs. Module is housed in aluminum extrusion NEMA 4 case with Deutsch DT connectors.

Rohrback Cosasco Systems    Santa Fe Springs, CA 90670
Feb 10, 2005 Quicksand(TM) Erosion Detection System is effective when sand production cannot be eliminated. High sensitivity Quicksand(TM) probe and transmitter, based on Microcor® Technology, provide high sensitivity, rapid response, and extended probe life. System is typically installed as on-line system, but is also available with datalogger option.

PFU Systems, Inc.    Santa Clara, CA 95051-3501
Feb 10, 2005 Based on COM Express standard, Plug-N-Run(TM) G4 Modules offer choice of CPUs and include on-board 2D/3D graphics, one x16 PCI Express Graphics expansion link at 40 Gbit/sec, four x1 PCI Express links for aggregate throughput of 10 Gbit/sec, and dual SerialATA-150 links for aggregate bandwidth of 300 Mbyte/sec. Units offer up to 2 GByte DDR2 memory expansion, dual LVDS and SDVO channels, as well as USB 2.0 ports. They are compatible with Linux®, BSD, and Microsoft® Windows® 2000 and XP®.

NEC Unified Solutions, Inc    Irving, TX 75039-2402
Feb 10, 2005 UNIVERGE SV7000 Multi-Purpose Server is an SIP-enabled telephony server that provides call-control for up to 750 IP stations. Users can deploy any of NEC's enterprise communications applications including unified messaging, OpenWorXâ„¢ Communications Portal, and UNIVERGE MA4000 management suite. Server can also be used as media controller or gateway for off-premise analog station and trunking support, and in remote office configurations as survivable stand-alone module.

XOsoft    Burlington, MA 01803
Feb 10, 2005 Suited for distributed enterprise, WANSyncCD may be used to deliver, synchronize, and consolidate corporate information repositories among multiple locations, keeping thousands of enterprise servers and users up-to-date in real-time. Incorporating replication technology, software features advanced tree topology architecture, delegated security, content-aware distribution, non-intrusive content update, and policy-based management infrastructure.

BROADSOFT    Gaithersburg, MD 20832
Feb 10, 2005 Using BroadWorks® platform, businesses can access full slate of VoIP features while keeping PBX or IP PBX equipment. BroadWorks provides hosted PBX, business trunking, residential broadband, hosted key system, and IP multimedia services integrated into single hosted communications platform. Business can leverage voice VPN, auto attendant, call center, unified messaging, video conferencing, instant messaging, and Microsoft Outlook integration.

Reconnex Corporation    Mountain View, CA 94043
Feb 10, 2005 Able to accurately identify and mitigate security threats originating from within enterprise, inSight platform simplifies task of electronic risk management. Integrated solution empowers non-technical users with actionable knowledge that lets them register, detect, remediate, and report electronic risks in real-time. Components include iController content registration appliance, iGuard content analyzer appliance, and e-Risk Module policy engines and reporting templates.

Aprilis, Inc.    Maynard, MA 01754
Feb 10, 2005 Using holographic lens, HoloSensor(TM) models HS-500, HS-500L, and HS-1000 acquire fingerprint images on their respective 1 x 1.2, 2 x 2, and 1 x 1.2 in. imaging areas. First 2 models feature greater than 500 dpi (digital and optical) resolution, while HS-1000 captures images at greater than 1,000 dpi. Latter is capable of obtaining fingerprints for AFIS and iAFIS systems as well as Level III ridge deviation and pore detail capture, enrollment, and matching.

E+E Elektronik GmbH    Engerwitzdorf A-4209  Austria

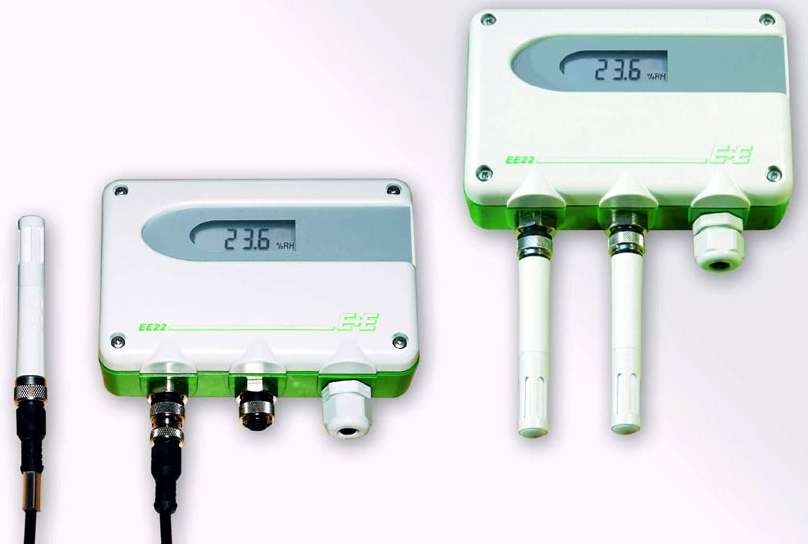

Feb 09, 2005 Equipped with probes that store calibration data, EE22 humidity/temperature transmitter handles temperatures from -40 to +176°F. RH and T outputs can be adjusted with push buttons on PCB, and temperature output can be scaled over 0–1/5/10 V or 4–20 mA current (2-wire) outputs. Optional display indicates RH and T. Direct wall- or DIN rail-mounted housing connects with sensing probes via 6.6, 16.4, or 32.8 ft cables.

Contemporary Control Systems, Inc.    Downers Grove, IL 60515
Feb 09, 2005 Configured and monitored through Web browser, EISB_M B-Line series expands network productivity by providing 8–24 ports in 1.75 in. of DIN-rail space. It includes all twisted-pair models as well as mixed twisted-pair and fiber optic models in aluminum enclosure. Multimode (850 nm) and single-mode (1,300 nm) fiber optics are supported. RapidRing technology enables redundant Ethernet network that self-heals in less than 300 ms if any segment is broken.

C & D Technologies    Mansfield, MA 02048-1151

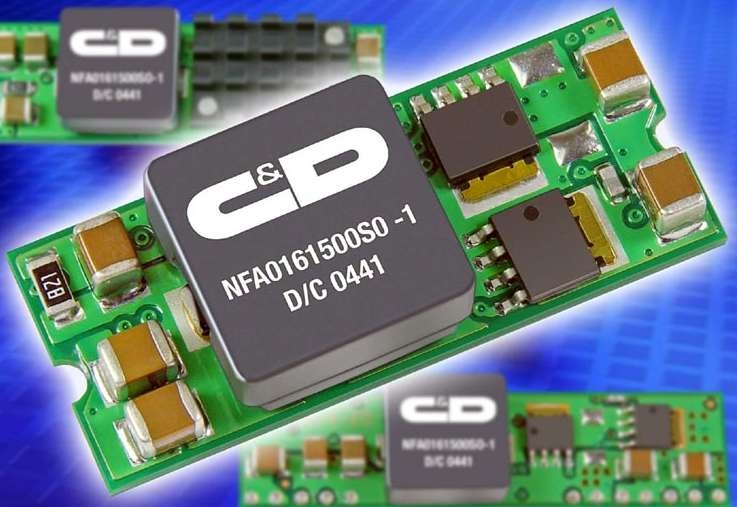

Feb 09, 2005 Available in packages with surface mount, open frame, PTH design, NFA Series DC-DC converters come in 10, 16, and 20 A models. Non-isolated Point-Of-Load converters, featuring efficiencies up to 95%, come in positive and negative enable logic models with monotonic start-up with pre-bias. With input voltage range of 6-14 V, products support 4:1, 5:1, and 6:1 intermediate bus converters. Series also has sequence feature for voltage turn-on/off tracking.

MadgeTech    Warner, NH 03278

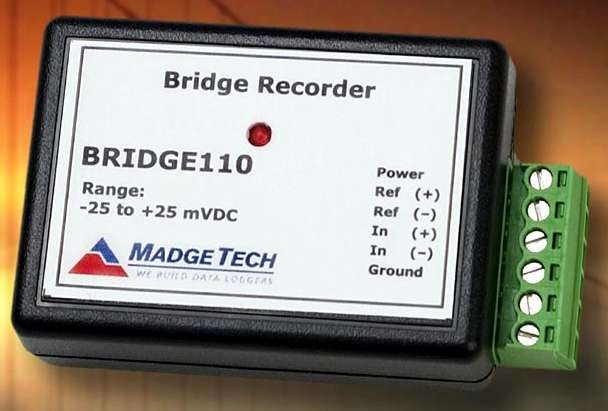

Feb 09, 2005 Measuring 0.8 x 1.7 x 2.7 in., MadgeTech Bridge 110 Bridge/Strain Gauge Recorder is suited for deformation, stress, and strain measurements. Miniature bridge interfaces with 120, 350, and 1,000 Ohm sensors and can be configured using Windows®-based software from PC or Palm Pilot®. It records up to 32,767 measurements in non-volatile, solid-state memory and reads in microstrain and engineering units with accuracy to ±0.01% FS and resolution to 1 µV.

Advance Transformer Co.    Rosemont, IL 60018 5625
Feb 09, 2005 Available to run 1–4 T8 fluorescent lamps, Optanium™ Instant Start Electronic Ballasts are offered in 2 versions: standard light output design with .87 ballast factor, and low-watt design with .77 ballast factor. Lamps are operated at 42–52 kHz frequency, eliminating visible flicker. Additional features include anti-striation circuitry, lamp auto-restrike capability, 20-foot remote mounting capability, and independent lamp operation.

W.A.C. Lighting Company    Port Washington, NY 11050
Feb 09, 2005 Available for IC and non-IC applications, Spec Grade 3 and 4 in. Recessed Downlights are crafted of die-cast aluminum. These 12 V recessed luminaires, offered in variety of 3 and 4 in. apertures, feature decorative, adjustable, and wet locations trims. Decorative glass trims are available in cobalt blue, amber and white, and finishes include brushed nickel, black, white, and polished brass.

Superior Industries Of Morris    Morris, MN 56267
Feb 09, 2005 With design that facilitates setup, portable feed hoppers deliver bulk materials evenly and consistently into crushing, screening, or washing plants. They are manufactured with discharge conveyors and feature 36 in. belt feeder and variable speed drive unit capable of belt speeds to 175 fpm. Fabricated hoppers feature 10 yd capacity and 8 x 16 ft top opening with grizzly option. Discharge conveyors are 36 in. x 40 ft with 20 hp drive and 850 tph capacity.

Mahr Federal Inc.    Providence, RI 02905
Feb 09, 2005 MarSurfâ„¢ XCR 20 takes roughness and contour measurements from same unit. MarSurf GD 25 roughness drive unit and PCV 200 contour drive unit are attached via twin mount to same measuring stand. There is no need to change drive unit or probe when changing measurement task from roughness to contour. Simulation modes promote user familiarity, and Teach-In commands allow for creation of measuring programs that can be saved and launched using programmable function keys.

Inuktun Services, Ltd.    Nanalmo, BC V9T3M4  Canada
Feb 09, 2005 Completely enclosed Crystal Cam, impervious to water, chemicals, and other contaminates, has epoxy casing that withstands water pressures down to 1,000 ft. Its CCD image sensor produces pictures with 380 TV line resolution with 0.5 Lux rating. Lens is circled with 12 variably controlled LEDs, and micro-camera also features built-in charging circuitry. Control system operates over any length of cable without needing to be re-tuned.
