Royal Diversified Products    Warren, RI 02885
Jan 17, 2005 Constructed from hotwork die steel, RHX Hard-Coreâ„¢ Series H-13 Ejector Pins are hardened throughout to 50–55 RC and have surface that is ion nitrided to 65–74 Rc. Products, marked for identification, come in 1/32–½ in. dia and 6, 10, and 14 in. lengths as well as +.005 in. oversize and ½, 2, 3, and 4 in. shoulder lengths. Diameter tolerances can be held to .0003 in., and pins eliminate flaking, cracking, and dishing. They are thermal resistant to 1,100°F.

Hayward Industrial Products Inc., Hayward Flow Control Systems    Clemmons, NC 27012
Jan 17, 2005 Plastic, lateral, 3-way ball valves replace conventional valve/tee connection combinations as well as zero dead-leg valves in piping system layouts. Available in sizes from ½â€“6 in., products can be made of PVC or CPVC with choice of FPM or EPDM seals. Integral ball permits flow to be diverted from center port to left or right ports without shutoff position. Valves feature one-piece molded body and true union design that permits removal from piping system.

Delaire USA, Inc.    Manasquan, NJ 08736
Jan 17, 2005 RF Solid State Switch Modules provide low-loss, high-speed switching capability for analog and digital applications. Bandwidth extends from dc–1,000 MHz and can be designed over specific range or over maximum range, depending on switch module selected. DB-9 or DB-15 connector is used to supply power as well as switch control signals depending on size of switch element. Applications include RF signal switching for in service and test equipment.

CyberResearch, Inc.    Branford, CT 06405 2932
Jan 17, 2005 Designed for in-field use, LPA 617 ATX PC workstation has impact-resistant ABS chassis supported by aluminum framework. It supports CPU speeds to 3.2 GHz and includes floppy drive, 40 Gb hard drive, CD-ROM drive, and two 5.25 in. bays. Most models have 5 PCI slots, and one combines 3 ISA with 4 PCI expansion slots. Pentium® 4 models have 460 W power supply, while Celeron® and Athlon® models have 400 W power supply. All models include 256 Mb RAM and Windows® XP.

Highlites, Inc.    Waterbury, CT 06704
Jan 17, 2005 Series HL provides multi-directional emergency lighting for commercial, institutional, and industrial interiors. Self-contained, fully automatic, wall units provide adjustable or fixed lens, glareless light distribution when line voltage is interrupted. Internal solid-state transfer switch automatically connects battery to dual lamp heads if utility power fails. Upon restoration of normal power, battery disconnects from load and becomes fully recharged within 12 hr.

Lee Industries, Inc.    Philipsburg, PA 16866
Jan 17, 2005 Vacuum Pans are used for products such as jams, jellies, candies, and other concentrations. Efficient evaporating can be accomplished by lowering boiling point to prevent damage to end product that would normally occur when boiling at atmospheric temperatures. Pans can be custom-designed to meet product requirements with features such as scrape-surface agitation, internal booster coils, and properly sized pre-condensers and pumps.

QC Industries    Batavia, OH 45103
Jan 17, 2005 Adjustable hopper, created by using flared side rails with 2 end stops, is designed with stainless steel finish. Used as stand-alone accessory or with end stops, flared side rails attach to conveyor with adjustable guide rails and come in 12–48 in. lengths for applications that require drop zone wider than conveyor width. End stops, compatible with 1 and 2 in. cleats, facilitate control in directing product flow. Swing gate helps contain product.

Interroll Corp.    Wilmington, NC 28405
Jan 17, 2005 Available in varying lengths, Modular Series 1700 features shock-absorbing, noise-reducing plastic housing with load capacity up to 360 lb, depending on materials and sizes. When produced with precision bearings, it can handle speeds to 400 fpm. Tube is offered in galvanized, mill finish, PVC, and stainless steel options. Shaft comes in variety of materials and configurations, including Taperhex, which is self-adjusting and suited for replacement purposes.

ipd, the intelligent products division of Coreco Imaging, Inc.    Billerica, MA 01821
Jan 17, 2005 Designed for applications that require line or area scan digital cameras, NetSight II DCL allows users to match image of choice to inspection needs. It provides asynchronous acquisition of images from up to 2 Camera Link cameras and 1 FireWire camera using IEEE 1394 port. System is equipped with 256 Mb program memory, 20 Gb storage memory, programmable digital I/O, and built-in Ethernet connectivity. NetSight II DCL uses Sherlockâ„¢ vision software as its interface.

ANCA Pty Ltd    Bayswater North, Victoria 3153  Australia
Jan 17, 2005 Capable of grinding round, eccentric, and step punches up to 6 in., PGX produces optimal grinding results for HSS and carbide punches. Unit is equipped with 30 in. grinding wheel, directly programmable via CNC from 200–3,000 rpm. PunchCam software allows for programming of generic and complex shapes. System also employs digital servo drives, cast iron work head, and automatic wheel balancer. All axes and grinding spindle are direct-driven.

SSI Shredding Systems, Inc.    Wilsonville, OR 97070 9286
Jan 17, 2005 Measuring 9 ft long, single-shaft PRI-MAX™ PR-590SD is suited for on-site processing of waste material from 5–20 tons/hr. It features variable speed drive, bi-directional shaft rotation, open-grate cutting table, and shockload protection, which guards against overfeeding and damage by non-shreddables. Model PR-590SD is suited for items such as railroad ties, dimensional lumber, and paper cores. Large process area minimizes bridging of large, flat objects like plywood.

Meissner Filtration Products, Inc.    Camarillo, CA 93012 8760
Jan 17, 2005 Rated 0.5 µm, Protecâ„¢ RF0.5 borosilicate glass fiber prefilter removes colloids, aggregated and non-product proteins, lipids, and particles to protect membrane filters downstream. It is cleanroom manufactured and offers high contaminant holding capacity.

Electro Static Technology    Mechanic Falls, ME 04256
Jan 17, 2005 Aegisâ„¢ Shaft Grounding Coupling prevents electrical damage to bearings of AC motors with variable frequency drives by safely passing harmful shaft current to ground. With Electron Transport Technologyâ„¢, coupling provides virtual short between shaft and motor frame that keeps shaft current and voltage from building up. It provides cleanroom-quality bearing isolation with dust-proof seal that also protects against water spray.

Brookfield Engineering Laboratories, Inc.    Middleboro, MA 02346
Jan 17, 2005 Model LFRA features automated Bloom Gel Test function, which facilitates analysis for verification of established gelatin specifications. Texture profile analysis using Excel-based software enables lab technician to generate analytical data. Industrial applications include pharmaceuticals, personal care products, rubber, wax, sponges, paint, caulking, and adhesives. Food applications include butter and cheese products, sauces, and baked goods.

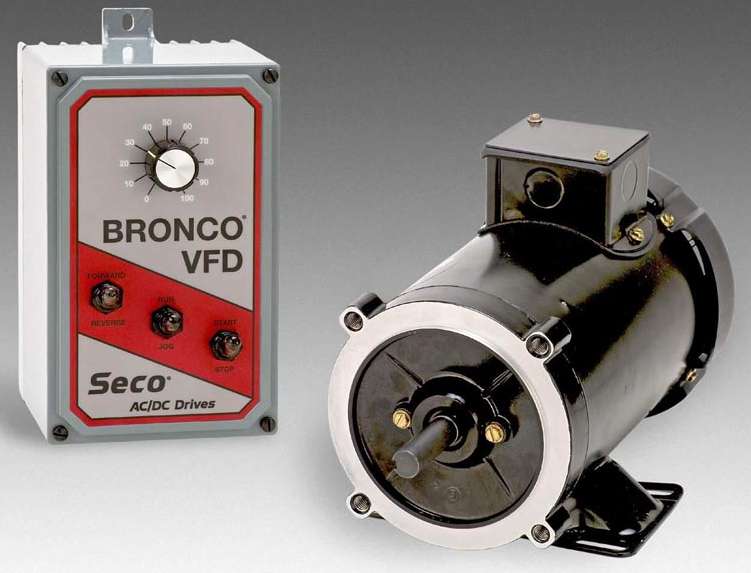

Danaher Motion    Wood Dale, IL 60191-1073
Jan 17, 2005 SECO-branded Bronco VFD Series Variable Frequency AC Drives feature isolated front end and voltage doubler circuit that can output 230 Vac to motor from 115 Vac power supply. Available for up to 1.5 hp operation, dual-voltage inverters also accept speed reference signal without separate isolation card. Products come in 3 styles: chassis, NEMA 4 cast aluminum, and NEMA 4x USDA rated white epoxy coated aluminum with stainless steel hardware.

MC Machinery Systems    Wood Dale, IL 60191
Jan 17, 2005 Constructed in heavy-duty, one-piece machine design, LVPLUS allows 24/7 unattended processing. Solid Dianite casting delivers stability, with machine tool, resonator, and power supply incorporated onto one platform. Modular unit utilizes Diamond-Path Technology to maintain consistent beam quality and provides cutting stability at speeds up to 1,150 ipm across all processing areas.

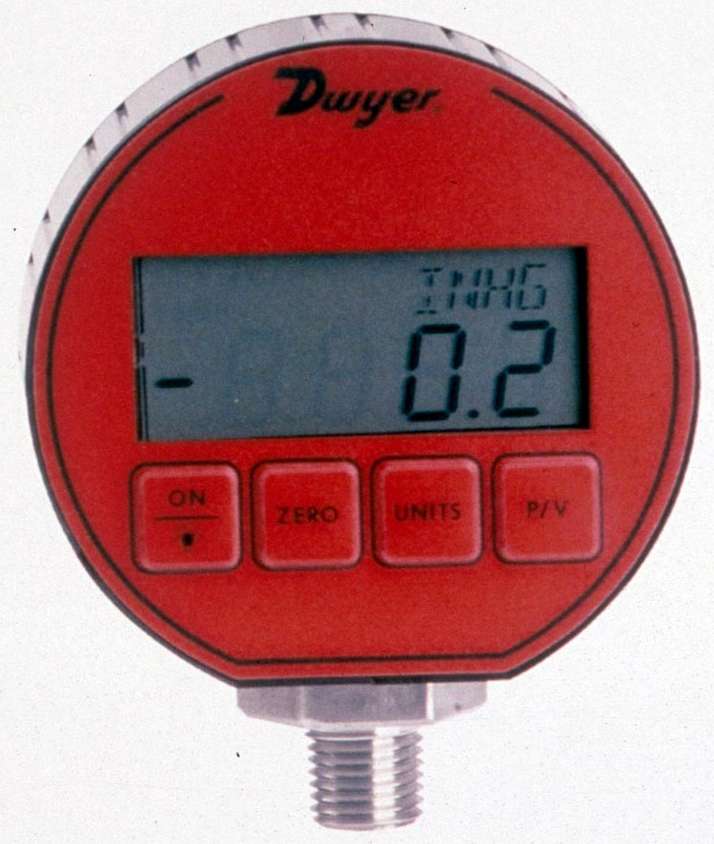

Dwyer Instruments, Inc.    Michigan City, IN 46361
Jan 17, 2005 Battery-powered DPG-000 comes with 4-digit LCD display. With no moving parts, product obtains accurate reading in one operation. Unit has 4-button keypad that lets users access backlight, retrievable peak and valley values, display zeroing, and engineering pressure unit conversion functions. With wetted parts of 316 and 316L stainless steel and NEMA 4X housing, gauge handles pressure range from vacuum to 5,000 psig tire.

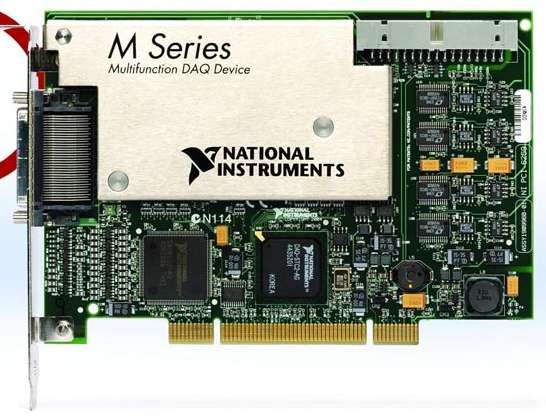

National Instruments Corp.    Austin, TX 78759-3504
Jan 17, 2005 Multifunction, 18-bit M Series DAQ devices for PCI bus contain two 80 MHz, 32-bit counter/timers and support hardware-timed digital I/O at rates to 10 MHz on 32 lines. PCI-628x devices also measure dc voltages with same accuracy as 5½ digit voltmeter. Channel counts vary from 16 analog input channels and 24 digital I/O lines to 32 analog input channels, 4 analog output channels, and 48 digital I/O lines. Units come with NI-DAQmx measurement services software.

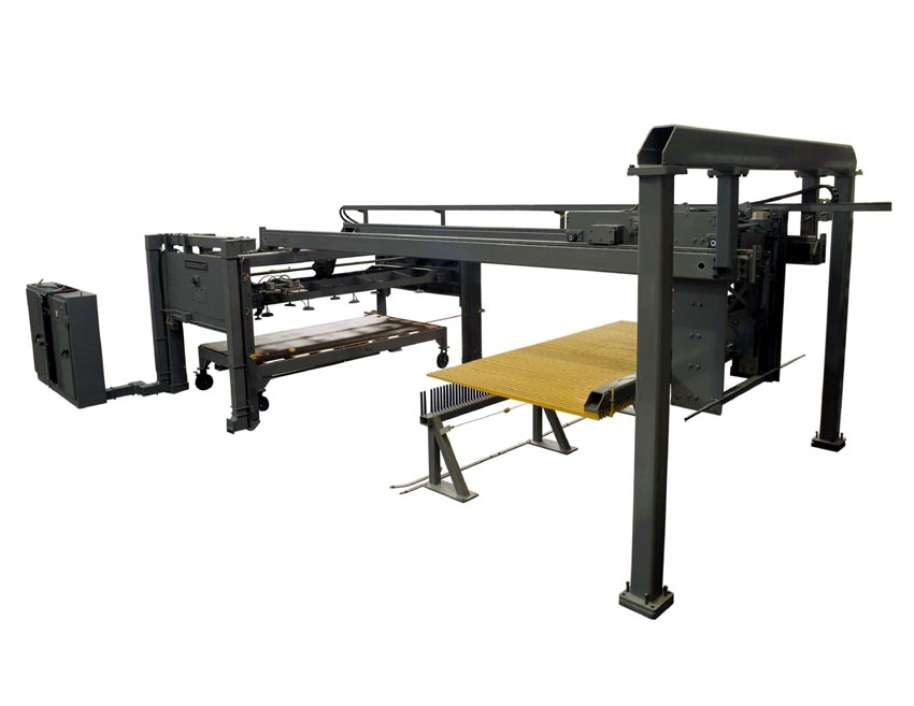

Cincinnati Incorporated    Cincinnati, OH 45211 0111
Jan 17, 2005 Modular MMHS system optimizes material flow and laser burn time while enabling long periods of unattended operation. Four base systems and choice of options provide flexibility to suit individual shop requirements. Basic MMHS-1 system consists of stack cart, sheet handler, gantry sheet transporter, unload cart or station, and web-enabled PC control. Servo-driven components provide reliable performance, and control enables remote operation and diagnostics capability.

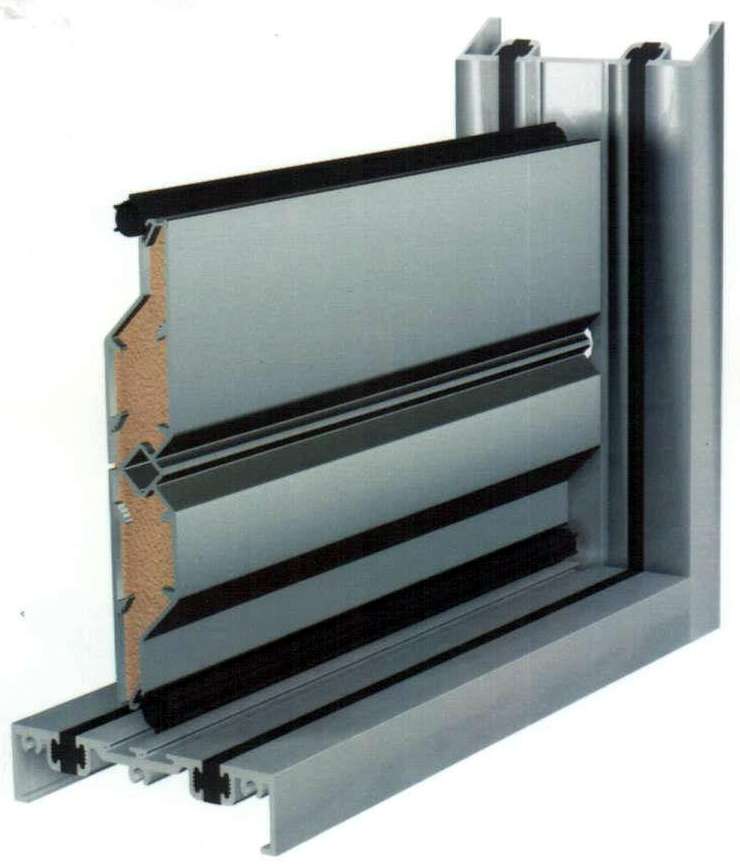

Greenheck    Schofield, WI 54476 0410
Jan 17, 2005 Suited for outdoor air intake systems, Model ICD incorporates damper frame that has 2 thermal breaks with dual polyurethane resin gaps and is insulated on all 4 sides with polystyrene. Blades are thermally broken and filled with polyurethane for insulating characteristics. Product's design reduces transfer of heat or cold and virtually eliminates condensation.
