Edit.com    New York, NY 10011
Feb 08, 2005 Do-It-Yourself Online Editing service allows customers to browse their own site and type changes right into web pages, all from within web browser. User can immediately change text, formatting, images, and links, as well as add new pages. To make site editable, Edit.com adds invisible HTML codes into web pages. By making only certain parts of each page editable, Edit.com protects design and functionality of site from damage.

Roland DGA Corporation    Irvine, CA 92618
Feb 08, 2005 Desktop Subtractive Rapid Prototyping System, Model MDX-40 mills ABS, Delrin, nylon, and tooling board. With 12 x 12 x 4.12 work volume, system includes 4th rotary axis for unattended 2- and 4-sided milling, 15,000 rpm spindle for creating detailed features with fine tools, and emergency stop switch for safe work environment. MODELA Player 4 CAM software generates proportional 3D scaling, identifies milling direction, and generates and displays tool path.

Sipex Corp.    Miliptas, CA 95035-1701
Feb 08, 2005 Available in 2.4 x 2.5 mm DFN package, 400 mA SP6656 has bit programmable output voltage to dynamically adjust to power requirements of ASICs, DSPs, and microprocessors. Proprietary control loop, 20 µA light load quiescent current, and integrated 0.3 ohm synchronous switches provide efficiency across wide range of output currents. Featuring built-in 625 mA current limit and 140°C over temperature shutdown, unit suits space constrained portable applications.

Synopsys, Inc.    Mountain View, CA 94043 4033
Feb 08, 2005 Galaxyâ„¢ Design and Discoveryâ„¢ Verification Platforms support SUSE® LINUX Enterprise Server 9 operating system on both 32-bit and 64-bit x86 instruction sets. Galaxy Design open, integrated, design implementation platform incorporates consistent timing, SI analysis, common libraries, delay calculation, constraints, testability, and physical verification to provide convergent flow from RTL thru to silicon.

Quadro Engineering Corp.    Waterloo N2V1A1  Canada
Feb 08, 2005 Ytron(TM) Model Z provides method for homogenizing, emulsifying, and imparting controlled amount of shear to processes. It has no moving parts that could impart taste to product. Incorporating up to 3 sets of toothed rotor/stators, engineered to fine radial tolerances, emulsifier processes product at high differential velocities, as many as 18 times in single pass. Four 3-A approved sanitary models are available with capacities exceeding 300 gpm.

Uson L.P.    Houston, TX 77041

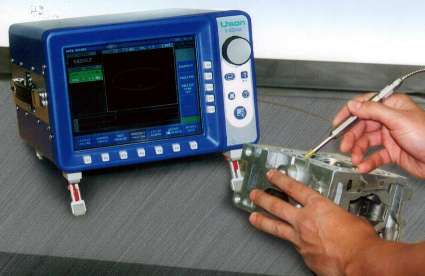

Feb 07, 2005 Zetec InSight CT Eddy Current Crack Tester provides non-destructive detection of cracks or imperfections in critical components at production line speeds. It supports up to 8 dual frequency probes working from 5–10 MHz with sampling rate up to 10,000 samples/sec. Unit can communicate with other machinery via built-in industrial I/O. Data can be downloaded via RS232 serial port, Ethernet connection, or to USB media storage devices, all standard features.

Almco, Inc.    Albert Lea, MN 56007 2751

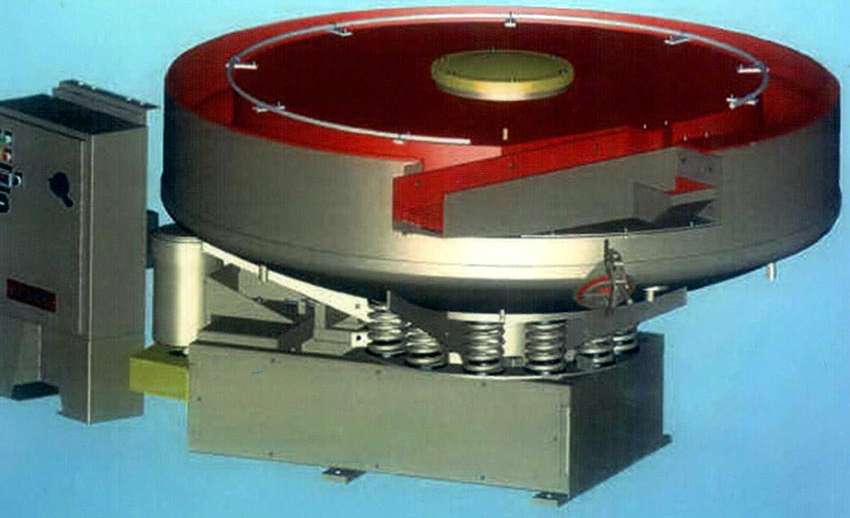

Feb 07, 2005 Automated Model XLR-22 features long-radius channel that measures 22 ft x 8½ in. and provides constant media mass depth and media action. Parts are automatically separated from finishing media following once-around-and-out processing or batch cycling. Offering time cycles from 4–8 min, as well as variable amplitude and vibrations per minute, compact machine has 8¼ in. tub cross-section and 8 ft dia bowl lined with 1 in. cast-molded urethane.

Valenite, Inc.    Madison Heights, MI 48071 9636
Feb 07, 2005 Machining steels and alloys hardened to 45-62 Rc levels, ValEDGE Hard Part Turning System utilizes ceramic and CBN inserts as well as ValTURNâ„¢ ProGRIPâ„¢ toolholders. It is provided with T-Land corner break width and angle as well as light hone finish. For vibration-free machining, spring-loaded clamp grips insert in 2 places. Inserts, offered with 35, 55, 60, 80, and 90° geometries, result in projected surface finishes from 32–12 Ra @ 0.003 ipr feed rate.

Mate Precision Tooling    Anoka, MN 55303

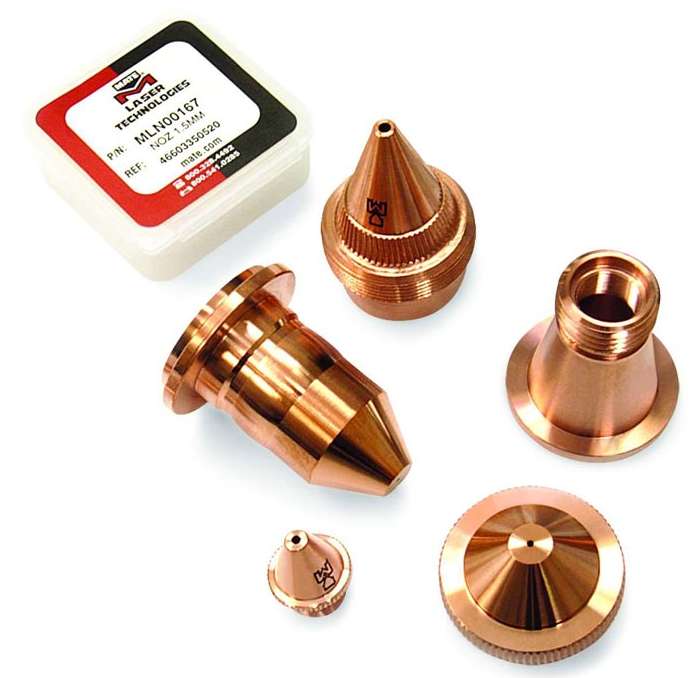

Feb 07, 2005 FLOWMASTER nozzles, manufactured to ±0–10 micron for consistent performance and uniform cutting, have copper alloy design that resists build-up and abrasion. Rated for continuous service, products have micro-finished internal surfaces that facilitate airflow. Units are offered in 1- and 2-piece copper nozzles in single- and multiple-shield orifice configurations. Orifice sizes are available from .031–.157 in. to meet gas flow requirements.

Grieve Corporation, The    Round Lake, IL 60073-2898

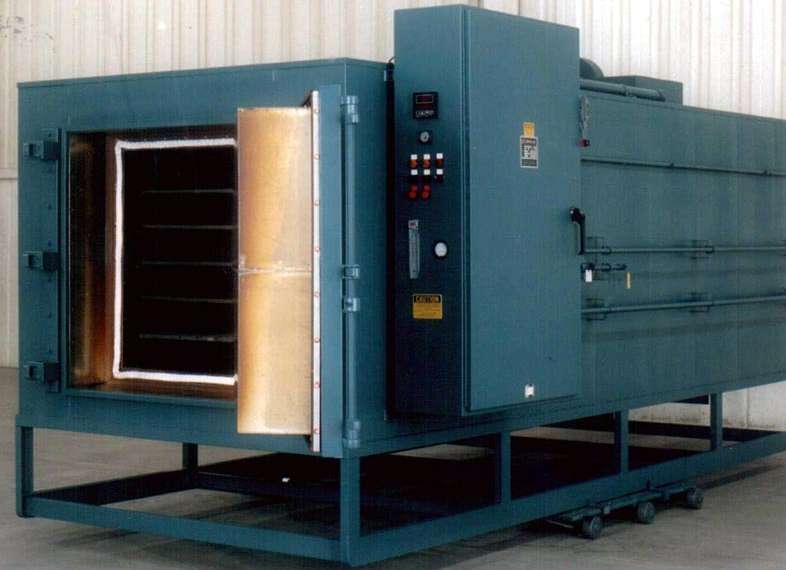

Feb 07, 2005 With workspace dimensions of 36 x 120 x 36 in., No. 938 has aluminized steel exterior; Type 304, 2B finish stainless steel interior; and 10 in. insulated walls. Electrically-heated oven has 80 kW installed in Incoloy-sheathed tubular heating elements and 6,000 cfm, 5 hp recirculating blower that provides universal front to rear airflow to load. Also included, 975 cfm blower pulls air through air jacket on inner oven for cooling.

LM 76 Inc.    East Longmeadow, MA 01028

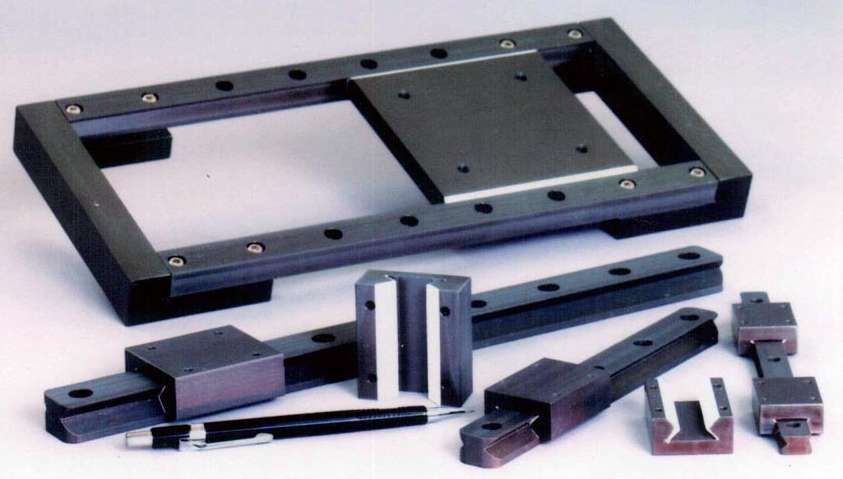

Feb 07, 2005 Slide Railâ„¢ self-lubricating products suit applications requiring smooth motion, low noise, and/or washdown capabilities. Hard inert ceramic treatment, rated from 60–70 Rockwell C, of all surfaces of rail and carriage assemblies protects against caustic chemicals and oxidation while minimizing wear. Load bearing surfaces are at 45° angles to mounting surface and force of load, enabling products to be mounted on any horizontal or vertical plane.

Schurter, Inc.    Petaluma, CA 94975-0158

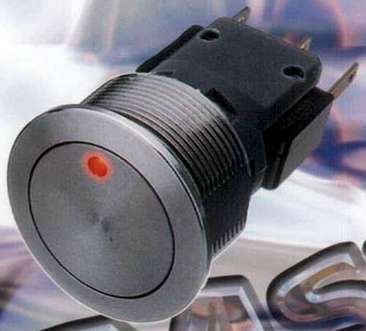

Feb 07, 2005 Water- and shock-resistant MSM series features flat front construction of 1.7 mm for near-flush mounting. Combining detachable contact module with stainless steel housing and actuator, switches come in 3 sizes with 16, 19, and 22 mm mounting diameters. Switching action is single-pole, momentary with NO and NC contacts. Available with point or ring illuminated options, actuation force is 4.5 N, and contact travel is 1 mm with fixed stop and audible click.

AEMC Instruments    Foxborough, MA 02035

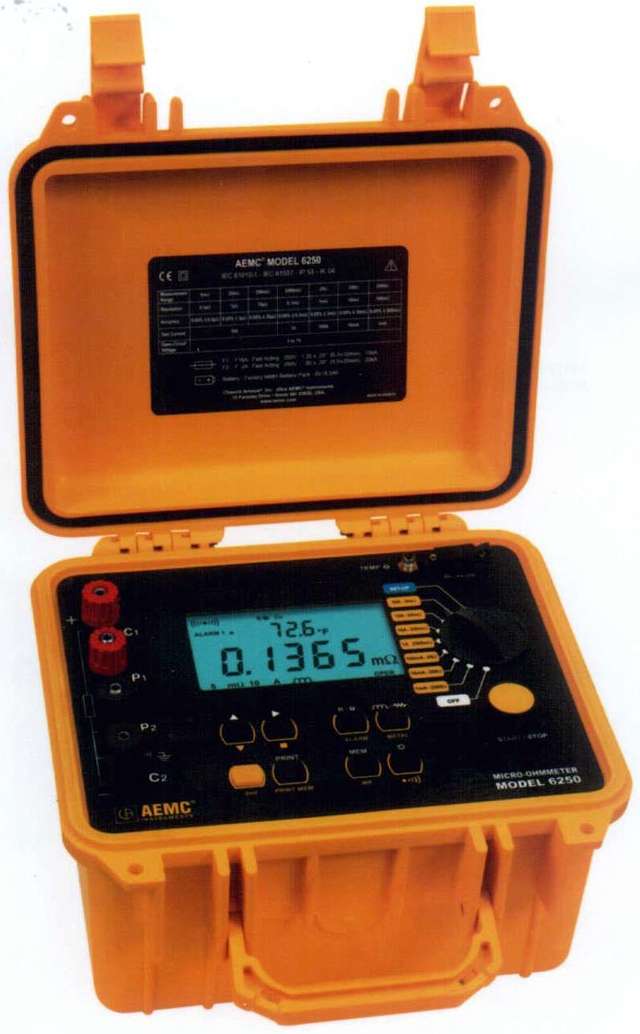

Feb 07, 2005 Producing results within 0.05%, 10 A Model 6250 utilizes 4-lead Kelvin method for testing resistance. Measurements are automatically calculated, taking into account measurement value, ambient temperature, metal type, and metal temperature coefficient. Test modes include resistive, inductive, and auto. Suited for plant maintenance and field use, unit stores up to 1,500 measurements and can route data to printer or PC.

Novotechnik U.S., Inc.    Southborough, MA 01772
Feb 07, 2005 Series TLI non-contacting transducers are integrated directly into hydraulic and pneumatic cylinders. Indres technology ensures proper operation in presence of static magnetic fields and dynamic and static electric fields. Sealed to IP67, units withstand temperature from -40 to +105°C and peak pressure of 60 MPa. They are available in stroke lengths from 50–1,000 mm with operating speeds to 10 m/s, 0.15% accuracy, and better than 0.01 mm resolution.

Cooper Hand Tools    Raleigh, NC 27612
Feb 07, 2005 Available in eye-type and clevis-type models, Campbell® Cam-Lok® Hooks feature flush-positioned trigger guard forged into body, plus positive lock capability to minimize chance of unintentional opening. Latches close automatically under load. Eye style accommodates heavy-duty wire rope thimbles used in fabrication of wire rope slings. Made from 4130 alloy steel, hooks come in variety of sizes and working load limits, and are fatigue tested to ASTM A952.

Andax Environmental Corp.    St. Marys, KS 66536
Feb 07, 2005 Andax Pac® CRFR offers spill control equipment when responding to chemical spills with flash fire potential. It includes chemical-resistant and fire-resistant personal protective suit, protective gloves, Sorbent Pads, Sorb-Soxâ„¢, and goggles. Vacuum-packed, compact design makes it suitable for transport on trucks and optional grommets facilitate storage. Available in Universal and Oil-Selective configurations, Andax Pac® CRFR can be customized to specifications.

Eye Lighting International    Mentor, OH 44060
Feb 07, 2005 Featuring built-in Ferro-Electric Capacitor Igniter, Sunlux Power Aceâ„¢ EN lamps delay electrode deterioration, hard starting, end darkening, and voltage rise. They are environmentally friendly and meet Federal EPA TCLP requirements for non-hazardous waste. Lamps are suited for use in parking, roadway, security, and industrial applications.

B & K Precision Corp.    Yorba Linda, CA 92887
Feb 07, 2005 Model 4012A utilizes standard 115 Vac power source and can produce precision sine, square, or triangle waves over the 0.5 Hz to 5 MHz range. It combines waveform generation, pulse generation, and frequency sweep into one device while also providing built-in frequency counter. Continuously variable dc offset allows output to be injected directly into circuits at correct dc bias level. Unit suits subaudible, audio, ultrasonic, and RF applications.

NexGen Enviro Systems, Inc.    Lindenhurst, NY 11757
Feb 07, 2005 Resolv-R2 Model 90DIGIT standalone automated system provides solvent distilling cycle driven by 8-bit microprocessor. It can process 24 gal of solvent within 4–6 hours and recover 99.9% of reuseable solvent, which ensures compliance with EPA standards. On-board digital controller handles system diagnostics and provides alerts when operational maintenance is required. 90DIGIT measures 35 x 43 x 67 in., weighs 539 pounds, and operates at rated power of 8,000 W.

Linear Technology Corp.    Milpitas, CA 95035

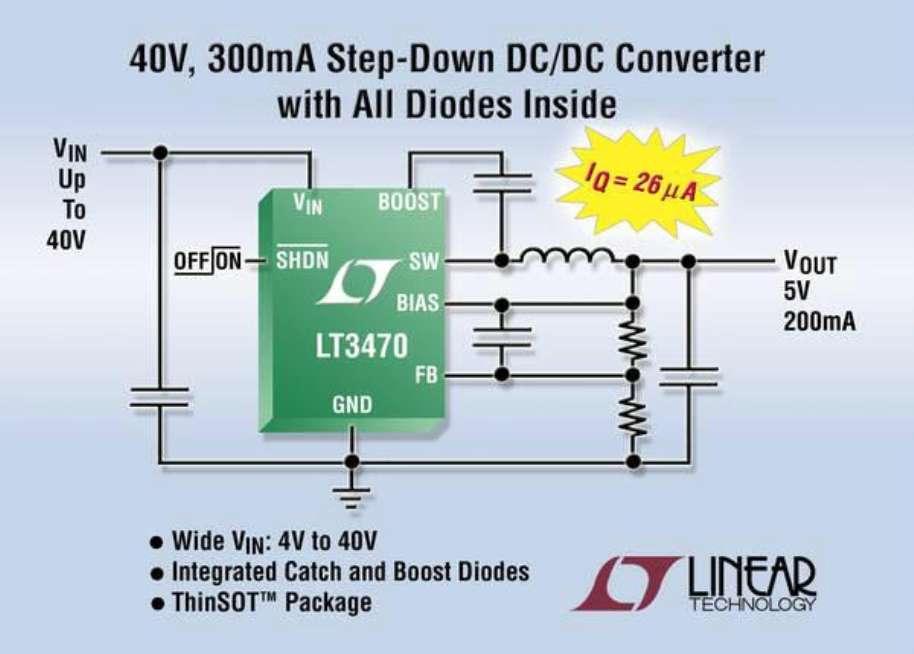

Feb 07, 2005 Model LT3470 40 V micropower step-down dc/dc converter operates from input voltages of 4-40 V, delivering up to 200 mA of output current, optimizing it for 2-cell Li-Ion, wall adapter or automotive power sources. Burst Mode® operation reduces quiescent current to 26 µA. Hysteretic control scheme provides output ripple of less than 10 mVp-p. Available in low profile ThinSot package, LT3470 works well in space constrained applications.
