Precision Brand Products, Inc.    Downers Grove, IL 60515 4054

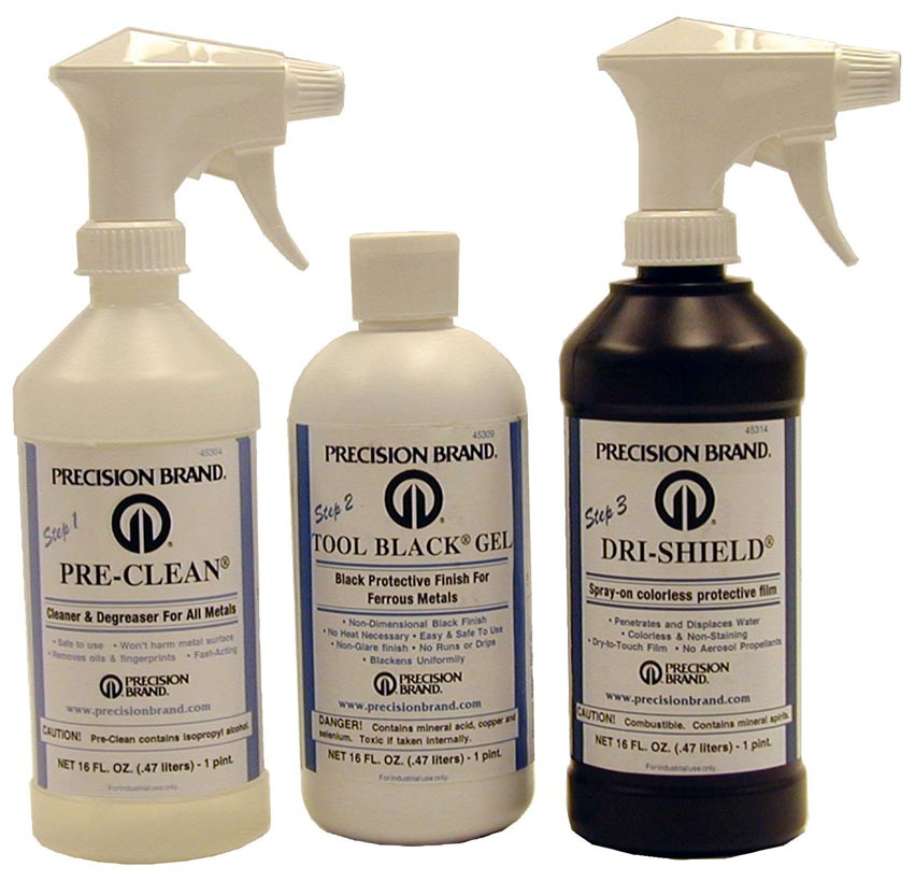

Feb 01, 2005 Precision Brand® Tool Black® Gel blackener blackens large, vertical, or intricate areas of steel surfaces. Dripless formula achieves uniform black cosmetic finish on most ferrous metals up to RC50. It suits prototype work, auto repair and restoration, arts and crafts, OEM finishing, decorative hardware, and general MRO toolroom applications.

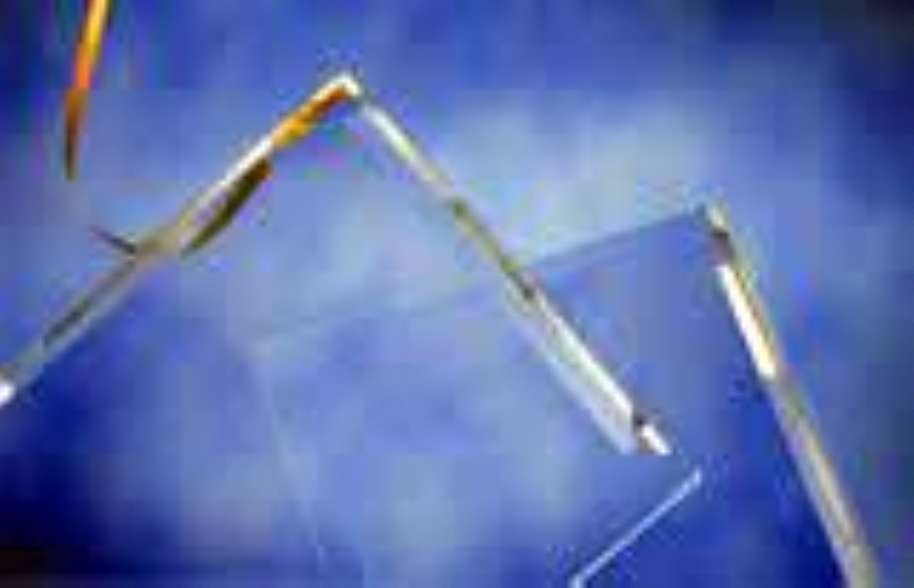

Elo TouchSystems, Inc.    Fremont, CA 94555
Feb 01, 2005 IntelliTouch Super Flat Profile (SFP) touchscreen utilizes patented grating technology to achieve 100% flat front surface. It features narrow borders around active touch-sensitive area, scratch resistant surface, and flat cabling system. Surface wave touch technology enables touch to be initiated with a finger, stylus, or gloved hand and screen is not subject to false touches from vibration. Operation is stable and drift-free, requiring no recalibration.

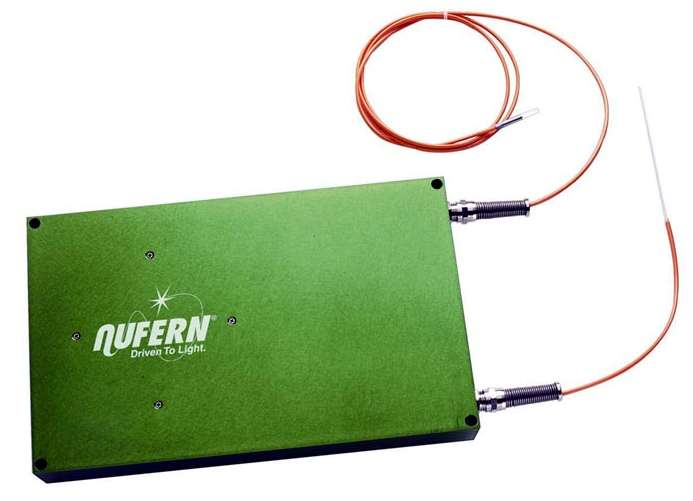

Nufern    East Granby, CT 06026
Feb 01, 2005 Designed for integration into OEM laser applications for industrial and manufacturing environments, CW (continuous wave) fiber laser modules cover 3 power ranges with ~1 micron output: 2–15 W, 15–25 W, 25–50 W. They utilize optical fibers in compact, monolithic fiber design that is maintenance-free and eliminates need for optical or mechanical re-alignment. Plug-and-play modules are provided with any standard or custom-designed pump coupler or connector.

Dow Corning Corp.    Midland, MI 48686 0994

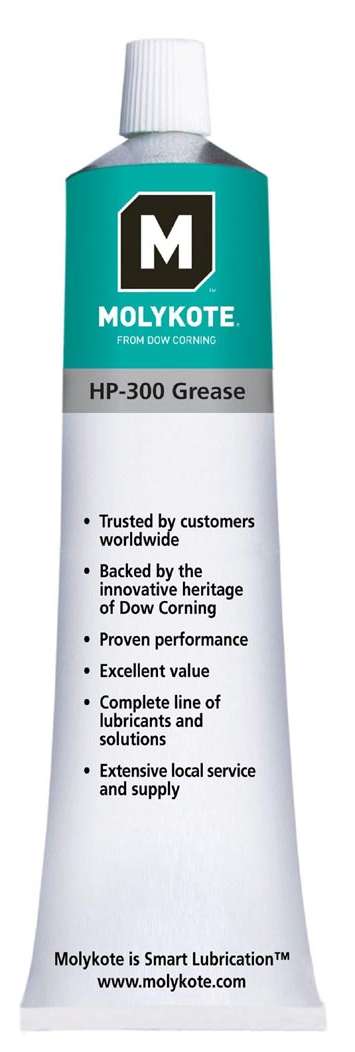

Feb 01, 2005 Composed of perfluoro polyether, NSF-H1 approved Molykote® HP-300 and HP-500 are stable in presence of chemicals, and insoluble in solvents and oils, with exception of fluorinated solvents. With temperature range of -65 to 250°C, greases are noncombustible with no danger of ignition. Due to chemically inert base, they have virtually no effect on plastics and rubbers. Applications include bearings, gears, chains, and sliding mechanisms in harsh conditions.

RMS Technologies Inc.    Carson City, NV 89706

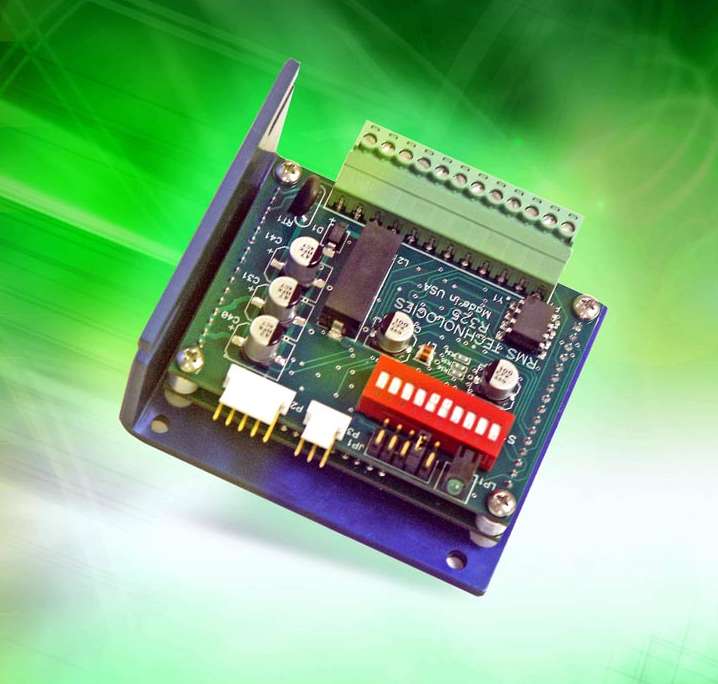

Feb 01, 2005 Model R325 is capable of ouptut currents from 0.25–3.0 A peak while handling +12–48 Vdc input voltage. Selectable step resolutions include Full, 2, 4, 8, 16, 32, 64, 128, and 256x. In addition to hold current reduction capabilities with adjustable current and timeout settings, unit includes 3 optically isolated inputs and one optically isolated control output that can be used for step, direction, disable/enable, and fault detection.

Even Cut Abrasive Co.    Cleveland, OH 44103
Feb 01, 2005 Ranging in size from ¼â€“8 in. diameter with lengths from ½â€“11 in., Spiral Bands are made from aluminum oxide abrasive grain bonded with resins to cotton cloth backing material. They provide jointless sanding surface, ensuring consistent finishes on flat and contoured surfaces. Bands are mounted on rubber expanding wheels and can be used on hand-held power tools and drill presses. Applications include deburring, polishing, blending, and general surface finishing.

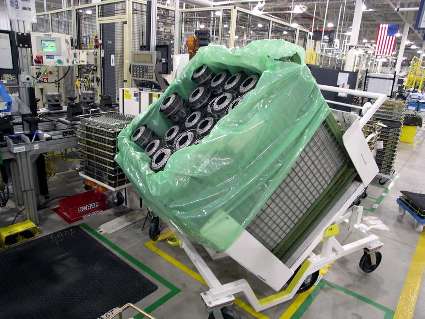

Topper Industrial    Sturtevant, WI 53177
Feb 01, 2005 Tilt Carts feature adjustable, closed-loop, hydraulic dampening cylinder, which controls energy of load as it tilts, providing safe, controlled, tilt movement in full-to-empty applications. With tilt of 60°, assembly worker can pull part from container without exceeding ergonomic limits for reaching and bending. Options include working height, type of caster, floor lock, and hitch.

Topper Industrial    Sturtevant, WI 53177
Feb 01, 2005 Quad-Steer Carts are used in tugging situations where cart remains attached to tugger to deliver commodities in specific route. With all 4 wheels turning, radius of rear wheels follow front wheels, facilitating cornering. Regardless of number hitched together, all carts follow same track around corners. Featuring removable, self-locking sides, cart is available in many types and sizes including decks with shelves, roller conveyors, and top hats.

National Instruments Corp.    Austin, TX 78759-3504

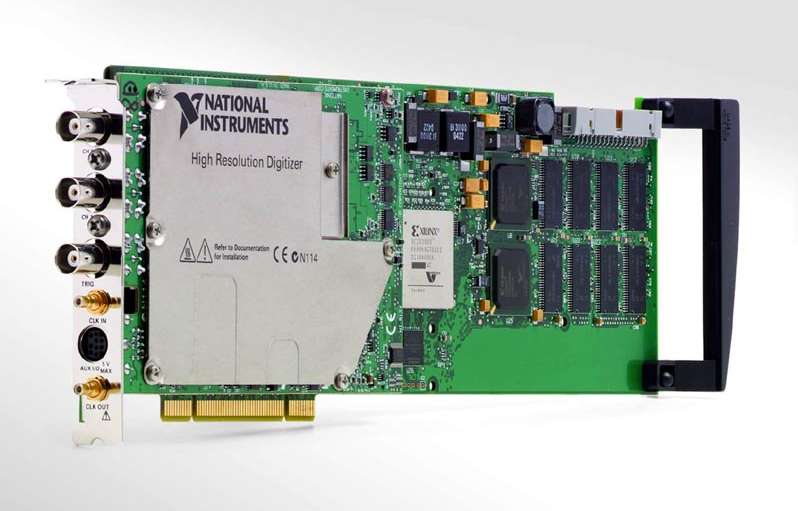

Feb 01, 2005 PCI-based, 12-bit, 200 MS/s Model PCI-5124 delivers more than 75 dBc SFDR on 2 simultaneously sampled inputs with 150 MHz bandwidth. Based on Synchronization and Memory Core architecture, which features up to 512 MB onboard memory/channel, unit offers software-selectable 50 ohm and 1 Mohm input impedance and 5 trigger modes including video triggering. Measurement applications include consumer electronics, military, aerospace, semiconductor, and medical device test.

HellermannTyton    Milwaukee, WI 53224
Feb 01, 2005 Manufactured from heat-stabilized, impact-modified nylon 6/6, weld stud mount does not rust or abrade wire, cable, or hoses. Product eliminates use of p-clamps, nuts, bolts, and washers to secure wire harnesses and hoses to metal frame when used in conjunction with cable tie. Able to be welded onto painted frame rail without grinding surface, application takes 1/3 of one second. Installation does not require hole drilling or paint removal.

Harvard Apparatus, Inc.    Holliston, MA 01746 1371

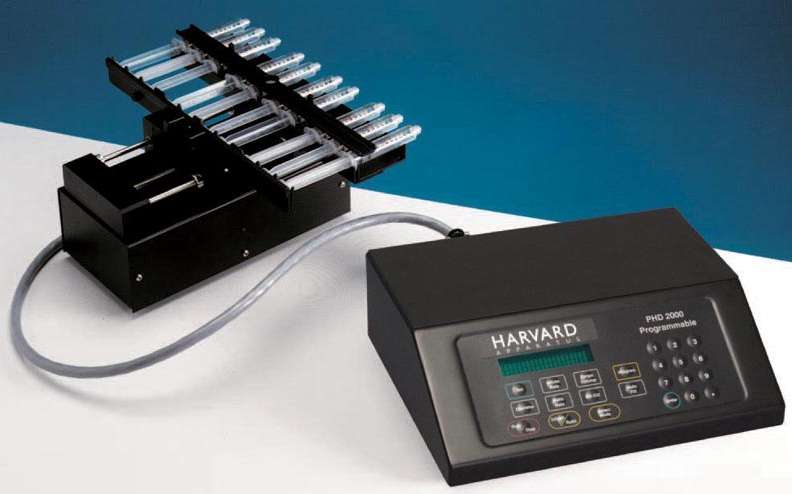

Feb 01, 2005 Remote operated MRI Syringe Pump combines dual-syringe pump mechanism, constructed of nonferromagnetic metal, with 30 or 60 ft cable connection to pump electronics control box. Programmable pump features pulseless flow, accepts syringes from 0.5 µl to 140 ml, and handles flow rates from 0.002 µl/hr to 55.1 ml/min. With ±0.35% accuracy and 0.5% reproducibility, it is suited for drug delivery and tracer studies that require MRI imaging and real-time monitoring.

Carl Zeiss Microimaging, Inc.    Thornwood, NY 10594-1939
Feb 01, 2005 Based on 5-megapixel CCD sensor, AxioCam MRc5 comes with operating software for image acquisition and processing functions. Product enables live image acquisition with selectable frame rate and flexible read-out modes. FireWire enables 100% computer-controlled camera operation and direct connection to laptop. Featuring minimal interference, 36-bit RGB color depth camera has dynamic range of 1:1300, with 12-bit digitization for loss-free image dynamics.

Linear Technology Corp.    Milpitas, CA 95035
Feb 01, 2005 Featuring double-buffered data latches and asynchronous DAC update pin, 16-Bit monotonic LTC2606 provides 400 kHz I2C interface with 27 user-selectable slave addresses. This allows multiple DACs on same bus and minimizes address conflicts with other components. Output buffer provides drive capability over 2.7-5.5 V supply range, and DAC output can directly drive capacitive loads up to 1,000 pF or current loads to 15 mA.

Rocon LLC    Hazel Park, MN 48030

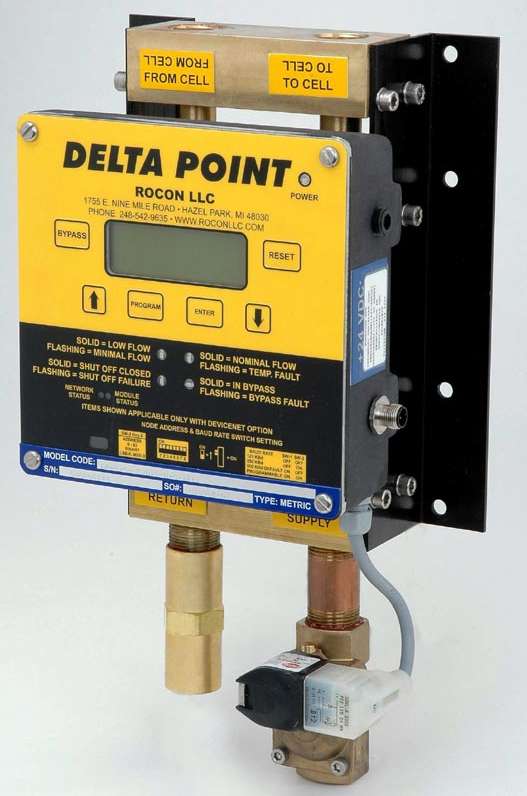

Feb 01, 2005 Suited for cooling water in resistance welding cells, DeltaPointâ„¢ leak detectors feature one pair of bench-calibrated, vortex shedding flowmeters that are not affected by dirt in water and have no moving parts. Detectors sense tip loss, compare total inflow and outflow to cell, and monitor flow and temperature in applications involving up to 13 welding guns, robotic work cells, or non-robotic hard tooling. Models accommodate cooling flow up to 12 gpm.

Linear Technology Corp.    Milpitas, CA 95035
Feb 01, 2005 With IIP3 (Input Third-Order Intercept) of 16.5 dBm @ 900 MHz and noise figure of 11 dB, LT5526 is suited for use as downconverting or upconverting mixer and operates over bandwidth from 100 kHz to 2 GHz. Model LT5525 features on-chip RF input transformer and offers internal 50 ohm impedance matching at RF and LO (Local Oscillator) inputs, which can be driven single-ended. It features IIP3 of 21 dBm @ 900 MHz and operates over bandwidth from 0.8-2.5 GHz.

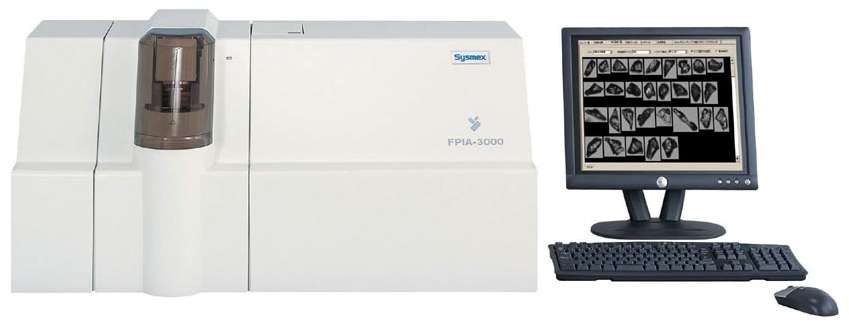

Malvern Instruments Inc.    Westborough, MA 01581
Feb 01, 2005 Using CCD camera and strobe illumination, FPIA-3000 image analysis system measures particles suspended in aqueous and non-aqueous liquid media. Standard instrument configuration allows for characterization of particles from 1.5-160 micron. High and low magnification options cover respective ranges of 0.8-80 and 12-300 micron. Each particle image is stored for reference and analysis, and measurement takes 2½ min.

Waytek Inc.    Chanhassen, MN 55317
Feb 01, 2005 LED indicator lights are offered in 2 types. For indoor or in-cab lighting applications, 12 V LED panel light has plastic housing, stove-pipe lens for wide viewing angle, and snaps in ½ in. panel hole. For outdoor use, even with sun directly overhead, high intensity 12 V LED light offers watertight metal housing and fits into 5/16 in. panel hole. Both LED styles are offered in green, amber, or red and come with 6 in. 18 ga. wire leads.

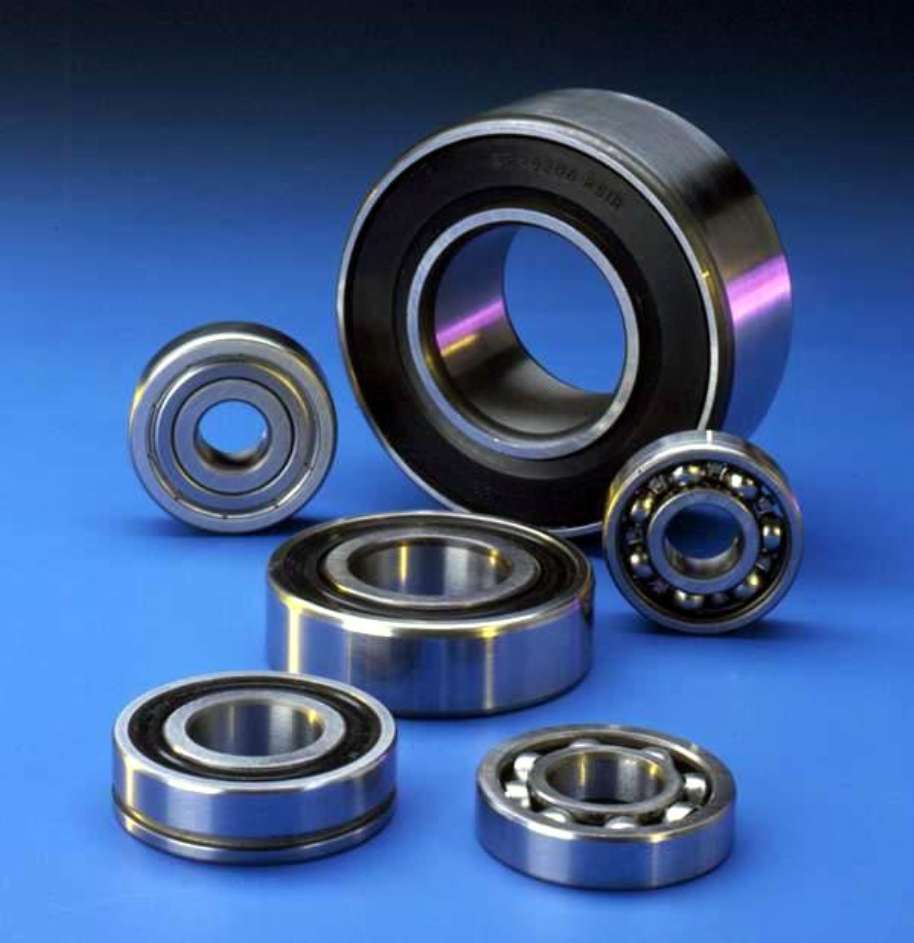

MRC Bearings    Lansdale, PA 19446
Feb 01, 2005 Made-To-Order Program help users identify and source discontinued, hard-to-find, or special ball bearing products in most design configurations and size ranges. Capabilities include resizing ball bearing bores, OD, faces, and widths; adding or removing seals/shields; replacing cage materials; applying high-performance coatings; incorporating heat treatment; and relubrication of ball bearings using special greases, custom fills, or solid oil.

Curtiss-Wright Controls, Inc.    Gastonia, NC 28052-1167
Feb 01, 2005 SCRAMNet GT PMC, PCI, and VME boards deliver real-time control and data networking, and enable networked heterogeneous computers to function as single multi-processor system. They feature 2.5 Gbit/sec SFP transceiver with optional secondary SFP available to provide redundancy. Shared memory on each board starts at 128 Mb and supports data throughputs surpassing 200 Mbps. SCRAMNet GT boards support Programmed Input/Output for small data transfers.

Curtiss-Wright Controls, Inc.    Gastonia, NC 28052-1167

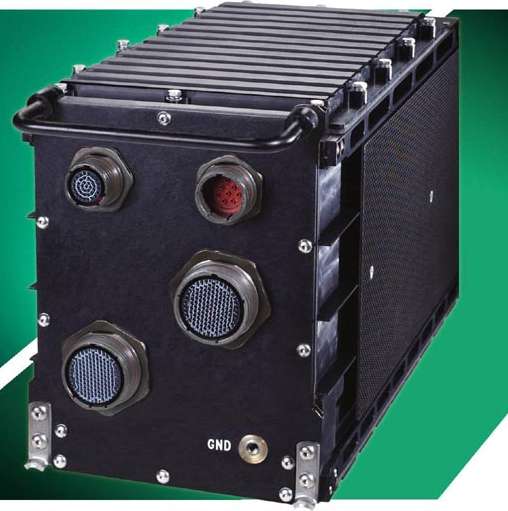

Feb 01, 2005 Packaged in half-short, 5-slot air transport rack chassis, 3U CompactPCI-based Modular Tactical Computer offers defense and aerospace system integrators complete COTS tactical subsystem. It includes 800 MHz IBM 750FX processor and is rated at 1,856 DMIPS. Standard configuration includes 256 MB ECC DRAM, Ethernet, tri-channel dual redundant 1553 bus, and 9 serial channels. Computer can be customized with variety of functional modules to meet specific applications.
