Zierick Manufacturing Corp.    Mount Kisco, NY 10549

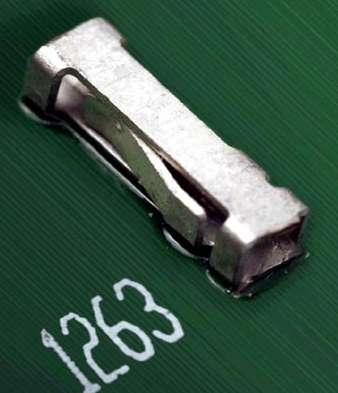

Feb 10, 2005 Both 1263 SMT Box Receptacle (horizontal terminal) and 1265 SMT Box Receptacle (vertical terminal) have entry capability on either end and offer reliable connection via high-pressure contact area. Current rating is 3 A, and units mate with 0.025 in. square or round pin. Receptacles can accommodate minimum of 12 mating cycles without degradation. Designed for automation with existing pick and place equipment, units are also available in SMT tape pockets.

Wall Industries, Inc.    Exeter, NH 03833 4556

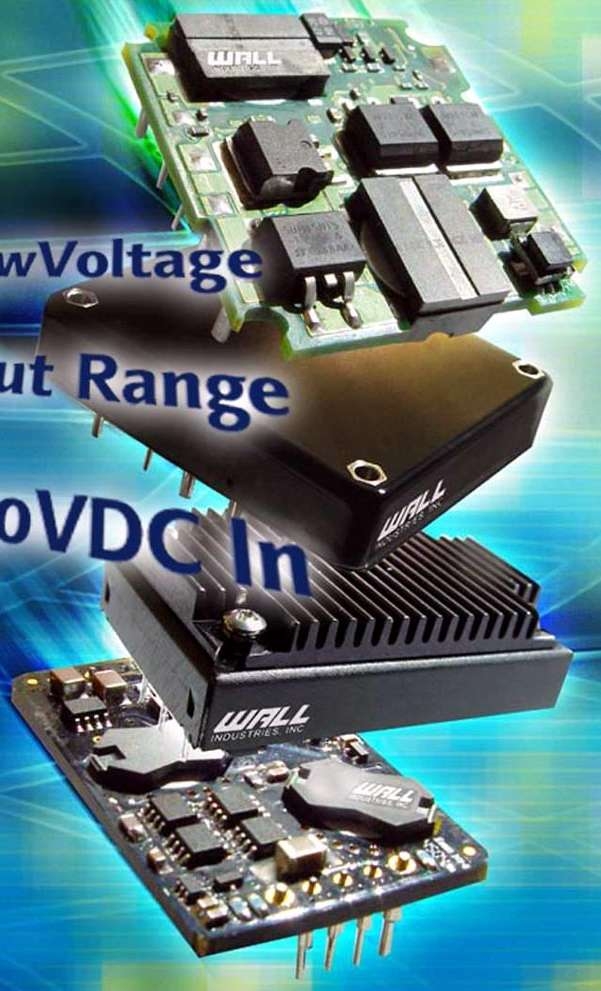

Feb 10, 2005 Suited for applications requiring nominal 12 or 24 Vin, LV series converters operate over -40 to +100ºC temperature range and feature 6-sided shielding, remote sense, trim to 10%, case ground pin, and remote on/off. Each unit produces up to 150 W and 20 A of output current at 3.3 and 5 Vout with efficiencies of up to 88%. Converters feature dc input of 10-30 Vin and can be configured to provide output voltages of 3.3, 5, 12, 15, 24, 26, and 28 Vout.

Meese Orbitron Dunne Co. (MOD)    Saddle Brook, NJ 07662
Feb 10, 2005 Rotationally molded of weatherproof polyethylene, Poly-Trux® 50P-16 features center casters with 5 in. wheels in 4 in., one-piece forks. Placed in corners, 4 heavy-duty, swiveling 4 in. casters permit on-demand tipping from front or back for smooth rolling over impediments. Cart's 5/8 in. painted marine plywood base accommodates payloads up to 400 lb without bulging or distorting. Measuring 28½ in. wide, unit fits 3 across in standard trailer.

TE Connectivity Ltd.    Berwyn, PA 19312

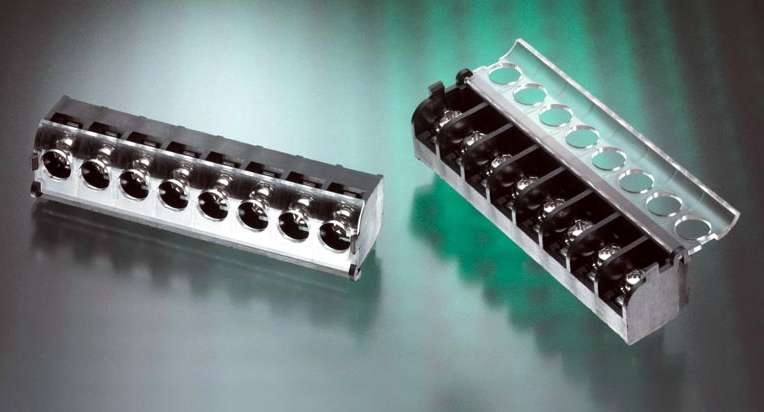

Feb 10, 2005 Suited for PCB power I/O applications, BUCHANAN .325 in. centerline tri-barrier strips are molded from UL 94V-0 black thermoplastic in sizes from 2-8 contact positions. Each contact carries 15 A, 300 Vac/Vdc current rating. Standard SEMS screw accepts stranded or solid, bare copper wire from 22-14 AWG and can be fastened with Phillips or slotted screwdriver. Clear plastic, hinged safety cover allows terminal contact screw to be loosened and tightened through access hole.

Durex Products, Inc    Luck, WI 54853 0354

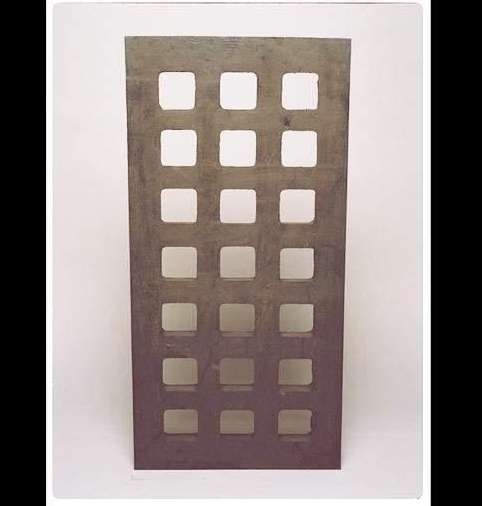

Feb 10, 2005 Designed with molded, tapered openings, Dur-X-Kleen Media eliminates impact damage, plugging, and blinding. It is available in number of harder or softer rubber designs and offers abrasion and tear resistance. Dur-X-Kleen is suited to applications that involve dry, high impact material or fine, sticky or near-size material. It comes in variety of mounting styles and can be custom-designed in bolt-down, modular, or side-tension versions to fit any existing screen box.

Selco Products Co.    Reno, NV 89521-5908

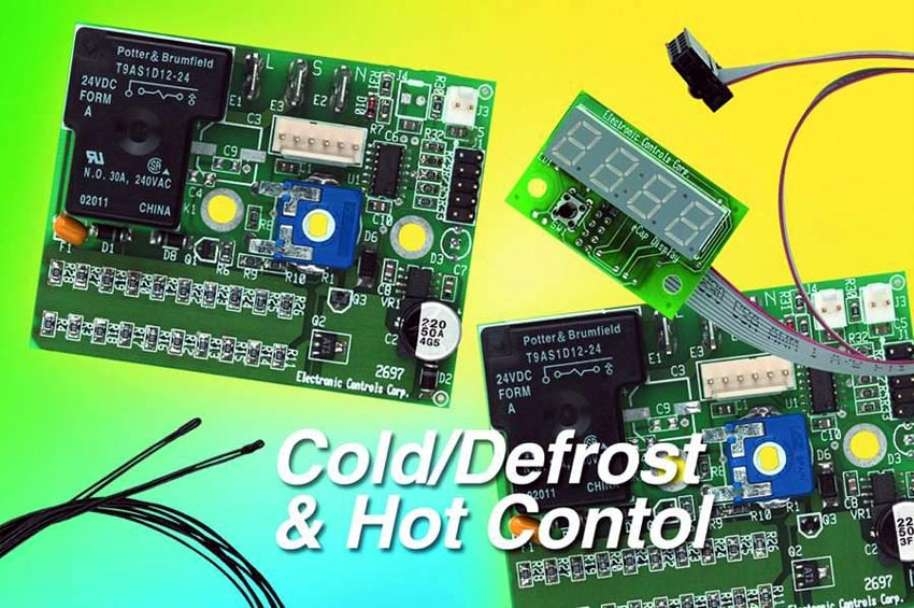

Feb 10, 2005 Model 2696-C is designed for cold on/off temperature control while model 2697-C provides cold control with added functionality of defrost cycle control. Controllers provide high accuracy on/off control for temperatures between -40° and +50°F. Model 2696-H suits hot on/off control for temperatures from 32-285°F. Applications include commercial and consumer appliances, cooking equipment, refrigerated and frozen food storage, chillers, and HVAC equipment.

Fieldbus Foundation    Austin, TX 78731
Feb 10, 2005 High-Speed Ethernet (HSE) Interoperability Test Kit v1.0 includes all hardware and software required to ensure complete HSE device interoperability as specified by Fieldbus Foundation's official registration testing procedure. HSE ITK consists of test engine that executes over 400 test cases to exercise device implementation, test function block, and device description (DD) viewer that allows examination and verification of device's DD.

LEDtronics, Inc.    Torrance, CA 90505
Feb 10, 2005 Series SLL003 Ultra Slim Shoebox LED Cluster Light Module comes 1.5 in. high fixture that weighs 14 lb. Unit features 400 incandescent white 5 mm LEDs mounted on PCB, consumes 20 W, emits 656 candela of light, gives off 700 lumens, and has color temperature of 3,000-3,500 K. Transparent lens is high-impact strength, UV-resistant polycarbonate and stainless steel housing features electrocoat-painted powder-coat finish to protect against corrosion.

Electro Industries/Gaugetech    Westbury, NY 11590

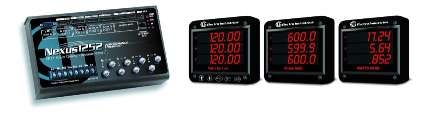

Feb 10, 2005 Multifunction LED Displays feature master/slave capability, allowing use of 3 multi-line LED displays configured to voltage, current, and power. With additional displays, users can obtain 9 LED values from one meter simultaneously. Used as master polling device and volts display, Model P40N broadcasts data to Amp Model P41N and Power Model P43. Technology allows Nexus Meter to have multiple display capability using 1 display port with non-scrolling metering parameters.

Vicor Corp.    Andover, MA 01810 5424
Feb 10, 2005 High-boost Model VI-HAM is a universal ac input, PFC front-end module optimized for use with Series 375 DC-DC converters up to 600 W. Consisting of full-wave rectifier and high-frequency, zero-current switching boost converter, unit includes active inrush current limiting, over temperature and short circuit protection, control, and housekeeping circuitry.

Wall Industries, Inc.    Exeter, NH 03833 4556

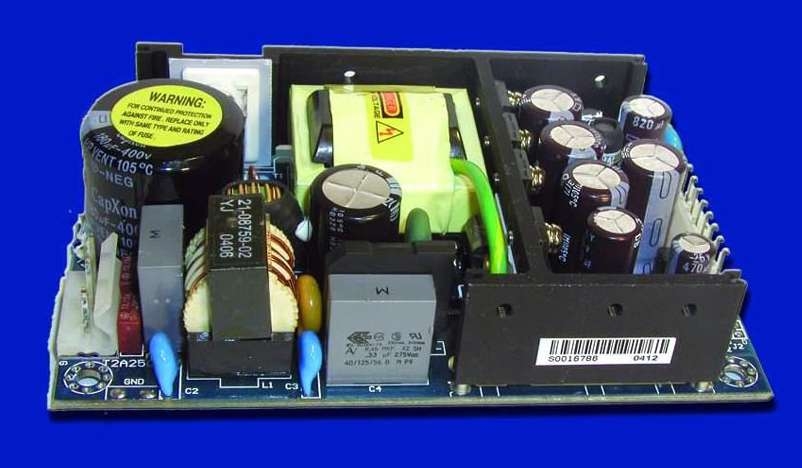

Feb 10, 2005 Series PSSBU150 universal input, open ac/dc power supplies provide single output voltage from 3–50 Vout. Housed in 3 x 5 in. package measuring 1.32 in. high, units operate up to +70°C with efficiencies as high as 86%. They include internal EMI filter, power factor correction, tight line/load regulation, plus over-voltage and over-current protection. Applications include CRT terminals, disc drive systems, microprocessor-based systems, and portable devices.

Hays Fluid Controls Div., Romac Industries, Inc.    Dallas, NC 28034 0580
Feb 10, 2005 Providing constant flow rate of water in HVAC systems, Mesurflo® Valves are factory configured for any flow from 0.5–7,200 gpm, with piping ranging from 0.5–20 in. in diameter. They are designed with virtually silent rubber-based diaphragm, which presses flexibly against plastic-resin opening to control flow. Installation of valve and accompanying strainer and connectors permanently eliminates need of rebalancing or maintaining multiple manual valves in system.

Thomas Products Division    Sheboygan, WI 53081
Feb 10, 2005 Series 3013 consists of 6 models with maximum air flow of 1.3 ml/min, maximum pressure of 6.5 psi, and maximum vacuum of 11.8 in. hg. Units offer quiet operation and ability to restart under pressure or vacuum. Either permanent magnet or brushless dc motors are offered in 3.0, 4.5, or 12.0 V ratings. Polycarbonate pump head as well as EPDM diaphragm and seals are engineered for corrosion resistance.

BEA Systems, Inc.    San Jose, CA 95131-1010
Feb 10, 2005 BEA WebLogic Communications Platformâ„¢ provides integrated, standards-based suite of products that lets telecommunications companies create, deliver, and manage converged voice, data, video, and mobile services over wireless and wireline networks. Suite includes BEA WebLogic SIP Serverâ„¢, which is designed for building and deploying services in SIP environment. Carrier-grade J2EE application server offers integrated SIP support.

Compuware Corp.    Detroit, MI 48226
Feb 10, 2005 DevPartner Fault Simulator addresses need to verify that code written to handle error conditions is complete and functioning properly. It tricks target application into believing environmental or .NET Framework exception is present in order to monitor reaction of application. DevPartner SecurityChecker accelerates development of ASP.NET applications by automatically identifying security vulnerabilities through compile-time, run-time, and integrity analyses.

HandySoft Global Corp.    Vienna, VA 22182
Feb 10, 2005 BizFlow Integration Studio offers end-to-end system-level transaction modeling and management. It leverages service-oriented architectures and process exchange standards to facilitate multi-step, multi-system business-to-business integration. Software also enables clients to remove legacy system integration barriers and streamline business partner interactions using tools designed to facilitate delivery of maintainable integration solutions.

BMC Software, Inc.    Houston, TX 77042-2827
Feb 10, 2005 PATROL® Analytics automatically generates dynamic real-time thresholds and delivers system-wide visibility, insight, and control required for proactive system management. Self-learning behavioral analysis software helps set alerting thresholds by continuously analyzing and correlating real-time system metrics to determine typical behavioral patterns. Trusted Alarmsâ„¢ reports problems and notifies personnel before problems result in service degradation or outages.

Mettler Toledo, Inc.    Columbus, OH 43240
Feb 10, 2005 ReactIR iC10 is suited for in situ monitoring of chemical reaction species using flexible mid-infrared fiber optic conduit, coupled with 6 mm diameter Diamond ATR probe. System provides real-time analysis of chemical reaction characteristics and species, including reaction initiation/end point, mechanism, kinetics, and intermediates. Wizard-based iC IR1.0 control software guides user through initial setup and collection of reaction data.

Chelsio Communications    Sunnyvale, CA 94085
Feb 10, 2005 Model T210 Protocol Engine is a 10 Gb Ethernet adapter with full TCP/IP Offload and iSCSI acceleration. Model N210 is a 10 Gb Ethernet adapter with turn-key software drivers for all major operating systems. Four-port Gigabit Ethernet protocol engine, Model T204 is targeted for storage applications that may not yet require 10 Gb performance.

STMicroelectronics    Lexington, MA 02421
Feb 10, 2005 With maximum junction temperature of 175°F, Models STPS1150, STPS2150, and STPS3150 are 150 V Schottky diodes that handle continuous forward currents up to 1, 2, and 3 A, respectively. Negligible reverse recovery charge means near-zero switching losses. Available in surface-mount and axial-lead packages, units minimize voltage transients and oscillations during fast switching, and are suited for secondary rectification of fly-back power supplies.
