DeFelsko Corp.    Ogdensburg, NY 13669

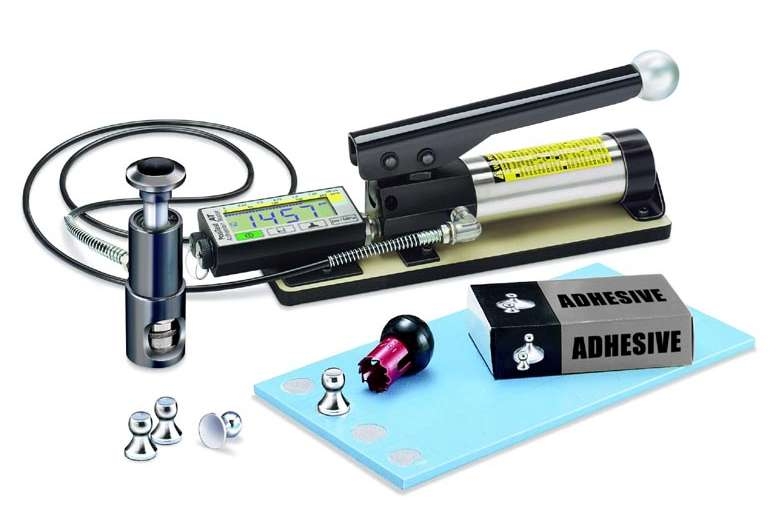

Feb 10, 2005 PosiTest® measures adhesion of coatings to metal, wood, concrete, and other substrates. Internal memory stores maximum pull-off pressure, rate of pull, test duration, and dolly size for up to 200 pulls. Pull Rate Indicator allows operator to monitor and adjust rate of pull in accordance with international standards. Portable, hand-operated tester uses self-alignment system that enables evenly distributed pull-off force on smooth and uneven coating surfaces.

Harting KGaA      Germany
Feb 10, 2005 Measuring 2.54 x 2.54 mm, PCB 2-row Transition Connector is available from 6–64 positions and is suited for all styles of flat cable AWG 28/7. Kinked pin maintains connector securely in PCB, allowing for weight of cable during solder process.

Harting KGaA      Germany

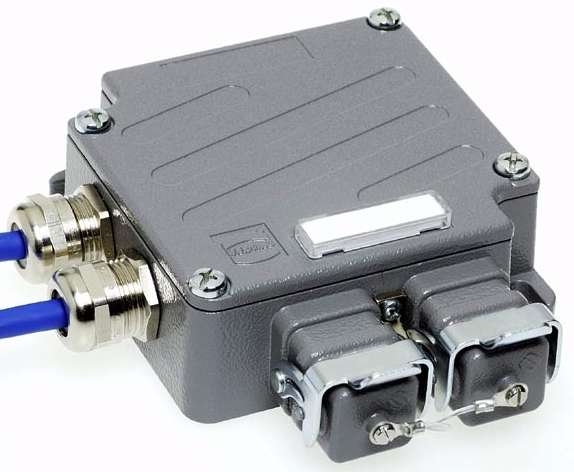

Feb 10, 2005 HARTING RJ Industrial® Metal Outlet continues premis cabling according to IEC 11801 directly into industrial environment. PROFInet® compliant outlet carries IP 67 rating and can be connected with LSA-PLUS® technology. Suited for use in harsh applications, product mounts on walls, pillars, or beams. Covered label enables clear identification of both ports. On field cabling side, HARTING RJ Industrial® Data 3A plug offers optimized RJ 45-based connection.

Enerpac BV      Netherlands
Feb 10, 2005 Threaded and manifold-mount push cylinders feature nitro carburized steel bodies and stop rings as well as hard chrome plated plungers. Cylinders have BSPP-porting in single and double-acting models. Designed for applications requiring workpiece positioning, holding, clamping, punching, and ejecting, 46 models are available to provide clamping forces from 1.7–39.2 kN and clamping extensions strokes from 7–50 mm. Max hydraulic operating pressure is 350 bar.

Parker Fluid Control Division    New Britain, CT 06051

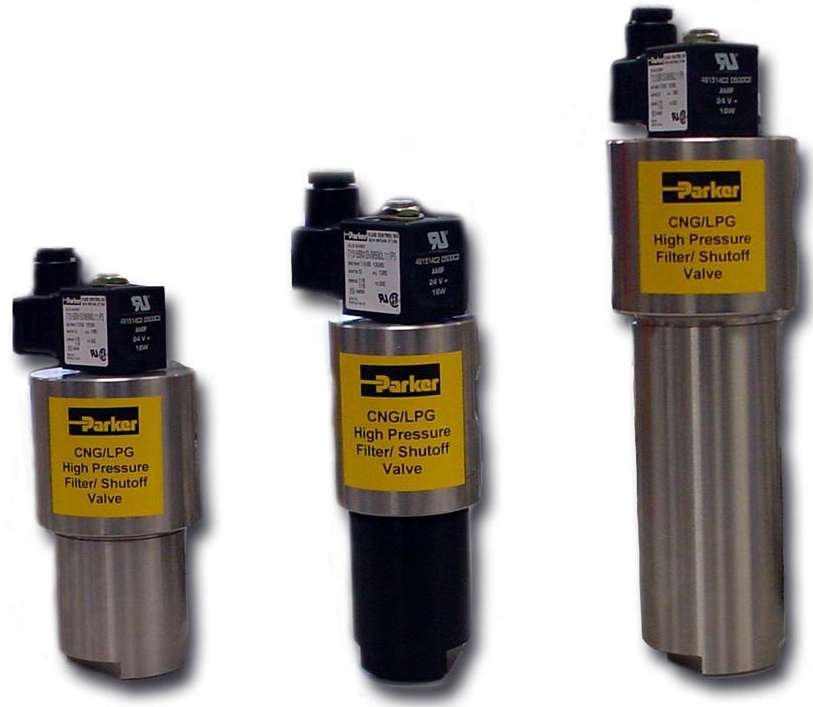

Feb 10, 2005 Available in 12 and 24 Vdc models, compressed natural gas and liquefied natural gas (CNG/LPG) 2-way, NC, solenoid valve is constructed of 430F stainless steel. It features bubble-tight sealing and predictably functions for up to 20,000 hr before replacement. Valve handles service pressures up to 4,500 psig, has burst pressure of 22,500 psi, and withstands max media and ambient temperature of 170°F.

Addonics Technologies, Inc.    San Jose, CA 95131
Feb 10, 2005 Saturn Hard Drive Enclosure enables any SATA hard drive to connect to computer via USB, Firewire, CardBus/PCMCIA, SATA, or IDE interface. Storage solution also allows SATA or IDE hard drive to be used as removable drive via same drive bay in Mobile Rack application. Enclosure components can be mixed and matched to meet storage application requirements. Kit also enables users to read/write to hard drive with any computing device and provides desktop and mobile use.

Blockmaster Electronics, Inc.    Elk Grove Village, IL 60007
Feb 10, 2005 With multiple sub-series configurations, CRM Series provides almost unlimited mating and polarizing capabilities. Polarization pegs or clips are available to prevent incorrect mating of plugs to CRM header. Offered in configurations of 2–25 poles, PCB pin mounted series have spacings of 5, 5.08, 10, and 10.16 mm pitch depending on style. RoHS compliant products are voltage rated at 15 A @ 300 V and have PA6.6 polyamide housing.

Kaif Digital    Scottsdale, AZ 85260
Feb 10, 2005 Base model, SC4/7, accepts one type of transducer signal on all inputs, while enhanced version, SC4+/7+, has fully programmable inputs. With latter, single unit can accommodate temperature, pressure, velocity, flow, and volume sensor types at same time. Each unit has multiple display modes and can be programmed to scan all channels and display channel with highest/lowest reading. Control relay or open collector output for each channel is provided.

Zierick Manufacturing Corp.    Mount Kisco, NY 10549
Feb 10, 2005 Both 1263 SMT Box Receptacle (horizontal terminal) and 1265 SMT Box Receptacle (vertical terminal) have entry capability on either end and offer reliable connection via high-pressure contact area. Current rating is 3 A, and units mate with 0.025 in. square or round pin. Receptacles can accommodate minimum of 12 mating cycles without degradation. Designed for automation with existing pick and place equipment, units are also available in SMT tape pockets.

Wall Industries, Inc.    Exeter, NH 03833 4556
Feb 10, 2005 Suited for applications requiring nominal 12 or 24 Vin, LV series converters operate over -40 to +100ºC temperature range and feature 6-sided shielding, remote sense, trim to 10%, case ground pin, and remote on/off. Each unit produces up to 150 W and 20 A of output current at 3.3 and 5 Vout with efficiencies of up to 88%. Converters feature dc input of 10-30 Vin and can be configured to provide output voltages of 3.3, 5, 12, 15, 24, 26, and 28 Vout.

Meese Orbitron Dunne Co. (MOD)    Saddle Brook, NJ 07662
Feb 10, 2005 Rotationally molded of weatherproof polyethylene, Poly-Trux® 50P-16 features center casters with 5 in. wheels in 4 in., one-piece forks. Placed in corners, 4 heavy-duty, swiveling 4 in. casters permit on-demand tipping from front or back for smooth rolling over impediments. Cart's 5/8 in. painted marine plywood base accommodates payloads up to 400 lb without bulging or distorting. Measuring 28½ in. wide, unit fits 3 across in standard trailer.

TE Connectivity Ltd.    Berwyn, PA 19312
Feb 10, 2005 Suited for PCB power I/O applications, BUCHANAN .325 in. centerline tri-barrier strips are molded from UL 94V-0 black thermoplastic in sizes from 2-8 contact positions. Each contact carries 15 A, 300 Vac/Vdc current rating. Standard SEMS screw accepts stranded or solid, bare copper wire from 22-14 AWG and can be fastened with Phillips or slotted screwdriver. Clear plastic, hinged safety cover allows terminal contact screw to be loosened and tightened through access hole.

Durex Products, Inc    Luck, WI 54853 0354
Feb 10, 2005 Designed with molded, tapered openings, Dur-X-Kleen Media eliminates impact damage, plugging, and blinding. It is available in number of harder or softer rubber designs and offers abrasion and tear resistance. Dur-X-Kleen is suited to applications that involve dry, high impact material or fine, sticky or near-size material. It comes in variety of mounting styles and can be custom-designed in bolt-down, modular, or side-tension versions to fit any existing screen box.

Selco Products Co.    Reno, NV 89521-5908
Feb 10, 2005 Model 2696-C is designed for cold on/off temperature control while model 2697-C provides cold control with added functionality of defrost cycle control. Controllers provide high accuracy on/off control for temperatures between -40° and +50°F. Model 2696-H suits hot on/off control for temperatures from 32-285°F. Applications include commercial and consumer appliances, cooking equipment, refrigerated and frozen food storage, chillers, and HVAC equipment.

Fieldbus Foundation    Austin, TX 78731
Feb 10, 2005 High-Speed Ethernet (HSE) Interoperability Test Kit v1.0 includes all hardware and software required to ensure complete HSE device interoperability as specified by Fieldbus Foundation's official registration testing procedure. HSE ITK consists of test engine that executes over 400 test cases to exercise device implementation, test function block, and device description (DD) viewer that allows examination and verification of device's DD.

LEDtronics, Inc.    Torrance, CA 90505
Feb 10, 2005 Series SLL003 Ultra Slim Shoebox LED Cluster Light Module comes 1.5 in. high fixture that weighs 14 lb. Unit features 400 incandescent white 5 mm LEDs mounted on PCB, consumes 20 W, emits 656 candela of light, gives off 700 lumens, and has color temperature of 3,000-3,500 K. Transparent lens is high-impact strength, UV-resistant polycarbonate and stainless steel housing features electrocoat-painted powder-coat finish to protect against corrosion.

Electro Industries/Gaugetech    Westbury, NY 11590
Feb 10, 2005 Multifunction LED Displays feature master/slave capability, allowing use of 3 multi-line LED displays configured to voltage, current, and power. With additional displays, users can obtain 9 LED values from one meter simultaneously. Used as master polling device and volts display, Model P40N broadcasts data to Amp Model P41N and Power Model P43. Technology allows Nexus Meter to have multiple display capability using 1 display port with non-scrolling metering parameters.

Vicor Corp.    Andover, MA 01810 5424
Feb 10, 2005 High-boost Model VI-HAM is a universal ac input, PFC front-end module optimized for use with Series 375 DC-DC converters up to 600 W. Consisting of full-wave rectifier and high-frequency, zero-current switching boost converter, unit includes active inrush current limiting, over temperature and short circuit protection, control, and housekeeping circuitry.

Wall Industries, Inc.    Exeter, NH 03833 4556
Feb 10, 2005 Series PSSBU150 universal input, open ac/dc power supplies provide single output voltage from 3–50 Vout. Housed in 3 x 5 in. package measuring 1.32 in. high, units operate up to +70°C with efficiencies as high as 86%. They include internal EMI filter, power factor correction, tight line/load regulation, plus over-voltage and over-current protection. Applications include CRT terminals, disc drive systems, microprocessor-based systems, and portable devices.

Hays Fluid Controls Div., Romac Industries, Inc.    Dallas, NC 28034 0580
Feb 10, 2005 Providing constant flow rate of water in HVAC systems, Mesurflo® Valves are factory configured for any flow from 0.5–7,200 gpm, with piping ranging from 0.5–20 in. in diameter. They are designed with virtually silent rubber-based diaphragm, which presses flexibly against plastic-resin opening to control flow. Installation of valve and accompanying strainer and connectors permanently eliminates need of rebalancing or maintaining multiple manual valves in system.
