Advance Transformer Co.    Rosemont, IL 60018 5625
Feb 09, 2005 Available to run 1–4 T8 fluorescent lamps, Optanium™ Instant Start Electronic Ballasts are offered in 2 versions: standard light output design with .87 ballast factor, and low-watt design with .77 ballast factor. Lamps are operated at 42–52 kHz frequency, eliminating visible flicker. Additional features include anti-striation circuitry, lamp auto-restrike capability, 20-foot remote mounting capability, and independent lamp operation.

W.A.C. Lighting Company    Port Washington, NY 11050

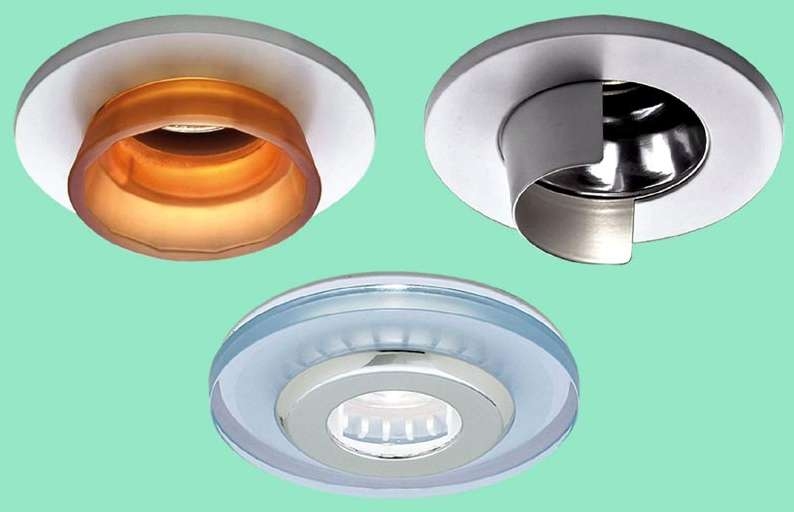

Feb 09, 2005 Available for IC and non-IC applications, Spec Grade 3 and 4 in. Recessed Downlights are crafted of die-cast aluminum. These 12 V recessed luminaires, offered in variety of 3 and 4 in. apertures, feature decorative, adjustable, and wet locations trims. Decorative glass trims are available in cobalt blue, amber and white, and finishes include brushed nickel, black, white, and polished brass.

Superior Industries Of Morris    Morris, MN 56267
Feb 09, 2005 With design that facilitates setup, portable feed hoppers deliver bulk materials evenly and consistently into crushing, screening, or washing plants. They are manufactured with discharge conveyors and feature 36 in. belt feeder and variable speed drive unit capable of belt speeds to 175 fpm. Fabricated hoppers feature 10 yd capacity and 8 x 16 ft top opening with grizzly option. Discharge conveyors are 36 in. x 40 ft with 20 hp drive and 850 tph capacity.

Mahr Federal Inc.    Providence, RI 02905
Feb 09, 2005 MarSurfâ„¢ XCR 20 takes roughness and contour measurements from same unit. MarSurf GD 25 roughness drive unit and PCV 200 contour drive unit are attached via twin mount to same measuring stand. There is no need to change drive unit or probe when changing measurement task from roughness to contour. Simulation modes promote user familiarity, and Teach-In commands allow for creation of measuring programs that can be saved and launched using programmable function keys.

Inuktun Services, Ltd.    Nanalmo, BC V9T3M4  Canada

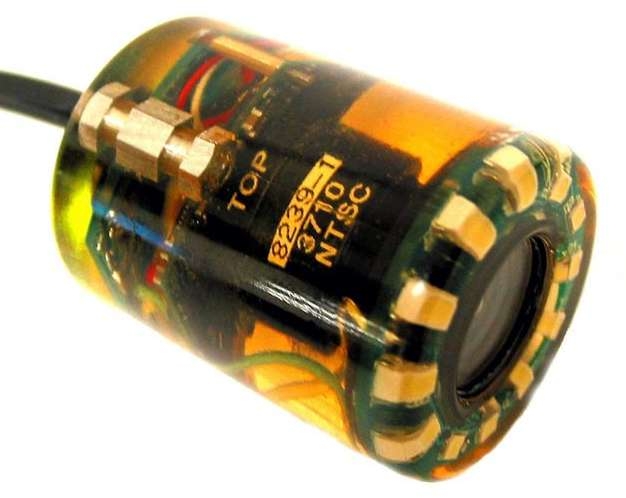

Feb 09, 2005 Completely enclosed Crystal Cam, impervious to water, chemicals, and other contaminates, has epoxy casing that withstands water pressures down to 1,000 ft. Its CCD image sensor produces pictures with 380 TV line resolution with 0.5 Lux rating. Lens is circled with 12 variably controlled LEDs, and micro-camera also features built-in charging circuitry. Control system operates over any length of cable without needing to be re-tuned.

Pico Technology Ltd    St Neots Cambridge PE19 1QB  United Kingdom

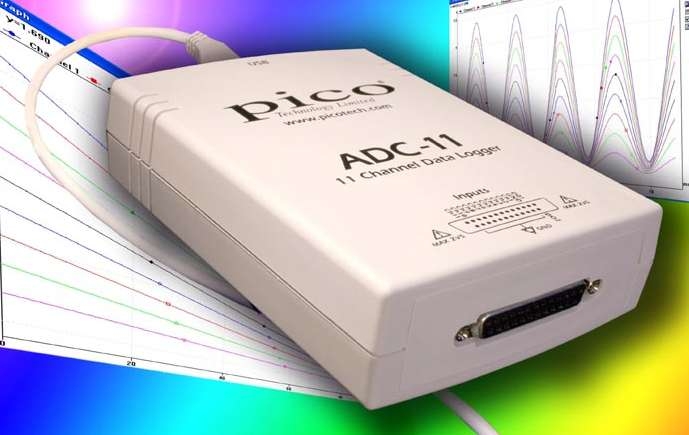

Feb 09, 2005 Suited for measuring and recording voltage signals onto Windows-based PC or laptop, USB ADC-11 Data Logger offers USB connectivity and additional digital outputs for use as control or alarm outputs. Available in 10- and 12-bit variants, product is compatible with multi-purpose terminal block and can be used with PicoLog® data logging software. Both variants are capable of measuring up to 11 channels of voltage at up to 20,000 samples/sec.

WAGO Corp.    Germantown, WI 53022
Feb 09, 2005 WALL-NUTS(TM) 773-173 AWG No. 10, 3-conductor, push wire connector provides safe, flexible alternative to twist wire connectors for electrical contractors. It does not require twisting or taping, and transparent housing allows for visual confirmation of connection. Touch-proof and rated to 105°C, each connector has test port to facilitate testing without re-insertion. Product is offered in solid, stranded, or tinned stranded copper with 600 of 1,000 V rating.

Mazak Corp.    Florence, KY 41042 3092
Feb 09, 2005 Horizontal Center Nexus 5000 features 40 hp, 18,000 rpm spindle as standard equipment. Spindle acceleration reaches 18,000 rpm in 3.8 sec. At 91.7 in. wide, rapid-traverse rates in X, Y, and Z are 2362 ipm, and acceleration is 0.8 G. Maximum workpiece size is 31.5 x 39.4 in. The 400 mm² pallet indexes 90° in 1.5 sec, and 2-pallet changer indexes in 7 sec. Forty tools are standard and 80-, 120-, and 160-tool magazines are optional.

American ELTEC, Inc.    Las Vegas, NV 89102
Feb 09, 2005 Eurocom 258 compact PCI module is based on Intel 855GME chip set with 400 MHz front side bus, 1.6 GHz Pentium M processor, and 1 Mb L2 cache. Other features include up to 1 Gbyte DDR RAM, watchdog timer, 2 programmable 16-bit counters, COM1 port, mouse and keyboard ports, 2 USB 2.0 interfaces, and 2 serial channels with hardware handshake. SBC supports Windows 2000/XP, LINUX and VxWorks, making it suitable for industrial applications.

Belden    Richmond, IN 47375

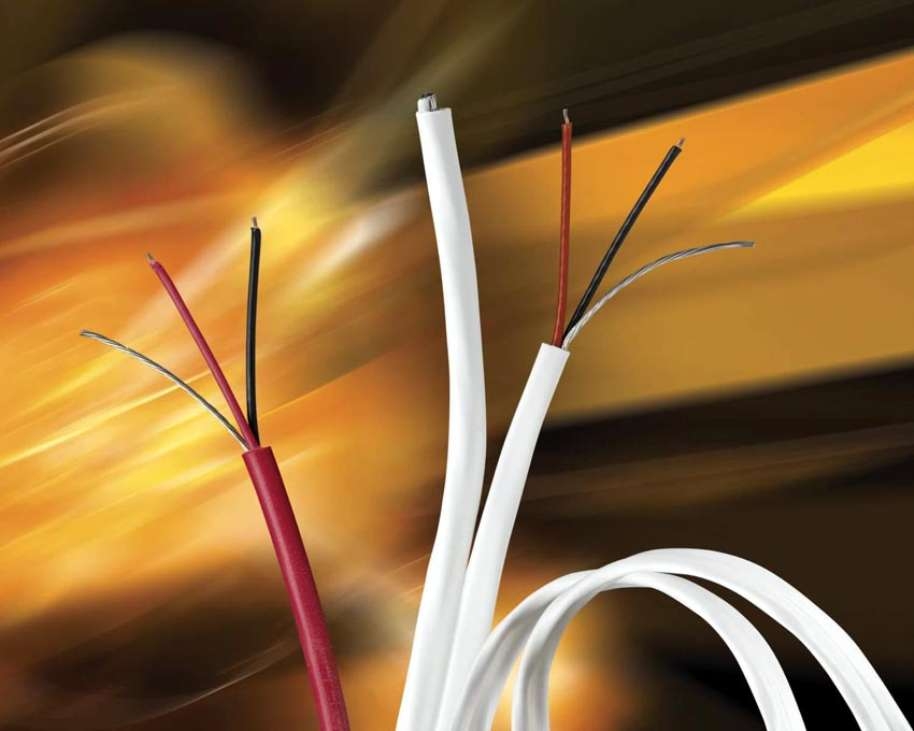

Feb 09, 2005 Brilliance Analog Audio cables, offered with either single-pair (9451P) or Siamese (9451DP) construction, incorporate twisted pairs with 22 AWG tinned copper conductors and FEP insulation. Conductors are color-coded and 22 AWG drain wire is inside foil shield. Beldfoil bonded-foil shield is bonded to cable jacket and can be stripped for termination in single step, while Flamarrest jacket is flexible and easy to pull. Both cables are NEC and CEC CMP rated.

PennEngineering® (Penn Engineering)    Danboro, PA 18916

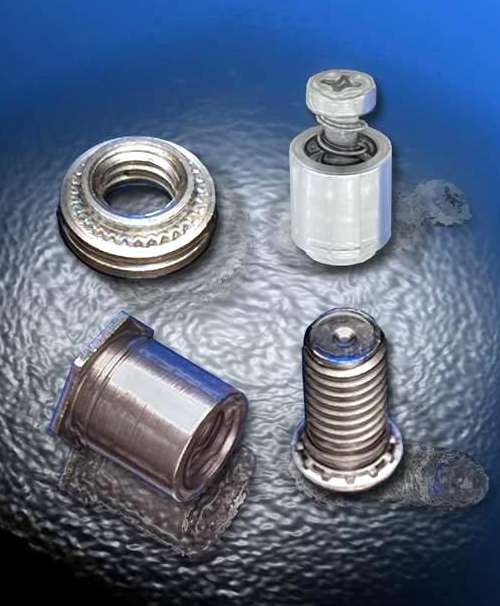

Feb 09, 2005 Machined from hardened stainless steels, PEM® Fasteners can be installed permanently in stainless sheets as thin as .030 in. Self-clinching units made from 400 Series SS include PEM Type SO4(TM) thru-hole threaded standoffs; Type BSO4(TM) blind threaded standoffs; Type FH4(TM) flush-head studs; and Type PFC4(TM) panel fasteners, which incorporate captive screws and meet UL 1950 requirements. Non-clinch units include Type PFS(TM) SNAP-IN panel fasteners and Type PFF(TM) HYBRID(TM) floating panel fasteners.

Carlo GAVAZZI Automation Components    Buffalo Grove, IL 60089

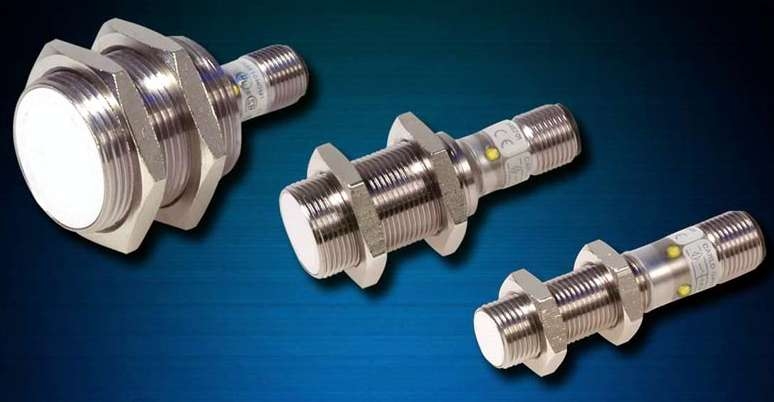

Feb 09, 2005 Offered in 2- and 3-wire versions, M12, M18, and M30 have 10–40 Vdc supply range and offer built-in reverse polarity, short-circuit, and transient voltage protection. Outputs are transistor types, with NPN and PNP versions available. Available with cable or M12 quick-disconnect plug, sensors have nickel-plated brass housings. Flush and non-flush mount sensing ranges for M12, M18, and M30 are 4 and 8 mm, 8 and 14 mm, and 15 and 22 mm respectively.

Emerson Process Management / Rosemount Div.    Chanhassen, MN 55317
Feb 09, 2005 Oxymitter(TM) can provide oxygen measurements during annealing of cold rolled metal products. By receiving accurate measurements, operators are able to maintain necessary preset oxygen levels to avoid oxidation. With transmitter inserted directly into furnace, there is no sampling system to maintain. Offering accuracy of ±0.05%, Oxymitter includes signal-conditioning electronics and HART® protocol, which allows remote calibrations and diagnostics.

Trust Automation, Inc.    San Luis Obispo, CA 93401
Feb 09, 2005 Series SE500 consists of 8 brushed servos from 23–500 W, while Series SE600 features 8 low inertia brushless servos from 30–1,500 W, and Series SE700 includes 12 medium inertia brushless servos from 50–7,000 W. Differential Hall signals U, V, and W are standard on SE600 and SE700 units. Torque ripple on these 10-pole servos is 0.3% of rated torque. Series SE500 features 1,000 line differential encoders, while Series SE600 and SE700 come with 2,000 line differential encoders.

QuickLabel Systems    West Warwick, RI 02893
Feb 09, 2005 Mid-range Pronto! 472+ can print successive labels with different text, barcodes, and graphics at up to 7 ips print speed. It is designed for printing 1–10,000 labels per print job, and is rated to handle multiple jobs per day. Unit includes Ethernet and USB connectivity as well as optional WiFi wireless interface.

Alibaba.com    Newark, CA 94560
Feb 09, 2005 Via website, AliPay online escrow system is available to all businesses and individuals in China. Payment system is partnered with national banks such as China Merchants Bank, China Construction Bank, Agricultural Bank of China, and Industrial and Commercial Bank of China. To conduct transaction, buyer sends payment to AliPay account, where it is held in escrow. Once buyer indicates product has been received, money is transferred to seller.

NVIDIA Corp.    Santa Clara, CA 95051
Feb 09, 2005 Manufactured with superscalar architecture, NVIDIA Quadro® FX Go1400 mobile GPU for PCI Express features hardware-accelerated antialiased lines, OpenGL hardware overlay planes, and 2-sided lighting. It offers support for Shader Model v3.0 and includes 256 Mb of 256-bit frame buffer memory, Rotated Grid FSAA, and 12-bit sub-pixel precision. Unit also features 128-bit precision graphics pipeline and 32-bit per component floating point capabilities.

Mitsubishi Forklift Trucks    Houston, TX 77043
Feb 09, 2005 N-Generation cushion tire forklift trucks come in 8 models with 3 fuel configurations. Frames are constructed with unitized design, and Integrated Presence System (IPS) offers indicators to keep operator informed in dynamic work environments. Trucks using EnvirO2(TM) engines exceed EPA emissions requirements and have rated service interval of 500 hr.

Measurement Computing Corp.    Norton, MA 02766
Feb 09, 2005 Model USB-ERB24 offers 24 channels of Form C relay with 6 A output ratings, while Model USB-ERB08 offers identical performance in 8-channel configuration. Both feature all-aluminum chassis suitable for benchtop or DIN rail. All wiring is brought out to full-sized screw terminals that are protected by latching connection cover. Each module provides built-in USB hub, implements daisy-chain power supply interconnection, and includes data logging software.

Rand McNally & Company    Skokie, IL 60076
Feb 09, 2005 Rand McNally Traffic is a downloadable mobile application that delivers real-time traffic flow and incident reporting to cell phone users in more than 90 US cities. Subscribers have unlimited access to information on accidents, construction, areas of congestion, road closures, weather conditions, and traffic-impacting events. Subscribers can store commute routes and retrieve traffic on or around those routes. Commute Wizard provides zip code-to-zip code reports.
