Beta Max Hoists, Inc.    Melbourne, FL 32902
Feb 22, 2005 Featuring 118 x 57 x 83 in. cabin with floor level calling system, Max Climber(TM) 4400P incorporates on board and base controls along with interlocking cabin doors and landing gates to ensure passenger safety. Emergency upper and lower limit switches are provided in addition to cabin door, cabin roof, and base enclosure switches. With lifting capacity of 4,400 lb, system can travel up to 500 ft high at speed of 150 fpm.

Opengear Inc    West Jordan, UT 84088
Feb 22, 2005 Available in 8-, 16-, and 48-port models, Series CM4000 provides secure access to serial console ports on Windows, Sun, and Linux servers. Units monitor and control network appliances including routers, gateways, office security, PBXs, and power switches. They provide filtering and access logging facilities, enabling console logs to be archived off-line. Console server at remote site can be accessed in-band through enterprise TCP-IP network or dial-up modem port.

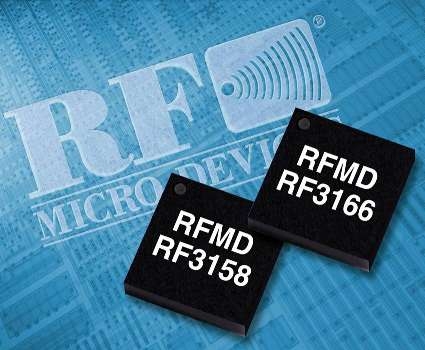

RF Micro Devices, Inc.    Greensboro, NC 27409-9421
Feb 18, 2005 Measuring 6 x 6 x 1.4 mm, PowerStar® RF3158 and RF3166 modules require no external components or critical routing. Quad-band RF3158 is optimized for linear EDGE using direct I and Q modulators or small signal polar modulation, while quad-band RF3166 is optimized for GSM/GPRS class 12. Battery voltage monitoring circuitry automatically measures battery voltage and adjusts ramp voltage, preventing power control loop from reaching saturation during low voltage conditions.

Mine Safety Appliances Company / Instrument Division    Pittsburgh, PA 15230
Feb 18, 2005 Chillgard RT detects down to 1 ppm over range of 0-1,000 ppm, and features up to 8 detection points. Photoacoustic infrared sensing enables detection of individual refrigerant with high specificity. Available in single-point diffusion and 4-point pumped models, Chillgard LS complies with ANSI/ASHRAE 15-1994 and provides low-level monitoring. Chillgard LE comes as single-point diffusion unit, single-point pumped unit for monitoring from remote location, or 4-point pumped unit.

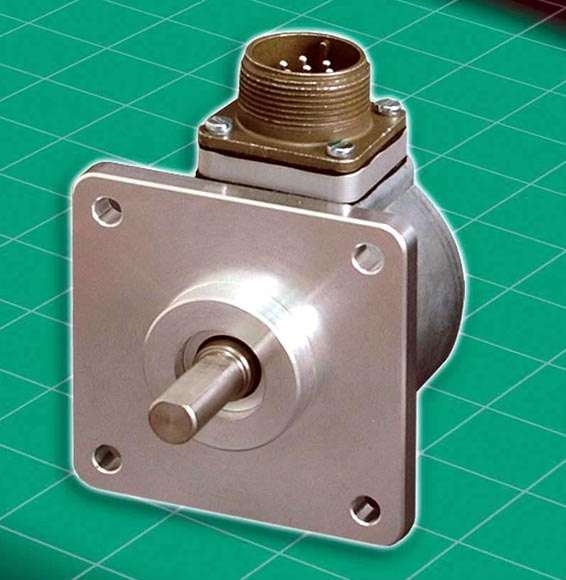

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
Feb 18, 2005 Available with ¼ or 3/8 in. shafts and servo or face mounts, Series RVI25 features 2.5 in. diameter housing with IP54 protection. Electrical options include push-pull and RS-422 outputs with either Mil-Spec connectors or cables. Units offer outputs of up to 5,000 ppr, with operating voltage of 10-30 Vdc or 5 Vdc. Optional shaft seal provides IP65 protection.

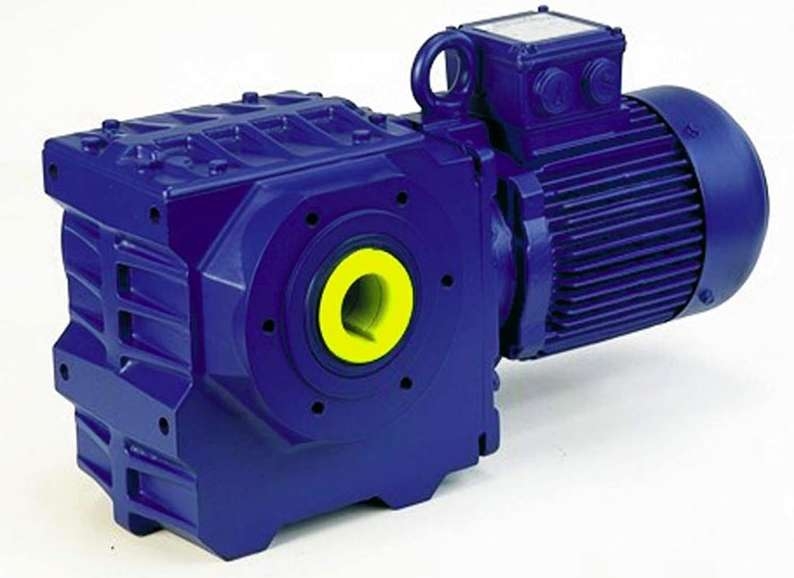

Danfoss Bauer Inc.    Somerset, NJ 08873 1212
Feb 18, 2005 Three-phase, 2-stage BS Series worm geared motors are available with power range from 0.05–7.5 hp, output speeds of 0.2–300 rpm, and torque of 220–8.850 lbf-in. With stator windings of insulated enameled copper wire, aluminum die cast cage rotor, and sealed gearbox housing, motors offer IP 65 rating. Installation options include foot or flange with single or double output shaft, shaft mounting with hollow shaft in keyed, or shrink disk version with torque arm.

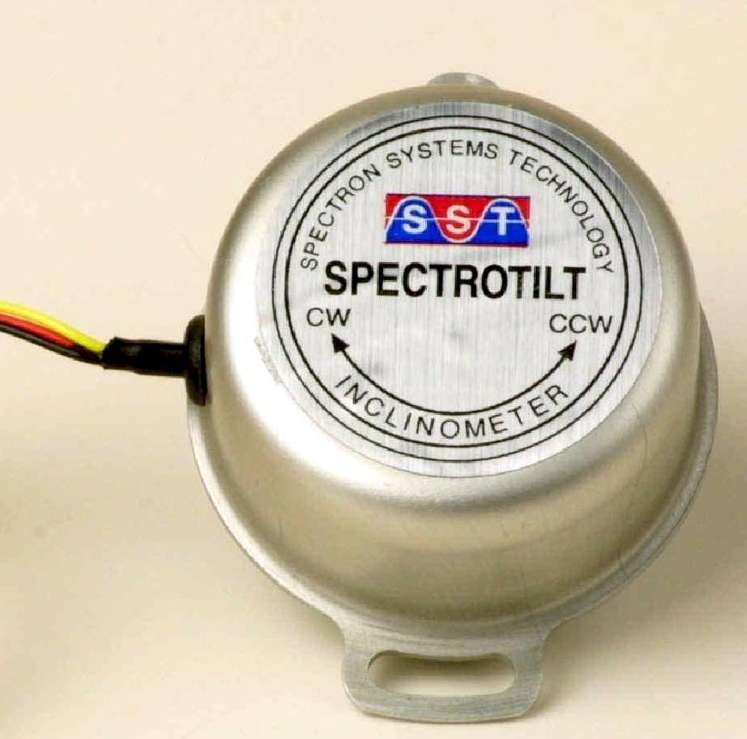

Spectron Glass & Electronics, Inc.    Hauppauge, NY 11788
Feb 18, 2005 SPECTROTILTâ„¢ RS232 combines single axis electrolytic tilt sensor with digital electronics and software. With on-board linearity and temperature correction, inclinometer has absolute accuracy of ±0.3° over ±60° angular sensing range. Features include a -40 to +80°C operating temperature range, 12 bit RS232 output, 0.03425 deg/count resolution, ESD and EMI protection, hermetically sealed sensing element, potted electronics, and aluminum housing.

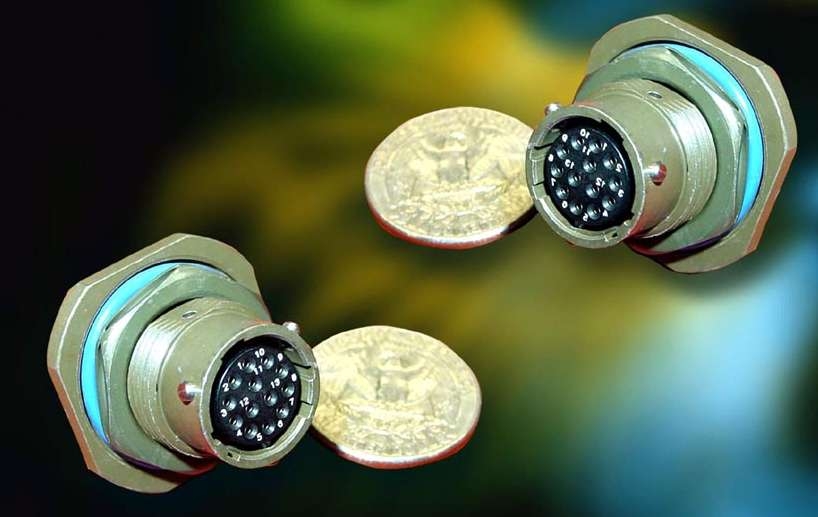

Sabritec    Irvine, CA 92614
Feb 18, 2005 Rated at IP 67 and capable of sealing up to 35 psi in unmated, open faced condition, water resistant connectors can be used in systems where moisture, humidity, water, and dust are present. Available in circular, rack and panel, and D-subminiature types, connectors can be custom designed to fit specification standard, or can incorporate special features, including different mounting types, unique shell or flange configurations, or EMI/EMP filtering.

Labconco Corp.    Kansas City, MO 64132 2696
Feb 18, 2005 Protector® Demonstration Hoods are light-duty fume hoods that provide procedural observation during educational demonstrations. Tempered safety glass front sash, sides, rear baffle, and top offer 360º visibility and provide fire, scratch, and corrosion resistance. Clean-Sweep(TM) air foil allows air to sweep work surface, while upper containment sash foil bleeds air into enclosure to direct contaminants away from operator's breathing zone.

Labconco Corp.    Kansas City, MO 64132 2696
Feb 18, 2005 Portable Table has 2 open shelves to hold variety of laboratory equipment and miscellaneous containers. Welded frame, made of 18-ga 1 in. square steel tubing, is electrostatically coated with corrosion-resistant epoxy in glacier-white color. Four inch diameter, thermoplastic casters absorb vibration for smooth trips over rough, uneven floors. Measuring 19 in. wide, frame fits through most doors and wide corridors.

AVX Corp.    Myrtle Beach, SC 29578
Feb 18, 2005 PCI Express Connector, Model 6325 allows user upgrades and bandwidth support beyond capacity of PCI Slot and AGP connectors. It provides 2.5 Gbps data transfer rate in desktop computers, communications equipment, workstations, and factory automation systems. Available in 36 x 1, 64 x 4, 98 x 8, and 164 x 16 contact positions, all in 1.00 mm pitch, one-piece connector supports different bandwidth requirements for 1.58 mm thick add-on graphics card.

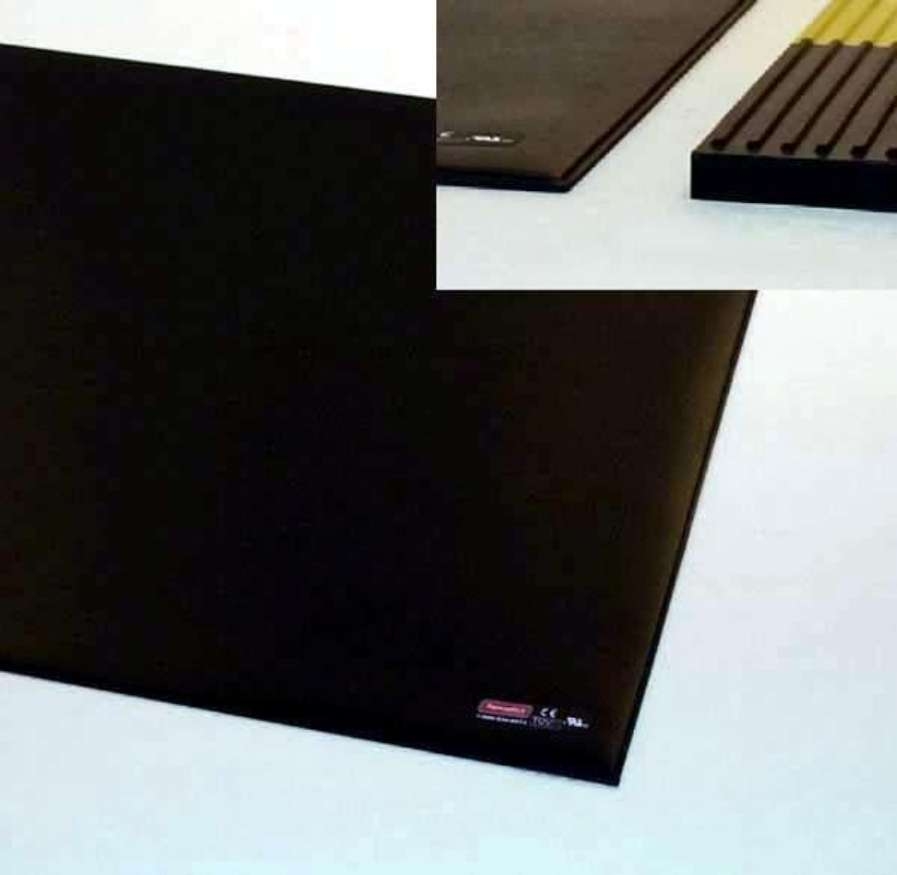

Tapeswitch Corp.    Farmingdale, NY 11735
Feb 18, 2005 Pressure-sensitive Slim-Matâ„¢ Extra-Thin Sensing Mat features actuation force of less than 1 lb. Waterproof mat, with NEMA 4X rating, is constructed of 1/8 in. thick flexible PVC, has smooth slip-resistant surface, and is available in sizes up to 30 x 60 in. It can be configured in custom sizes and shapes or with multiple zones, and is suitable for applications in industrial, medical, security and entertainment settings.

Armstrong International, Inc.    Three Rivers, MI 49093
Feb 18, 2005 Rada® EMC is supplied as pre-plumbed, frame-mounted package. Three-temperature programming capability is provided through control module, which can also serve as portal to building automation system. Control module receives remote set point signal and transmits mixed water temperature signal using 4–20 mA or 0–10 V signals. BAS integration lets user remotely adjust mixing valve's set point, trend temperature, log data, and determine temperature out-of-range conditions.

Armstrong International, Inc.    Three Rivers, MI 49093
Feb 18, 2005 Direct-contact, gas-fired Flo-Direct water heaters are all stainless steel units suited for variety of hot-water applications. Offering heat transfer efficiencies of 98% or greater, units are NSF 5 certified for all food grade water and can operate well with poor water quality. Typical applications include laundries, batch food processes, washdown, parts washers, concrete plants, and boiler makeup water.

Armstrong International, Inc.    Three Rivers, MI 49093
Feb 18, 2005 Flo-Rite-Temp Heaters utilize feed-forward principle of control, eliminating need for temperature sensing devices. Blending valve mounts directly on heat exchanger. Tube bundle features floating head design, which relieves tube stress and allows tubes to be removed for mechanical cleaning. Tubes are 16 ga Admiralty Brass and shell is carbon steel. Using 2–15 psig steam supply, Flo-Rite-Temp units are capable of heating 1–65 gpm of water from 40–140°F.

OilTrap Environmental    Tumwater, WA 98512
Feb 18, 2005 Suited for treating wash water generated from washing vehicles and equipment, ElectroPulse Model EP-SD3 handles flow rates from 3 gpm to 750 gal/day. Electricity-based electrocoagulation technology removes contaminants that are impossible to be removed by filtration or chemical treatment systems, such as emulsified oil, TPH, suspended solids, and heavy metals. Fully automated, modular system has no filters to clean or replace and does not require use of chemicals.

Armstrong International, Inc.    Three Rivers, MI 49093
Feb 18, 2005 Stainless Steel Model TVS4000 packages 2 piston-style isolation valves, test valve, and stainless steel strainer with blowdown valve into one connector. It accommodates choice of inverted bucket operating at 650 psig with capacity to 1,300 lb/hr, disc, thermostatic, or thermostatic wafer style steam traps.

Lee Industries, Inc.    Philipsburg, PA 16866
Feb 18, 2005 Capable of up to 10,000 cps, High-Shear Mixing Kettles are available in sizes from 20–1,000 gallons. They are suited for difficult materials that are hard to emulsify, such as creams, lotions, and toothpastes. Alternate scraped-surface designs up to 1,000,000 CPS and larger capacity vessels are also available. Vacuum/pressure with tilt-out agitators can be included to facilitate cleaning, maintenance, and inspection.

Igus, Inc.    East Providence, RI 02914 0349
Feb 18, 2005 Suited for woodworking industry, DryLin® T adjustable profile guide rail is dimensionally interchangeable with most re-circulating ball guides. Maintenance-free system is comprised of hard-anodized-aluminum T-shaped rail, adjustable carriage made of clear-anodized aluminum, and gliding elements made from polymer blend. Resistant to dirt, dust, and corrosion, Drylin T offers high shock absorption capabilities and withstands high static loads in all directions.

Dataforth Corp.    Tucson, AZ 85706
Feb 18, 2005 SensorLexâ„¢ 8B line of isolated analog signal conditioners includes 95 models that interface to variety of voltage, current, temperature, position, frequency, and strain measuring devices. Units are housed in potted thermoplastic package measuring 1.11 x 1.65 x 0.4 in. Instrument Class® performance includes ±0.05% accuracy, ±0.02% linearity, 3-pole filtering, and 1,500 Vrms isolation. Devices interface to almost any PC/104, CompactPCI, VMEbus, or proprietary DAQ board.
