Virtio Corporation    Campbell, CA 95008
Mar 31, 2005 Virtual Platform VPOM-V1030 uses C-code, graphical modeling, and transaction-based modeling to replicate functionality of TI's OMAPV1030 chipset in PC-based simulation. Functionality includes operation of ARM and DSP processors on chip, connectivity peripherals, and GSM/GPRS/EDGE peripherals. Able to support standard OSs and execute binary code that targets OMAPV1030 platform, software helps developers create and debug system and application code for emerging hardware.

TEGAM, Inc.    Geneva, OH 44041
Mar 31, 2005 Manufactured in compact, rack-mountable chassis, Model 2348 meets requirements for MEMS testing, transducer characterization, and pulse applications. Independent, buffered, voltage monitor output reduces output signal to 20:1 for 50 ohm inputs and 10:1 for inputs exceeding 1 Megohm. Continuous current of 750 mA is available at voltages up to 50 Vp-p, providing 18.75 W of ac or dc output power to 500 kHz.

TEGAM, Inc.    Geneva, OH 44041
Mar 31, 2005 Designed for use with Model 9070 MEMS Engine Driver System, Model 2375 features 4 channels, each rated for 20 mA continuous current with 0.2 ohm output impedance and independent voltage monitor output for use in closed loop system. Amplifier can drive capacitive loads up to 200 pF while maintaining full power bandwidth, exceeding 5 kHz. Product is suited for MEMS comb drives, cantilevered beams, and other electrostatic actuators.

Midwest Motion Products    Watertown, MN 55388
Mar 31, 2005 Accepting 12, 24, or 35 Vdc power, low noise dc Series MMP.LA-3 delivers up to 170 lb of force, and is available with stroke lengths of 50, 100, 200, 250, and 300 mm. Selection of output speeds are provided with gear ratios of 5:1, 10:1, 20:1, and 30:1. Lubricated for life, standard unit features built-in limit switches, non-rotating inner tube, aluminum outer tube, and corrosion resistance. Analog feedback potentiometer and IP65 protection are optional.

STMicroelectronics    Lexington, MA 02421
Mar 31, 2005 Fabricated using 130 nm CMOS technology, GreenFIELD STW21000 combines ARM926EJ-S MIPS RISC processor core, 16-Mbit on-chip eDRAM memory, eFPGA block, and range of analog and digital peripherals. Unit is available with on-chip multiple HDLC controllers, 10/100 Ethernet MACs, multi-channel serial port, and Power-On-Reset function. It is suited for feedforward and digital pre-distortion ratio network controllers and remote control for electrical tilt antennas.

Honeywell, Inc., Industrial Automation & Control    Phoenix, AZ 85023
Mar 31, 2005 UniSimâ„¢ includes UniSim Design Suite, which offers HYSYS® software, steady-state and dynamic simulation, design, performance monitoring, optimization, and business planning for processing plants. UniSim Operations Suite provides multi-function dynamic simulation to optimize operating capabilities and staff skills. UniSim Optimization Suite ensures responsiveness to changes in business demands through close linkages with planning, scheduling, and management functions.

A-T Controls, Inc.    Cincinnati, OH 45242

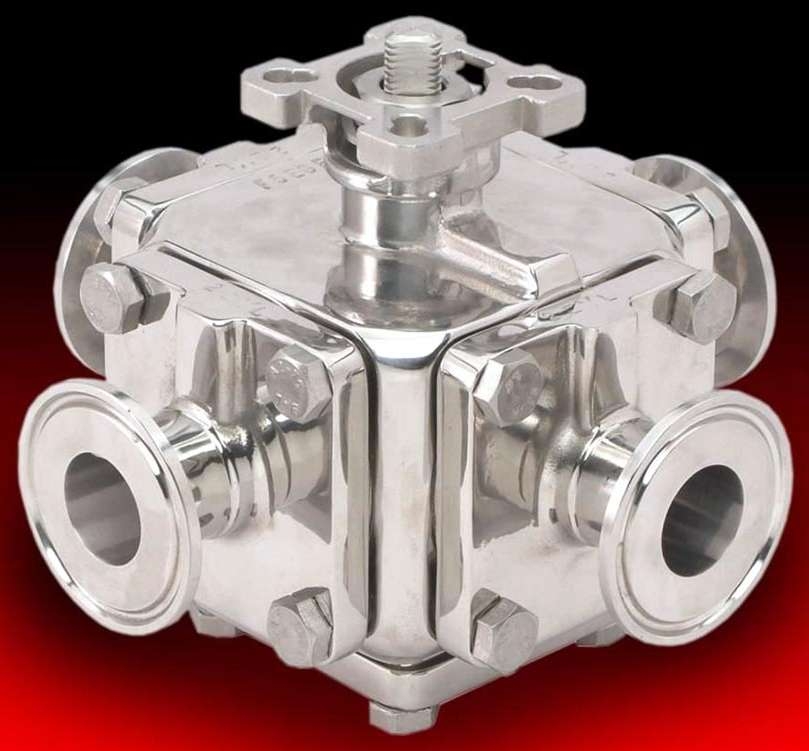

Mar 31, 2005 Constructed of 316 stainless steel, TRIAC Series 33, 43, and 53 are suited for mixing, diverting, and multi-directional flow control. Design permits in-line maintenance and features 5-seat, full-port construction to provide equal seat loading and positive sealing at any port. Balls offer L-, T-, I-, TT-Double T-, and LL-Double L-Port configurations. Valves come in 3-, 4-, and 5-way models in ¼-4 in. sizes and can be configured for ~150 flow pattern combinations.

4D Technology Corporation    Tucson, AZ 85706
Mar 31, 2005 PhaseCamâ„¢ 4010 dynamic Tywaman Green interferometer system acquires all information to compute phase in one exposure. Vibration-insensitive system includes one camera and optical phase sensor that eliminates need for phase shifters. Featuring Camera Linkâ„¢ interface and single mode, HeNe laser that eliminates mode hoping, system measures moving parts and investigates their dynamic modal behavior. It also comes with Pentium 4 computer and 4Sightâ„¢ software.

GEOCOM tms    Smyrna, GA 30080
Mar 31, 2005 A.MAZE helps shippers, couriers, and carriers optimize efficiency of local pickup and delivery operations. Mobile extension enables drivers and dispatchers to communicate in real-time concerning issues like order status, traffic conditions, or estimated time of delivery. Based on driver input, A.MAZE will modify trips on the fly, enabling companies to respond to incoming customer requests or other dynamic conditions.

Dosch Design US Shipping Ctr.    Altoona, PA 16602
Mar 31, 2005 Compatible with Windows and MAC computers, Dosch Textures: Construction XT provides over 100 seamless, tileable construction material textures that can be applied to 3D-models. Textures may also be applied to various themes and used in many computer graphics software packages. With up to 6,000 x 5,000 pixel resolution, textures include bump maps for depth of material that can be used for architectural renderings, animations, and game-design.

Unisto Electronic Seals    South Wales   United Kingdom
Mar 31, 2005 Featuring glass-filled nylon body, Crypta® Data II generates 4-digit random number every time it is sealed. Number remains unchanged until opened, enabling load security to be checked and verified at any time by pressing one button. Use of flash memory enables new features to be uploaded into unit to customize its functionality. With IrDA IR and RF capabilities, seal can incorporate remote sensors so that multiple-access load requires one securing point.

Scapa North America    Windsor, CT 06095
Mar 31, 2005 Dublfilm S995 polyester film is double-coated on liner side with acrylic adhesive and on exposed side with high-tack, high-peel, rubber-based adhesive. Pressure-sensitive adhesive product offers resistance to environmental extremes, adheres to ether and ester foams, and bonds to low-surface energy plastics. Adhesive coat weight facilitates bonding to irregular surfaces. Product can be used to bond abrasive disks and attach decorative materials.

GE Inspection Technologies, GmbH    Huerth 50354  Germany
Mar 30, 2005 Portable, PC-based USLT 2000B is operated as conventional flaw detector, displaying A-scans as well as DAC and DGS curves. Up to 4 selectable measurement values, such as sound path, projection distance, and depth and echo amplitude can be shown in measurement line. Battery-operated unit is available with optional software to allow saving, managing, and evaluation of inspection results for planning, control, and documentation of inspection process.

STMicroelectronics    Lexington, MA 02421
Mar 30, 2005 Operating from 2.2-5.5 V, Model TS4984 delivers 1 W per channel of continuous rms output power at 5 V into 8 ohm loads, with THD+N under 1%. It features SNR of 100 dBA and power supply rejection ratio of 62 dB at 217 Hz with grounded inputs. Dedicated circuitry guarantees virtually no pop and click at power-on or power-off. External standby mode control reduces supply current to less than 10 nA for each channel. Unit is housed in 4 x 4 mm QFN16 lead-free package.

Autopak Engineering Corp.    San Juan, PR 00902 4155

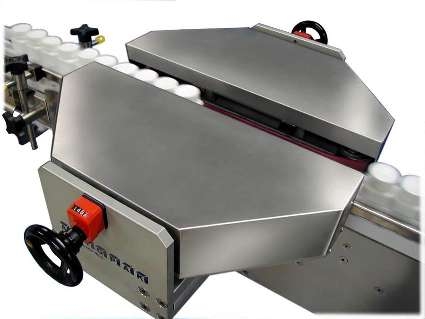

Mar 30, 2005 Suited for packages measuring at least ½ in. wide, Gap Transporter operates at speeds up to 160 fpm. It consists of 2 parallel belts with variable speeds that can be adjusted horizontally with hand-wheel. System helps prevent spilled product or debris from reaching downstream equipment and can equalize conveyor speeds for unstable products. By changing system’s configuration, manufacturers can mechanically verify presence of caps on containers.

Beta Dyne Inc.    Bridgewater, MA 02324

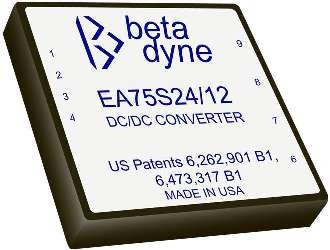

Mar 30, 2005 Single-output Series EA75 includes 35 models with nominal input voltages of 5, 12, 24, 48, and 100 Vdc and output voltages of 2.5, 3.3, 5, 12, 15, 18, and 24 Vdc. Measuring 2 x 2 x 0.50 in., units are housed in metal case that offers 6-sized shielding. They include overvoltage and undervoltage protection, 2:1 input voltage range, 1,500 Vdc input-to-output isolation, short circuit protection, 300 µA off state current, and output synchronous rectification.

STMicroelectronics    Lexington, MA 02421
Mar 30, 2005 Model STV8179F drives vertical coil of deflection yoke to scan electron beam over screen. This, in conjunction with horizontal deflection and beam modulation, creates viewable images. Unit provides peak-to-peak current up to 3.6 A in operating mode, and sustains high output flyback voltages up to 100 V to allow short retrace times required in 2H and High-Definition TVs. Heptawatt package is pin-to-pin compatible with company's linear vertical boosters.

Honeywell Sensing and Control    Golden Valley, MN 55422
Mar 30, 2005 Using thermoset sensing polymer, HIH-4000 series delivers instrumentation-quality relative humidity sensing in solderable, single in-line package. Ability to be cleaned, chemical resistance, and survival under saturation make products suited for use in harsh environments. Sensors offer on-board signal conditioning and feature recessed CMOS chip with nitride passivation layer and integral light shield.

Saelig Co., Inc.    Pittsford, NY 14534

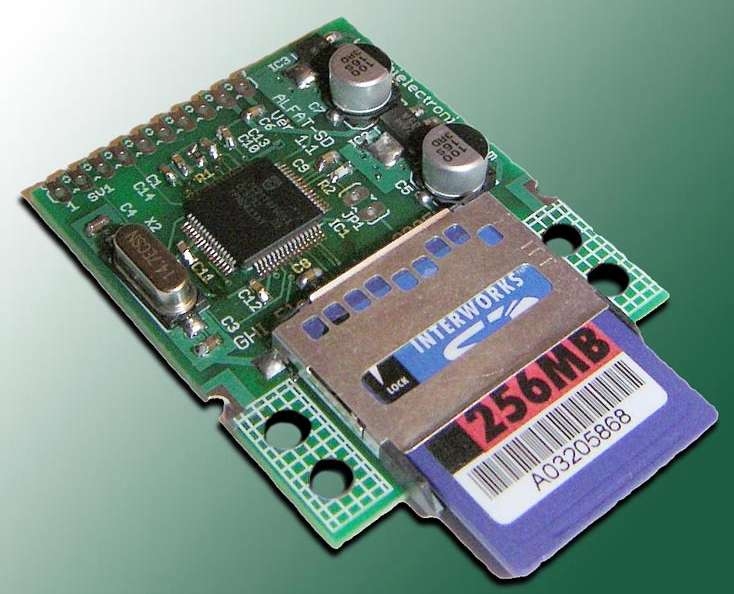

Mar 30, 2005 ALFAT-SD board adds megabytes of multimedia storage to any digital device. Based on ALFAT serial-to-FATfile converter IC, information stored on removable media with ALFAT-SD can be read on any PC. For operation, users send data to unit via serial port or SPI. Product, which measures 2 x 1.6 in., can be used with any microcontroller and can run from 3.3 or 5-12 V supplies. It is suited for file transfer between automated machines and PCs.

Stanley Vidmar    Allentown, PA 18105 1151
Mar 30, 2005 Vertical Lift Module Automated Storage and Retrieval System gives organizational benefits of modular drawer storage, space savings of automated storage and retrieval system, and power and convenience of Windows XP-based controller. Spare parts, accessories, semi-finished or finished goods, tools, and components stored in drawer can be cataloged, stored, and accessed easily. Unit can hold up to 240 drawers ranging from 5.3–21.5 ft wide, and up to 2.6 ft deep.
