Freescale Semiconductor    AUSTIN, TX 78735-8598
Mar 09, 2005 Based on HC08 processing unit with 8 MHz internal bus frequency, 8-bit Model HC908LB8 performs power factor correction and includes integrated PWM, which continuously controls brightness and allows dimming in fluorescent lighting systems. Unit supports digitally addressed lighting interface protocol to provide intelligence in large lighting systems. It includes 8 KB flash memory, 128 B RAM, up to 18 I/O, and output resolution of 3.9 ns using frequency dithering.

Pentek Inc.    Upper Saddle River, NJ 07458
Mar 09, 2005 RTS2503 Development Platform consists of hardware and software bundles, supported by set of board and system-level development tools targeted for real-time data acquisition, signal processing, and recording. It includes 1 GHz G4 PowerPC processor, 2 Virtex-II and 2 Virtex-II Pro FPGAs delivering 18M gates of programmable logic, and on-board 215 MHz 12-bit A/D converters. Model 4990 SystemFlow API and libraries allow developers to customize already functioning starter RTS platform.

Georg Fischer Piping Systems    Tustin, CA 92780

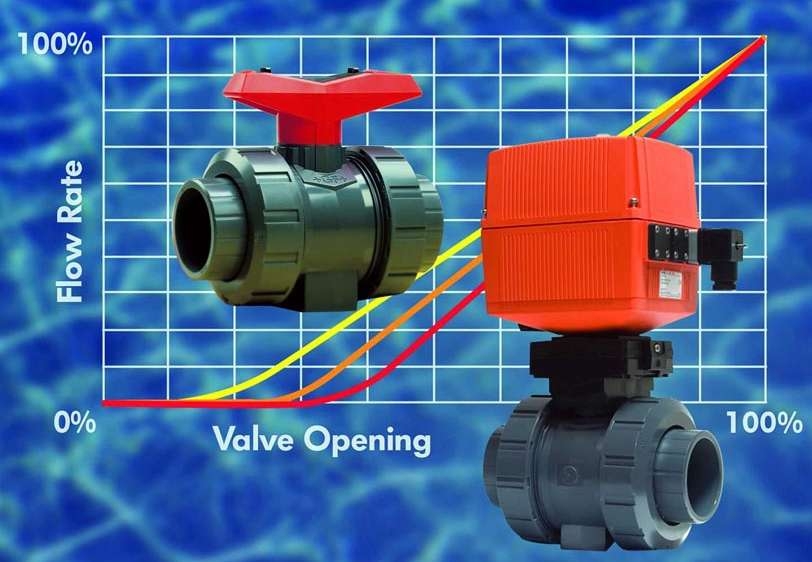

Mar 09, 2005 Type 546 Ball Valve features optional characterized control ball design, which creates gradual change in flow rather than sudden change typical with traditional ball valve styles. Available in ½-2 in. sizes, valve offers control angles from 0-90°. It incorporates buttress thread design, ratchet styled lockable handle, and blow-out proof stem. Material choices of PVC, CPVC, PP, and PVDF make it suited for shut-off of aggressive media.

Venkel Corp.    Austin, TX 78730
Mar 09, 2005 Ultra Precision Thin Film (UPTF) Chip Resistors feature temperature coefficient of resistance (TCR) as low as 5 ppm and tolerance as low as ±0.01% for sizes 0402–1206. With operating temperature range of -55 to +150°C, products are suited for flow and re-flow soldering. Resistance range of 10 ohm to 500 kohm includes 0402s with values up to 100 kohm, 0603s with values up to 150 kohm, and 0805 and 1206 sizes with values up to 500 kohm.

SMC Networks    Irvine, CA 92618
Mar 09, 2005 Suited for high-traffic environments, 1RU high TigerStack Stackable Managed Switch is offered in SMC8748M and SMC8724M models with 48 and 24 fixed 10/100/1000 ports, respectively. Both offer Multiple Spanning Tree Protocol (802.1s) and stack-wide link aggregation (LACP) as well as ability to upgrade 4 ports with optional mini GBIC expansion slots for fiber connections. Switching capacity is rated at 156 Gbps for 48-port switch and 108 Gbps for 24-port version.

CorActive High Tech Inc.    Quebec City, QC G2C 1S9  Canada
Mar 09, 2005 Transmission fiber features broadband anti-reflective coating, which increases transmitted incident light energy and optimizes mid-IR fiber beam delivery solution. Used in IRT-SU mid-IR transmission fiber product for 2–6 micron range, coating reflectivity is less than 1%, eliminating reflection at boundary surfaces of fiber. Cable assemblies handle pulsed optical power density in over 1 GW/cm². Actual Mid-IR fiber exhibits attenuation of 0.2 dB/m.

ASI Datamyte    Plymouth, MN 55441
Mar 09, 2005 Audit Manager provides automated solution for containment and suspect lot audits of physically large, serialized products. Used to ensure defect-free shipments, eliminate paper-based check sheets and reports, and facilitate error-free data collection, system consists of 501Y DataMyte handheld programmable data collector, portable scanner, and software. Uploaded data generates reports that detail missing serial numbers and describe condition of products.

Sensor Developments, Inc.    Orion, MI 48359
Mar 09, 2005 Rated up to 20,000 rpm, rotating torque sensor features digital, infrared transmission system and 16 bits of resolution. In-line, non-contact unit, offered in various torque capacities and configurations, also features complete signal conditioning that is compatible with commercial dynamometer controllers.

PreCon National Sales Co.    Memphis, TN 38184
Mar 09, 2005 Using capacitive-polymer sensing technology, HS-2000DD combines temperature compensation and factory calibration with single-supply digital communication capabilities. It operates with supply voltage of 2.0–5.5 V and can draw supply current from microprocessor I/O pin. Output format is standard serial at 9,600 baud. Accurate to ±2% RH, product features stability from -30 to +100°C and chemical resistance.

Philips Electronics North America Corporation / Philips Comp    San Jose, CA 95134
Mar 09, 2005 High-definition multimedia interface (HDMI) TDA9775A IC allows TV manufacturers to combine uncompressed HD video and multi-channel audio through one digital interface and connector. Implemented in reference design, TDA9975A features triple 10-bit ADC input interface, dual-input HDMI receiver, and High-bandwidth Digital Content Protection decryption keys on one chip. When connected to 17 in., HD-ready LCD TV, it displays resolutions from 480p/576p to 720p/1080i.

Escort Memory Systems, Inc.    Scotts Valley, CA 95066

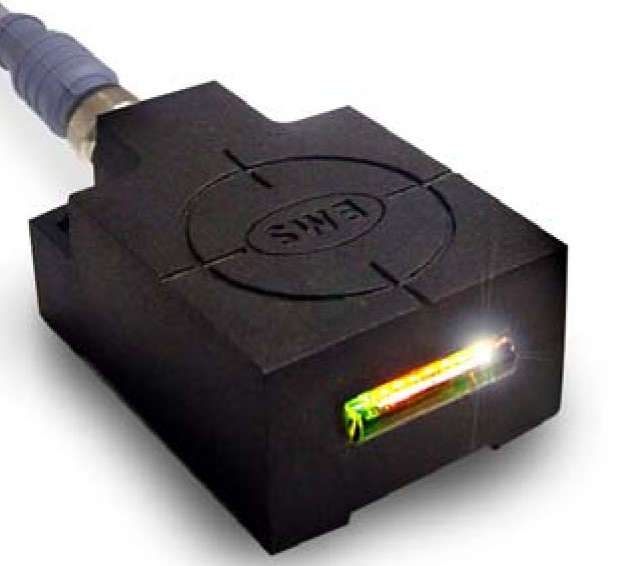

Mar 08, 2005 Featuring integrated antenna, Model HF-0405 reads HMS and LRP Series tags with read range up to 100 mm. Eight LEDs indicate communication status and address on network. Controller's M12 style connector provides connectivity for power and data communications, while IP67 NEMA rating makes unit suited for food processing, automotive, pharmaceutical, and electronic industries. Mounting bracket allows installation in tight corners or alongside conveyers.

PerkinElmer, Inc., Optoelectronics Headquarters    Fremont, CA 94538-3180
Mar 08, 2005 Featuring modular design, smart sensor Model PYM 151 detects and monitors natural gas in homes and industrial environments. Measurement technique utilizes infrared emitters in conjunction with pyroelectric detector technology. System allows OEM alarm manufacturers to integrate NDIR technology with snap-in design and add-on alarm processing and actuations.

Hobart Brothers Co.    Troy, OH 45373-2900

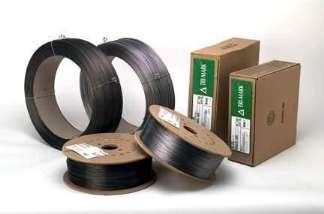

Mar 08, 2005 Gas-shielded Tri-Mark® TM-910 is specifically designed for use with high argon shielding gas mixtures, such as 95% Argon/5% CO₂ or 75% Argon/25% CO₂, while maintaining deep penetration for general fabrication and shipyard welding applications. Optimized for all-position welding, wire maintains mechanical properties through high heat input/slow cooling rate applications and low heat input/high cooling rate applications.

Thomas C. Wilson, Inc.    Long Island City, NY 11101

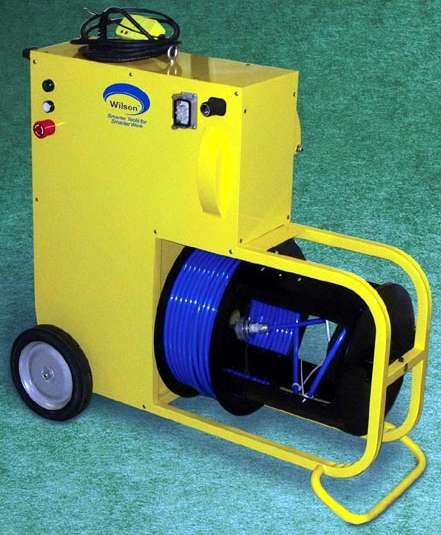

Mar 08, 2005 Compatible with any ½ and 3/8 in. shaft and casing, Wils-Maticâ„¢ Self-Feeder is designed for cleaning straight tubes up to 45 ft long in heat exchangers, condensers, chillers, absorbers, and coolers. It requires no special brushes or shafts and features auto teach mode, 1 hp motor, and auto-reeling shaft storage. With 125 lb net dry weight, machine has 4.2 fps self-feed rate and 50 lb self-feed push/pull force.

Emerson Process Management / Rosemount Div.    Chanhassen, MN 55317
Mar 08, 2005 Rosemount Analytical SBX1000 integrates oxygen probe and field electronics into single package. Unit optimizes fuel-to-air ratio at process temperatures up to 1,300°F. With vertical or horizontal mounting capabilities, it inserts directly into flue gas duct. Analyzer can operate in temperatures up to 185°F and sensor diagnostics alarm indicates when calibration is recommended.

New Pig Corporation    Tipton, PA 16684 0304
Mar 08, 2005 PIG Super Shop Towels, made from highly absorbent microfiber fabric, are unaffected by solvents and leave low to no lint. Reusable towels remain consistent in size and performance on repeated usage. Applications include prepping surfaces with solvents, cleaning rough surfaces, scrubbing, detailing, polishing, and varnishing.

TechNote Time Watch Co    Ocala, FL 34471

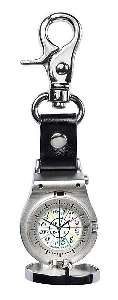

Mar 08, 2005 Suited for electrical and electronics professionals, HangTime ACDC Watch can be clipped to belt loop, truck mirror, or toolbox. It features DC Ohm's law and power formulas etched onto flip down cover, and AC Ohm's law, power formulas, and resistor band color chart on watch face. With heavy steel construction, silver finish, and leather detail, watch includes Seiko movement and sweep-seconds hand.

Marktech Optoelectronics    Latham, NY 12110
Mar 08, 2005 Utilizing InGaN/SiC technology, 465 nm TBL Blue Series incorporates current distribution layer that requires single wire bond. Vertically structured chips are approximately 115 microns in height with luminous intensities up to 12,000 mcd. Units come in 5 mm round and elliptical packages with 15, 30, 60 x 35, and 110 x 50° viewing angles. Applications include decorative lighting, full color video screens, mobile appliance lighting, and automotive illumination.

Rousseau Metal Inc.    St. Jean Port Joli Quebec G0R 3G0, CD   Canada
Mar 08, 2005 Metal Multi-Drawer Cabinet is available in 48 x 24, 48 x 27, 60 x 24, and 60 x 27 in. With 48 in. wide cabinet, rows of drawers can be divided into 2 sections of 24 in. and row of full width 48 in. drawers. Cabinet measuring 60 in. wide can be configured with 2 sections 30 in. wide, or one 24 in. wide section and one 36 in. wide section. Drawers are available in 10 heights ranging from 3–14 in. Mobile model is offered with heavy-duty casters and solid handle.

International Manufacturing Services, Inc. (IMS)    Portsmouth, RI 02871
Mar 08, 2005 Measuring 250 x .250 x .040 in., Aluminum Nitride 50 Ohm Termination, Model AlN2291 features return loss of 25 db on input and output. It provides CW power handling to 150 W, operating to frequency of 4 GHz. Available in lead-free metals, termination is suited for high power RF/microwave amplifier and transmitter applications.
