Hilti Inc.    Tulsa, OK 74121
Mar 10, 2005 Used to identify acceptable systems for specific applications, Hilti FS 411 Firestop System Selector recommends firestop systems based on installer's Palmâ„¢ PDA-input answers to smart questionnaires. Results are displayed in order of recommendation, from greatest to least, and user can access detailed, plain English installation instructions for any system. Selected firestop systems can be saved for later transfer to computer via HotSync.

Burr Engineering & Development Corp.    Battle Creek, MI 49014
Mar 10, 2005 HD-Series acme screw actuators, designed to handle moving loads up to 2,500 lb and static loads to 5,000 lb, feature standard stroke lengths from 4–48 in. and are offered with 17:1, 25:1, and 55:1 gear ratios. With dynamic load capacities to 3,000 lb and static load capacities to 5,000 lb, heavy-duty A-Series feature round 2.25 in. or square 2.5 in. tubing and .75-6 acme screw. Gear ratios are 34:1 or 110:1, and standard stroke lengths are 4–18 in.

INDEX Corporation    Noblesville, IN 46060
Mar 10, 2005 With 2 in. bar and 4 in. chuck capacities, 6-spindle MS52 features 6 independent spindle motors and 1 vertical CNC Tool Carrier. Open front design offers unrestricted chip flow and permits robot loading of all types of forgings, castings, or extrusions up to ~4 in. dia. Spindle drum incorporates 3-ring face tooth coupling mechanism for precision indexing, while 2-axis contouring and programmable feed rates aid in controlling chip flow.

INDEX Corporation    Noblesville, IN 46060
Mar 10, 2005 TRAUB series TNL is suited for long, sliding headstock Swiss-type turning, while series TNL-K is suited for short, fixed headstock screw machine type turning. Model TNL26 is offered with two 12-station turrets, 5-station end-working tool carrier, heavy-duty counter-spindle, and 5-station back-working tool carrier. Z-axis travel is ~10 in. on L-version and 4 in. on K-version. Tooling and other workpiece accessories are fully interchangeable between machines.

Escort Memory Systems, Inc.    Scotts Valley, CA 95066
Mar 10, 2005 High-frequency HF-0405 controller has compact design with integrated antenna and can read multiple tag protocols operating at 13.56 MHz. It handles data capture in material handling and work-in-progress applications and has IP67 NEMA rating. Three models are available: HF-0405-232-01, HF-0405-422-01, and HF-0405-485-01. Model GWY-01-TCP-01 Gateway creates multi-drop network of controllers with HF-0405-485-01.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Mar 10, 2005 Integrating 4 thin film resistors into single 0612 surface-mount package, Beyschlag ACAC 0612 precision series features absolute TCR of 25 ppm/K and tracking TCR of 15 ppm/K, while professional series offers absolute TCR of 50 ppm/K with 25 ppm/K available upon request. Absolute tolerance is 0.25% for precision series and 1% for professional series. Arrays are available with 4 equal values, 4 different values, or 2 equal value pairs. Max power dissipation is 0.3 W.

Mori Seiki USA Inc.    Rolling Meadows, IL 60008
Mar 10, 2005 With industrially hardened design, MAPPS II (Mori Seiki Advanced Programming Production System) withstands vibration and contaminants present in machining environments. Hardware includes 15 in. flat panel display and 256 Mb memory, 50 Mb of which is available for program storage. System, capable of automatically computing radius endpoints, offers 3D cutting simulations that let user view line-by-line display of tool paths through program.

Blackhawk Environmental Co.    Glen Ellyn, IL 60137
Mar 10, 2005 Automated skimming system Model LNAPL is designed for free product recovery of hydrocarbon liquids from 2 in. or larger wells without removing groundwater. Tip attaches to lower portion of top head drive Pneumatic Trident and explosion-proof Electric Anchor pumps. Skimmer is designed to float with inlet positioned at water or product level. Hydrophobic element intake at center of float allows only hydrocarbon liquids to pass through skimming system.

Labconco Corp.    Kansas City, MO 64132 2696
Mar 10, 2005 Purifier Vertical Clean Bench draws room air through prefilter to trap large particles. Air flows through 99.99% efficient HEPA filter and is projected vertically over work area. Indicator lights monitor differential pressure across HEPA-filter. Front sash and side panels are scratch-resistant tempered safety glass. Bench is suited for tissue culture, media plate preparation, electronics inspection, medical device assembly, and drug preparation under ISO Class 5 conditions.

Waytek Inc.    Chanhassen, MN 55317
Mar 10, 2005 Rated for 12–24 V, 35 A max, Trailer Adapters feature tinned wires, protected by vinyl tubing that is CSA listed and meets UL requirements as well as MIL-I-23053/2 Class 2 Specs. Configurations include 4-way round plug to 4-way flat female and 6-way round plug to 4-way flat female. Adapters can be used in place of re-wiring applications such as boat trailers, RV trailers, horse trailers, and utility/cargo trailers.

SKF Magnetic Actuators    Olney, IL 62450
Mar 10, 2005 MAGDRIVE Actuators deliver push force of 8,000 N, speeds from 8-15 mm, and stroke from 100-700 mm. With safety rating of 1.5 for stroke length up to 400 mm, units are suited for medical applications. They include safety nut and limit switches, mechanical end stops on both directions, and IP21 protection. Anodized aluminum housing measures 62 x 62 mm and can be color-customized. Options include emergency lowering device and electrical anti-pinching protection.

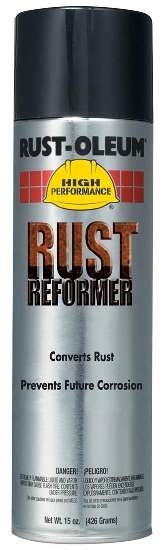

Rust-Oleum Corp.    Vernon Hills, IL 60061
Mar 10, 2005 Rust Reformer® instantly transforms rusted metal into non-rusting surface and prevents future corrosion. It dries to hard, flat-back finish that can be top-coated with oil or latex coatings. Product can be applied over existing rust with minimal surface preparation, which consists of removal of loose scale and powdery rust with wire brush. Rust Reformer is suited for railings, metal furniture, machinery, seams, complex shapes, and other hard to reach areas.

Marktech Optoelectronics    Latham, NY 12110
Mar 10, 2005 Housed in 6.0 x 5.0 mm SMT package, Series LP6-TPP1-01 RGB LED incorporates AlGaInP and InGaN technologies and offers low thermal resistance of 130°/W. It can be tightly arranged on single plate, resulting in even distribution of color and light. Intended for accent and color changing lighting applications, LED features 6-pin package that allows for individual control of each red, green, and blue chip. Luminosity is 1,800 mcd for red and green, and 450 mcd for blue at 50 mA.

Bud Industries, Inc.    Willoughby, OH 44094
Mar 10, 2005 Seismic Racks feature open frame construction with 4 adjustable 19 in. panel width mounting rails. Welded, reinforced steel racks are tested and certified to Telcordia's Zone 4 requirements for 1,200 lb equipment load. There are four 4 in. dia cable access holes in top of rack and one 9.5 in. square cable access hole in bottom. Available panel space is 19 x 78.75 in., and overall rack size is 84.06 x 26.06 x 32.75 in.

Kontron    Poway, CA 92064
Mar 10, 2005 Based on Pentium® M processor and Mobile Intel® 915GM Express chipset, ETXexpress-PM delivers up to 2.0 GHz performance and up to 2 Gb DDR2-DIMM RAM. For applications that require real-time video capabilities, module has integrated graphics based on Intel® Graphics Media Accelerator 900 architecture and also supports PCI Express graphics. ETXexpress-PM incorporates interfaces for PCI Express, serial ATA, USB 2.0, LVDS, and serial DVO in 95 x 125 mm embedded module.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Mar 10, 2005 Series 6000 includes 12 digital storage and mixed signal oscilloscopes with bandwidths of 300 MHz, 500 MHz, and 1 GHz. MegaZoom III provides real-time, high-resolution XGA waveform viewing with 256 levels of color-intensity grades, and memory depth up to 8 Meg points. Series comes with LAN, GP-IB, and USB interfaces as well as additional front-panel USB port. Users can order 2+16 or 4+16 channel MSO or traditional DSO and upgrade to MSO configuration later.

Speedline Technologies Inc.    Franklin, MA 02038
Mar 10, 2005 OmniCheck delivers redundant check on process temperatures and belt speed for reflow ovens while also providing data tracking and monitoring of process parameters. Operators can specify alarms and set points to direct system to take action, such as audible alarm, hard stop, soft stop, or ignore if redundant thermocouples or redundant conveyor speed exceeds process setting. System is offered as option on Electrovert OmniExcel® series ovens or as upgrade to existing equipment.

Speedline Technologies Inc.    Franklin, MA 02038
Mar 10, 2005 Available for MPM AccuFlex, AP/UP 2000, and UltraFlex stencil printers, QC Calc provides real-time data monitoring of stencil print process to identify and eliminate process variations. It collects measurement results from key process functions, including alignment, inspection, and cycle time. Software measures process and machine capability as well as machine status. Graphics and charts provide data analysis and are accessible locally and remotely.

Convertech    Wharton, NJ 07885 1800
Mar 10, 2005 Differential Rewind Shaft eliminates side to side core movement, core slip, and core dust. Internal slip design means cores are locked firmly, allowing precision tension control for different size cores on same shaft. Independent roll locks move freely when shaft pressure is released and allow cores to slide on and off shaft. By running multiple width rolls on same Differential Rewind Shaft, users can minimize number of times shaft needs to be loaded and unloaded.

Network Physics    Mountain View,, CA 94043
Mar 10, 2005 Leveraging IBM-based Autonomic, Orchestration and Provisioning Automation Library technologies, NetSensory Enterprise Architecture monitors and interprets over 50 vital network and application stats, which reflect internal and external system conditions. It utilizes IBM's open standard Common Base Event format in NetSensory OS to create consistent method of identifying and communicating source of problem information across managed system of heterogeneous resources.
