Continuum    Santa Clara, CA 95051 0801
Mar 23, 2005 Surelite lasers are offered with injection seeding system that produces single longitudinal mode outputs with smooth temporal profile and delivers near transform limited linewidths. Fiber-delivered seed system is self-contained in rack-mount power supply with one polarization-preserving single mode fiber optic delivery cable and one multi-mode cable. Third electrical cable supplies piezo ceramic transducer voltage to hold oscillator cavity fixed in frequency.

Thermadyne Industries, Inc.    St. Louis, MO 63017
Mar 23, 2005 HD3070® plasma systems are available with XT(TM)-300 High Precision Plasma Cutting Torch, which cuts stainless steel, mild steel, aluminum, and non-ferrous metals. Cuts have sharp edges with little or no dross, smooth cutting edge surface, and minimized heat-affected zone. Able to produce straight holes, torch features keyless consumables cartridge that can be installed or changed without changing torch head.

Falk Corporation    Milwaukee, WI 53208
Mar 23, 2005 True Torqueâ„¢ incorporates brake disc into fluid coupling mounting arrangement and features adjustable metering orifices. When starting inclined belt conveyor, product provides soft start, eliminating belt liftoff and stretch. During shutdown, application of brake decelerates conveyor belt and prevents conveyor rollback. Coupling, constructed with double delay chamber, can achieve 40 sec starting profiles while limiting torque to 120% of nominal load.

One Stop Displays    Winter Park, FL 32789
Mar 23, 2005 Offering 128 x RGB x 160 resolution, 1.8 in. Model OSDC180-2I provides 127 pixel/in. density, and features parallel data interface supporting 6- to 18-bit parallel RGB digital data. Frame rate is configurable from 60–120 and is capable of animation or video. Display supports typical brightness from 25–100 nits and 262 k color depth for photo quality images and video.

Advantech Automation Corp.    Cincinnati, OH 45240
Mar 23, 2005 Equipped with Ethernet I/O, Model ADAM-6066 features 6 relay output channels, rated 5 A at 240 Vdc, that support standard switching and pulse-width outputs. It has embedded web server for remote monitoring and supports Modbus/TCP and UDP protocols to meet standard communication requirements. Watchdog timer and host idle function secure communication. Unit is suited for driving externally controlled devices such as lights, fans, and alarm systems.

GE Inspection Technologies, GmbH    Huerth 50354  Germany
Mar 23, 2005 Suited for oil and gas sector, Model USM 35, with optional software, provides defect sizing in line with API 5UI recommendations. For operation, user finds crack, adjusts gain to 80% amplitude, presses USM freeze key, and moves probe to produce envelope curve. Software measures and remembers each amplitude peak and carries out time-of-flight calculations for each measurement to provide code-compliant sizing of flaw.

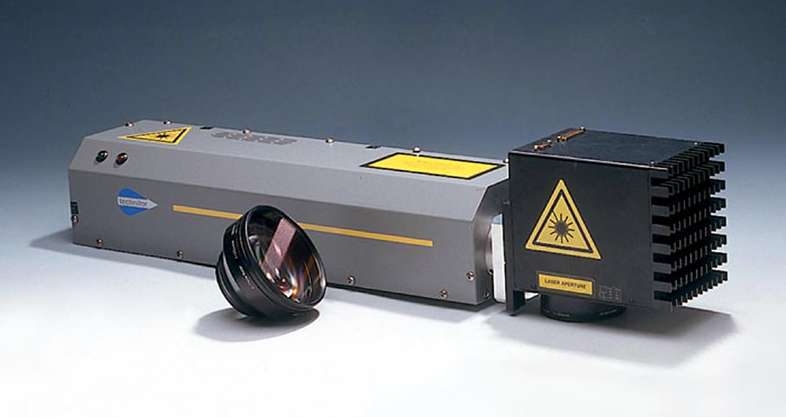

Technifor, Inc.    Charlotte, NC 28273
Mar 23, 2005 Air-cooled Model TD410 features fiber-coupled diode with lifetime greater than 10,000 hours and adjustable head with 360° orientation. Laser module and head measures 30.0 x 5.5 x 9.3 in., and control unit fits standard 19 in. rack. Model TD410 is ready for computer free-use or direct link to PLC depending on application. Marking job programming includes T700W Windows® software; marking of text, bar codes, data Matrixâ„¢ codes, and logos; and control of traceability data.

NewSoft Technology Corporation    Fremont, CA 94538
Mar 23, 2005 Suited for enterprise users, Presto! WMS (Wireless Multimedia System) uses Wi-Fi 802.11a/b/g technology to broadcast screen-captured images or MPEG 1 and 2 files from Wi-Fi enabled PCs or notebooks to multiple PCs, notebooks, or VGA/XVGA projectors. It presents content at 15+ fps, allowing users to share, in real-time, oversized video, image files, and PowerPoint files with embedded animation and video clips.

Sensor Products Inc.    Madison, NJ 07940
Mar 23, 2005 Tactilus® foot platform and insole electronic pressure measurement sensors enable medical professionals to detect, diagnose, and monitor patients with plantar abnormalities. Software generates statistical information and dynamic 2D and 3D profile images while also profiling plantar pressure distribution and magnitude. Foot platform evaluates shoe-to-ground interaction for both feet, while insole systems assess foot-to-shoe interaction.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Mar 23, 2005 Utilizing Model 86105C broad-wavelength multi-rate optical module and Model 83496A multi-rate clock recovery module, Infiniium digital communications analyzer, Model 86100C offers 8X Fibre Channel measurement. Model 86105C tests all Fibre Channel devices or all common data rates from 155 Mb/s to 11.3 Gb/s over 750-1,650 nm wavelengths. Model 83496A functions as Golden PLL by setting loop bandwidth to exact value required for any data rate within operating range.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Mar 23, 2005 Optical Dispersion Analyzer, Model 86038B tests and validates optical devices such as 10 Gb/s and 40 Gb/s DWDM components and fibers. It provides dispersion measurements over band of up to 200 nm anywhere from 1,260-1,640 nm. Unit simultaneously tests all optical component parameters, such as spectral and polarization dependent loss, group delay, and differential group delay, including second-order polarization mode dispersion.

Mustang Technologies    Green Bay, WI 54308
Mar 23, 2005 TracEquipment helps organizations maintain equipment information, such as purchase amount and date, warranty dates, service codes, and service contract numbers. In addition to tracking equipment assigned to user, department, or division, it can identify all equipment at specific location. It maintains complete audit trail on each piece of equipment, showing previous users and locations as well as meter readings as it exchanged hands.

GE Inspection Technologies, GmbH    Huerth 50354  Germany
Mar 23, 2005 Model USM 32 is available in basic USB 32B version with max range of 55.9 in. in steel for standard applications, and USB 32L version with max range of 393.7 in. in steel for inspecting large components. Two spin-and-set rotary knobs allow rapid setting of gain and function values. Measuring 4.5 x 3.4 in., color LCD offers choice of color schemes and A-scan resolution of 320 x 220 pixels. Li-Ion batteries allow 10 hours of continuous use.

Lion Apparel    Dayton, OH 45413 0576
Mar 23, 2005 Featuring V-Fitâ„¢ design, V-Forceâ„¢ Bunker Gear has contoured shaping in both coat and pants, allowing fire fighter to move freely and naturally, while minimizing bunching of material. Shoulder design eliminates seams that can cause discomfort and impede movement when compressed by SCBA straps. V-Notchâ„¢ elbow and knee reinforcements allow natural flexing of arms and legs. Separable liner system facilitates inspection, cleaning, and repair.

Webb Wheel Products, Inc.    Cullman, AL 35055
Mar 23, 2005 Hub and Rotor assemblies are used in conjunction with industry’s opposed 4-piston hydraulic disc brake suited for medium duty trucks and buses. Assemblies are available for 9,000 lb. front and 15,000 lb. rear axles.

Internation Surface Preparation Corp.    Fresno, TX 77545
Mar 22, 2005 Portable Blastrac 1-8DEZ has 8 in. blast pattern and can prepare up to 250 sq ft/hr. Applications include small industrial floor areas, tight areas around equipment and obstructions, balconies, test patches, and preparation of pool decks, decorative concrete applications, and concrete prior to installation of wood flooring. It is suitable for use by flooring contractors, painting and coating contractors, rental companies, and coating consultants.

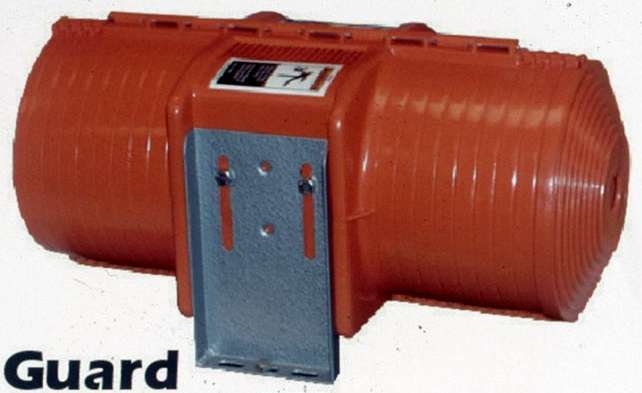

Falk Corporation    Milwaukee, WI 53208
Mar 22, 2005 Available in ANSI Safety Orange and ISO Safety Yellow, Orange Peel Type PCG pump coupling guards feature symmetrical halves injection molded from maintenance-free polyethylene and joined by hinge assembly at top. They are trimmed to length and attached to foundation with 4 fasteners. Pump-side end cap is supplied to enclose extension opening, and powder-coated metal Leg Kits are sized to accommodate range of base to centerline requirements.

Falk Corporation    Milwaukee, WI 53208
Mar 22, 2005 Capable of producing output torques to 4,000,000 lb-in., Drive One High Torque Drives are offered in 6 sizes in parallel or right angle configurations. Drive arrangement options include base-mounted, coupling-connected; shaft-mounted, flange-connected; and shaft-mounted, hollow-shaft connected. Ratios are available from 145:1 to over 10,000,000:1, and standard accessory offerings include motor flanges, swing bases, and torque arm connections.

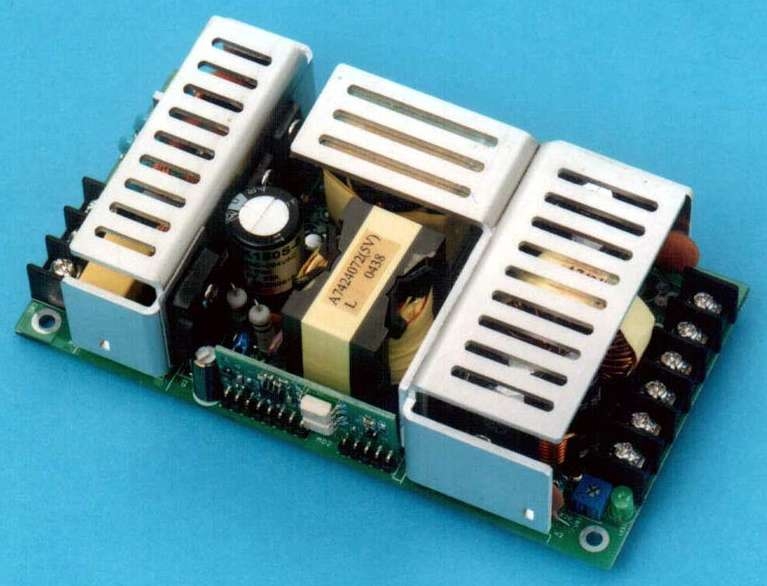

Astrodyne Corp.    Mansfield, MA 02048
Mar 22, 2005 Suited for use in medical systems and instrumentation, open frame PMMK-150 series provides output power of 150 W with active PFC. All models accept universal input from 85-265 Vac, and 4 models are available that provide single outputs from 5-24 Vdc. Fully approved to UL/EN60601-1 medical safety specifications, series utilizes SMT construction and features power densities up to 4 W/in³; over voltage, short circuit protection; and integral input line filtering.

Paul N. Gardner Co., Inc.    Pompano Beach, FL 33060 6608
Mar 22, 2005 Capable of conversion from HL to HRC, HRB, HB, HV, and HS, metal hardness (Leeb) tester TH160 is available with 6 impact devices: D, DC, D + 15, C, G, and DL. Device provides automatic identification of impact devices, allows for user calibration, and accepts 5 impact directions: 0°, ±45°, and ±90°. Featuring on-board memory for 240-1,000 groups of data, unit is equipped with ink-free printer and 320 x 200 backlit LCD that displays data and histogram.
