Dosch Design US Shipping Ctr.    Altoona, PA 16602
Mar 31, 2005 Compatible with Windows and MAC computers, Dosch Textures: Construction XT provides over 100 seamless, tileable construction material textures that can be applied to 3D-models. Textures may also be applied to various themes and used in many computer graphics software packages. With up to 6,000 x 5,000 pixel resolution, textures include bump maps for depth of material that can be used for architectural renderings, animations, and game-design.

Unisto Electronic Seals    South Wales   United Kingdom
Mar 31, 2005 Featuring glass-filled nylon body, Crypta® Data II generates 4-digit random number every time it is sealed. Number remains unchanged until opened, enabling load security to be checked and verified at any time by pressing one button. Use of flash memory enables new features to be uploaded into unit to customize its functionality. With IrDA IR and RF capabilities, seal can incorporate remote sensors so that multiple-access load requires one securing point.

Scapa North America    Windsor, CT 06095
Mar 31, 2005 Dublfilm S995 polyester film is double-coated on liner side with acrylic adhesive and on exposed side with high-tack, high-peel, rubber-based adhesive. Pressure-sensitive adhesive product offers resistance to environmental extremes, adheres to ether and ester foams, and bonds to low-surface energy plastics. Adhesive coat weight facilitates bonding to irregular surfaces. Product can be used to bond abrasive disks and attach decorative materials.

GE Inspection Technologies, GmbH    Huerth 50354  Germany
Mar 30, 2005 Portable, PC-based USLT 2000B is operated as conventional flaw detector, displaying A-scans as well as DAC and DGS curves. Up to 4 selectable measurement values, such as sound path, projection distance, and depth and echo amplitude can be shown in measurement line. Battery-operated unit is available with optional software to allow saving, managing, and evaluation of inspection results for planning, control, and documentation of inspection process.

STMicroelectronics    Lexington, MA 02421
Mar 30, 2005 Operating from 2.2-5.5 V, Model TS4984 delivers 1 W per channel of continuous rms output power at 5 V into 8 ohm loads, with THD+N under 1%. It features SNR of 100 dBA and power supply rejection ratio of 62 dB at 217 Hz with grounded inputs. Dedicated circuitry guarantees virtually no pop and click at power-on or power-off. External standby mode control reduces supply current to less than 10 nA for each channel. Unit is housed in 4 x 4 mm QFN16 lead-free package.

Autopak Engineering Corp.    San Juan, PR 00902 4155
Mar 30, 2005 Suited for packages measuring at least ½ in. wide, Gap Transporter operates at speeds up to 160 fpm. It consists of 2 parallel belts with variable speeds that can be adjusted horizontally with hand-wheel. System helps prevent spilled product or debris from reaching downstream equipment and can equalize conveyor speeds for unstable products. By changing system’s configuration, manufacturers can mechanically verify presence of caps on containers.

Beta Dyne Inc.    Bridgewater, MA 02324
Mar 30, 2005 Single-output Series EA75 includes 35 models with nominal input voltages of 5, 12, 24, 48, and 100 Vdc and output voltages of 2.5, 3.3, 5, 12, 15, 18, and 24 Vdc. Measuring 2 x 2 x 0.50 in., units are housed in metal case that offers 6-sized shielding. They include overvoltage and undervoltage protection, 2:1 input voltage range, 1,500 Vdc input-to-output isolation, short circuit protection, 300 µA off state current, and output synchronous rectification.

STMicroelectronics    Lexington, MA 02421
Mar 30, 2005 Model STV8179F drives vertical coil of deflection yoke to scan electron beam over screen. This, in conjunction with horizontal deflection and beam modulation, creates viewable images. Unit provides peak-to-peak current up to 3.6 A in operating mode, and sustains high output flyback voltages up to 100 V to allow short retrace times required in 2H and High-Definition TVs. Heptawatt package is pin-to-pin compatible with company's linear vertical boosters.

Honeywell Sensing and Control    Golden Valley, MN 55422
Mar 30, 2005 Using thermoset sensing polymer, HIH-4000 series delivers instrumentation-quality relative humidity sensing in solderable, single in-line package. Ability to be cleaned, chemical resistance, and survival under saturation make products suited for use in harsh environments. Sensors offer on-board signal conditioning and feature recessed CMOS chip with nitride passivation layer and integral light shield.

Saelig Co., Inc.    Pittsford, NY 14534
Mar 30, 2005 ALFAT-SD board adds megabytes of multimedia storage to any digital device. Based on ALFAT serial-to-FATfile converter IC, information stored on removable media with ALFAT-SD can be read on any PC. For operation, users send data to unit via serial port or SPI. Product, which measures 2 x 1.6 in., can be used with any microcontroller and can run from 3.3 or 5-12 V supplies. It is suited for file transfer between automated machines and PCs.

Stanley Vidmar    Allentown, PA 18105 1151
Mar 30, 2005 Vertical Lift Module Automated Storage and Retrieval System gives organizational benefits of modular drawer storage, space savings of automated storage and retrieval system, and power and convenience of Windows XP-based controller. Spare parts, accessories, semi-finished or finished goods, tools, and components stored in drawer can be cataloged, stored, and accessed easily. Unit can hold up to 240 drawers ranging from 5.3–21.5 ft wide, and up to 2.6 ft deep.

NAPCO Security Group    Amityville, NY 11701

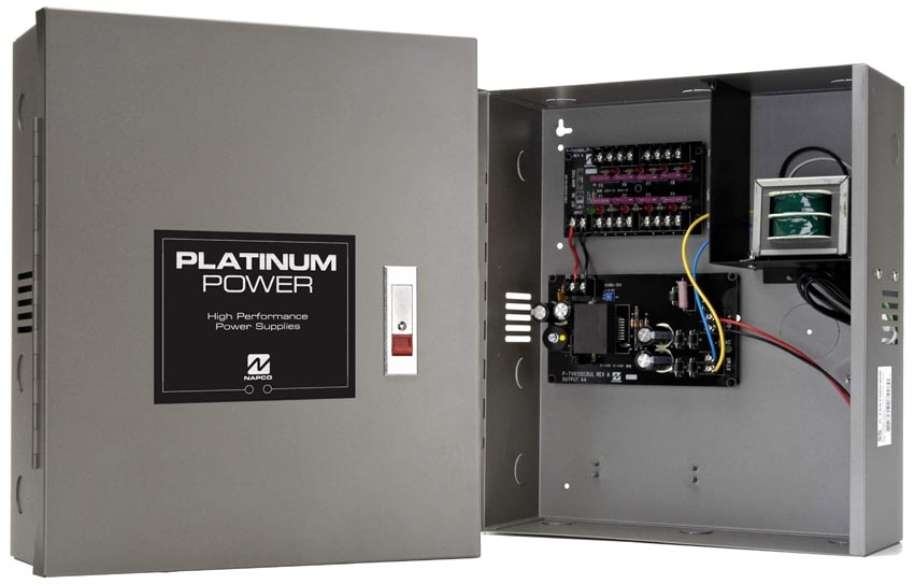

Mar 30, 2005 Platinum Power™ line includes ac and dc power supplies for 4–16 cameras. It incorporates high-current power supplies/chargers, timers, relay modules, distribution boards, and access controllers. Heavy gauge metal enclosures provide long life, and automotive-style fuses are field-replaceable. Unit has RFI/EMI immunity and surge protection.

Douglas Machine    Alexandria, MN 56308 3399

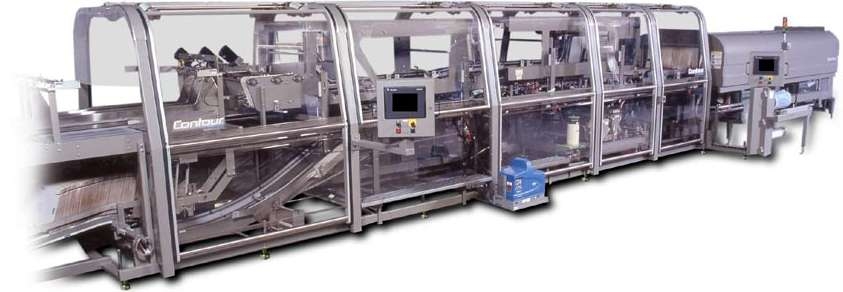

Mar 30, 2005 Contourâ„¢ SPS-75 provides maximum package integrity and appearance. Features include patent-pending Smartrakâ„¢ Steady Stream Infeed System, which removes gaps that compromise pack pattern accuracy and continuous product flow; patented pinless metering, which uses servo drives to gently meter bottled, cartoned, canned, and jarred products; and patent-pending servo driven wrapping wand that provides improved film control and accurate film placement at speeds to 75 cycles/min.

Squid Ink    Spring Lake Park, MN 55432
Mar 30, 2005 Modular Vector XII is available with 2 printhead sizes providing 1 or 1¾ in. character height. Each printhead can print at 100%, 40%, or 26% character height, offering 6 print sizes from ¼â€“1¾ in. Input device provides programming and retrieval for up to 128 messages. Resident software walks users through series of prompts to program and save each message for printing on-demand. SQ-60â„¢ no-clog ink can be left in printhead for extended periods without flushing.

Siemens Energy & Automation, Inc.    Alpharetta, GA 30005 3900

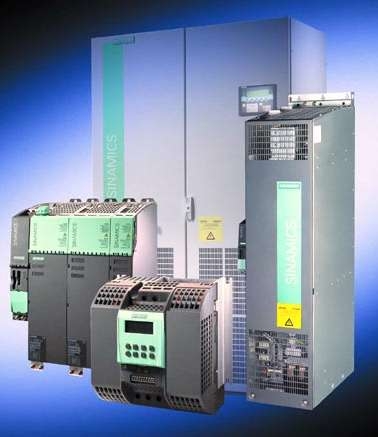

Mar 30, 2005 Featuring interchangeable architecture, SINAMICS® G and S series scalable ac drives let users select, start up, and configure appropriate drive for any application, at any power range from 120 W to 1+ MW using same software for every drive. Models in G series offer power from 1/6–1,100 hp for stand-alone applications. For applications requiring coordinated drives with servo functions, models in S series offer max power from 125–1,500 hp.

DigiTec    Newell, WV 26050

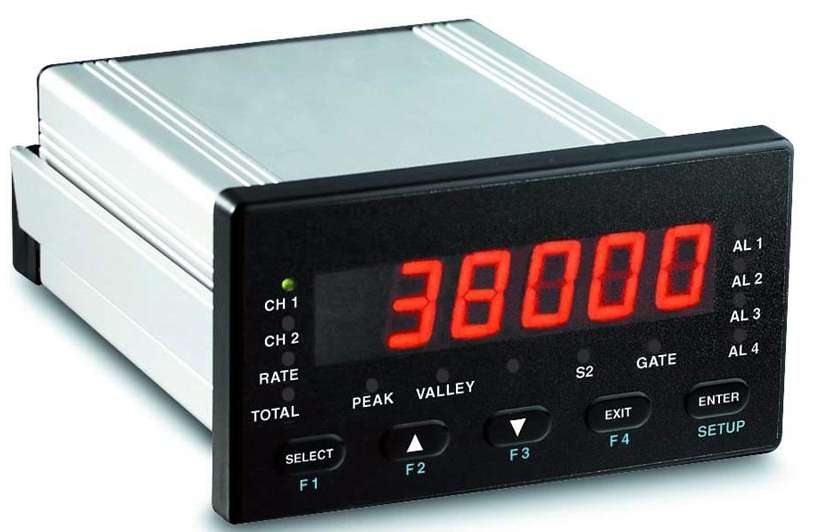

Mar 30, 2005 Featuring NEMA 4X front and aluminum housing, 3820 series 1/8 DIN controller offers selectable alternating function for pump-up or pump-down applications. Unit incorporates ON-Delay for second pump after power failure condition and can retransmit analog signals to establish direct connection to multiple devices. Controller offers 30-point linearization for non-linear signals, programmable front keys, and flow readings using linear and square root extraction.

Tap Magic, A Div. Of The Steco Corporation    Little Rock, AR 72202
Mar 30, 2005 Usable as stand-alone or booster fluid, Tap Magic Xtra-Foamy is suited for use on all metals up to 45 Rockwell hardness. Foamy consistency provides visibility so that users can gauge application rate and fluid presence. Offered in 17 oz aerosol can, product contains EP-X3 proprietary additive and eliminates metal hardening during cutting operation. Single application stays with tool and workpiece for cuts of long duration.

Duo-Fast Corp.    Huntley, IL 60142 6700
Mar 30, 2005 Measuring 5¾ in. tall, SureShotâ„¢ 1820, 18-gauge narrow crown stapler weighs 1 lb 10 oz and is designed with industrial strength parts. Bottom load aluminum magazine facilitates staple loading, and clean nose aids in fastener placement. Suited for limited-space cabinetmaking applications, product drives DUO-FAST 1800 series 18-gauge, 14 in. crown staples and has staple size range from ½â€“5/8 in. leg length.

J.S.T. Corporation    Waukegan, IL 60085

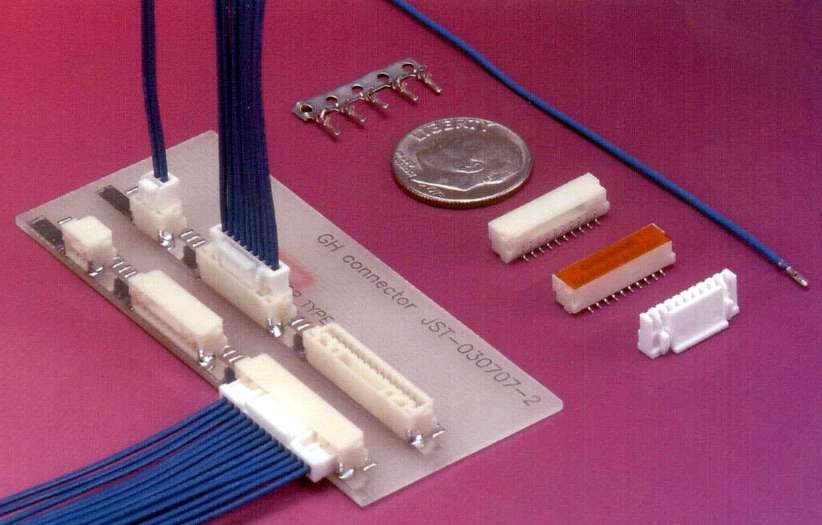

Mar 30, 2005 GH disconnectable, crimp style connector series is available in 2–15 circuits rated 1.0 A @ 50 V ac/dc and accommodates wire sizes AWG No. 30–26. Top and side entry, .049 in. pitch, SMT connectors are polarized and have positive locking feature with audible click/tactile feedback. Fork-shaped header contacts are supported by grooves on housing walls designed to prevent deformation. Insulation OD is 0.8–1.0 mm, and temperature range is -25°C to +85°C.

Bird-X, Inc.    Chicago, IL 60607
Mar 30, 2005 BroadBand PRO uses distress cries to indicate danger and cries of predators to add realism. General harassments offer all-bird defense, and ultrasonic waves guard area during day and night. Harmless to birds and environment, product also includes 3 visual scares: Irri-Tape iridescent holographic ribbon, Terror Eyes holographic eye repeller, and Prowler Owl aerofoil-wing predator. Unit covers up to 3,600 ft² and comes with 4 speakers with 100 ft cords.
