Datron Dynamics, Inc.    Milford, NH 03055
Mar 31, 2005 With working envelope of 40 x 27.5 x 9.5 in., EcoRaptorâ„¢ includes 600 W, 60,000 rpm spindle with ¼ in. collet, 10-tool Automatic Tool Management Systemâ„¢, micro-mist coolant system, protective enclosure with door safety interlock, and chip disposal tray. Controller is equipped with 850 MHz Pentium® PC, 15 in. CRT monitor, 250 MB RAM, 40 GB part/program storage, and Microsoft Windows® software. It offers Ethernet networking and remote monitoring and control.

Octagon Systems Corp.    Westminster, CO 80021
Mar 31, 2005 Available in EPIC(TM) form factor, Model XE-900 incorporates 32-bit VIE Eden CPU operating at 400 MHz, 733 MHz, or 1 GHz. It includes 2 USB ports, 6 RS-232/422/485 serial ports, 24 lines of bit-programmable digital I/O with 16 mA sink/source capability, 10/100 Base-T Ethernet, CRT and flat panel video, and PC/104 and PC/104-Plus expansion. Operating from -40 to +85°C, unit is suited for transportation, security, military, communications, and distributed control.

Stackpole Electronics Inc.    Raleigh, NC 27604
Mar 31, 2005 With response times of less than 25 ns, dual-function MV Series protects electronic equipment operating in low-voltage regions against voltage surges and high frequency noise. It incorporates varistor with dc voltage range from 3–125 V and by-pass capacitor with capacitance range of 10–1,000 nF. Available in 6 x 9 mm package, series withstands single pulse surge current of 150 A and demonstrates single pulse energy absorption of 0.1–2.5 J.

Advantech Automation Corp.    Cincinnati, OH 45240
Mar 31, 2005 Industrial-grade Universal PCI communication card, PCI-1610CU, features 4 RS-232 serial ports with 2,500 Vdc optical isolation and 2,500 Vdc surge protection. Compatible with 3.3 and 5 V PCI slots, product provides 9-wired RS-232 signaling with serial transmission rates up to 921.6 Kbps. It incorporates 16PCI954 UART chipset with 128-byte FIFO and is suited for operation in harsh environments.

Harvard Apparatus, Inc.    Holliston, MA 01746 1371

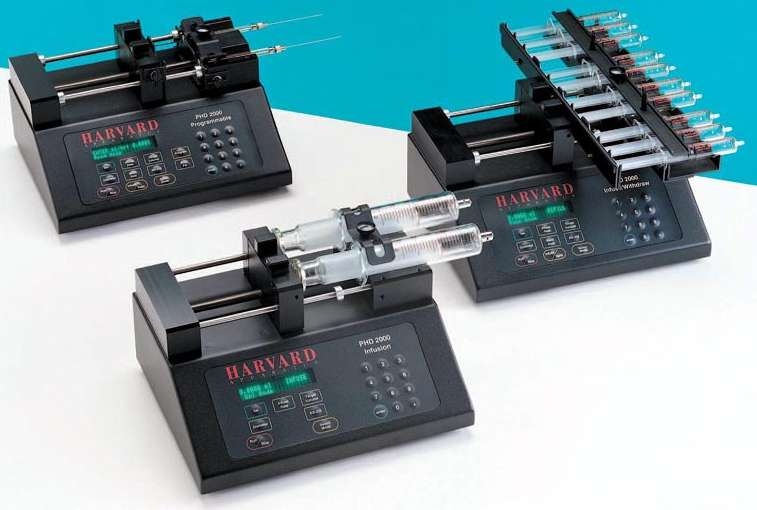

Mar 31, 2005 Infusion Only Syringe Pump, PHD 22/2000, is supplied standard with 2-syringe rack that holds syringes of various sizes; multi-syringe racks are also available for when it is necessary to pump more than 2 fluids. With accuracy to 0.35%, pump produces up to 50 lb of linear force through flow rate range of 0.0001 µl/hr to 220.8 ml/min. It can also be upgraded to become Infuse/Withdraw pump or Programmable Pump depending on application requirements.

Niro, Inc.    Hudson, WI 54016
Mar 31, 2005 GEA Diessel series includes modular bio-processing systems with sanitary design and construction. In addition to providing options for nutrient feed and oxygen dispersion, products automatically maintain temperature, pH, and agitator speed. Series is equipped with open architecture control system that enables user to configure process parameters. Standard range is available in incremental sizes from 30–1,500 L.

Scientific Technologies Inc.    Fremont, CA 94555

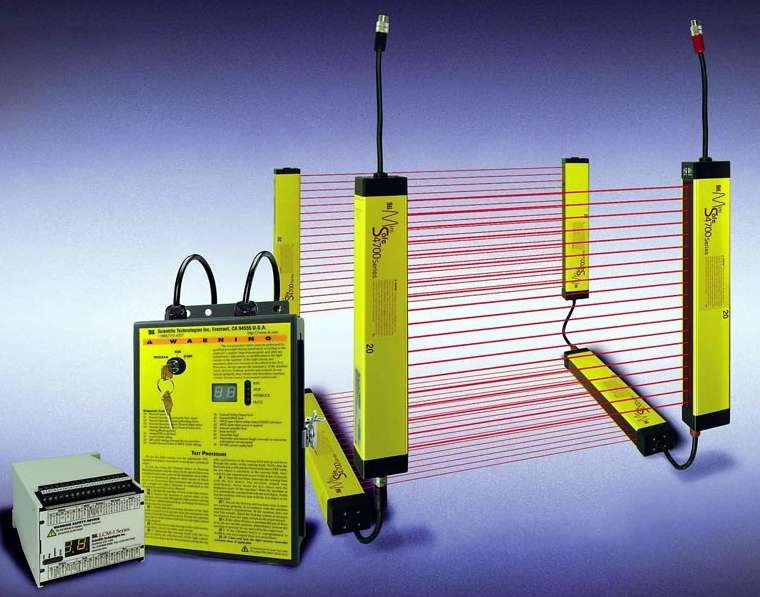

Mar 31, 2005 Able to withstand shock and vibration environments, MiniSafe Flexible MSF4700 employs multi-segmented design for protection of up to 4 different openings by connecting as many 35 x 50 mm housings in sequence. Product is available with protected heights from 150–1,800 mm and resolutions of 14, 20, and 30 mm. Height and resolution can be customized for each light curtain segment, and remote fixed-blanking facilitates job set-up and change-over.

Magnetek Material Handling Group    Milwaukee, WI 53123

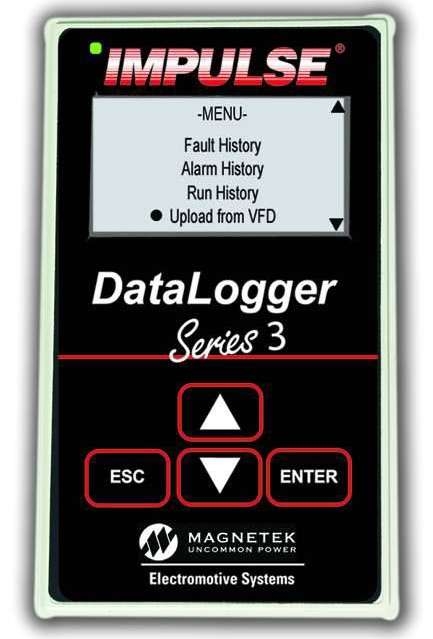

Mar 31, 2005 Able to log 1,400 Run events as well as last 200 Alarm and Fault events, DataLogger Series 3 device allows users to access histories for all 3 event types for Electromotive’s IMPULSE•G+/VG+ Series 3 and Series 2 drives. It can upload and download IMPULSE Series 2 and Series 3 parameter settings. All data acquisition is automatic, and data viewing and analysis is available via LCD scrolling display or by downloading to PC with DataPulse™ Series 3 software.

North Atlantic Industries, Inc.    Bohemia, NY 11716
Mar 31, 2005 Single-slot, multi-function, Model 64D1 VME Card can include 3 combinations of: 6 channels of Synchronous or Asynchronous RS-232C/RS-422/RS-485, 2 channels of Dual Redundant MIL-STD-1553 BC/RT/MT, 8 channels of Profibus, 48 channels of Discrete I/O, or 48 channels of TTL I/O. Each function is programmable at channel level. Featuring interchangeable, modular design, card provides diagnostics and is available with operating temperatures of -40 to +85°C and 0-70°C.

Quest Technologies Inc.    Oconomowoc, WI 53066 4828
Mar 31, 2005 QUESTemp° Sentinel Stationary Ambient Heat Stress Monitoring System performs continuous, real-time surveillance of facilities and provides designated personnel with information they need to prevent negative outcomes from heat stress. It tracks and reviews environmental conditions but does not initiate intervention unless action is necessary per user specifications. Automated action alerts with text messages can be received by email, cell phones, pagers, and PDAs.

Novell    Waltham, MA 02451
Mar 31, 2005 SUSE® LINUX Professional v9.3 offers complete Linux OS built upon Linux kernel 2.6.11, over 3,000 open source packages and hundreds of open source applications, productivity software, and home networking capabilities. Complete set of desktop applications include office suite, Web browser, email and instant messaging clients, multimedia viewers, and photo organizers. Integrated system security features include firewall, spam blocker, and virus scanner.

Virtio Corporation    Campbell, CA 95008
Mar 31, 2005 Virtual Platform VPOM-V1030 uses C-code, graphical modeling, and transaction-based modeling to replicate functionality of TI's OMAPV1030 chipset in PC-based simulation. Functionality includes operation of ARM and DSP processors on chip, connectivity peripherals, and GSM/GPRS/EDGE peripherals. Able to support standard OSs and execute binary code that targets OMAPV1030 platform, software helps developers create and debug system and application code for emerging hardware.

TEGAM, Inc.    Geneva, OH 44041
Mar 31, 2005 Manufactured in compact, rack-mountable chassis, Model 2348 meets requirements for MEMS testing, transducer characterization, and pulse applications. Independent, buffered, voltage monitor output reduces output signal to 20:1 for 50 ohm inputs and 10:1 for inputs exceeding 1 Megohm. Continuous current of 750 mA is available at voltages up to 50 Vp-p, providing 18.75 W of ac or dc output power to 500 kHz.

TEGAM, Inc.    Geneva, OH 44041
Mar 31, 2005 Designed for use with Model 9070 MEMS Engine Driver System, Model 2375 features 4 channels, each rated for 20 mA continuous current with 0.2 ohm output impedance and independent voltage monitor output for use in closed loop system. Amplifier can drive capacitive loads up to 200 pF while maintaining full power bandwidth, exceeding 5 kHz. Product is suited for MEMS comb drives, cantilevered beams, and other electrostatic actuators.

Midwest Motion Products    Watertown, MN 55388
Mar 31, 2005 Accepting 12, 24, or 35 Vdc power, low noise dc Series MMP.LA-3 delivers up to 170 lb of force, and is available with stroke lengths of 50, 100, 200, 250, and 300 mm. Selection of output speeds are provided with gear ratios of 5:1, 10:1, 20:1, and 30:1. Lubricated for life, standard unit features built-in limit switches, non-rotating inner tube, aluminum outer tube, and corrosion resistance. Analog feedback potentiometer and IP65 protection are optional.

STMicroelectronics    Lexington, MA 02421
Mar 31, 2005 Fabricated using 130 nm CMOS technology, GreenFIELD STW21000 combines ARM926EJ-S MIPS RISC processor core, 16-Mbit on-chip eDRAM memory, eFPGA block, and range of analog and digital peripherals. Unit is available with on-chip multiple HDLC controllers, 10/100 Ethernet MACs, multi-channel serial port, and Power-On-Reset function. It is suited for feedforward and digital pre-distortion ratio network controllers and remote control for electrical tilt antennas.

Honeywell, Inc., Industrial Automation & Control    Phoenix, AZ 85023
Mar 31, 2005 UniSimâ„¢ includes UniSim Design Suite, which offers HYSYS® software, steady-state and dynamic simulation, design, performance monitoring, optimization, and business planning for processing plants. UniSim Operations Suite provides multi-function dynamic simulation to optimize operating capabilities and staff skills. UniSim Optimization Suite ensures responsiveness to changes in business demands through close linkages with planning, scheduling, and management functions.

A-T Controls, Inc.    Cincinnati, OH 45242
Mar 31, 2005 Constructed of 316 stainless steel, TRIAC Series 33, 43, and 53 are suited for mixing, diverting, and multi-directional flow control. Design permits in-line maintenance and features 5-seat, full-port construction to provide equal seat loading and positive sealing at any port. Balls offer L-, T-, I-, TT-Double T-, and LL-Double L-Port configurations. Valves come in 3-, 4-, and 5-way models in ¼-4 in. sizes and can be configured for ~150 flow pattern combinations.

4D Technology Corporation    Tucson, AZ 85706
Mar 31, 2005 PhaseCamâ„¢ 4010 dynamic Tywaman Green interferometer system acquires all information to compute phase in one exposure. Vibration-insensitive system includes one camera and optical phase sensor that eliminates need for phase shifters. Featuring Camera Linkâ„¢ interface and single mode, HeNe laser that eliminates mode hoping, system measures moving parts and investigates their dynamic modal behavior. It also comes with Pentium 4 computer and 4Sightâ„¢ software.

GEOCOM tms    Smyrna, GA 30080
Mar 31, 2005 A.MAZE helps shippers, couriers, and carriers optimize efficiency of local pickup and delivery operations. Mobile extension enables drivers and dispatchers to communicate in real-time concerning issues like order status, traffic conditions, or estimated time of delivery. Based on driver input, A.MAZE will modify trips on the fly, enabling companies to respond to incoming customer requests or other dynamic conditions.
