NEL Frequency Controls, Inc.    Burlington, WI 53105-0457
Apr 04, 2005 Combining encoder and motor control circuit into one unit, Hercules Smart Encoder automatically adjusts motor speed via PWM signal to modify speed as motor load changes. Unit offers bi-directional shaft direction and is available in shaft sizes of 3/8 and ½ in. Measuring 2.5 in. dia, enclosure is NEMA 6P and IEC IP67 rated with sealing in servo, flush, or flanged mounting. Factory programming includes measurements for direction, distance, speed, and/or acceleration of shaft.

ProSoft Technology Inc.    Bakersfield, CA 93311
Apr 04, 2005 Models MVI56-GSC, MVI46-GSC, MVI71-GSC, and MVI94-GSC allow users to connect barcode readers, scanners, scales, printers, and terminals to Allen-Bradley platforms. Residing in Allen-Bradley racks, single-slot, backplane-compatible modules contain 2 application ports, which permit reception and transmission of data between processor and end devices. Both ports are active ASCII ports, sending and receiving data as controlled by ladder logic and user configuration.

ProSoft Technology Inc.    Bakersfield, CA 93311
Apr 04, 2005 Conversion Modules and Stand-Alone Gateways target IEC 60870-5-101, IEC 60870-5-103, and IEC 60870-5-104 protocols. They are available as in-chassis modules for Allen-Bradley’s ControlLogix, SLC and PLC platforms, Schneider Electric’s Quantum and Unity platforms as well as stand-alone, DIN-rail mounted gateways. Module memory usage is user definable. Configuration is accomplished with user-generated text file downloaded to the module.

United Control Systems, Inc.    Princeton, NJ 08540
Apr 04, 2005 Suited for weight based process control applications, F159 Plug-In Weigh Module provides direct connectivity to Omron CJ1 series PLC. Connectivity helps simplify setup of operation, reduce wiring and interfacing cables, and reduce system configuration and programming time. Offering data processing speed of 500 times/sec, unit can handle up to four 350 ohm load cells while providing up to 1/40,000 division resolution.

ifm efector, Inc.    Exton, PA 19341
Apr 04, 2005 Used to continuously monitor compressed air systems, efector Metris divides plant into zones based on number of fittings and potential leakage points in any area. Sensor can be mounted in supply pipe to monitor one machine or in plant zone to monitor several machines, sensing compressed air levels when equipment is on or off. Micro DC, PNP sensor models SD6001 and SD8001 have respective measuring ranges of 0-44 and 0-132 scfm.

Pigeon Point Systems    Scotts Valley, CA 95067 6989
Apr 01, 2005 IPM Sentry ShMM-500 enables interoperable management of open modular platforms based on Intelligent Platform Management Interface standard. Using MIPS-32 based AMD Alchemy Au1550 System-on-Chip, ShMM-500 facilitates shelf and board start-up and event processing, responsive interaction with external system managers, and capacity to host layered applications. With SO-DIMM form-factor, unit can be mounted in variety of locations and orientations within subrack.

Chromalox    Pittsburgh, PA 15238
Apr 01, 2005 Corrosion-resistant Model HD3D provides comfort heating and freeze prevention in harsh, corrosive, dirty, and wet environments. With stainless steel brackets, hose-down unit can be directly mounted to wall or ceiling. NEMA 4X control box is located on front of heater. Wiring connector provides watertight seal in event of replacement of motor, limit control, or elements. Heater is suited for wastewater treatment plants, steel mills, ships, car washes, and foundries.

GE Inspection Technologies, GmbH    Huerth 50354  Germany

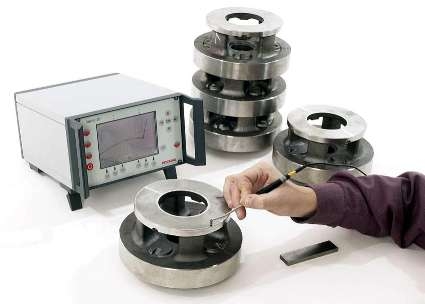

Apr 01, 2005 Dual-frequency Vector 2d offers single-page set-up menu and 6 soft keys for programming of parameters. Filter prevents long-term spot drift caused by changes in parameters and eliminates interference. During crack detection or hardness sorting, output of unit can activate paint marking system, alarm signal, or accept/reject gate. Vector 2d provides real-time display of all inspections, and can save up to 50 traces and 50 settings internally.

Stackpole Electronics Inc.    Raleigh, NC 27604
Apr 01, 2005 Featuring open air design, BR Series flameproof current sense resistor has resistive element with off-board design that keeps hot spot safely off PC board. Product, rated from 1–5 W @ 85ºC, withstands up to 70 A of current and offers resistance values from 0.005–0.1 ohm. Series features tolerances down to ±1%, TCRs as low as +20 ppm/ºC and operating temperature range of –40 to +125ºC. It is suited for motor control and power regulation applications.

Dosch Design US Shipping Ctr.    Altoona, PA 16602
Apr 01, 2005 Dosch LayerFX: Global Tech offers templates for global communication and technology. Images help visualize modern technologies, world spanning communications, business and activities, DTP work, and business reports. All motives are set up as Photoshop layers and can be changed and tweaked for maximum individuality. Dosch LayerFX products are suited for creating illustrations, cover pictures, product advertising, annual and business reports, and event artwork.

RF Micro Devices, Inc.    Greensboro, NC 27409-9421
Apr 01, 2005 Half-watt Model RF3807 and 2 W Model RF3809 are single-stage GaAs HBT pre-driver amplifiers that operate across CDMA, GSM, DCS, PCS, and UMTS frequencies. Operating in UMTS frequency band, Model RF3807 provides +28.5 dBm output power, +40% power efficiency, and +42 dBm linearity, while Model RF3809 provides +33.5 dBm output power, +43% power efficiency, and +43 dBm linearity. Units are housed in lead-free, thermally enhanced, plastic SOIC-8 packages.

Interpower Corporation    Oskaloosa, IA 52577-0115
Apr 01, 2005 Configured with 6 outlets, Japanese Socket Strip is rated for max of 15 A with service at 125 Vac. It includes lighted reset switch and 2.07 m power cord. Unit is suited for multiple temporary tap connections.

Besa Lighting Company, Inc.    Columbus, OH 43219
Apr 01, 2005 Series P Fixtures contain three 12 V mini pendants offered in 15 different shade styles and 100 colors. Centered pendant is suspended directly from canopy while outer pendants can be positioned at desired distance to create custom lighting effect. Pendants are suspended with 2 skyhooks and 10 ft of Teflon®-coated coaxial cord suitable for standard and vaulted ceilings. Fixtures are used with 50 W halogen lamps and 60 W Class 2 transformers.

Interface Concept      France
Apr 01, 2005 Designed around PowerPC® MPC7447A processor, Model IC-e6-PMCa offers speeds to 1.5 GHz, 512 MB DDR333-ECC SDRAM, and 64 MB Flash EPROM. It includes 3 Giga Ethernet channels, 2 multi-purpose serial controllers, backup SRAM, RTC, temperature sensor, and JTAG/COP interface for probe debugging. Optional SODIMM socket on PMC back side allows expandable SDRAM capability. On-board firmware enables Power-on Built In Test booting and remote software downloading over Ethernet.

Linear Technology Corp.    Milpitas, CA 95035
Apr 01, 2005 Inductorless fractional charge pump, Model LTC3215 features multi-mode architecture that automatically switches between 1, 1.5, or 2x boost modes by monitoring voltage across LED current source and switching modes only when ILED dropout is detected. Built-in soft-start circuitry prevents excessive inrush current during start-up. Housed in 3 x 3 mm, 10-lead DFN package, Model LTC3215 offers switching frequency of 900 kHz and is suited for video and flash applications.

Taiyo Yuden (USA), Inc.    Schaumburg, IL 60173
Apr 01, 2005 With 3.2 x 2.5 mm footprint, Model CBC3225-4R7MR is designed specifically for space-critical dc/dc converter choke coil applications in battery-powered portables. Unit is rated 4.7 µH and housed in EIA standard 1210 case. Non-polarized electrodes allow mounting in any orientation on circuit board. Applications include cellular phones, digital cameras, PDAs, and other ultra-portable electronic devices.

Thermal Dynamics Corp.    Chesterfield, MO 63017

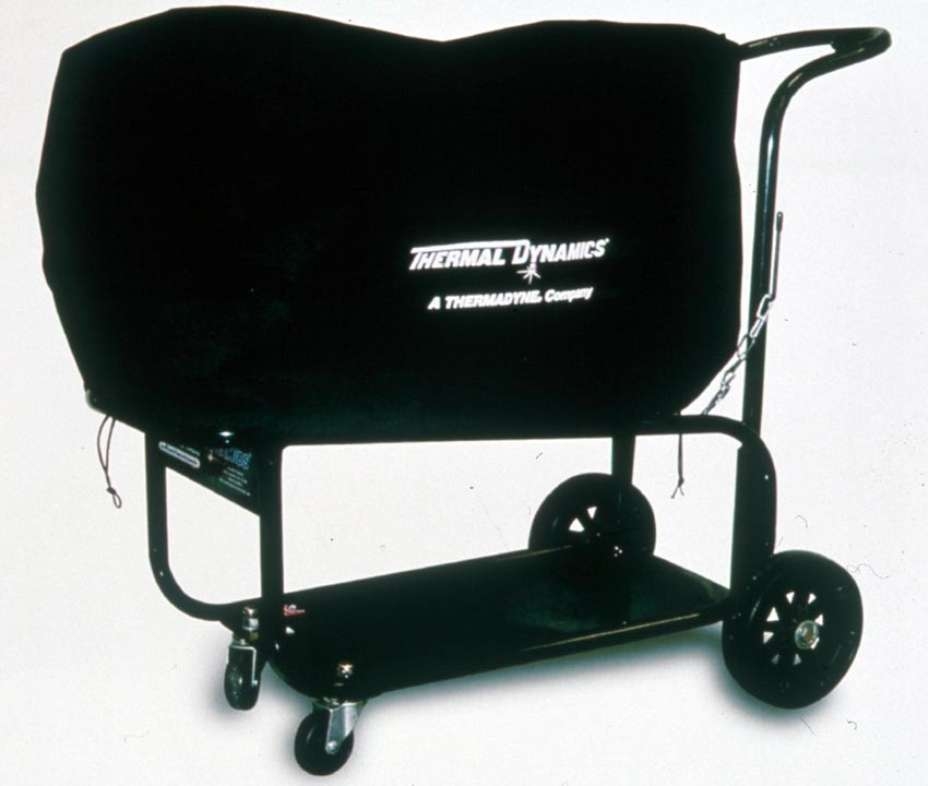

Apr 01, 2005 Designed for CUTMASTER(TM) and PakMaster® power supplies, dust covers are constructed of durable, heavyweight black nylon canvas. Available in 3 sizes, they are water resistant and feature large outer pocket for storing manuals or spare consumables. Adjustable draw cord ensures tight fit while reinforced and finished seams keep them strong and sealed.

Bussmann Div., Cooper Industries    St. Louis, MO 63178
Apr 01, 2005 UL Listed and CSA Certified Bussmann® Safety Moduleâ„¢ with easyIDâ„¢ window enables maintenance personnel to identify open fuses without opening enclosure. Offering range covering 1–100 A applications, unit features CUBEFuseâ„¢ finger-safe, time-delay, current-limiting fuses, and rejection kits are available to prevent overfusing 30 A and 60 A circuits. Modules are available in NEMA 1, 3R, 12 and 4X enclosure styles.

Bison Gear & Engineering Corp.    St. Charles, IL 60174
Apr 01, 2005 Industrial Design Studioâ„¢ team can be assembled to design and prototype gearmotor, complete drive system, or complete machine. Engineers and scientists have access to: CAD, CAE, FEA, electric motor design software, system modeling tools, and Triz software. Designing for manufacturability, team utilizes dedicated prototype facility with machining centers for rapid prototyping, and environmental testing lab for life cycle, and UL and CE testing.

Baldor Electric Company    Fort Smith, AR 72901
Apr 01, 2005 Super-E® brake motors have ISR magnet wire and are inverter-ready. They feature 20:1 constant torque speed range when used with adjustable speed drive, and spring-set brake is mounted opposite drive end, providing NEMA standard foot mount spacing. Features include 230/460 V brake coils, 1-30 hp, 1,780 rpm, and TENV or TEFC enclosures. Super-E Washdown ½-5 hp brake motors, designed for food processing applications, are also available.
