Advanced Anti-Vibration Components - AAC    New Hyde Park, NY 11040
Apr 14, 2005 Series V10Z4 features Finger Flex ring and bushing isolators designed for loads up to 37 lb per mount. Radial fingers on top and bottom surfaces absorb vibration parallel to axis of mounting. Available in 30 and 60 durometer hardness, corrosion-resistant, zinc-plated mounts feature natural frequencies from 6-30 Hz, 1 1/8 in. freestanding height, 2 3/8 in. square base dimension, and 4-hole tie-down pattern that conforms to MIL-Size 2.

Advanced Anti-Vibration Components - AAC    New Hyde Park, NY 11040
Apr 14, 2005 Light-duty Series V10Z22 ranges in static load capacity from 1.55-132.30 lb with natural frequency of 7-10 Hz vertical and 4.5-6 Hz transverse, for displacement input of ±.030 in. Units have stainless steel springs and mesh pads enclosed in aluminum alloy housing. Heavy-duty Series V10Z28 ranges in static load capacity from 10-1,000 lbs with natural frequency of 13-17 Hz for amplitude of ±.012 in. Units feature knitted stainless steel mesh and Alochrome 1200-coated aluminum alloy housings.

Applied Process Technology,Inc    Conroe, TX 77304

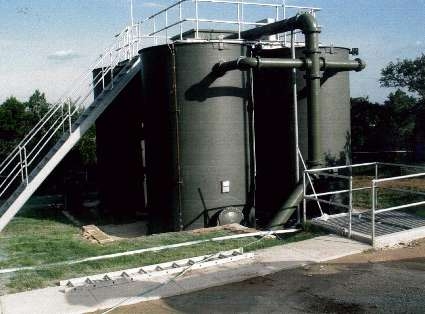

Apr 14, 2005 Available with throughputs from 10-10,000 gpm, Centra-flo(TM) Upflow Filter provides continuous supply of filtered water without interruptions for backwash cleaning cycles. It combines upflow design with deep bed filtration for low headloss at varying flow rates. Unit has no internal or external moving parts. Continuous backwash design provides steady reject stream that eliminates backwash hydraulic surges.

Norgren    Littleton, CO 80120

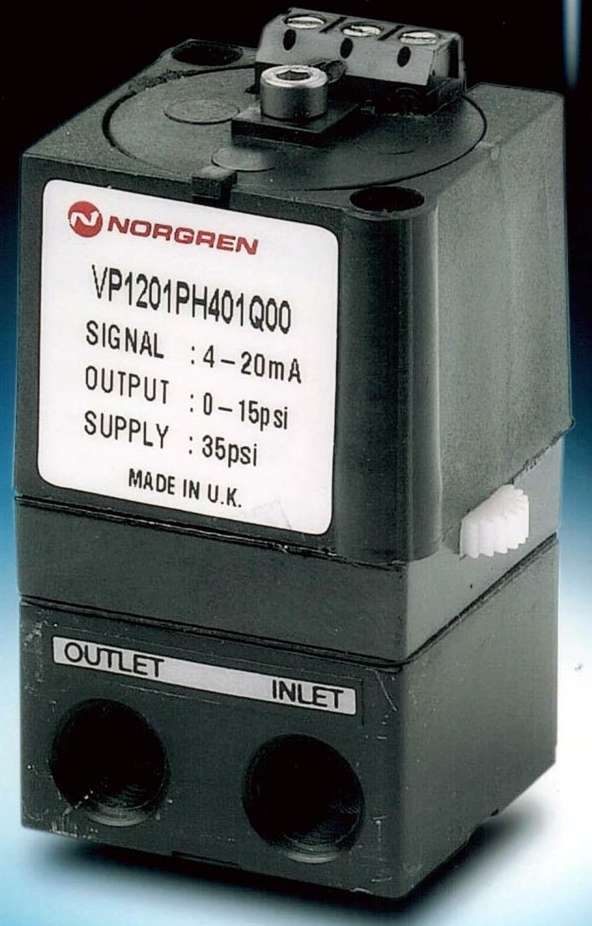

Apr 14, 2005 With design that optimizes use of space, VP12 Miniature Proportional Motion Control Valve features IP30 weatherproof protection and operating temperature range of 32 to 140°F. Valve enters fail safe mode upon loss of signal or power, and is available in pressure ranges up to 116 psi with has max flow capacity of 200 L/min. Product is suited for applications within automotive, packaging, process, and medical industries.

Sipex Corp.    Miliptas, CA 95035-1701

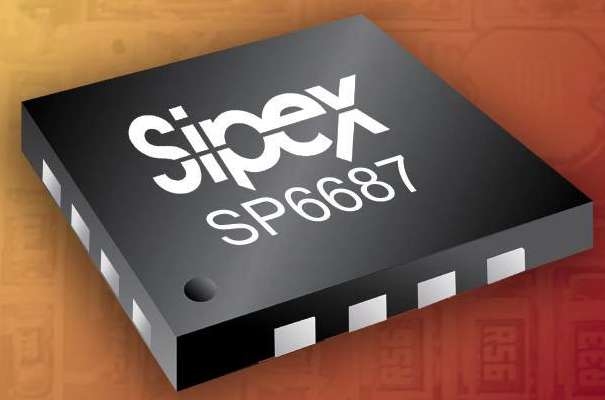

Apr 14, 2005 Used for backlighting color displays in portable applications, SP6687 charge pump can generate regulated output current using 3 operating modes: linear regulator, 1.5x charge pump, or 2x charge pump. Architecture has 1 µA shutdown current and built-in soft start. Providing matched current source of up to 120 mA total for all channels, driver is designed with integrated current sense circuitry and operates at 1 MHz with 95% peak efficiency.

Kistler Instrument Corp.    Amherst, NY 14228 2119

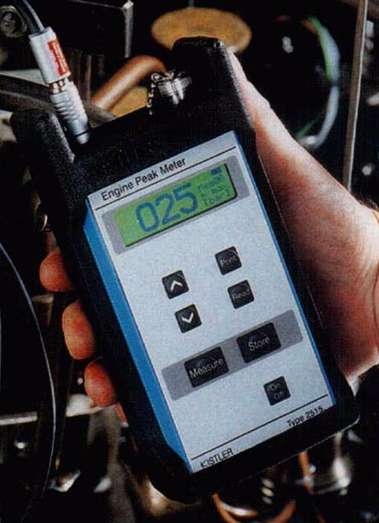

Apr 14, 2005 Equipped with LCD, 300 Hz Butterworth low pass filter, and RS-232 interface capability, Type 2515A1 engine peak meter simplifies maintenance and monitoring programs. Calculations include arithmetic mean value of peak pressure, standard deviation, steepest slope of pressure curve, and engine speed. Able to operate for 20 hr from 9 V battery, unit provides data storage for 36 successive pressure cycles and can store waveforms from 20 locations.

North American Video    Brick, NJ 08723

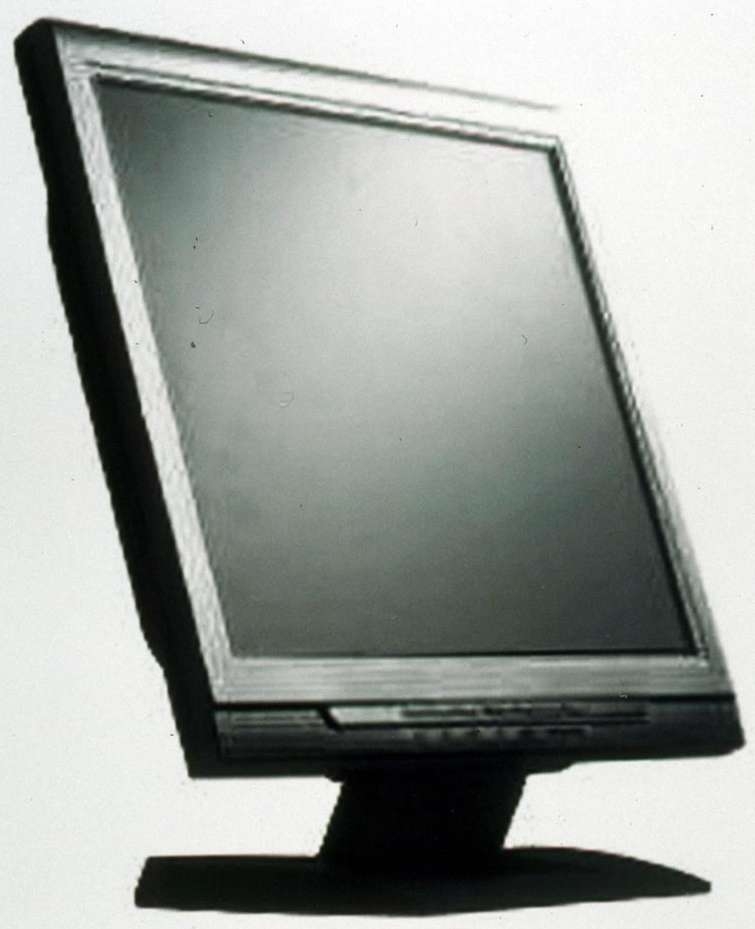

Apr 14, 2005 Flat screen displays, offered in 15, 17, and 20 in. models, come with jack pack for multiple inputs and VESAâ„¢ mounting interfaces. With 1024 x 768 resolution and 250 cd/m2 brightness, NAVLCD15 offers 400:1 contrast ratio, built-in speakers, and distortion-free viewing. NAVLCD17, offering 1280 x 1024 resolution, has 450:1 contrast ratio. For viewing by larger audience, NAVLCD20 offers 500:1 contrast ratio, 800 x 600 resolution, and 500 cd/m2 brightness.

Beckman Coulter, Inc.    Fullerton, CA 92834-3100

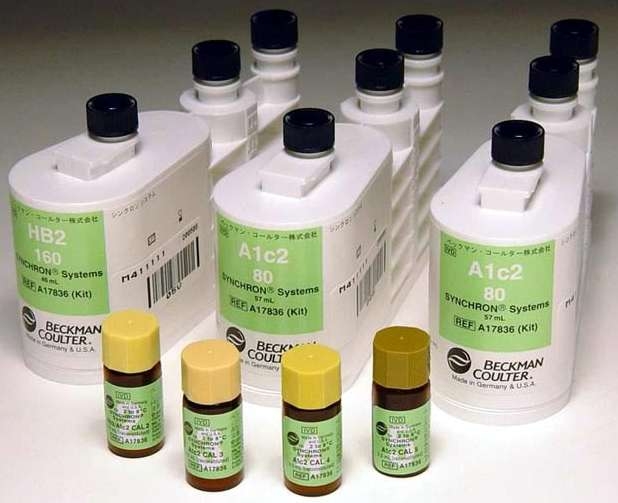

Apr 14, 2005 Hemoglobin A1c2 (HbA1c2) ready-to-use liquid reagent helps clinical laboratories automate process steps for testing and monitoring of diabetic patients. Bar-coded assay, which offers efficient measurement of hemoglobin A1c in whole blood, is available on SYNCHRON LX® chemistry systems. Analyzer proportions appropriate pre-treated sample and reagent volumes into cuvette then monitors change in absorbance at 340 nm.

Wisconsin Infrared Systems    East Troy, WI 53120

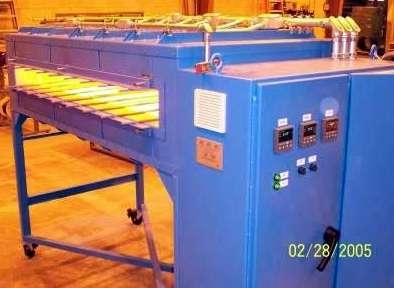

Apr 14, 2005 Featuring 3 zones that provide uniform heat across web, model Web Dryer/IR/E removes moisture on steel web from 1/8-½ in. thick. Oven uses medium-wave, rapid response heaters and lets users turn off zones when drying smaller web widths. With heaters mounted to heat from top-down and bottom-up, unit can operate coil temperatures up to 2,000°F. Casters enable unit to be moved off web line as required and heating capacity is rated at 200 kW.

CDCLarue Industries, Inc.    Sand Springs, OK 74063
Apr 14, 2005 Hum-B allows users to stand upright during operation. Equipped with 6,000 rpm Dewalt grinder, 12-segment diamond wheel, and 5 in. caster wheels, unit features gas-filled shocks for level grinding. Product, suited for use on concrete, stone, or masonry, is also equipped with 150 W halogen light, 2 in. vacuum port, and Dust Grabber shroud, providing 99% dust-free performance with no suction lock.

Bomar Interconnect Products    Ledgewood, NJ 07852

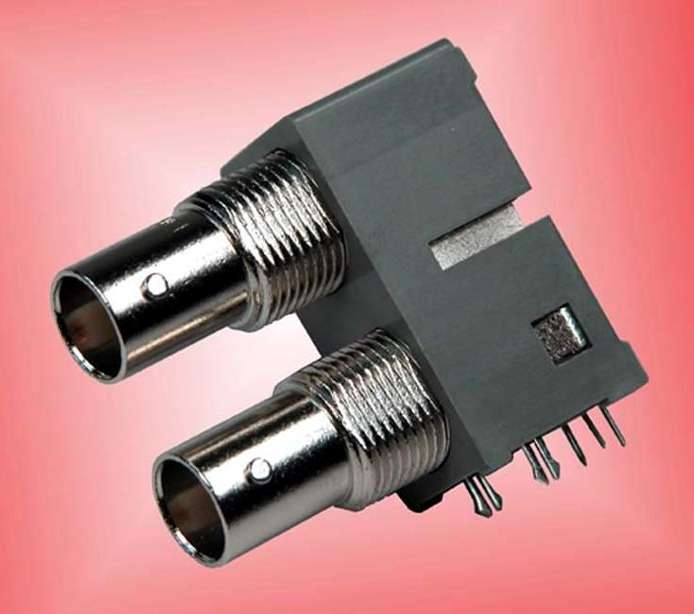

Apr 14, 2005 Panel-grounded, dual BNC connector, Model X-2â„¢ is nickel-plated zinc with gold-plated contacts and gray insulation outer cover. With optional metal back cover, unit offers 100% full shielding. Featuring quick-connect characteristics, connector is provided with impedance of 50 or 75 ohms, and in vertical or right angle stacked configurations. It offers VSWR to 500 MHz and meets or exceeds mechanical, electrical, and environmental standards for broadcast connectors.

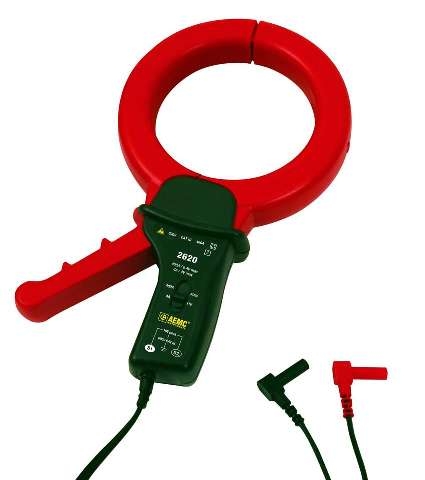

AEMC Instruments    Foxborough, MA 02035
Apr 14, 2005 Probe Model 2620 measures leakage current shunted to ground caused by insulation faults. Nickel alloy AC current transformer measures differential or leakage current as low as 500 µA, and can also measure current up to 400 A continuous duty. With 4 in. jaw opening to handle multiple or large conductors, Model 2620 can also be used as clamp-on current probe to provide unbalanced current measurements, leakage values on grounding conductors, and ground loop currents.

Pneumadyne, Inc.    Plymouth, MN 55441
Apr 14, 2005 Pneu-Edgeâ„¢ fittings feature sharp, single-barb design that provides tight grip and seal. Precision machined barbs ensure permanent tubing installation without need for clamps. Straight connectors, tees, elbows, crosses, and couplings are available to accommodate various fluid handling circuits.

Greenlee Textron, Inc.    Rockford, IL 61109
Apr 14, 2005 Model 8600 is used to cut ½ and ¾ in. EMT electrical conduit in residences, industrial plants, and offices. Cutting wheel features shoulder that prevents it from cutting completely through conduit wall, eliminating need to debur inside after cut is made. Other features include heavy-duty cast body, smooth spindle knob for easy gripping, and replaceable cutter wheel.

SBS Technologies Inc.    Albuquerque, NM 87110
Apr 14, 2005 Featuring line traffic management that supports CBR and VBR, Telum 1001-DE DS3/E3 ATM network adapter supports full-duplex ATM DS3/E3 port for protocol data unit sizes as small as 2 cells. IPMI microcontroller subsystem initializes board-level parameters and monitors board voltage and temperature while maintaining system status. Channel and Digital Service Unit provides line alarm conditions and performance data monitoring statistics.

Rabbit Semiconductor    Davis, CA 95616
Apr 14, 2005 RabbitCore Modules, bundled with A7 Engineering's Bluetooth® Radio feature, provide users with reliable wireless solutions for Bluetooth, Wi-Fi, and GPRS/GSM. Bluetooth capability can be added to existing applications that are based on select versions of the RabbitCore and Z-World single board computers (SBCs) by using Bluetooth Add-On Kits.

Geotest - Marvin Test Systems, Inc.    Irvine, CA 92614-5846
Apr 14, 2005 With 14 pre-defined measurement functions, GC22x0 Series features internal clock source, programmable ARM source, and microprocessor. Model GC2210 measures frequencies from DC to 225 MHz with 9-digit resolution, while GC2220 measures from DC to 1.3 GHz with 100 pS resolution. Each input channel is programmable for 1 Megohm or 50 ohm input impedance. Able to determine any frequency to 0.1 ppm in 1 ms, GC2230 covers frequencies up to 2.0 GHz.

French Technology Press Office, Inc.    Chicago, IL 60601
Apr 14, 2005 Built on Microsoft's .net platform, BaracodaManager v3 helps developers integrate mobile data capture solutions. It allows barcodes to be entered into any application, and can manage Bluetooth links between host and Baracoda barcode reader. Product provides buffer memory management for 2,604 scanners with integrated memory, and manages multiple scanners with simultaneous connection to single host terminal.

Master Bond, Inc.    Hackensack, NJ 07601
Apr 14, 2005 Suited for bonding, coating, sealing, and casting, EP30LV bonds to similar and dissimilar substrates. Once hardened, product provides electrical insulation with service operating temperature of -60 to +250°F. Formulation is 100% reactive and does not contain solvents or other volatiles. Bonds are rigid and resistant to water, oil, and most organic solvents. Epoxy offers tensile strength of greater than 9,500 psi and dielectric strength of 440 V/mil.

Mettler Toledo, Inc.    Columbus, OH 43240
Apr 14, 2005 VirtualLab® integrated informatics platform provides extensible solution for workflow automation, instrument integration, and electronic laboratory notebook functionality. Designed to control R&D costs and speed new product development, software offers features that facilitate parallel experimentation while integrating process and analytical information. It promotes department-wide knowledge generation and dissemination through entire development process.
